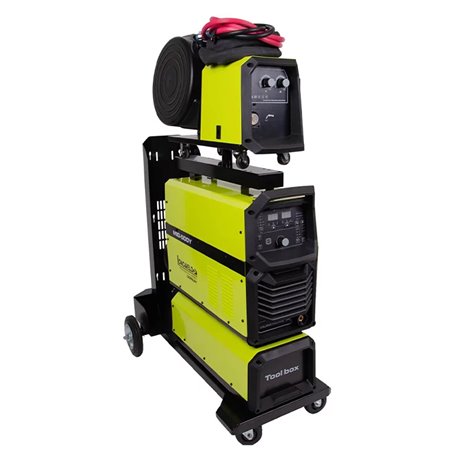

LONGWELD MIG-500Y Semi-Automatic welding machine

MIG-500Y

It is a mobile, robust and reliable industrial welding source with pulse function. Together with the wire feed mechanism, it is simply the perfect solution for welding jobs that require pulse mode. Large side panels provide easy access to internal components. The source comes with a sturdy trolley, torch and cable holder: Your work will be not only productive, but also comfortable!

More details

1 500,00 € tax incl.

Ask about product
LONGWELD MIG-500Y Semi-Automatic welding machine

LONGWELD MIG-500Y Semi-Automatic welding machine

It is a mobile, robust and reliable industrial welding source with pulse function. Together with the wire feed mechanism, it is simply the perfect solution for welding jobs that require pulse mode. Large side panels provide easy access to internal components. The source comes with a sturdy trolley, torch and cable holder: Your work will be not only productive, but also comfortable!



More info

LONGWELD MIG-500Y Semi-Automatic welding machine

Technical specifications:

  • Manufacturer - LONGWELD
  • Input power - AC 380V ±15% 3 phase. 50/60Hz
  • Technology - IGBT
  • Input power - 19 kWA
  • MIG output range - 50-500 A
  • No-load voltage: 80 V
  • Processes - MIG/MMA, LIFT TIG function
  • Electrode diameter - 1.6~6 mm/li>
  • Duty cycle - 60%
  • Wire diameter - 0.8 / 1.0 / 1.2 mm
  • Coil size- 5kg (200mm) 15kg (300mm)
  • Number of feed wheels - 1 wheel
  • Protection class - IP21
  • Insulation class- F
  • Cooling method - Air
  • Dimensions - 1070x430x1350mm
  • Weight - 91.4 kg

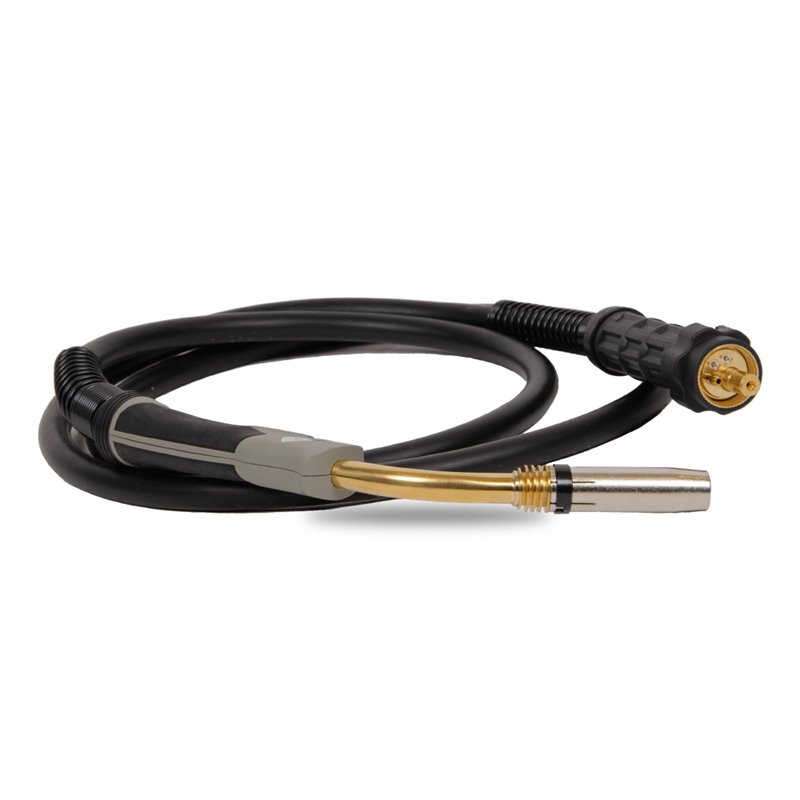

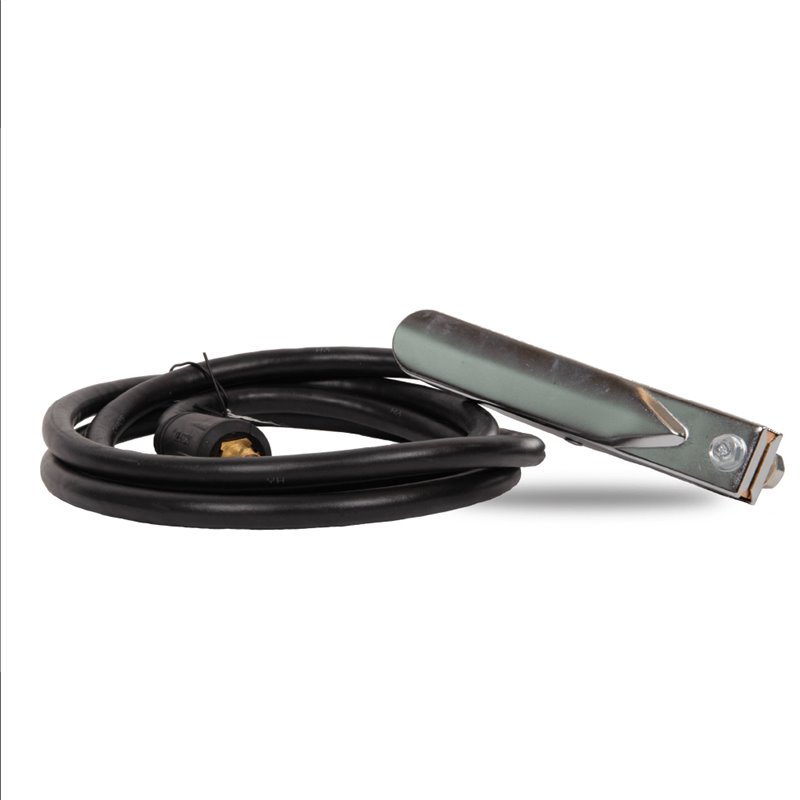

  • Complete set - MIG torch, mass cable with clamp, cable with electrode holder.
  • Warranty - 24 months.
