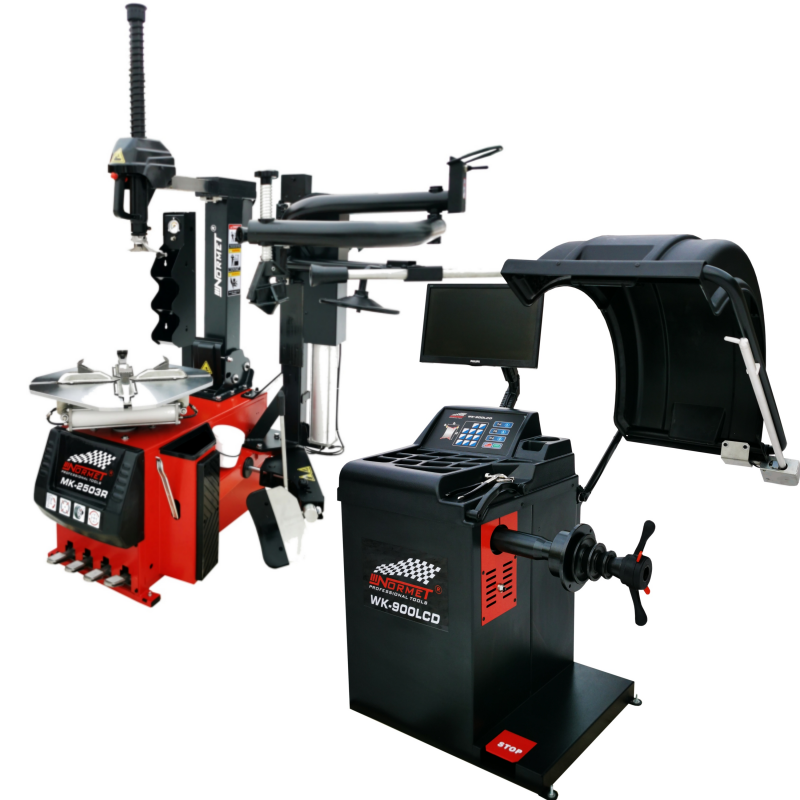

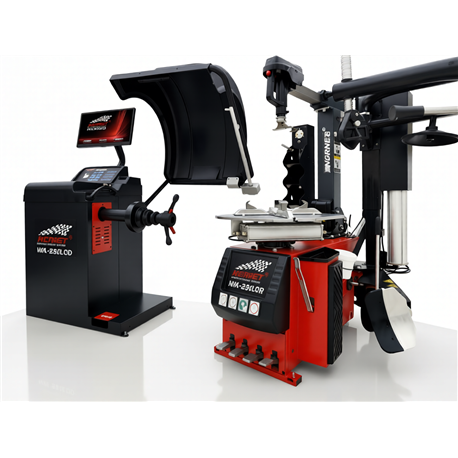

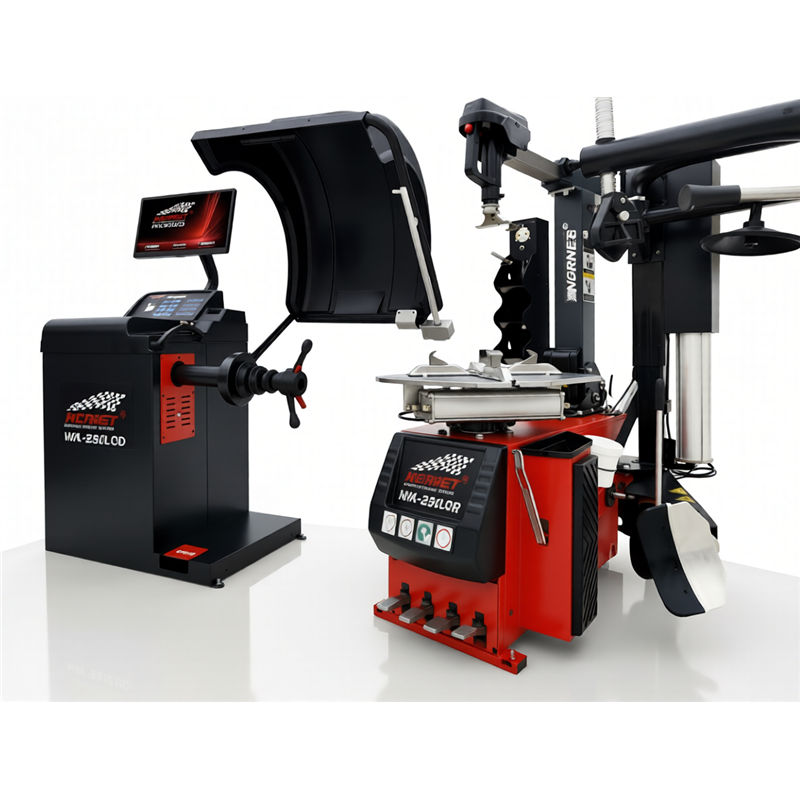

NORMET Wheel Balancer WK-900LCD and Automatic tire installer MK-2503R assembler

WK-900LCD-MK-2503R

New product

NORMET set up Wheel Balancer WK-900LCD and Automatic tire installer MK-2503R assembler

More details

3 993,00 € tax incl.

Ask about product
NORMET Wheel Balancer WK-900LCD and Automatic tire installer MK-2503R assembler

NORMET Wheel Balancer WK-900LCD and Automatic tire installer MK-2503R assembler

NORMET set up Wheel Balancer WK-900LCD and Automatic tire installer MK-2503R assembler



More info

NORMET MK-2503R is an automatic tire installer for passenger cars, off-road vehicles, and delivery vans, supporting rims up to 26" and equipped with a special arm for RUN-FLAT tires.

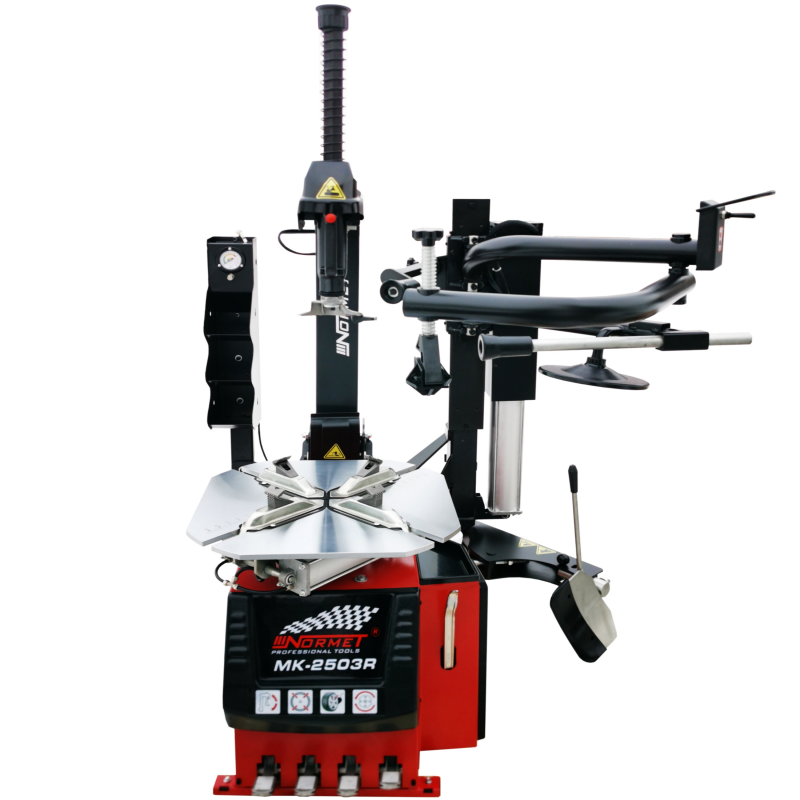

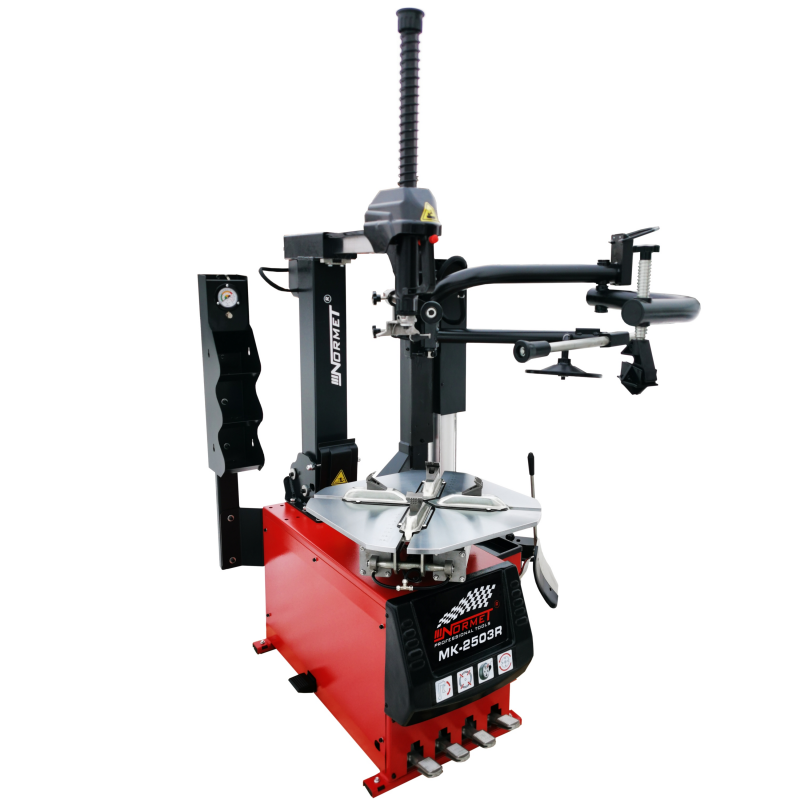

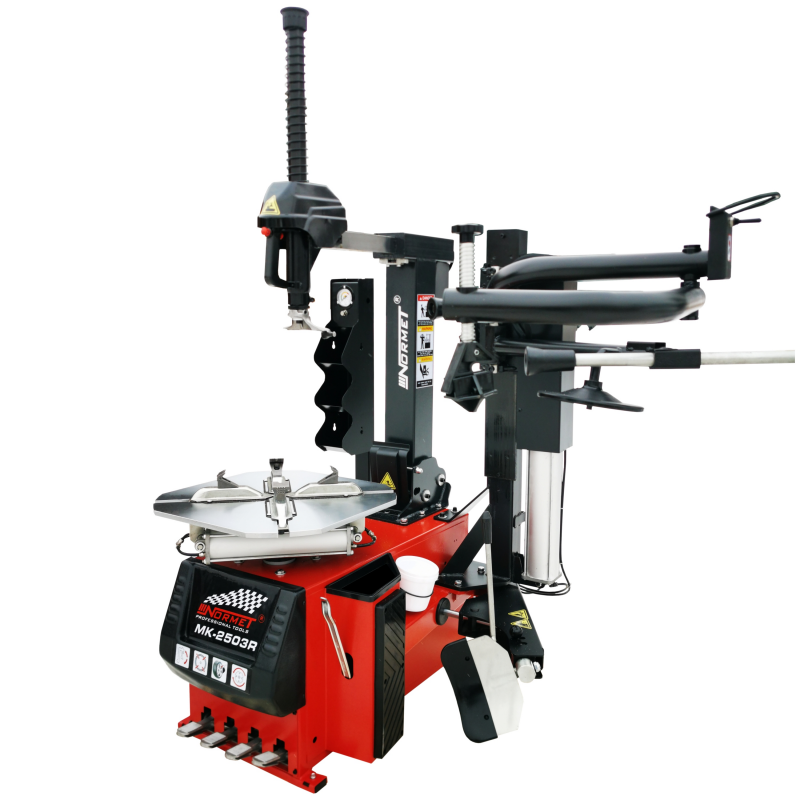

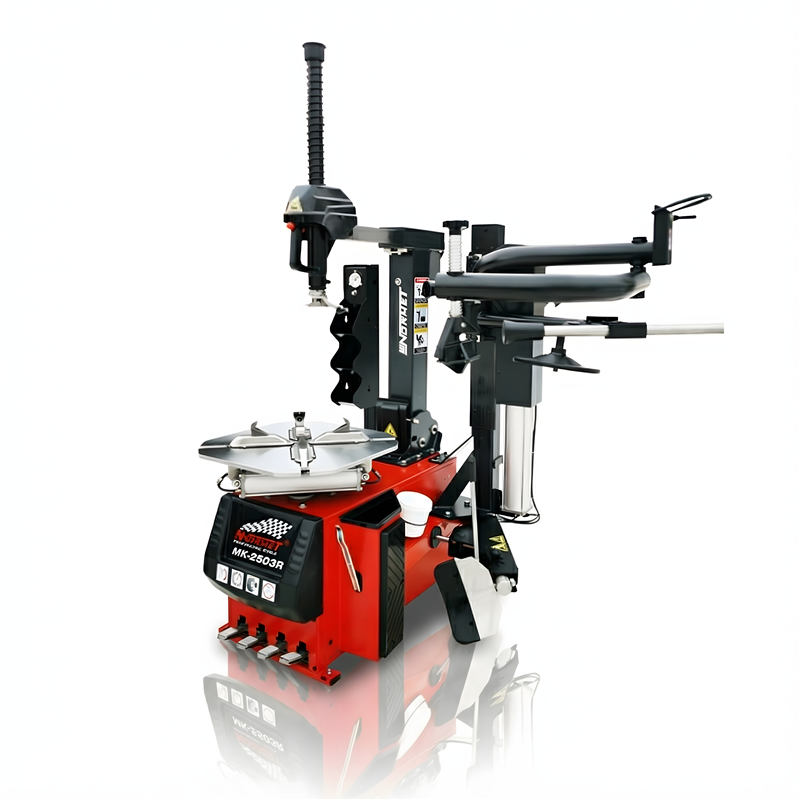

Automatic tire installer.  NORMET MK-2503R

This mounting device is intended for the installation of tires for passenger cars, off-road vehicles and delivery vans up to 24', as well as thanks to an additional 3 R arm for RUN-FLAT tires

Solid construction, nthe highest diligence of laser cutting, automatic welding process and the use of the highest quality materials guarantee excellent product quality and many years of failure-free operation.

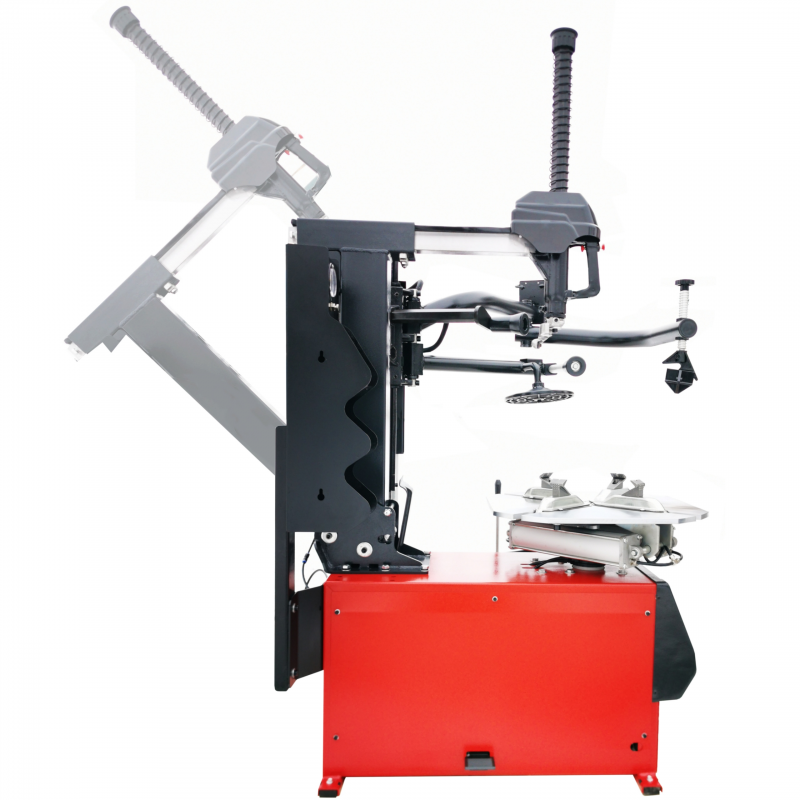

The mount has a pneumatically rear-hinged main frame.

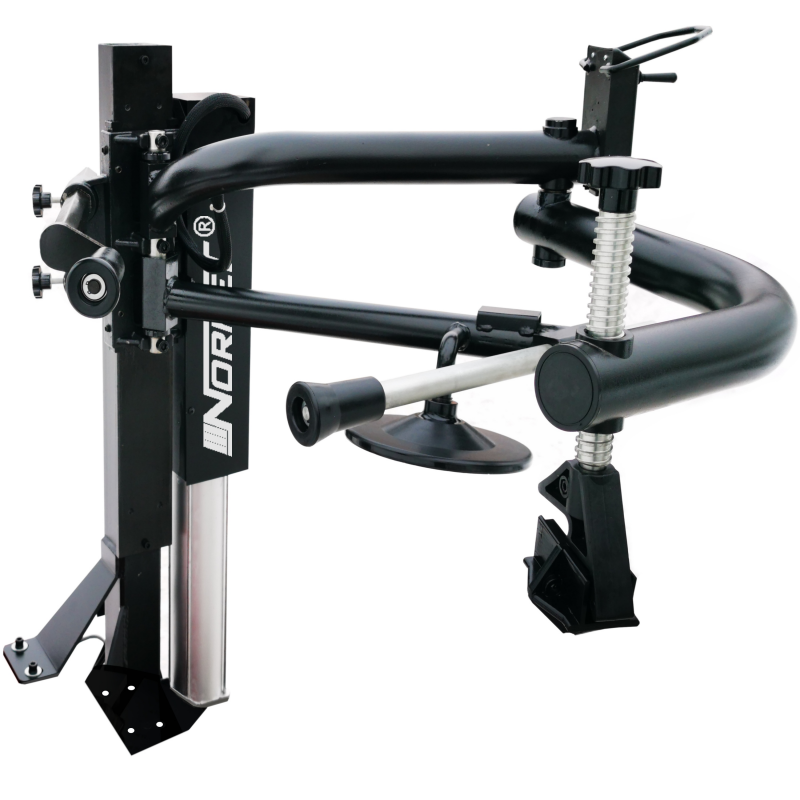

Additional 3 R auxiliary frame for RUN-FLAT tires.

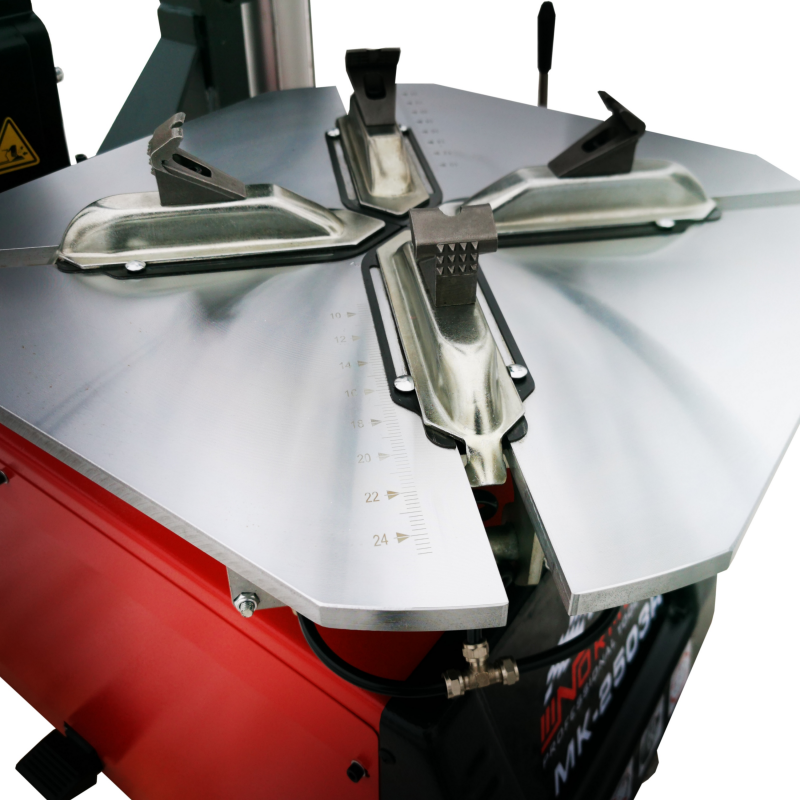

Large rotary table up to 26" (24" from the outside )

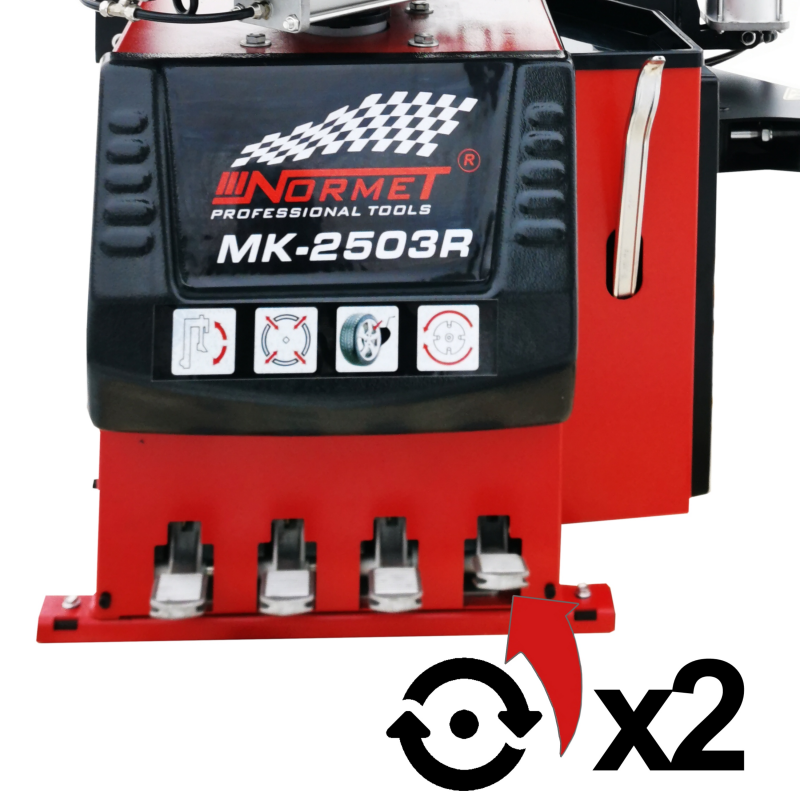

Two table speeds.

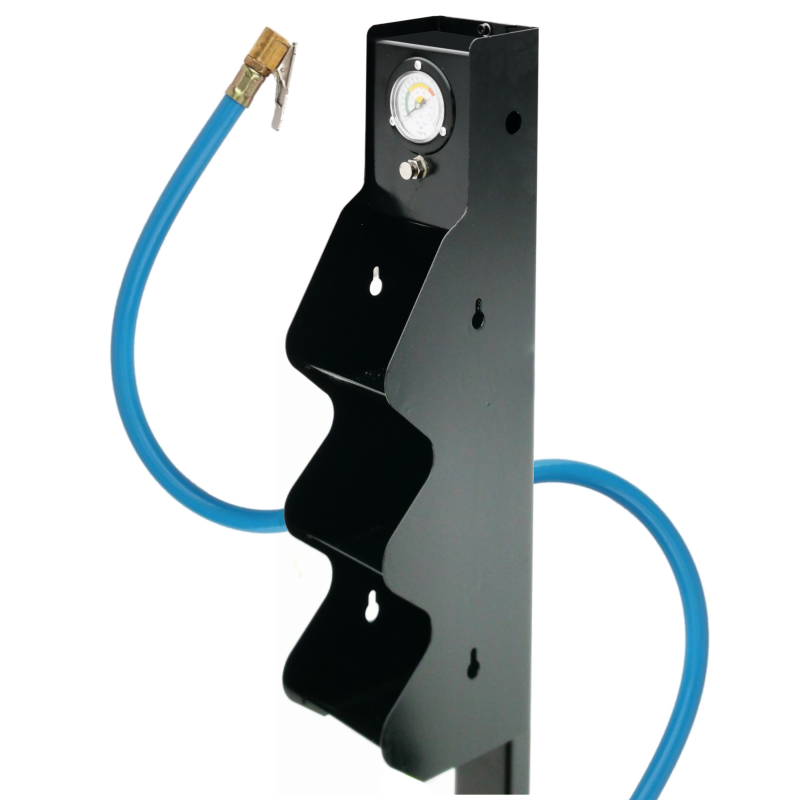

An additional advantage is the tire inflation gun,

with foot control and a long hose, built into a practical shelf, which significantly improves work comfort.

New stronger dodgeball with double extension adjustment.

At a pressure of 8 bar, the force of the dodgeball is 2,600 kg

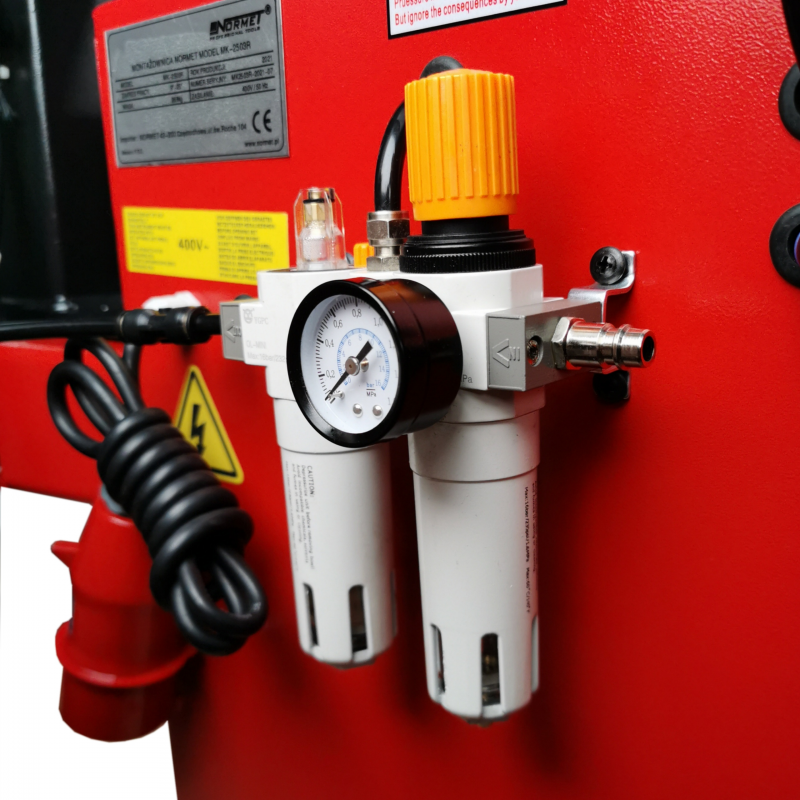

Air preparation kit.

A professional air preparation kit ensures that the device properly lubricates all required elements, which significantly extends the durability of the machine

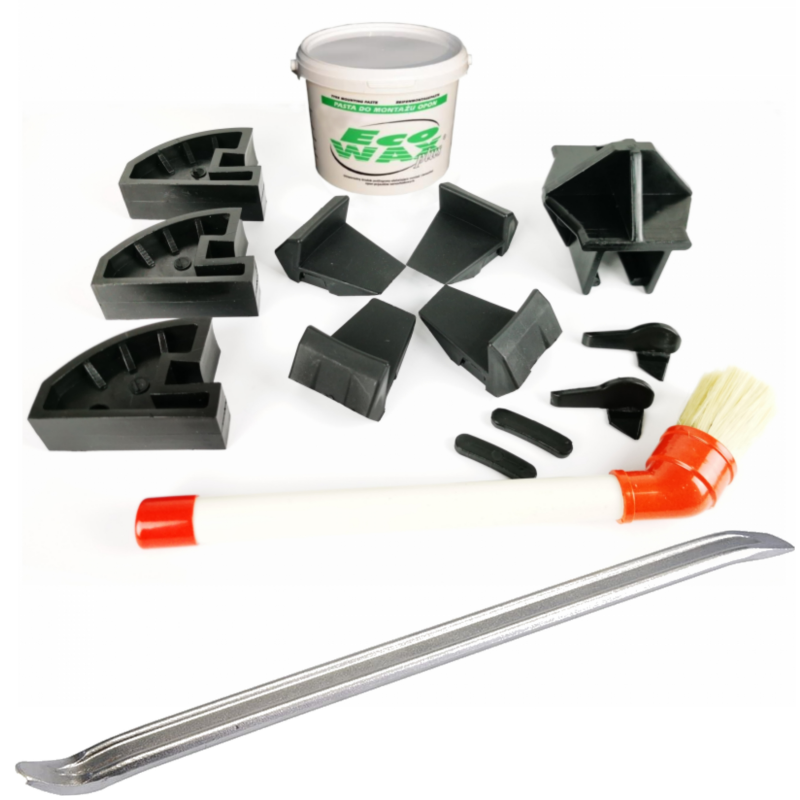

The equipment includes:

Brush x 1pc

Tire bucket x 1 pc

Tire paste x 1op

Pressure so-called "Third hand" x 3 pcs

Wheel centering cone, for 3 R RUN-FLAT arm x 1 pc

Protective caps for jaws, for aluminum rims x 4 pcs

Protective insert of the mounting foot, for aluminum rims x 2 pcs

Mounter foot slide, for aluminum rims x 2 pcs

SPECIFICATION:

Power supply [V] 400 V
Engine power [kW] 1,1 kW
Supply pressure [bar] 8 bar
Height [mm] x
Width [mm] x
Depth [mm] x
Weight [kg] 226 kg
Dodgeball force 2600 kg
Rim mounting from the inside 13"-26"
Rim mounting from the outside 9"-24"
Max. wheel width 3"-14"
Max. wheel diameter 1050 mm
Run-flat arm YA
Table rotation speed 2 speeds
Pumping gun YA

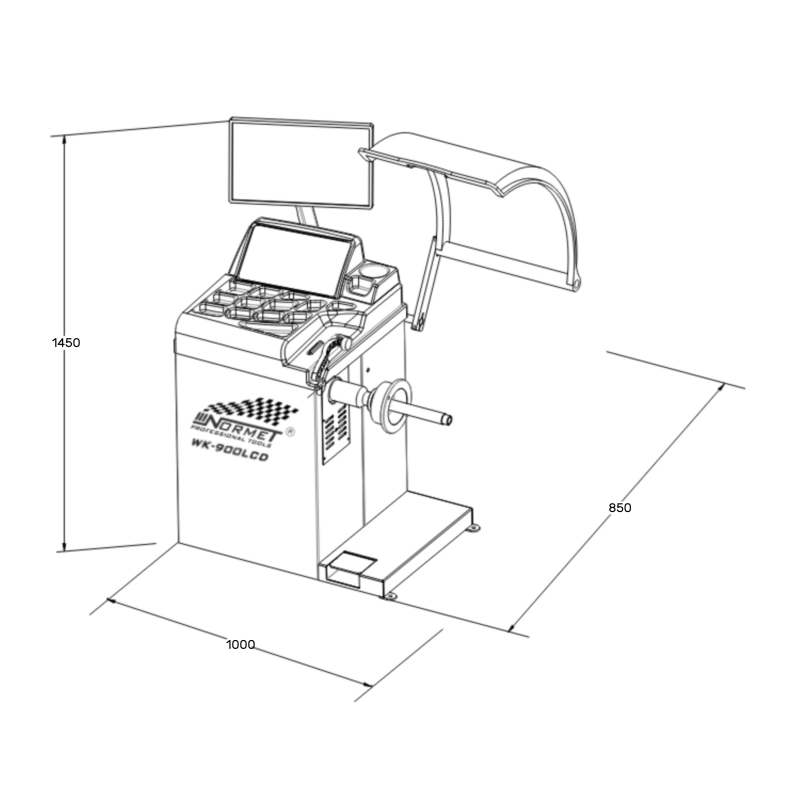

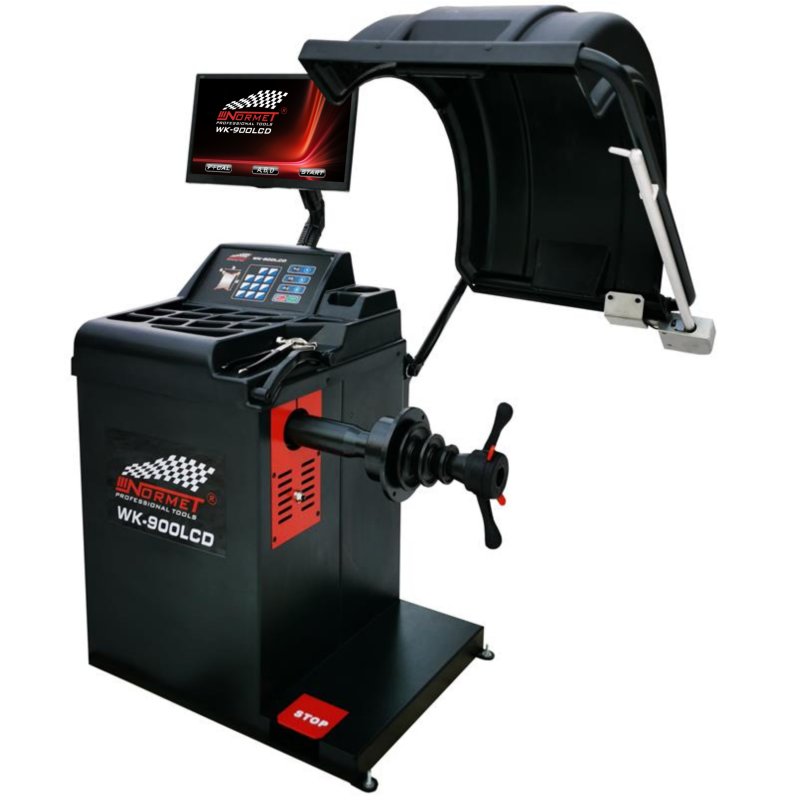

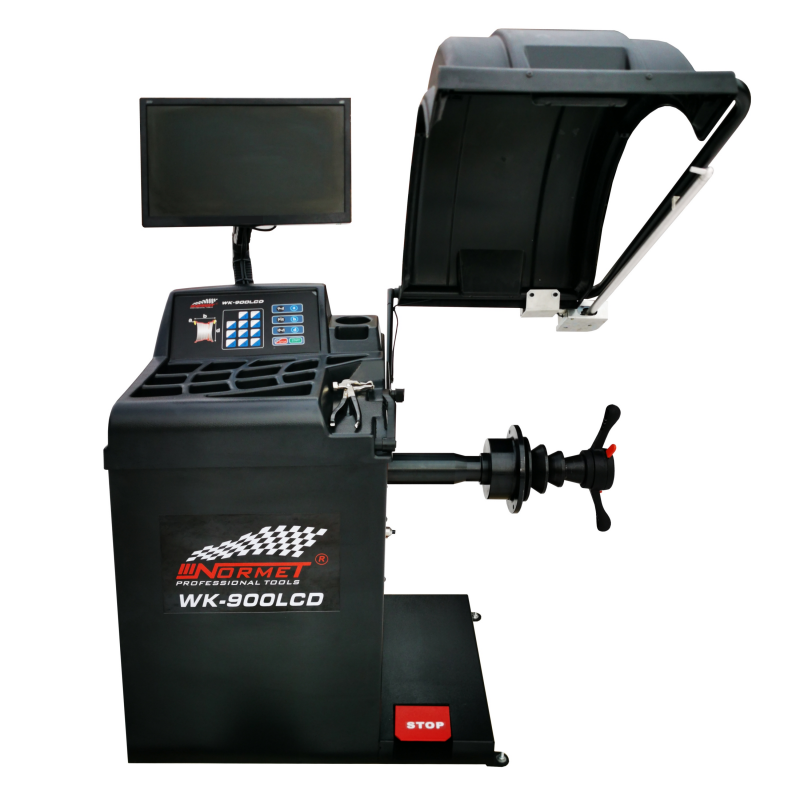

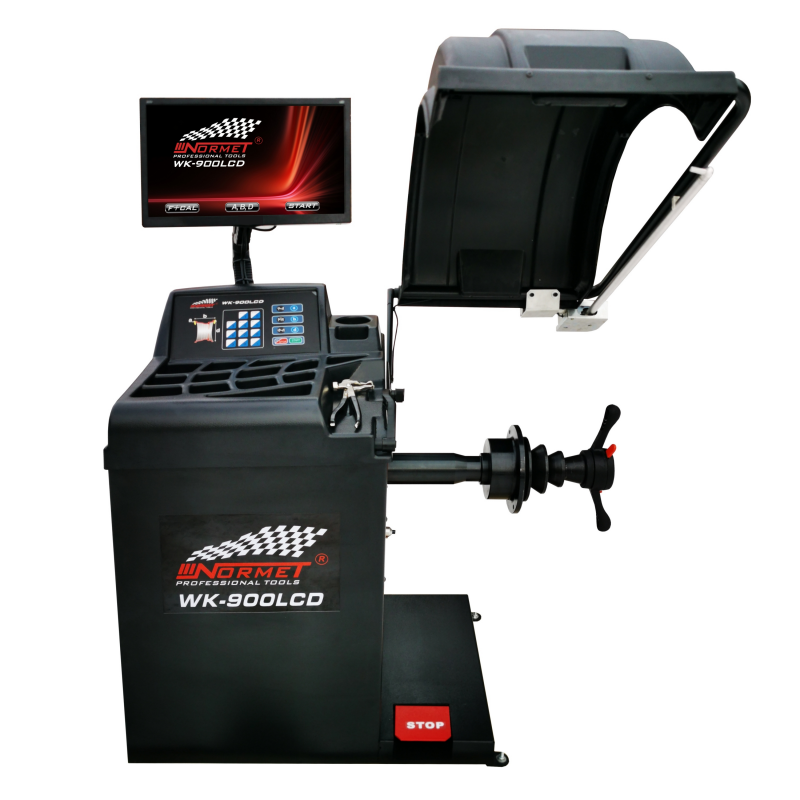

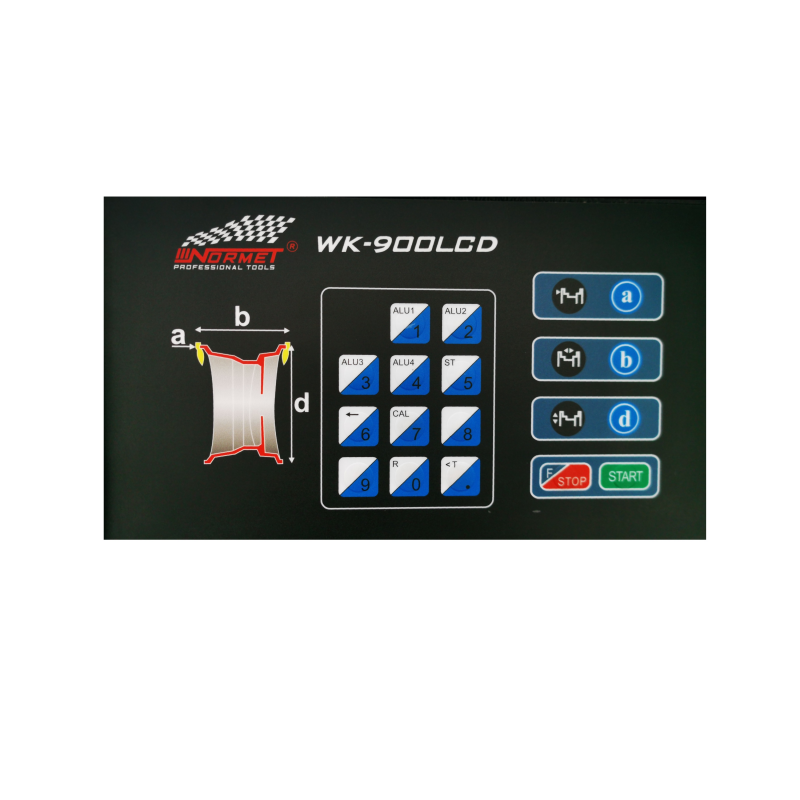

Wheel Balancer NORMET WK-900LCD with automatic measurement features, 230 V power supply, and high precision balancing for rims 1.5" to 16" wide and 10" to 24" in diameter.

Specification
Power supply [V] 230 V
Engine power [kW] 250 W
Noise level [dB] 70 dB
Height [mm] x
Width [mm] x
Głębokość x
Weight [kg] 110 kg
Brake YES
Balancing accuracy 1 g
Width of the rim 1,5" - 16"
Diameter of the rim 10" - 24"
Measurement time 7 s
Shaft diameters 40 mm
Maximum wheel weight 70 kg
Automatic distance measurement YES
Automatic wheel diameter measurement YES
Automatic wheel width measurement YES
Laser pointer YES
wheel cover YES automatic
Motorcycle program YES

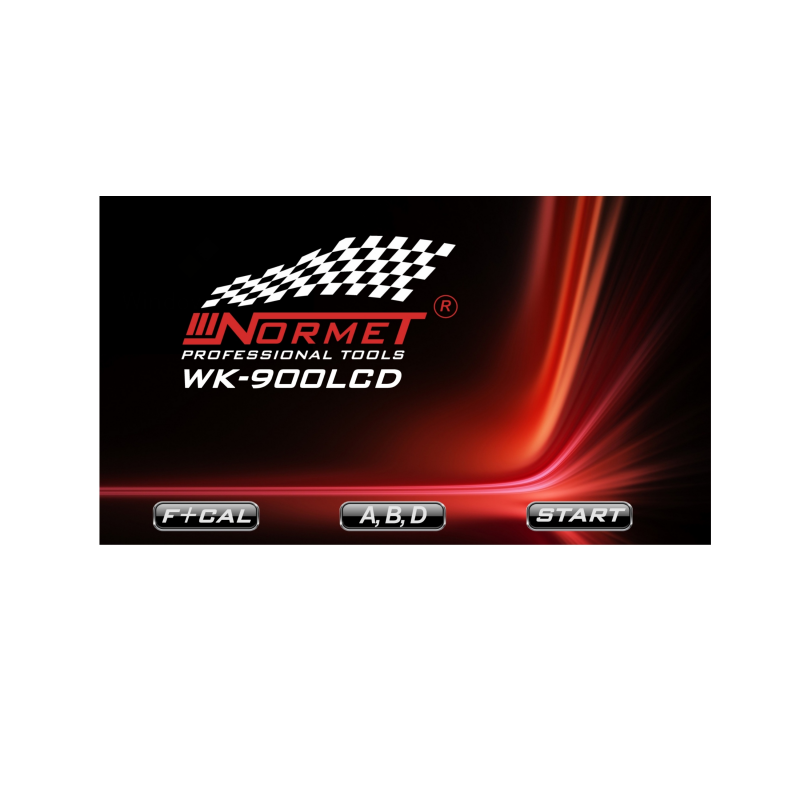

Display LCD Monitor
