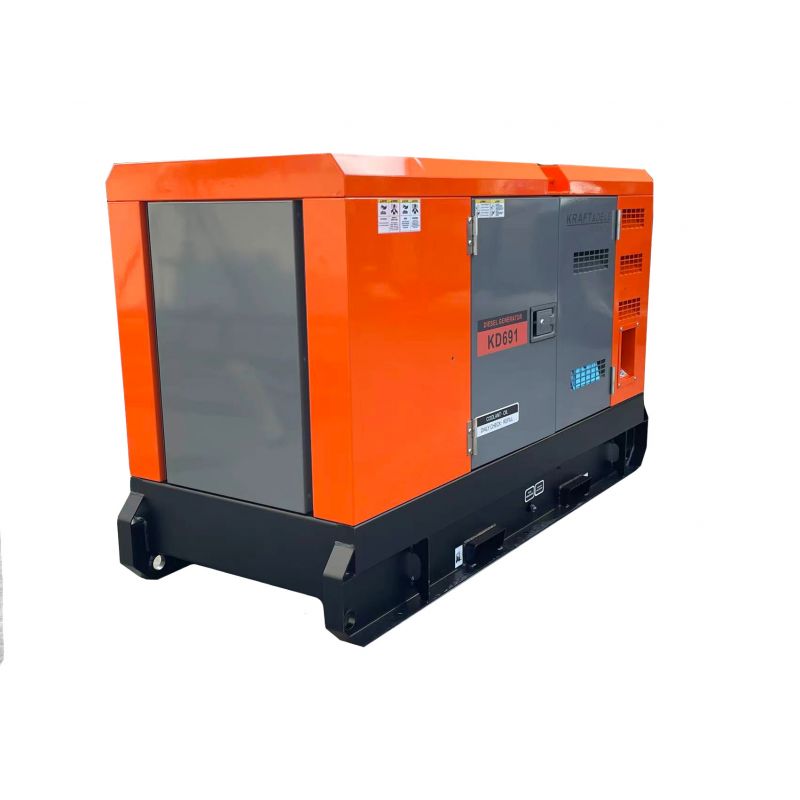

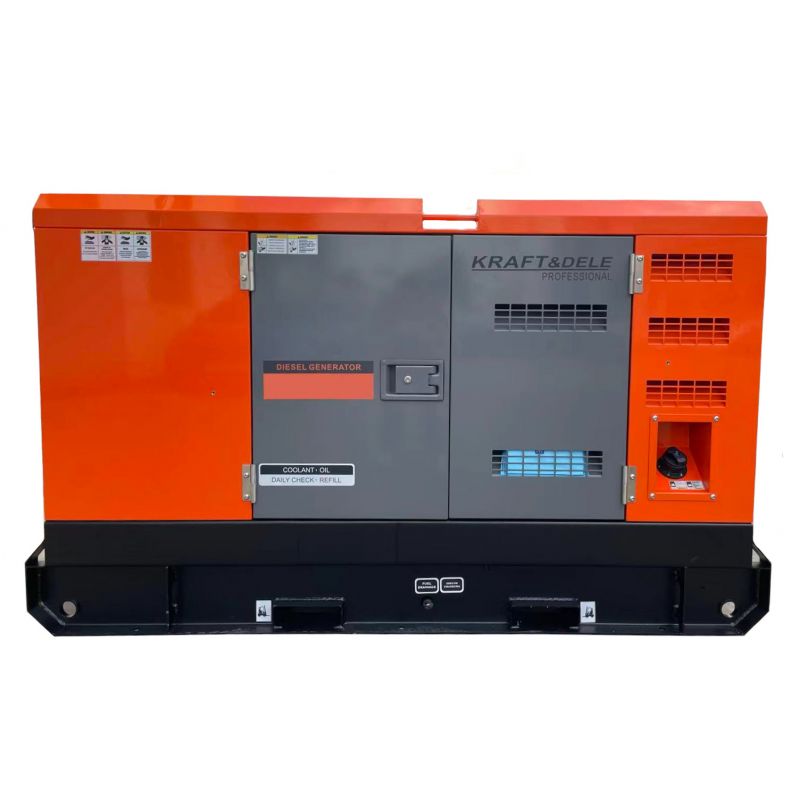

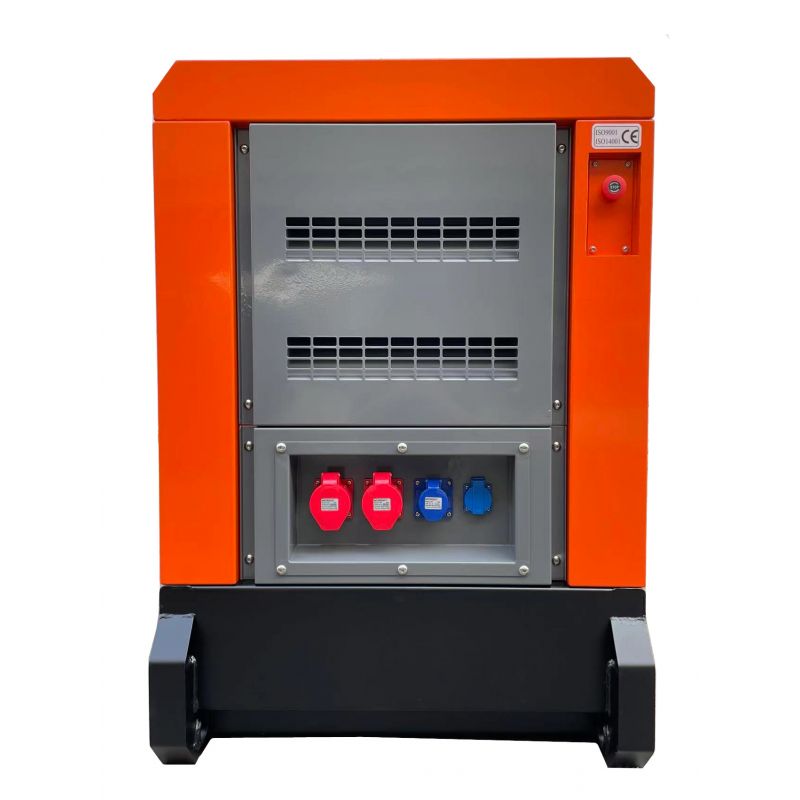

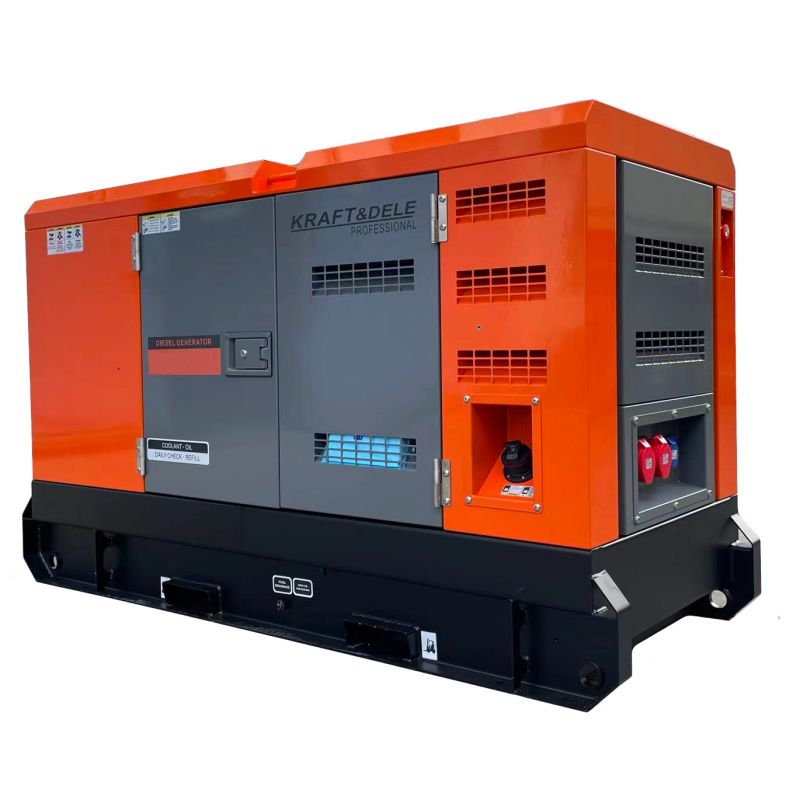

KD693 DIESEL generator 60.5/66kW

KD693

THREE-PHASE DIESEL GENERATOR
60.5/ 66kW

he high-quality three-phase generator from the Polish brand KRAFT&DELE is ideal for emergency power supply.

More details

13 990,00 € tax incl.

Ask about product
KD693 DIESEL generator 60.5/66kW

KD693 DIESEL generator 60.5/66kW

THREE-PHASE DIESEL GENERATOR
60.5/ 66kW

he high-quality three-phase generator from the Polish brand KRAFT&DELE is ideal for emergency power supply.



More info

ENGINE

The diesel engine that generates electricity was chosen for its reliability. It is a  heavy-duty, 4-stroke compression-ignition industrial engine.

The speed change function used in the generator provides many advantages:

• increases the life of the device by reducing engine wear,

• efficiently manages fuel and is economical to operate,

• it is environmentally friendly

• protected against possible failures and damage.

• has a power saving mode switch

• generates electric current with a clean, smooth sine wave

ir or water cooling system. An air-cooled system consists of a high-capacity fan that pulls cool air through the engine to cool it. A water-cooled system consists of a radiator, fan, tappet, and thermostat. The alternator has its own internal fan to cool alternator components. The cooling water tank capacity is 6.5 liters.

TECHNICAL DATA

Model KD693
Brand Kraft&Dele
Frequency (Hz) 50
Rated output power (kVA) (kW) 60,5/66 kVA
75,63/82,5kVA
220/380
Voltage (V) 220/380
Rated speed (r/min) 1500
Number of phases 3
Power factor Φ 0,8
Insulation class IP23
Socket 16A x 2, 32A x 2
Contact socket Yes
Voltage stabilizer Yes
Fuel tank capacity (L) 100
Operating time on full tank (h) 8h
Noise level (dB) 65
Starting system Electric start
HEAVY DUTY, 4-stroke
Engine model HEAVY DUTY, 4-stroke
Number of cylinders, bore (mm) 4 cylinders, 90x100mm
Cooling Water and air cooling
Lubrication Oil, 13L
Oil type 15W-40
Cooling water tank capacity (L) 6,5
Fuel consumption (g/kWh) 210
Fuel tank capacity (L) 80
Weight 1150Kg
Dimensions 2600x1000x1370mm

CASE

The Super Quiet generator's enclosure is designed to provide a high degree of sound attenuation. Constructed from 12- or 14-gauge sheet metal, it provides maximum rigidity. It features four lockable, hinged doors that allow easy access for routine maintenance.

► Three-phase generator

►Electric start

► Construction type: silent, closed

► The generator is equipped with overload protection

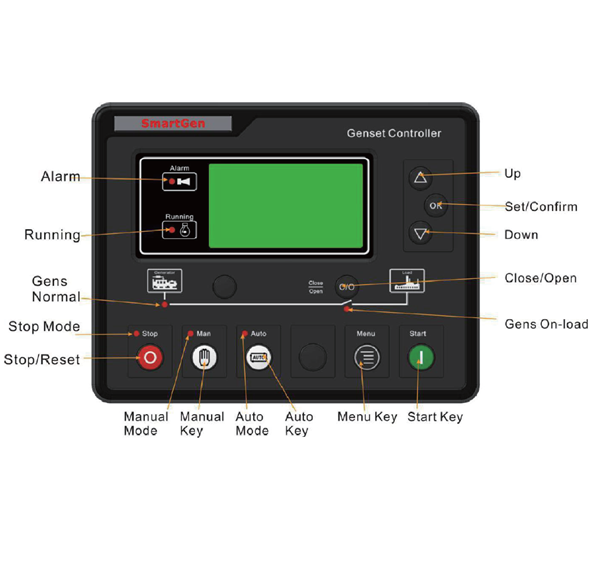

AUTOMATIC CONTROL MODULE

The controller's main task is to ensure the proper, stable operation of our generator. It's simple and easy to use.

CONTENTS

Power generator model KD693

User manual in Polish

Receipt or invoice

 Original packaging

12-month warranty
