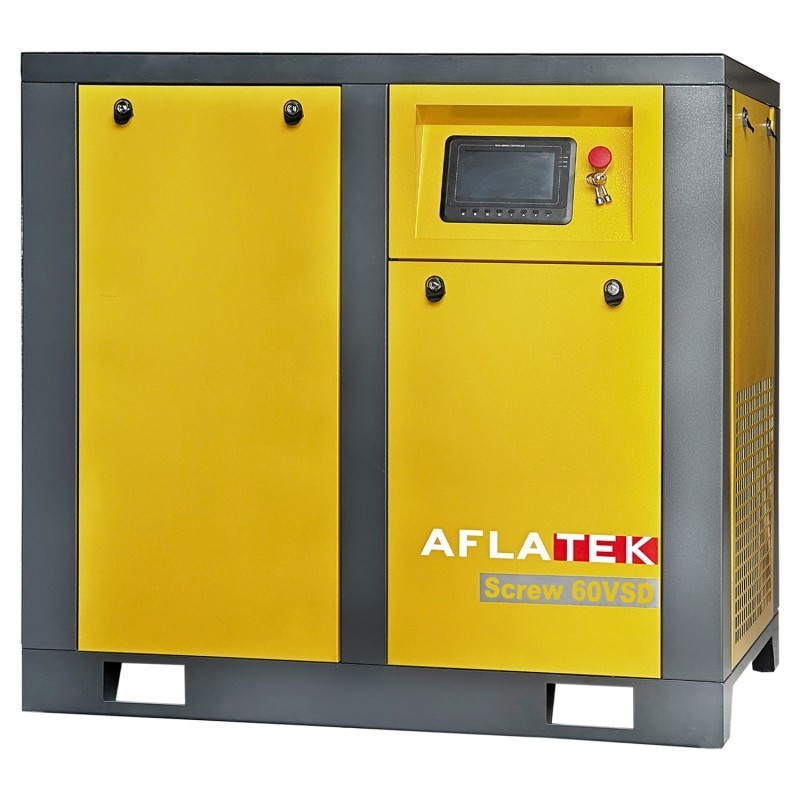

Aflatek SCREW 60VSD (Variable Speed Drive) View larger

AFLATEK Screw60VSD Screw Type Compressor

Screw60VSD

Oil-filled screw compressors are used extensively in industry, and are favoured for their large capacity, relatively quiet operation and flexibility. The latest innovation with these machines, besides the technical aspects of air-end design, is the use of variable speed drives to modulate compressor speed and hence capacity.

More details

industrial equipment, industrial air compressor, energy efficient compressor, variable speed drive compressor, AFLATEK Screw Compressor, Heavy Duty Screw Compressor, 60VSD Screw Compressor

7 139,00 € tax incl.

Ask about product
AFLATEK Screw60VSD Screw Type Compressor

AFLATEK Screw60VSD Screw Type Compressor

Oil-filled screw compressors are used extensively in industry, and are favoured for their large capacity, relatively quiet operation and flexibility. The latest innovation with these machines, besides the technical aspects of air-end design, is the use of variable speed drives to modulate compressor speed and hence capacity.



More info

It is tempting, particularly when making machine replacements, to buy the newest technology available.Running a screw  compressor unloaded for extended periods of time is therefore inefficient, since energy is being consumed with no benefit in terms of compressed air production.

In addition to potential energy savings, there are further benefits to VSD compressors. They can generally be operated with smaller air receivers - many sites where no receiver is used at all.
A VSD compressor is a smart choice when demand for air varies by process, time of day, shift or time of the year. When demand fluctuates, a VSD compressor that varies its speed is much more energy efficient than a fixed-speed compressor that can only run flat out.

Technical information:

DescriptionsScrew60VSD
Capacity 6.0 m3/min
Presure 1.0MPa
Power 45 Kw
Voltage 380V
Weight 550Kg
Dimensions 1340x1000x1250mm

OIL AIR SEPARATOR
Design Presure 1,58 Mpa
Volume 45 L
Max working presure 1,5 Mpa
Design temp. 150oC
Testing Presure 2,37 MPa
