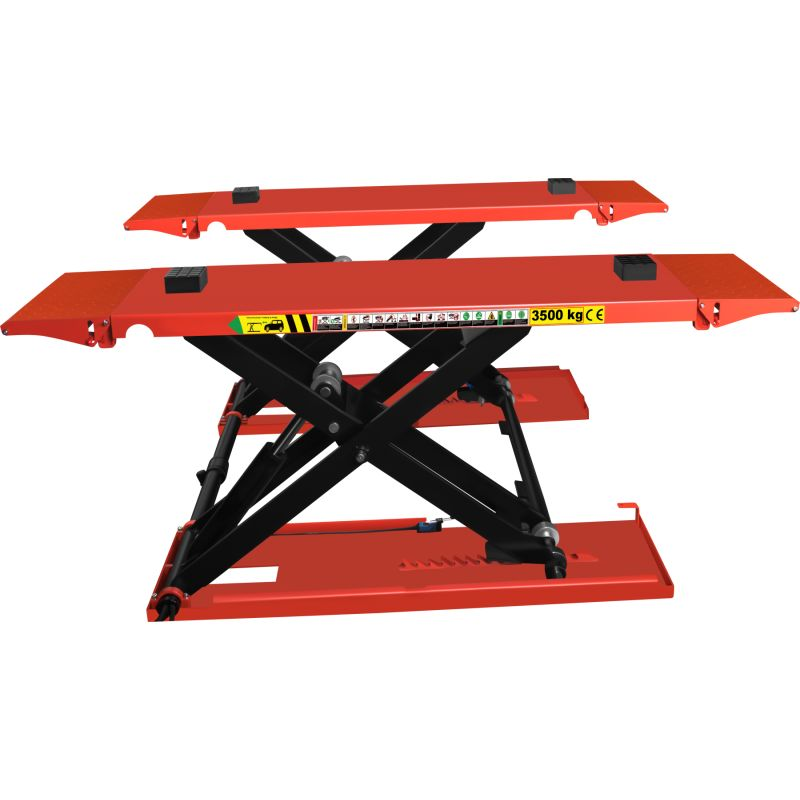

Automatic electro-hydraulic scissor lift 400V 3500kg KD5821

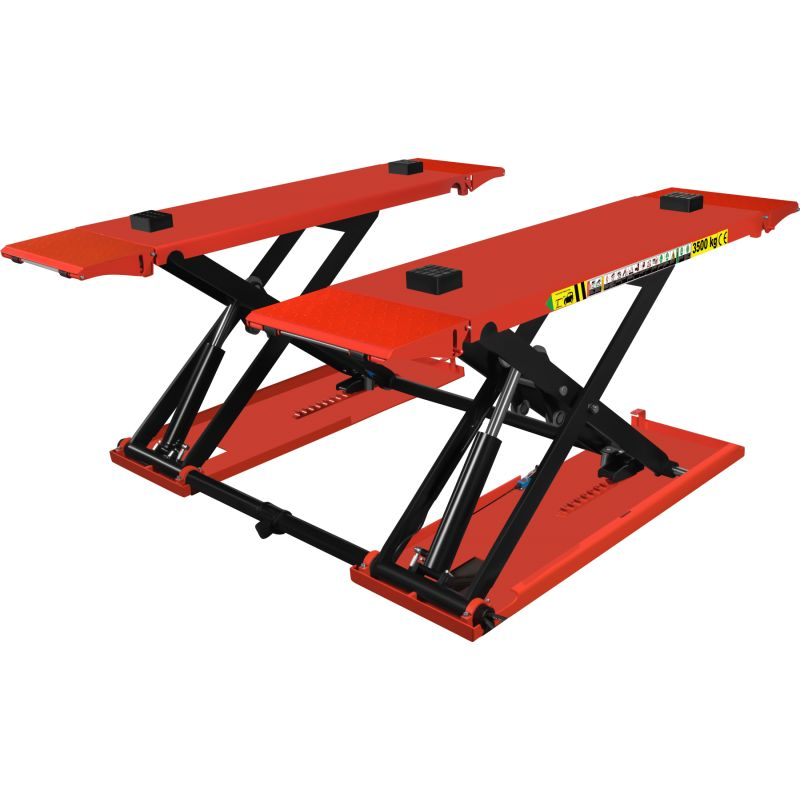

Electro-hydraulic scissor lift KD5821

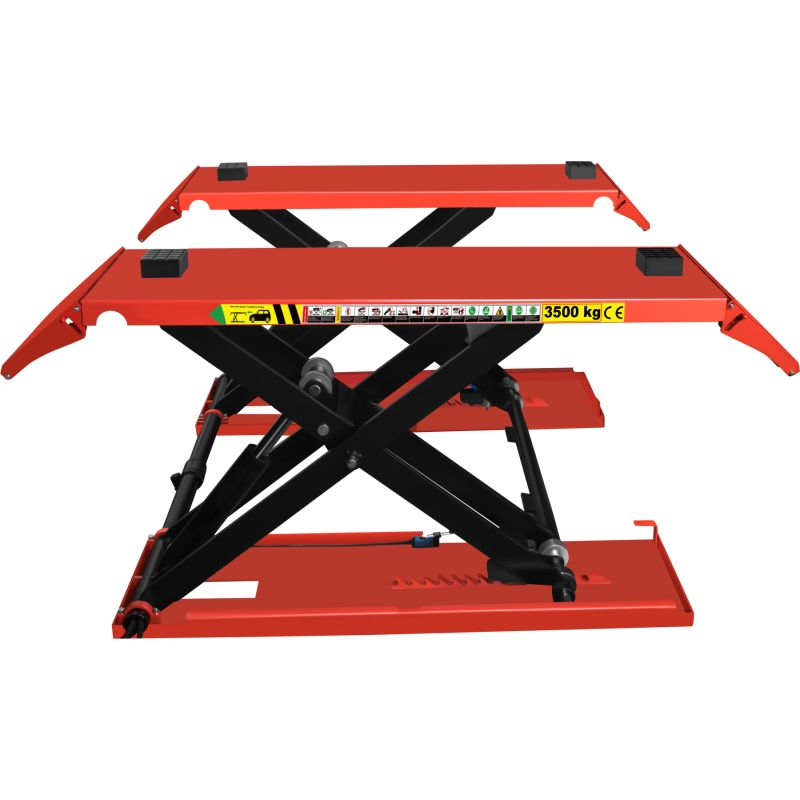

A professional scissor lift with an electro-hydraulic drive system, engineered for servicing passenger cars and light commercial vehicles weighing up to 3500 kg. Powered by a 400V three-phase supply, the unit provides stable, smooth lifting performance under heavy workshop workloads.

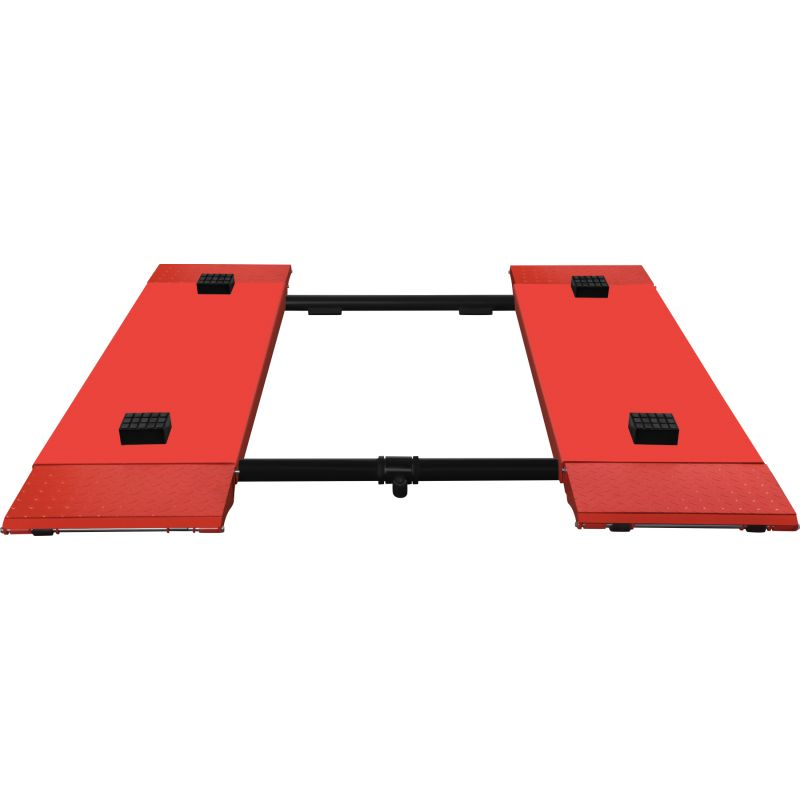

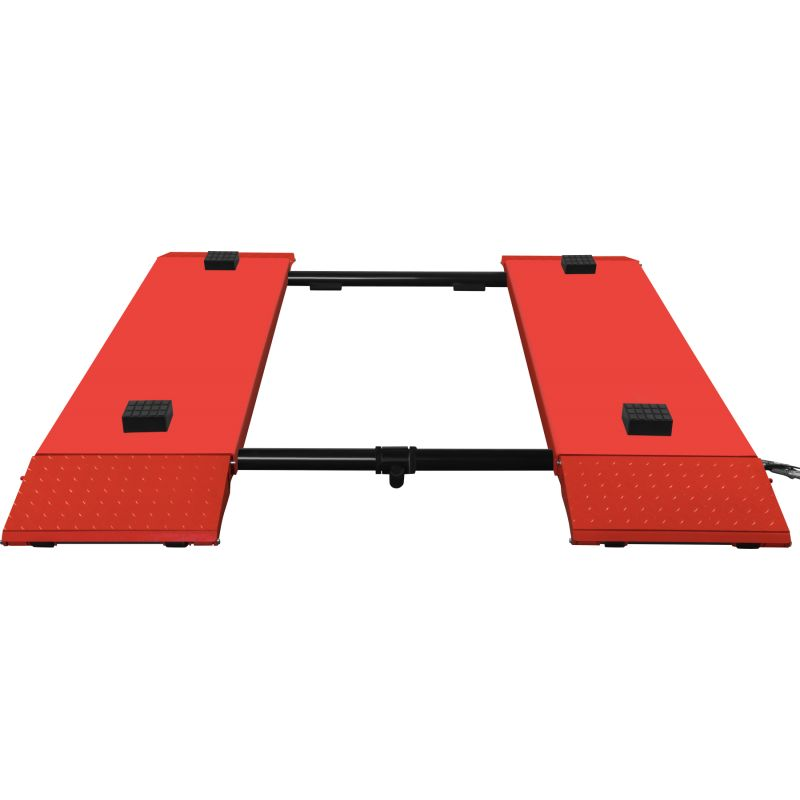

The low-profile design features an entry height of just 110 mm, facilitating access for low-clearance vehicles. A maximum lifting height of 1200 mm creates an ergonomic working zone for tyre servicing, brake repairs, and bodywork. An integrated mobile kit with transport wheels and a tow lever allows smooth repositioning across the workshop floor.

Key features

• 3500 kg lifting capacity suitable for cars and vans
• Electro-hydraulic 2.2 kW drive with 400V three-phase connection
• Low-profile 110 mm minimum clearance for low-chassis vehicles

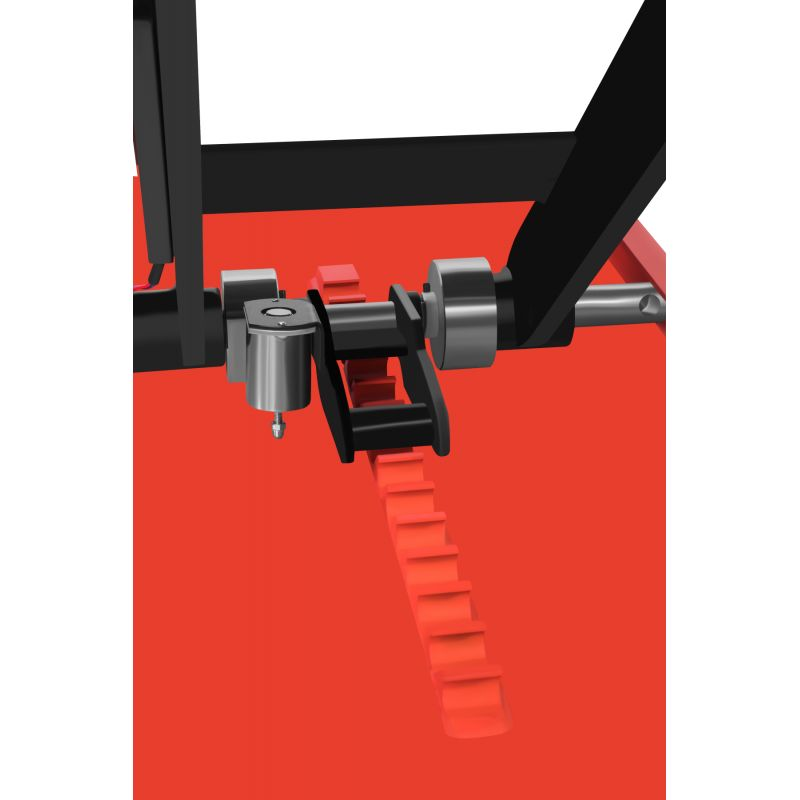

• Mechanical and hydraulic safety lock systems
• Maximum lifting height of 1200 mm
• Lifting cycle time of approximately 50 seconds; lowering in 40 seconds

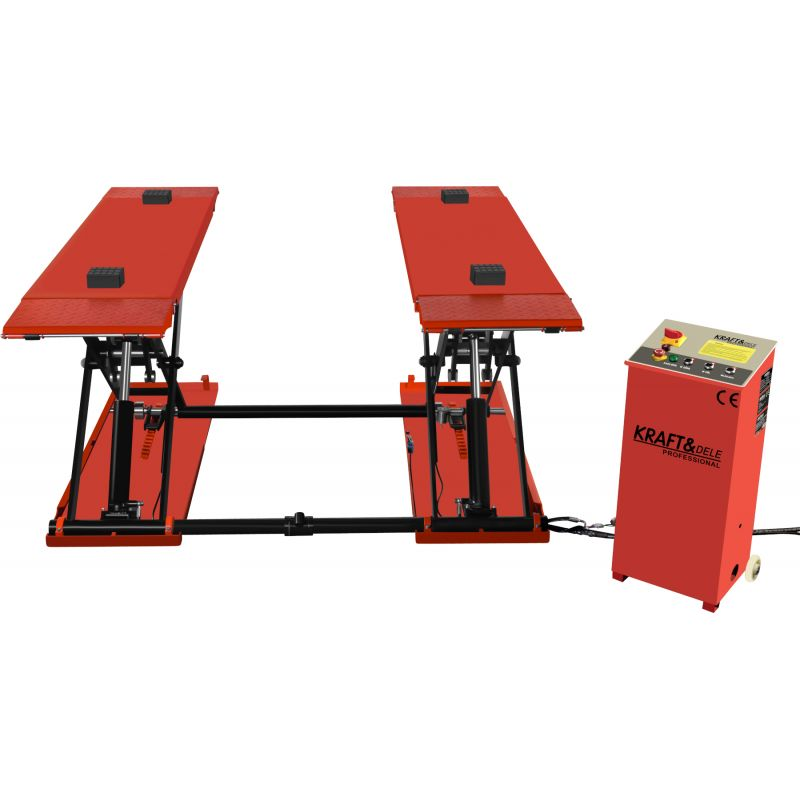

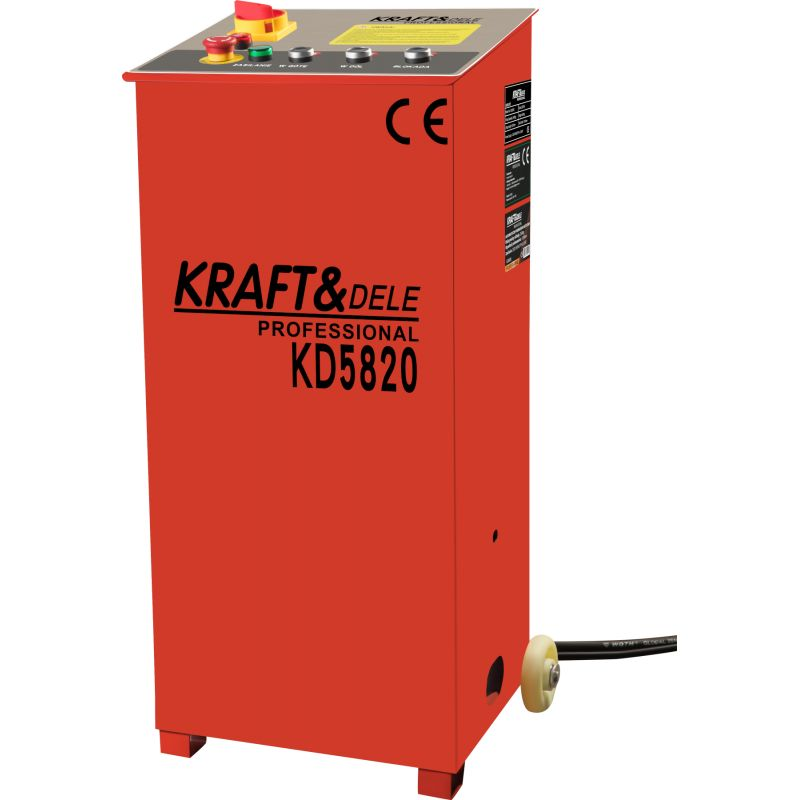

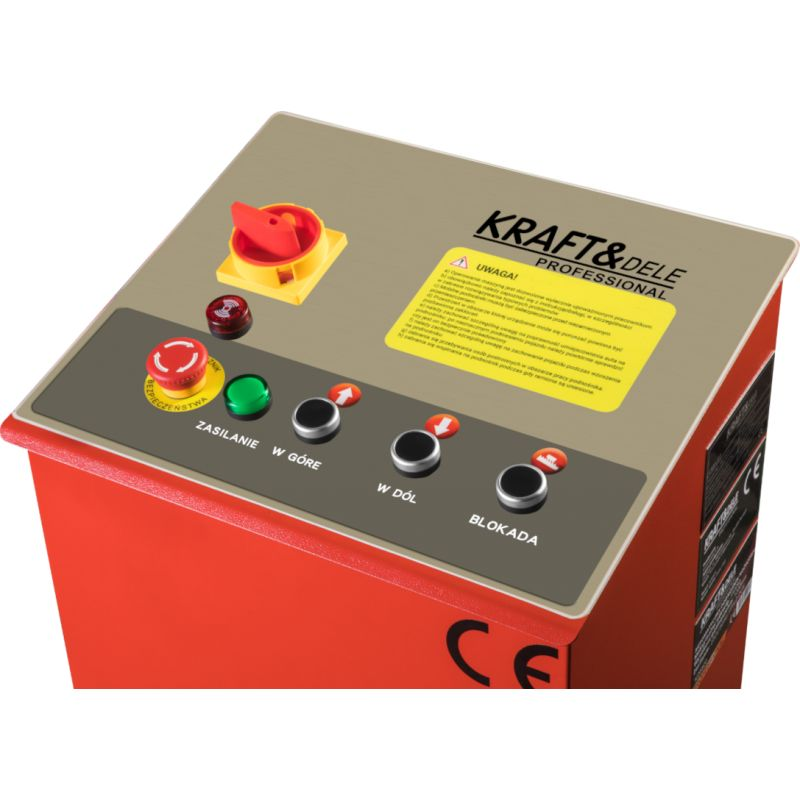

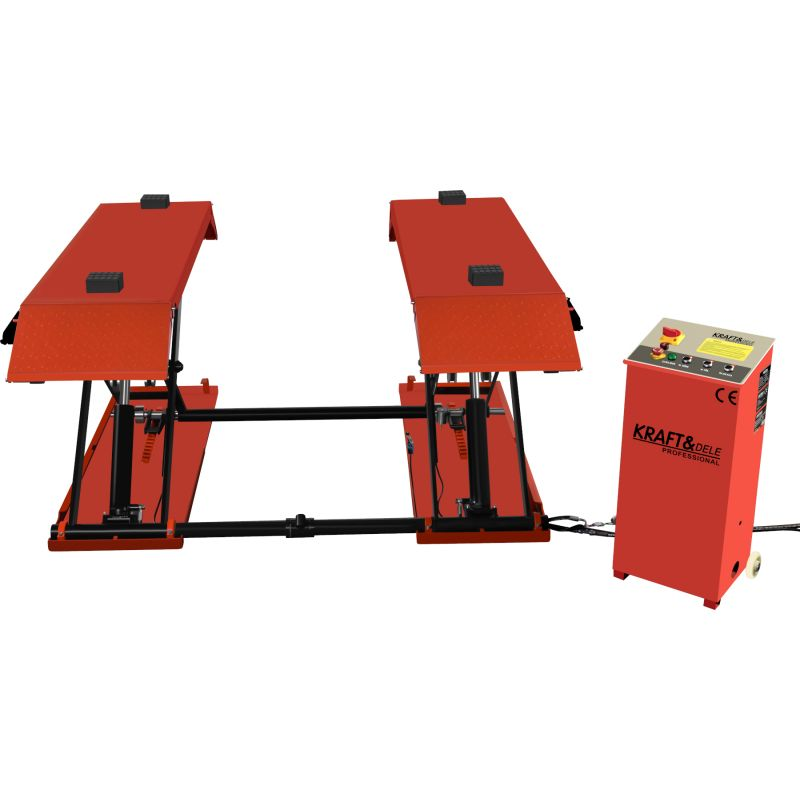

• Ergonomic standalone control station with status indicators and emergency stop

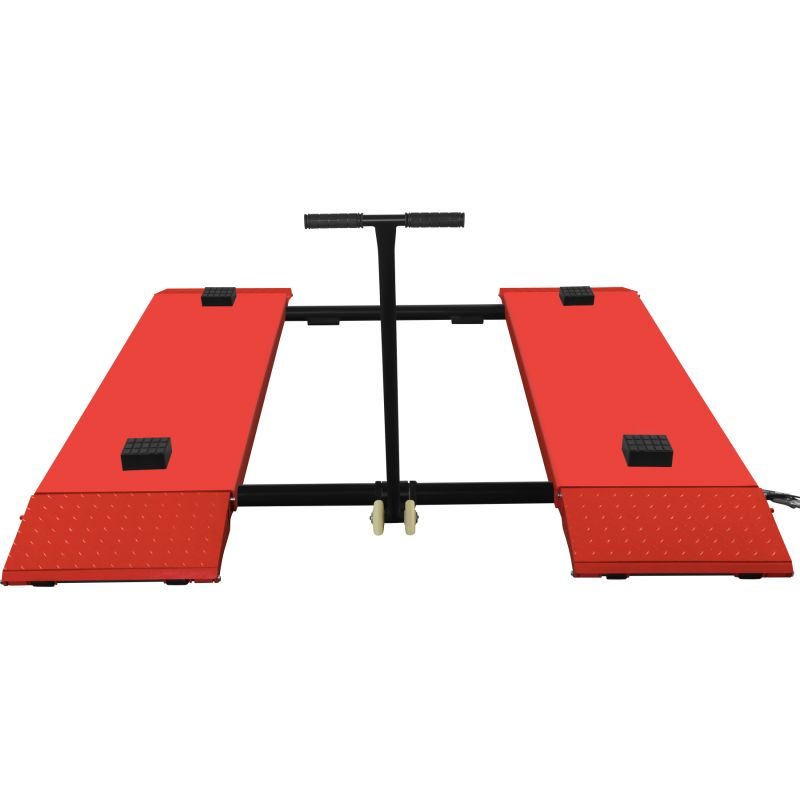

• Integrated mobility system with transport wheels and steering lever

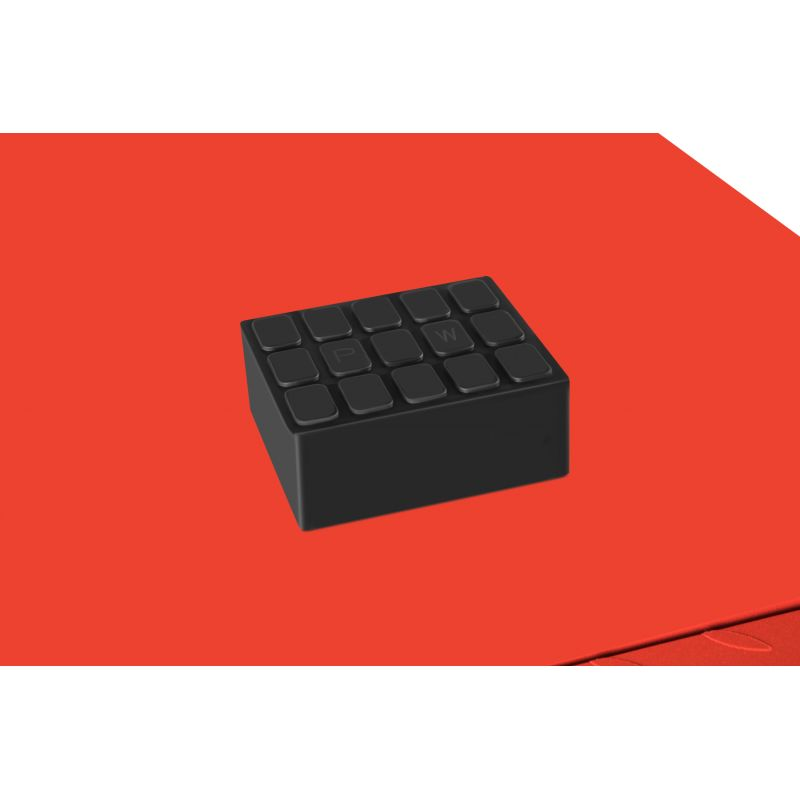

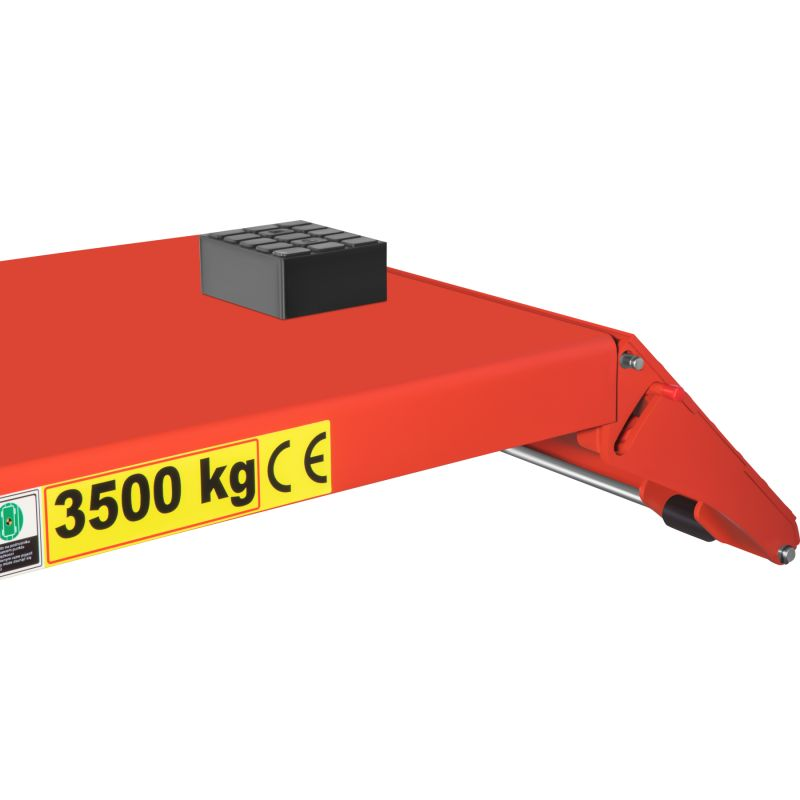

• Four heavy-duty rubber pads to safeguard the vehicle chassis
• Low operating noise below 70 dB
• Operational temperature range between -25°C and +55°C

Technical specifications

Package contents

• KD5821 scissor lift
• Standalone control unit
• Transport lever
• Transport wheels
• 4 rubber support pads
• Instruction manual
