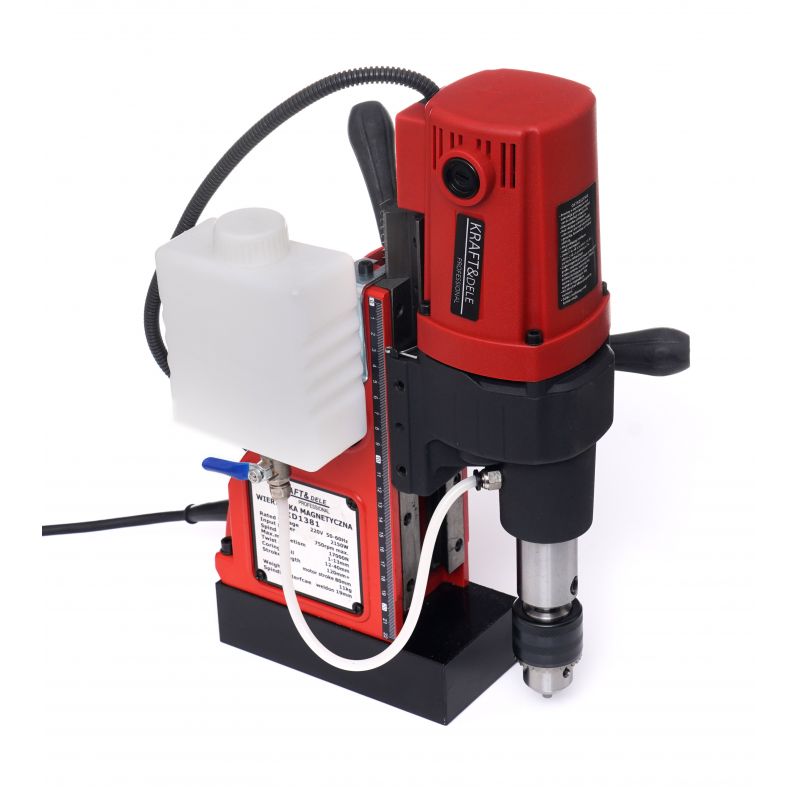

MAGNETIC DRILL / 2150 W / 1700N / 13 mm KD1381 View larger
Previous Next

MAGNETIC DRILL / 2150 W / 1700N / 13 mm KD1381

KD1381

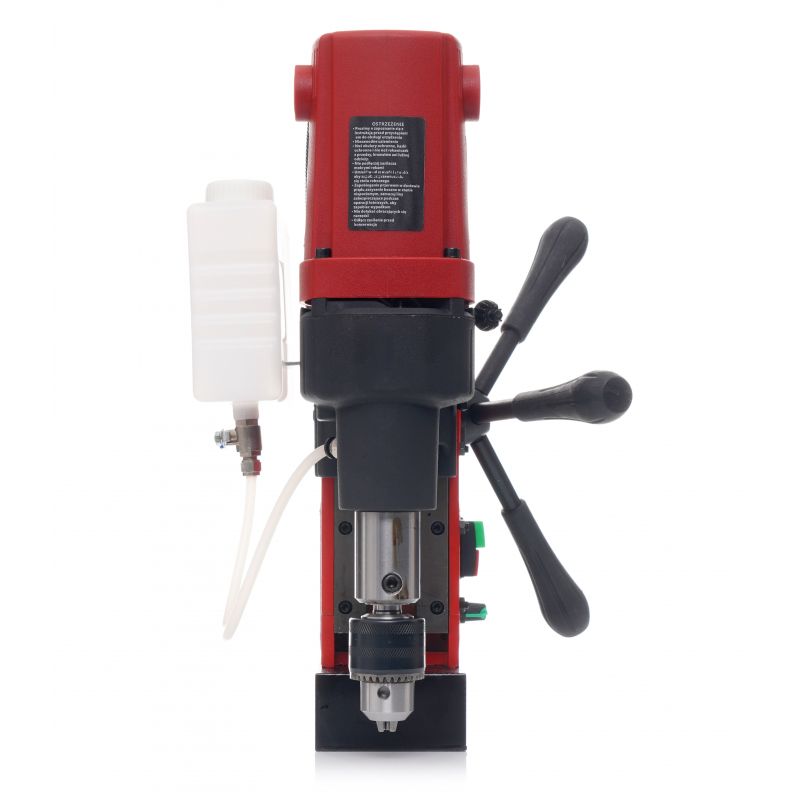

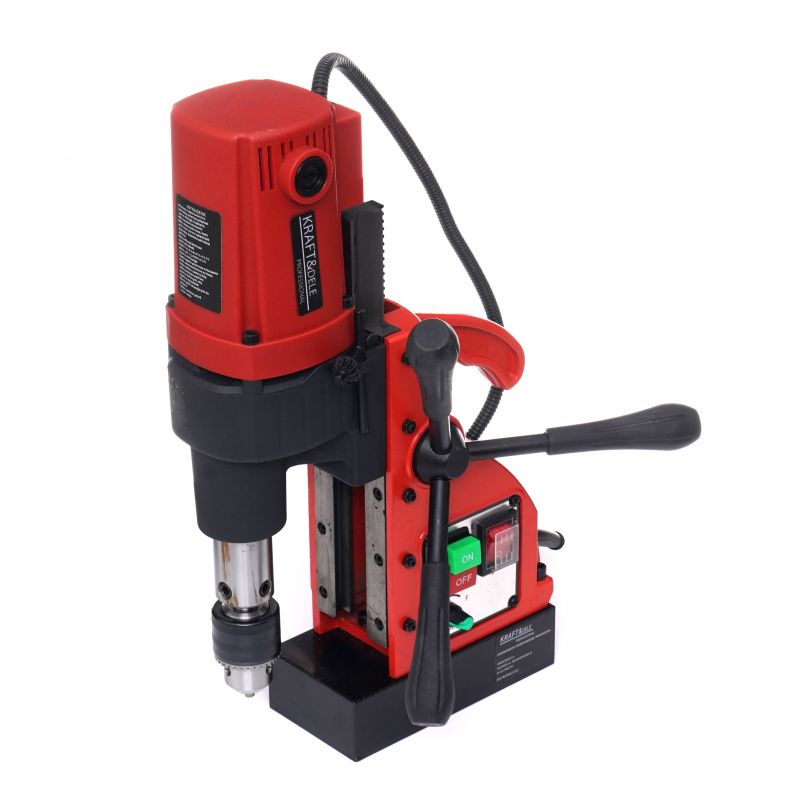

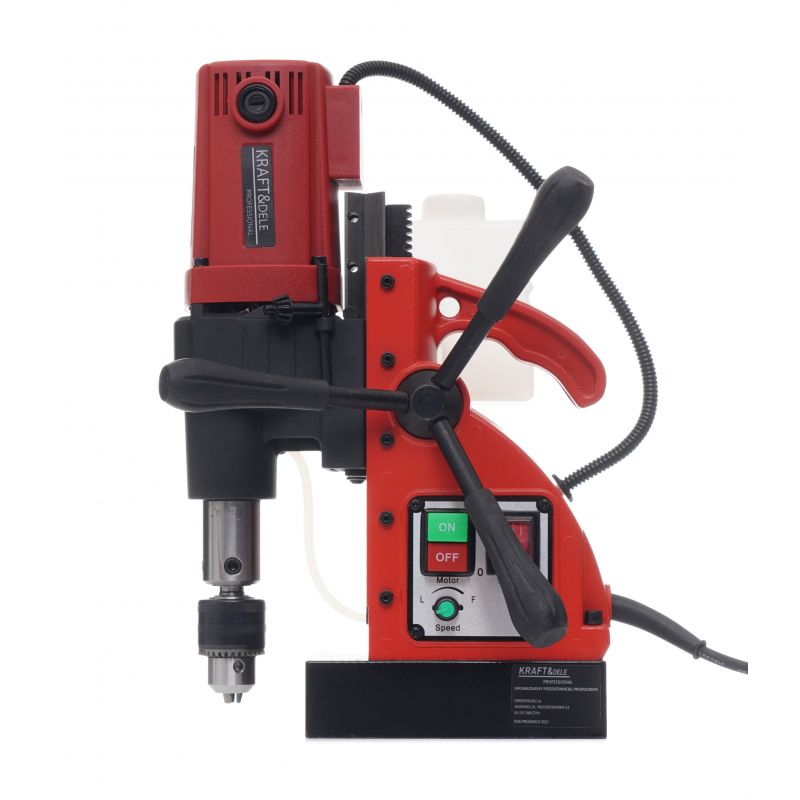

The Kraft & Dele KD1381 portable magnetic drill is the ideal tool for drilling, countersinking, and reaming. It is used in bridge construction, railways, the chemical industry, shipbuilding ,  and other areas involving steel and iron production. It performs well in harsh operating conditions.

Robust, damage-resistant construction. An ergonomically designed handle and three extended cranks provide a comfortable grip when carrying and moving, saving considerable effort.

More details

289,00 € tax incl.

Ask about product
MAGNETIC DRILL / 2150 W / 1700N / 13 mm KD1381

MAGNETIC DRILL / 2150 W / 1700N / 13 mm KD1381

The Kraft & Dele KD1381 portable magnetic drill is the ideal tool for drilling, countersinking, and reaming. It is used in bridge construction, railways, the chemical industry, shipbuilding ,  and other areas involving steel and iron production. It performs well in harsh operating conditions.

Robust, damage-resistant construction. An ergonomically designed handle and three extended cranks provide a comfortable grip when carrying and moving, saving considerable effort.



More info

Magnetic force: 1700N is generated by an electromagnetically thickened base with pure iron skeletons. It works stably at any angle during the drilling process.

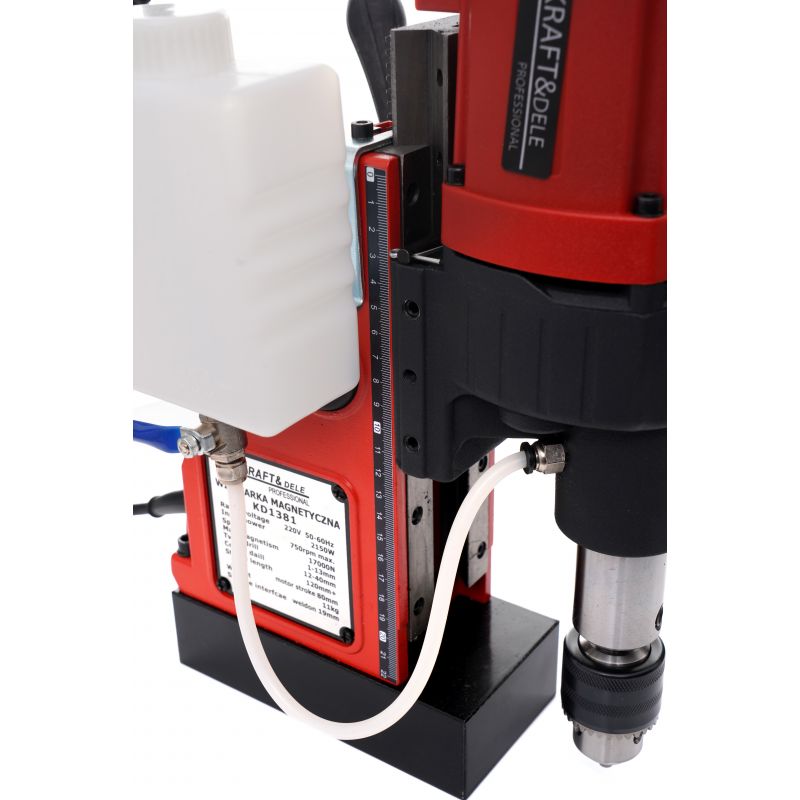

The cooling system ensures rapid heat dissipation to prevent operator injury from momentary overload and high temperature during drilling.

Characteristics:

  • Efficient engine

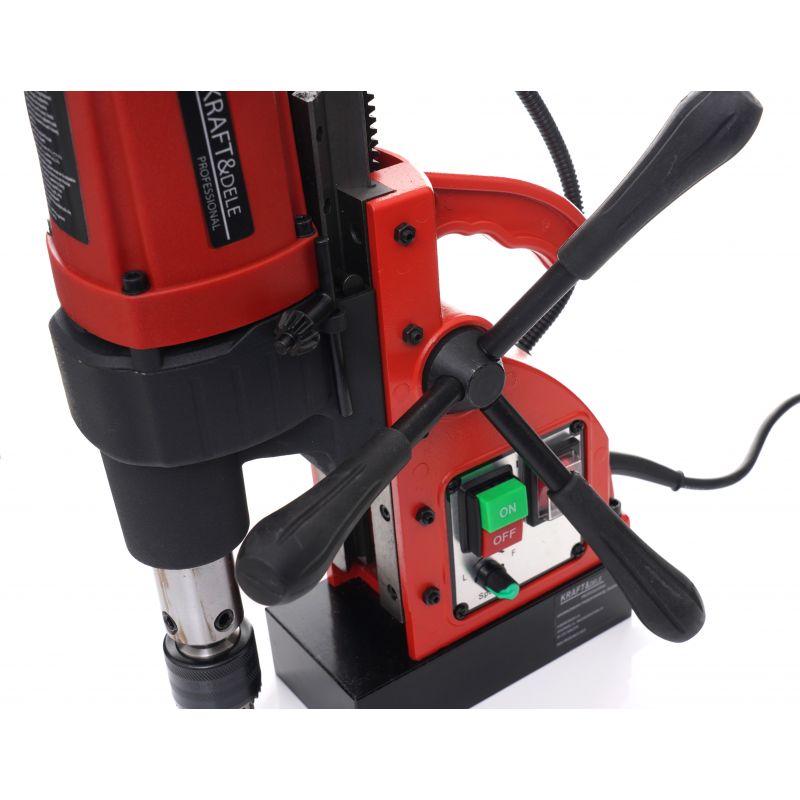

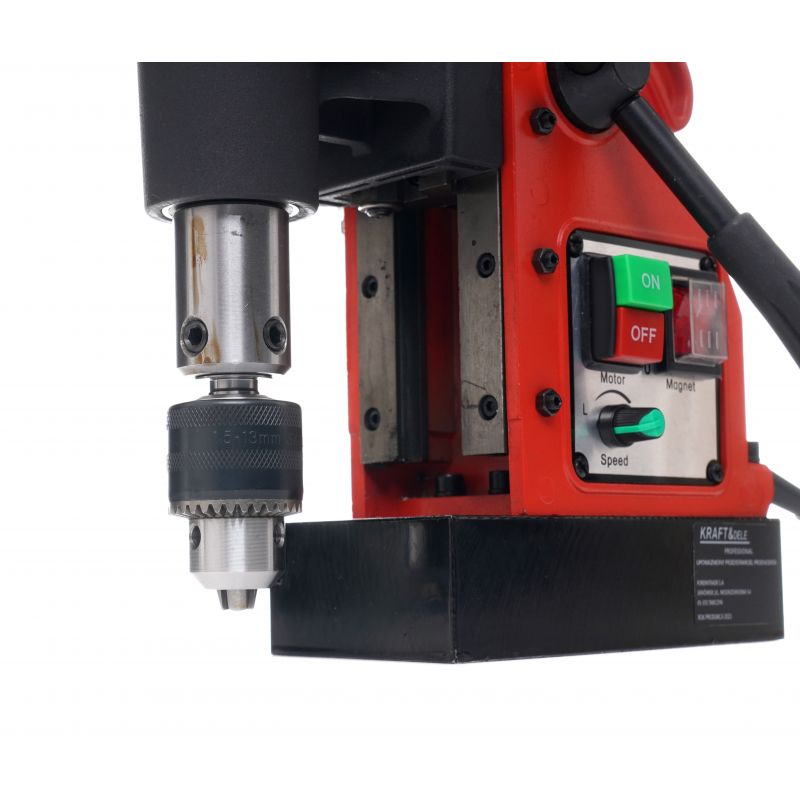

  • Convenient control panel (speed adjustment)

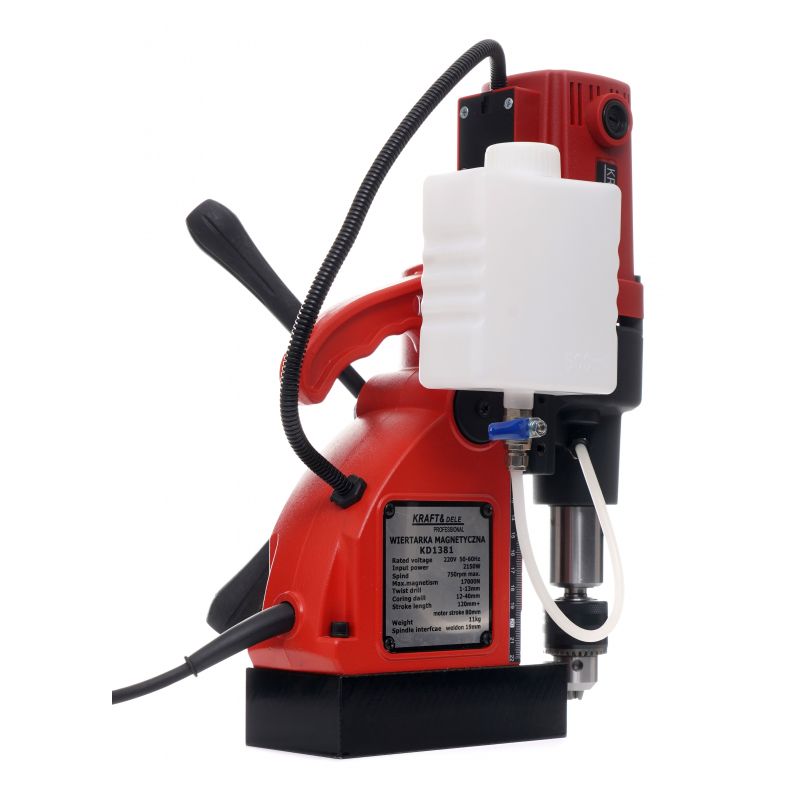

  • Integrated cooling reservoir (500ml)

  • Safety features – belt, RCD magnetic switch, easily accessible fuse, no way to start the engine without the electromagnet switched on

Specification:

Voltage: 220v-50Hz

Input power:   215 0W

Stroke length: 1 - 13mm

Drill: 12mm + motostroke 80mm

No load speed: 750 rpm

Max. magnetism: 1700N

Spindle Interface: Woldon 19mm

Weight: 16 kg.

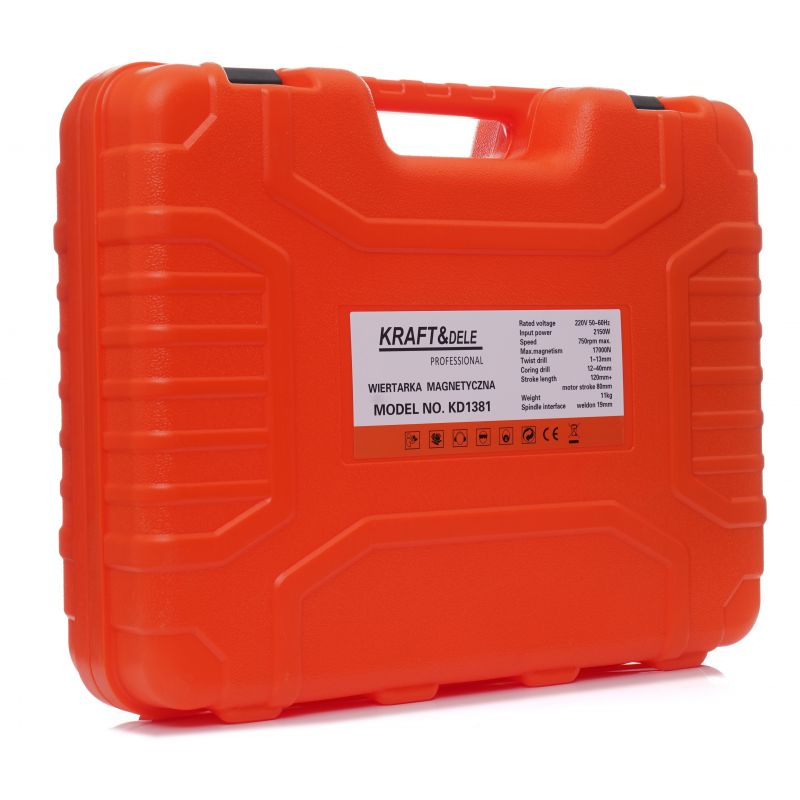

Set composition:

KD1381 magnetic drill

Accessories (Allen key, tank, hose, cable, etc.)

User manual

Receipt or Invoice
