AFLATEK AirPro900W-Twin Oil Compressor 12.5bar

AirPro900W-Twin

AFLATEK AirPro900W-Twin is a professional high-pressure air compressor equipped with a 900 L tank and two 7.5 kW (10 HP) motors. It delivers a nominal 1420 L/min air output (average 0–12.5 bar) and about 1250–1300 L/min at 10 bar. Perfect for industrial workshops, truck service, sandblasting and heavy-dut

More details

industrial air compressor, portable air compressor, High Pressure Compressor, Twin Oil Compressor, AFLATEK AirPro900W, 12.5 bar air compressor, oil-lubricated compressor

2 499,86 € tax incl.

Ask about product
AFLATEK AirPro900W-Twin Oil Compressor 12.5bar

AFLATEK AirPro900W-Twin Oil Compressor 12.5bar

AFLATEK AirPro900W-Twin is a professional high-pressure air compressor equipped with a 900 L tank and two 7.5 kW (10 HP) motors. It delivers a nominal 1420 L/min air output (average 0–12.5 bar) and about 1250–1300 L/min at 10 bar. Perfect for industrial workshops, truck service, sandblasting and heavy-dut



More info

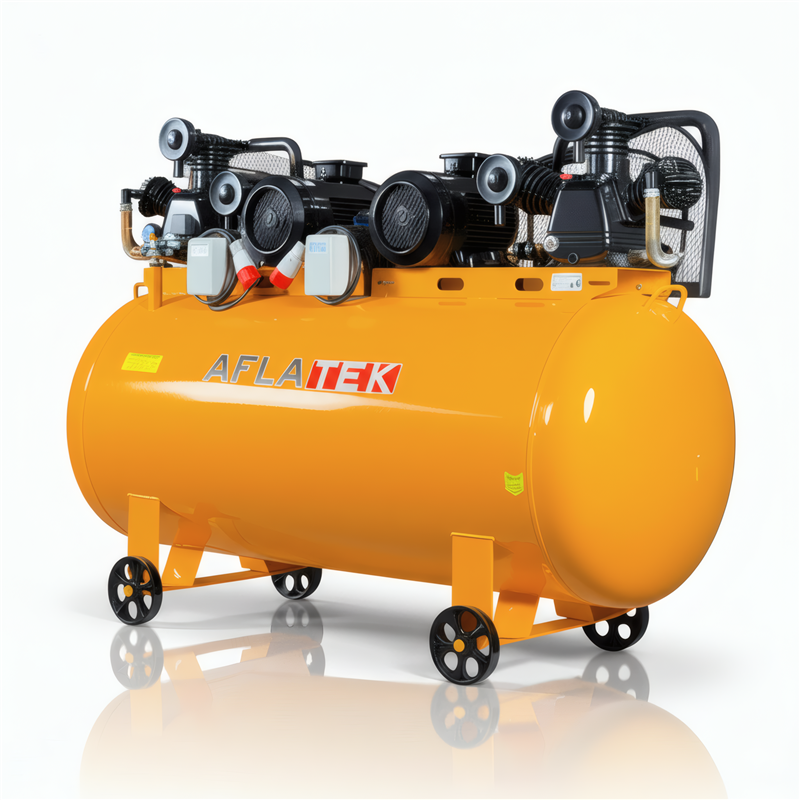

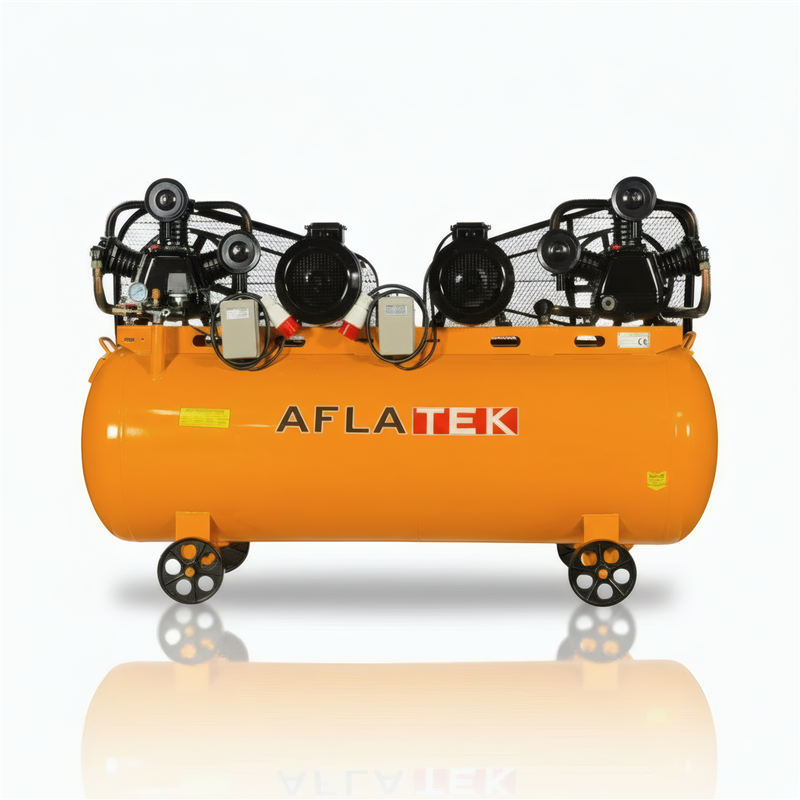

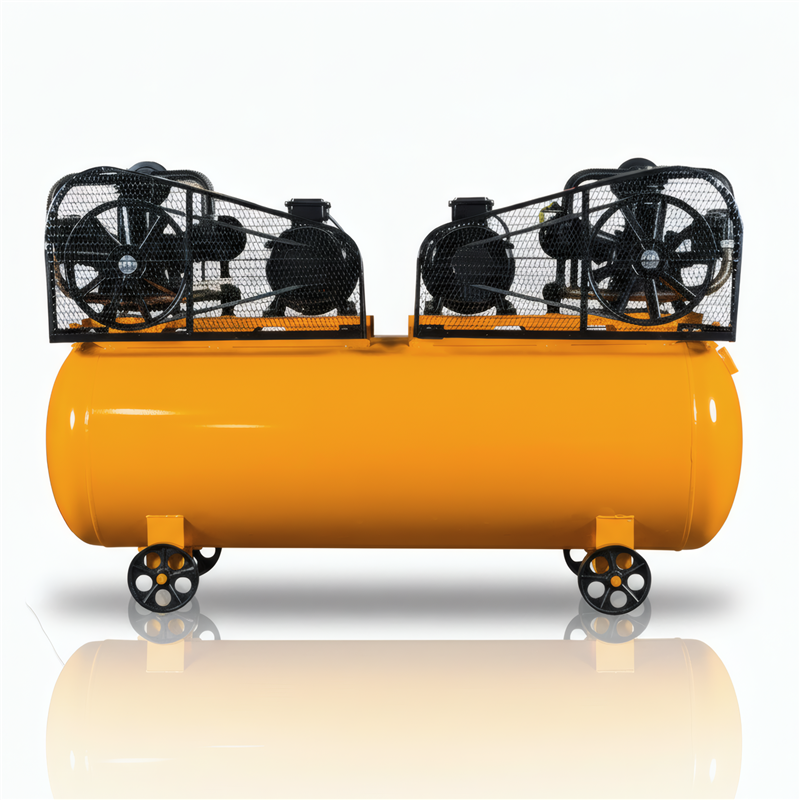

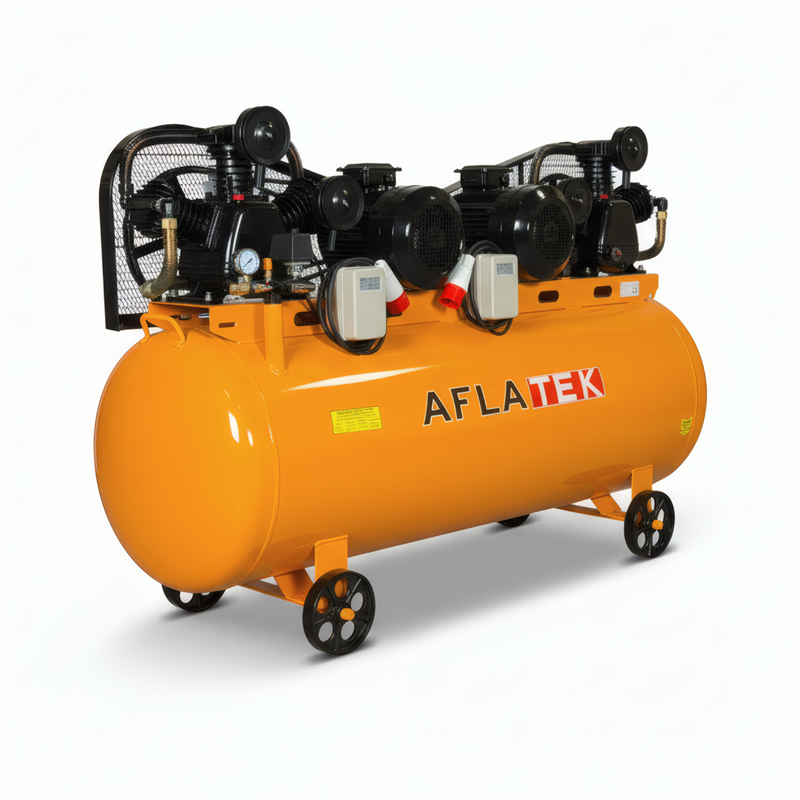

AFLATEK AirPro900W-Twin – 900 L Industrial High-Pressure Twin-Piston Air Compressor (12.5 bar, 400 V)

The AFLATEK AirPro900W-Twin is a professional high-pressure air compressor for industrial users who need more than the standard 8 bar. With two W-0.90/12.5 cast-iron compressor blocks and dual 7.5 kW (10 HP) motors, it operates automatically between 10.5 – 12.5 bar and delivers a total nominal output of ≈ 1420 L/min (average over 0–12.5 bar).

✅ Key Features

  • High-pressure operation: auto stop at 12.5 bar, restart at ≈ 10.5 bar
  • Huge 900 L horizontal tank for a stable air reserve during peak demand
  • Dual 7.5 kW motors (total 15 kW) with independent start for flexibility
  • Heavy-duty W-0.90/12.5 blocks, cast-iron, low-RPM, long service life
  • Metal intake air filters for durability and clean intake
  • Pressure regulator and quick coupling included – ready to connect
  • Pre-wired D.O.L. starters for each motor (QCX5-22-7.5 kW)
  • All labels in English, CE marking for EU compliance

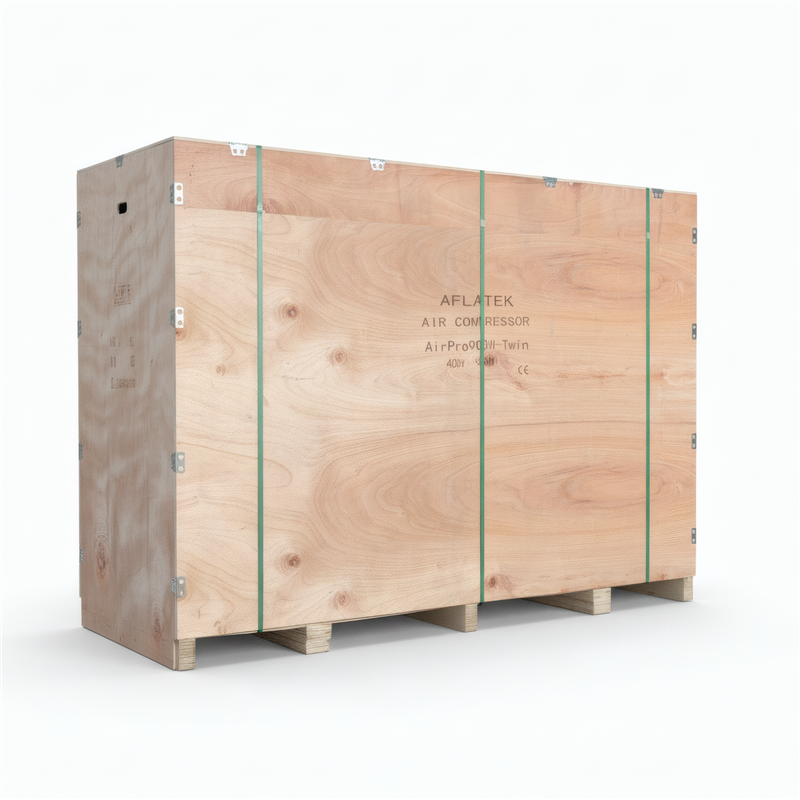

  • Packed on a wooden pallet/crate – easy handling by pallet truck

⚙️ Technical Specifications

Model AirPro900W-Twin (12.5 bar)
Tank volume 900 L (horizontal)
Compressor blocks 2 × W-0.90/12.5 (cast-iron)
Nominal air displacement ≈ 2 × 712 L/min = ≈ 1420 L/min (average 0–12.5 bar)
Approx. effective air delivery @ 10 bar ≈ 1250–1300 L/min (total)
Working pressure range 10.5 – 12.5 bar (automatic on/off)
Tank test pressure 16 bar (CE test only; not adjustable)
Motor power 2 × 7.5 kW / 10 HP
Voltage / Phase / Frequency 400 V / 3 Ph / 50 Hz
Amperage ≈ 2 × 13 A
Start type D.O.L. Starter QCX5-22-7.5 kW
Noise level ≈ 83 dB(A)
Protection class IP44 / Class B
Air filters 2 × metal intake filters
Outlet 1 × quick coupling
Power cable 1.5 m, 400 V plug (16 A, 5-pin)
Net / Gross weight 458 kg / 510 kg
Dimensions (L × W × H) ≈ 2100 × 840 × 1500 mm

 Air Delivery Performance

High-pressure configuration delivers lower volume than 8 bar versions due to greater compression resistance. Values below are suitable for sizing tools and systems.

ParameterPer pumpTotal (Twin)
Nominal displacement (0–12.5 bar avg.) ≈ 712 L/min ≈ 1420 L/min
Approx. effective air delivery @ 10 bar ≈ 625–650 L/min ≈ 1250–1300 L/min
Working pressure range 10.5 – 12.5 bar (auto on/off)
Tank test pressure 16 bar (not adjustable)

Note: “Nominal displacement” is the average volumetric output referenced to free air over the 0–12.5 bar range. Actual effective delivery depends on operating pressure and ambient conditions.

 Ideal Applications

  • Industrial lines requiring 10–12 bar air supply
  • Truck tire service and agricultural machinery workshops
  • Sandblasting / surface preparation and heavy pneumatic tools
  • Continuous-duty stations where 8 bar is not sufficient

 Recommended Accessories

  • High-pressure air dryer (rated ≥ 12.5 bar)
  • 3-stage filtration line with moisture & oil separation (optional)
  • Automatic condensate drain system
  • Oil & filter service kit (every 500 h)
  • Annual safety valve and regulator check

AFLATEK AirPro900W-Twin – engineered for professionals who need stable high pressure, strong air output and long-term industrial durability.
