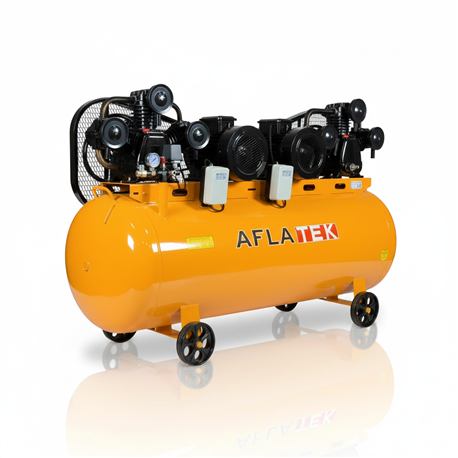

AFLATEK Air900W-Twin Oil Compressor 8bar

Air900W-Twin

AFLATEK AirPro900W-Twin is a professional twin-piston air compressor with a large 900 L tank and dual 7.5 kW (10 HP) motors. It delivers a nominal 2140 L/min air output (average 0–8 bar) and about 1550 L/min free air delivery @ 6 bar</stro

More details

8 bar compressor, AFLATEK Air900W-Twin, high pressure air compressor, industrial air compressor, oil compressor, portable air compressor, twin piston air compressor

2 449,04 € tax incl.

Ask about product
AFLATEK Air900W-Twin Oil Compressor 8bar

AFLATEK Air900W-Twin Oil Compressor 8bar

AFLATEK AirPro900W-Twin is a professional twin-piston air compressor with a large 900 L tank and dual 7.5 kW (10 HP) motors. It delivers a nominal 2140 L/min air output (average 0–8 bar) and about 1550 L/min free air delivery @ 6 bar</stro



More info

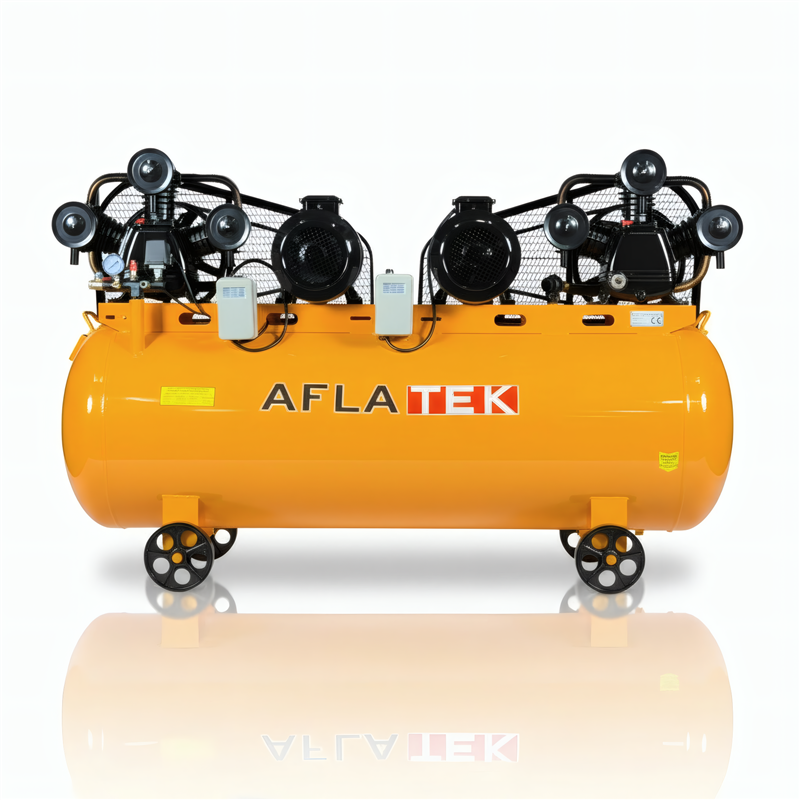

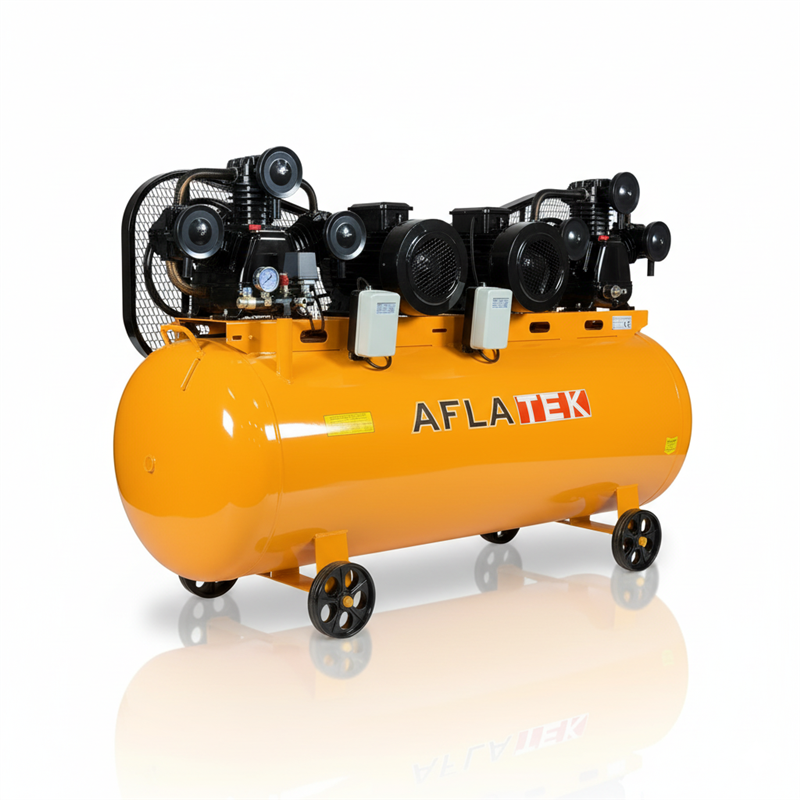

AFLATEK AirPro900W-Twin – 900 L Twin-Piston Industrial Air Compressor (8 bar, 400 V)

The AFLATEK AirPro900W-Twin is a heavy-duty twin-piston air compressor designed for large industrial users and workshops requiring high air capacity and continuous operation. Equipped with two W-0.90/8 compressor blocks and dual 7.5 kW (10 HP) motors, it delivers up to 8 bar working pressure and a total nominal output of 2140 L/min.

✅ Key Features

  • Massive 900 L air tank – ensures stable air supply during continuous operation
  • Dual 7.5 kW motors – total combined power 15 kW
  • Two W-0.90/8 compressor blocks – cast-iron construction for long service life
  • Nominal air displacement: 2 × 1070 L/min = 2140 L/min (average 0–8 bar)
  • Free air delivery: approx. 1550 L/min @ 6 bar
  • Pressure regulator and quick-coupling outlet included – ready for immediate use
  • Independent motor start via separate D.O.L. starters (QCX5-22-7.5 kW)
  • CE-certified 900 L horizontal tank – test pressure 16 bar
  • Metal air filters for durable and clean air intake
  • All-English labels and CE marking for EU compliance

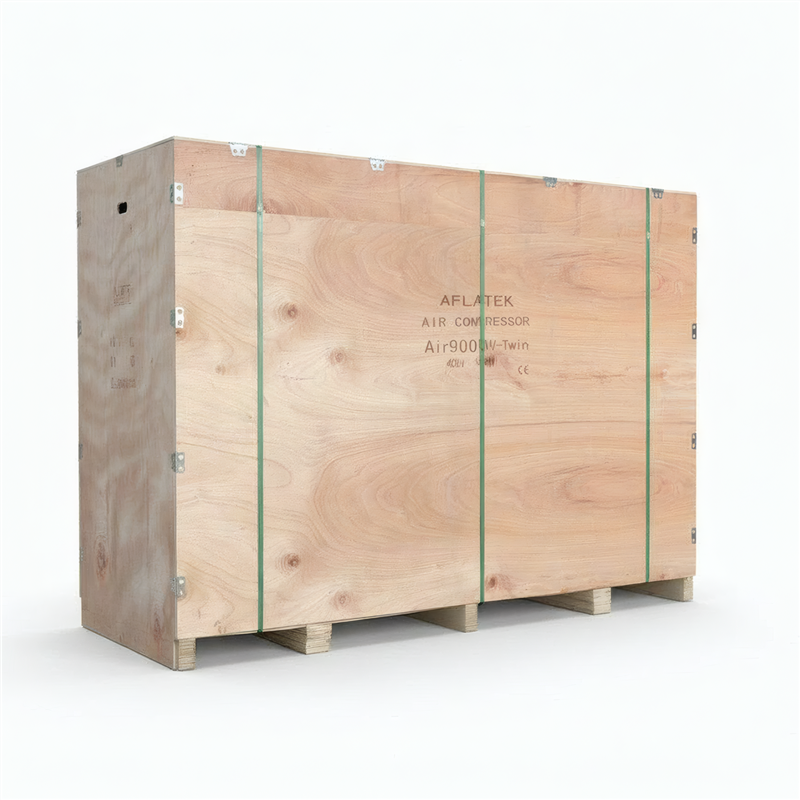

  • Packed on wooden crate pallet for safe transport with pallet truck

⚙️ Technical Specifications

Model AirPro900W-Twin
Tank volume 900 L (horizontal)
Compressor blocks 2 × W-0.90/8 cast-iron
Nominal air displacement ≈ 2 × 1070 L/min = 2140 L/min
Free air delivery @ 6 bar ≈ 1550 L/min (total)
Working pressure 6 – 8 bar (auto on/off)
Tank test pressure 16 bar
Motor power 2 × 7.5 kW / 10 HP
Voltage / Phase / Frequency 400 V / 3 Ph / 50 Hz
Amperage 2 × 13 A
Start type D.O.L. Starter QCX5-22-7.5 kW
Noise level ≈ 83 dB(A)
Protection class IP44 / Class B
Air filters 2 × metal intake filters
Quick coupling 1 × fast connection outlet
Power cable 1.5 m / 400 V plug (16 A 5-pin)
Net / Gross weight 458 kg / 510 kg
Dimensions (L × W × H) 2100 × 840 × 1500 mm

 Air Delivery Performance

Average air delivery values for the twin W-0.90/8 configuration at 8 bar operation:

PressurePer pumpTotal (Twin)
Nominal displacement (0 – 8 bar average) ≈ 1070 L/min ≈ 2140 L/min
Free air delivery @ 6 bar ≈ 775 L/min ≈ 1550 L/min
Working pressure range 6 – 8 bar (auto on/off)

 Ideal Applications

  • Industrial workshops and manufacturing facilities
  • Multi-tool pneumatic systems and production lines
  • Vehicle service centers and agricultural machinery maintenance
  • Sandblasting, painting, and assembly plants
  • Any setup requiring high air flow and reliability

Recommended Accessories

  • Air dryer (rated for 8 bar)
  • 3-stage oil and moisture separator filter set (optional)
  • Automatic condensate drain system
  • Oil and filter service kit (every 500 h)
  • Annual safety valve and regulator check

AFLATEK AirPro900W-Twin – engineered for professionals who need maximum air volume, stable pressure and long-term industrial durability.
