AFLATEK Air500W-Twin Oil Compressor 8bar

Air500W-Twin

Industrial twin-piston air compressor with a 500L horizontal tank and dual 5.5 kW motors.
Delivers up to 1340 L/min at 8 bar – perfect for workshops, car service centers, and production lines.
Includes metal air filters, pressure regulator, quick coupling and 1.5 m 400 V plug cable.

More details

1 694,00 € tax incl.

Ask about product
AFLATEK Air500W-Twin Oil Compressor 8bar

AFLATEK Air500W-Twin Oil Compressor 8bar

Industrial twin-piston air compressor with a 500L horizontal tank and dual 5.5 kW motors.
Delivers up to 1340 L/min at 8 bar – perfect for workshops, car service centers, and production lines.
Includes metal air filters, pressure regulator, quick coupling and 1.5 m 400 V plug cable.



More info

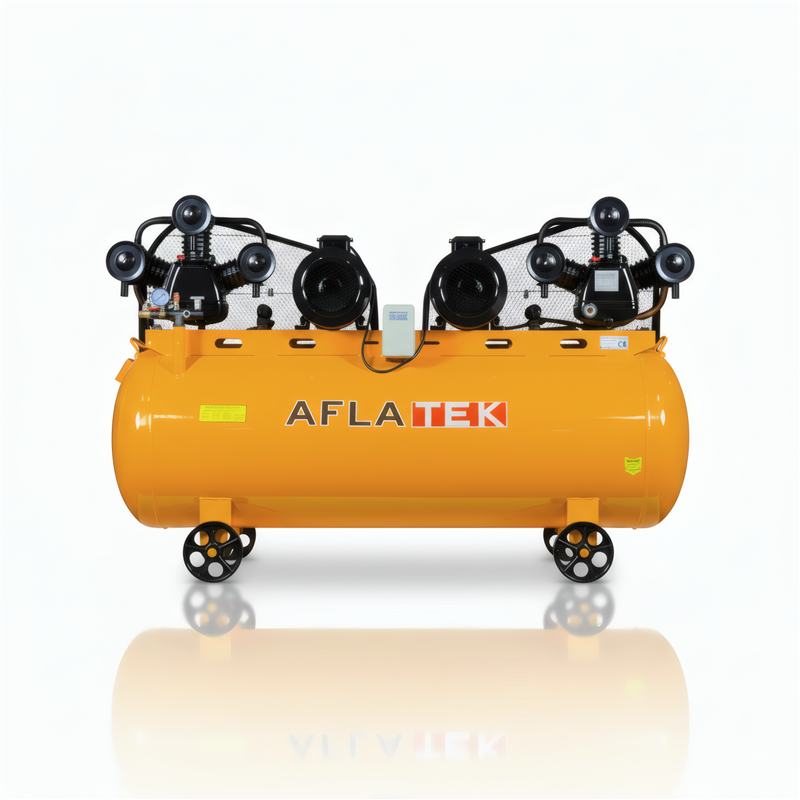

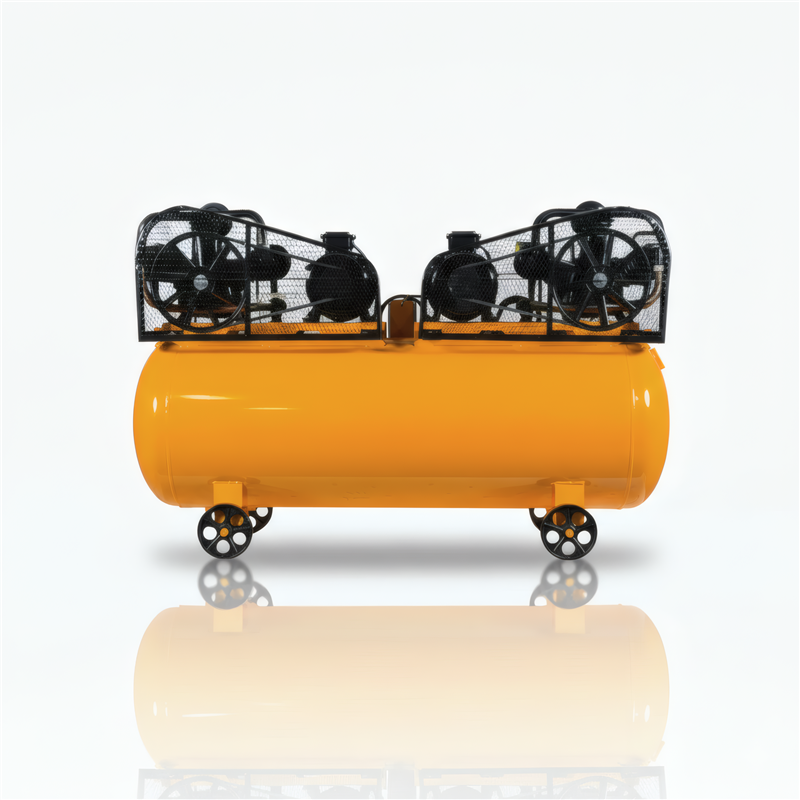

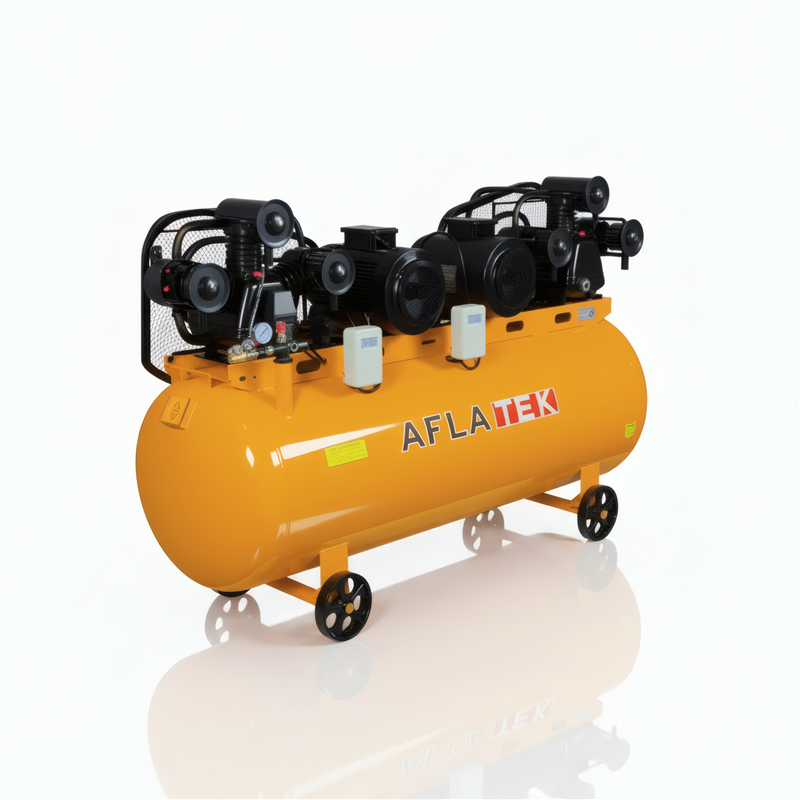

AFLATEK Air500W-Twin – 500L Industrial Twin-Piston Air Compressor (400V)

The AFLATEK Air500W-Twin is a high-performance industrial air compressor designed for professional workshops, production lines, and service centers that require a stable and continuous air supply. Equipped with two heavy-duty W-0.67/8 compressor blocks and dual 5.5 kW (7.5 HP) motors, it delivers outstanding reliability and a strong air output up to 1340 L/min at 8 bar.

✅ Key Features

  • Dual 5.5 kW motors – total 11 kW power output for high air delivery
  • 500 L horizontal tank – CE certified and pressure-tested at 12 bar
  • Metal air filters for improved durability and clean air intake
  • Pressure regulator and quick coupling included – ready to connect
  • Independent motor control – allows single or dual operation for energy efficiency
  • Industrial D.O.L. starters pre-installed for each motor
  • All-English labels and CE marking for EU market compliance
  • Delivered on wooden pallet base, suitable for hand pallet truck use

⚙️ Technical Specifications

Model Air500W-Twin
Tank volume 500 L (horizontal type)
Compressor type 2 × W-0.67/8 cast-iron blocks
Nominal air delivery (displacement) 2 × 670 L/min = 1340 L/min
Approx. air delivery at 6 bar ~1140 L/min
Working pressure 8 bar
Test pressure (tank) 12 bar
Motor power 2 × 7.5 HP / 5.5 kW
Voltage / Phase / Frequency 400 V / 3 Ph / 50 Hz
Amperage 2 × 11.1 A
Start type D.O.L. Starter QCX5-22-5.5 kW
Noise level 83 dB(A)
Protection class IP44, Class B
Air filters 2 × metal type
Quick coupling 1 × fast connection outlet
Power cable 1.5 m with 400 V plug (16 A 5-pin)
Net / Gross weight 326 kg / 375 kg
Dimensions (L × W × H) Approx. 1900 × 600 × 1150 mm

Air Delivery Performance

The following table shows the compressor’s nominal air displacement and approximate air delivery at different working pressures:

PressurePer pumpTotal (Twin)
Nominal displacement (0–8 bar average) 670 L/min 1340 L/min
Approx. air delivery at 6 bar 570 L/min ~1140 L/min
Working pressure 8 bar
Tank test pressure 12 bar (not adjustable)

Note: The 1340 L/min value corresponds to the nominal average air displacement from 0 to 8 bar, in line with standard compressor rating practices. Actual free air delivery at 6 bar is approximately 1140 L/min (total).

 Ideal Applications

  • Automotive workshops and tire service centers
  • Woodworking and metalworking production lines
  • Spray-painting and surface finishing operations
  • Industrial plants and agricultural use
  • Any facility requiring high continuous airflow

 Advantages of Dual-Motor Design

  • Higher performance – double air output compared to single-motor units
  • Increased reliability – one unit can run if the other is under maintenance
  • Energy flexibility – use one or both motors as needed
  • Reduced wear – lower operating temperature and balanced load
  • Faster tank refill time – large 500 L tank filled quickly

 Recommended Accessories

  • Air dryer and moisture separator set (for painting or precision tools)
  • Automatic condensate drain system
  • Oil and filter change kit (every 500 h)
  • Safety valve and regulator check (annually)

AFLATEK Air500W-Twin – built for professionals who demand continuous power, high airflow, and long-term reliability.
