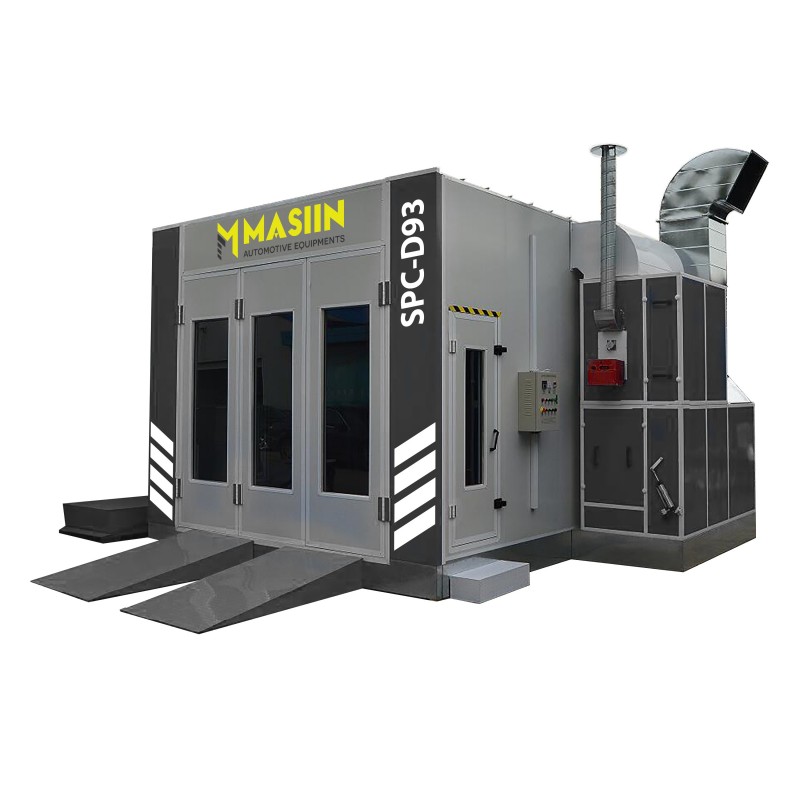

Car Spray Painting Camera SPC-D93

MASIIN SPC-D93 Painting camera with additional side lighting.

Specification:

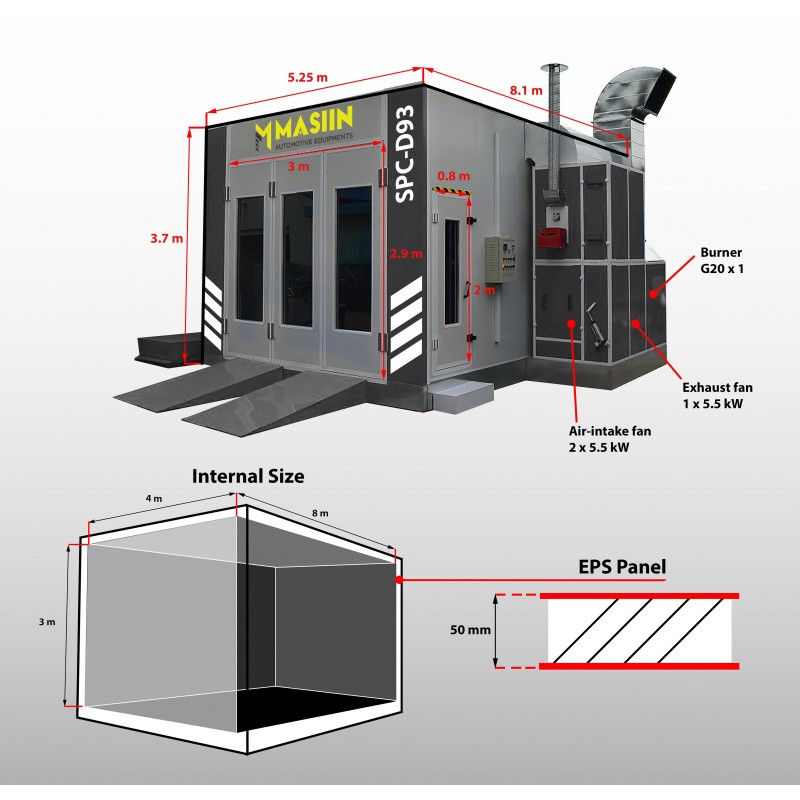

• External camera dimensions: Length 8.10m, Width 5.25m, Height 3.7m
• Internal camera dimensions: Length 8.0m, Width 4.0m, Height 3.0m
• Entrance door size: Width 3.0m, Height 2.9m
• Operator door size: Width 0.8m, Height 2.0m
• Total power of the device: 19.5kW
• Noise level: 80dB
• Voltage: 380V / 3hp / 50hz
• Wall panels: EPS 50mm
• Base: 300mm high metal construction.
• Heating: Rielio Diesel burner G20x1, 4-6 min. heats up to 20-60 degrees, max. temperature 80 degrees
• Filtration: Floor filter multilayer fiberglass, room air purity can reach 98%, Ceiling filter 4μm, Pre-Filter 10μm
• Lighting: 72 LED lamps, Ceiling 40x36w and Side LED Lamps 32x36w
• Ventilation: Air intake fan 2x5.5kw, Waiting exhaust 1x5.5kw centrifugal, air flow speed 0.35m / s. (One set of Painting and baking exchange system, One set of Cabinet for the fans and three pcs air ducts)
• CE certificate

Quality guaranteed.

* 4-year warranty if installation is provided by an authorized representative.
