KD5475 METAL BAND SAW

KD5475

The original KD5475 Band Saw Machine,  commonly used in locksmith, manufacturing and craft workshops.

The new model features a more powerful engine equipped with additional safety features. The machine also features a new generation hydraulic cylinder.

The precision and solidity of its workmanship puts it at the forefront of band saws with the ability to cut profiles, channels and solid materials, etc.

Massive construction made of cast iron

More details

449,00 € tax incl.

Ask about product
KD5475 METAL BAND SAW

KD5475 METAL BAND SAW

The original KD5475 Band Saw Machine,  commonly used in locksmith, manufacturing and craft workshops.

The new model features a more powerful engine equipped with additional safety features. The machine also features a new generation hydraulic cylinder.

The precision and solidity of its workmanship puts it at the forefront of band saws with the ability to cut profiles, channels and solid materials, etc.

Massive construction made of cast iron



More info

Characteristics:

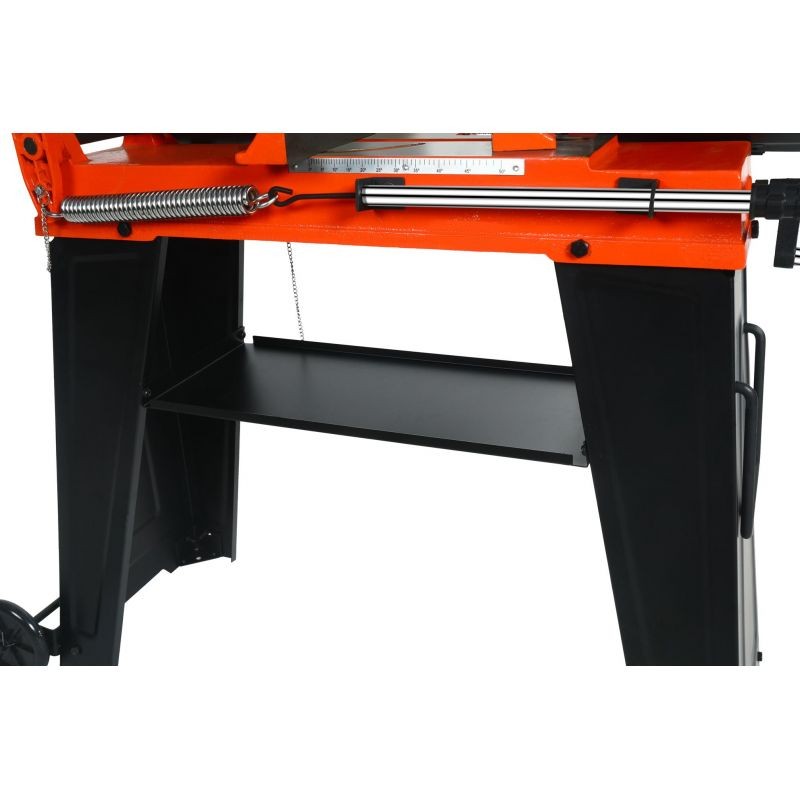

-adjustable lowering speed of the machine arm using spring tension

-swivel vice (quick clamping) with workpiece stop

- powerful and efficient single-phase motor with a power of 850W

-easy access to the belt drive compartment

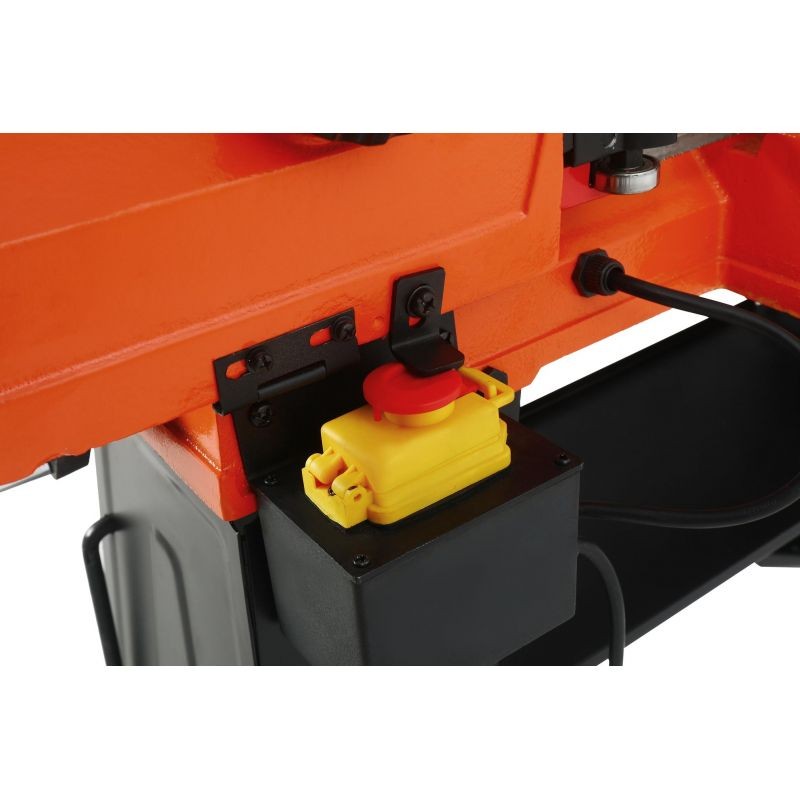

-the machine's on/off switch has the function of automatically turning off the device after cutting (adjustable with a screw)

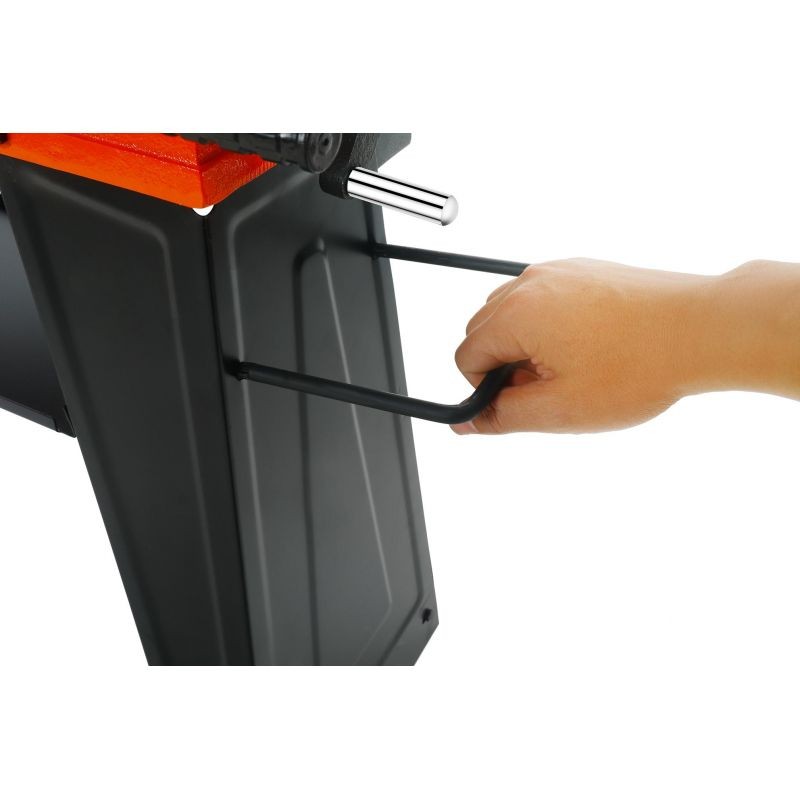

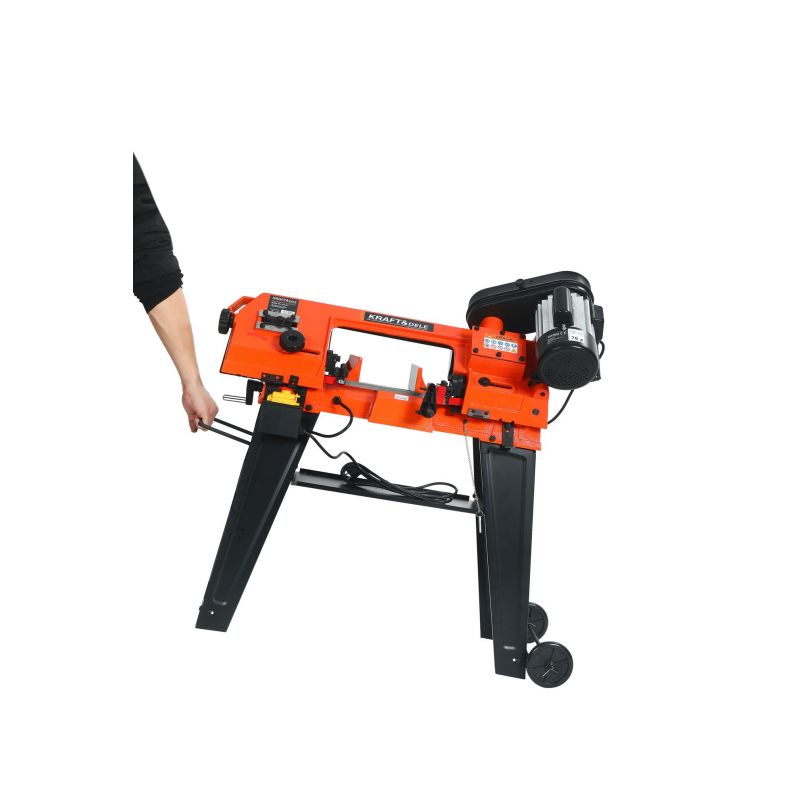

- comfortable, foldable handle for moving the machine

-solid construction made of cast iron

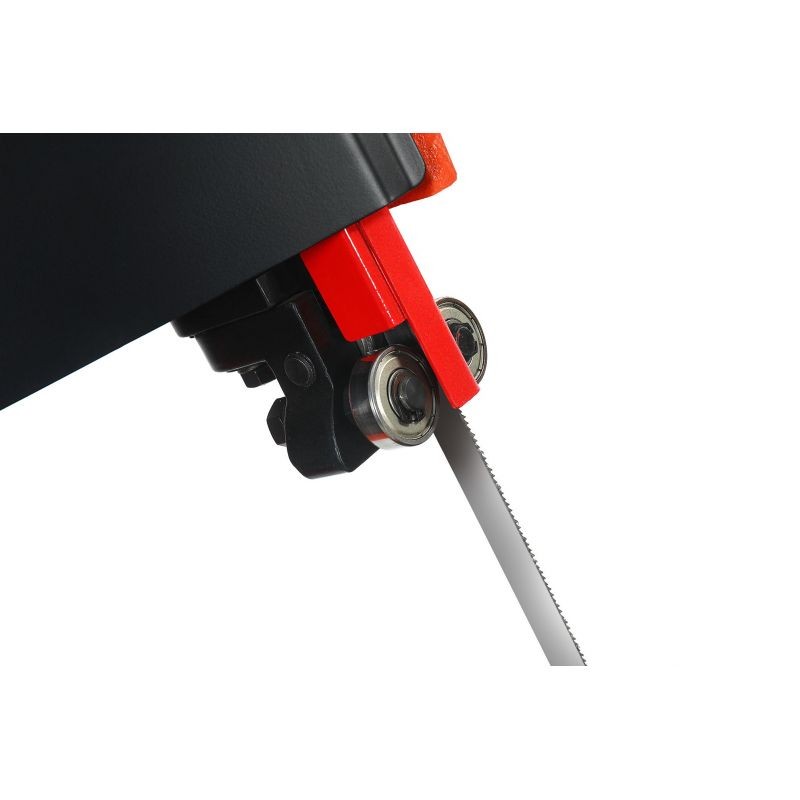

-bearing tape guides

PRODUCT TECHNICAL PARAMETERS

Mark: KRAFT&DELE
Model: KD5475
Device type: metal band saw
Tension: 230V / 50-60Hz
Device power: 850W
Engine speed: 1450 rpm
Blade speed: 24m/min; 36m/min; 54m/min
Max. diameter of a round profile at a cutting angle of 90 o : 110mm
Max. diameter of a round profile at a cutting angle of 45 o : 75mm
Max. dimension of a hexagonal profile at a cutting angle of 90 o : 110x140mm
Max. dimension of a hexagonal profile at a cutting angle of 45 o : 110x75mm
Dimensions: 970x395x945mm
Libra: 56kg

SET COMPOSITION

• KD5475  band saw
• User manual in Polish
• 12-month warranty
• Original packaging
• Receipt or invoice.
