Hydraulic two-column lift with electromagnetic locking, 6.0t UT60EB View larger
Previous Next

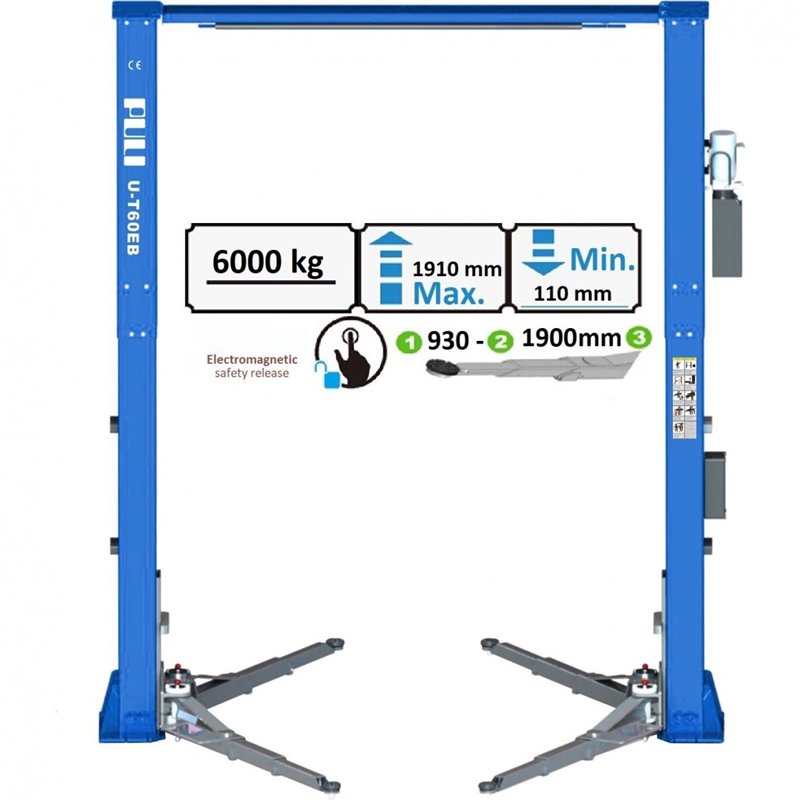

Hydraulic two-column lift with electromagnetic locking, 6.0t UT60EB

UT60EB

Power 6.0 t
Synchronization at the top with electromagnetic security latches

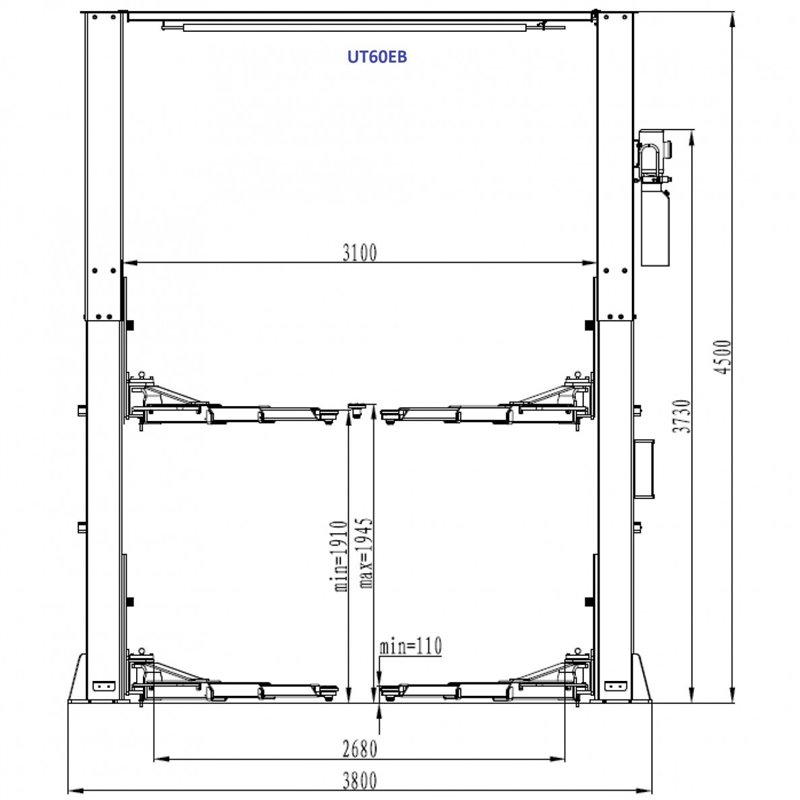

Lifting height 1910 mm
Max height limiter
Min height 110 mm

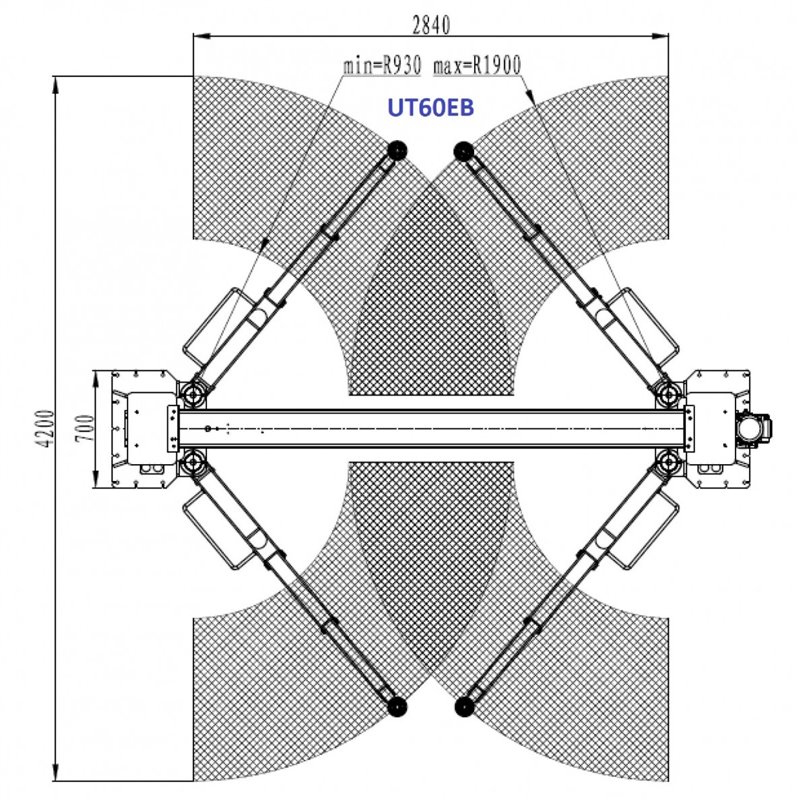

The length of extended straight paws is 930 - 1900 mm (3 steps)
Rubber soles are inserted and screwed in (the set includes elevations L= 100 x Ø60 mm)


More details

3 999,00 € tax incl.

Ask about product
Hydraulic two-column lift with electromagnetic locking, 6.0t UT60EB

Hydraulic two-column lift with electromagnetic locking, 6.0t UT60EB

Power 6.0 t
Synchronization at the top with electromagnetic security latches
Lifting height 1910 mm
Max height limiter
Min height 110 mm
The length of extended straight paws is 930 - 1900 mm (3 steps)
Rubber soles are inserted and screwed in (the set includes elevations L= 100 x Ø60 mm)




More info

Carrying capacity
6 vols

Specification
Synchronization at the top with electromagnetic latches

Connection
over top

Lifting height (+twisted soles)
1910 (+35) mm

Min height (+ twisted soles)
110 mm

Rubber soles
Installed and screwed in (includes elevations)

Long paw length
930 - 1900 mm (3 steps), straight, extended

Lift/Lower Time
55 s

Engine
3.0 kW / 380 V / 3 Ph

Oil capacity
12l

Weight
1400 kg

CE
Yes

Warranty
12 months.
