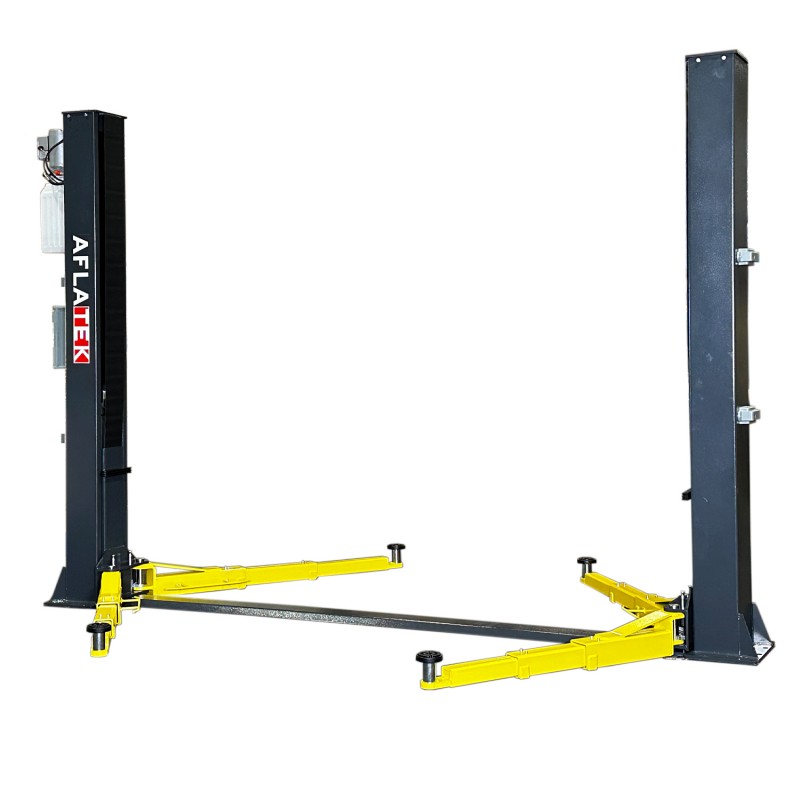

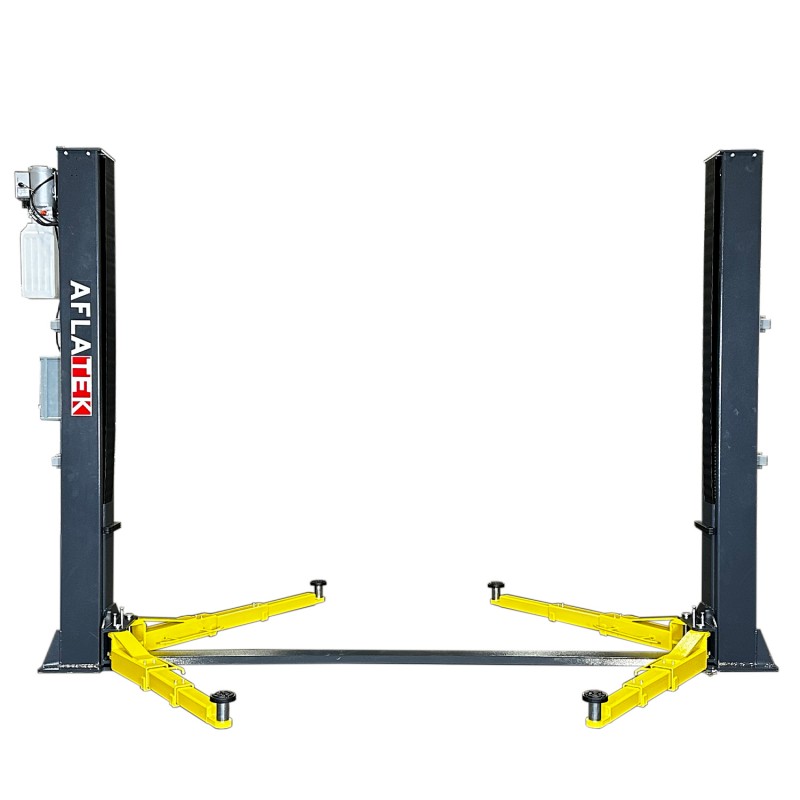

AFLATEK 5000FE Automatic Big Size 2-Post lift 5.0T 400V

Type: Floor Plate

Lifting capacity: 5000kg

Lifting time: 55sec.

Descent time: 30sec.

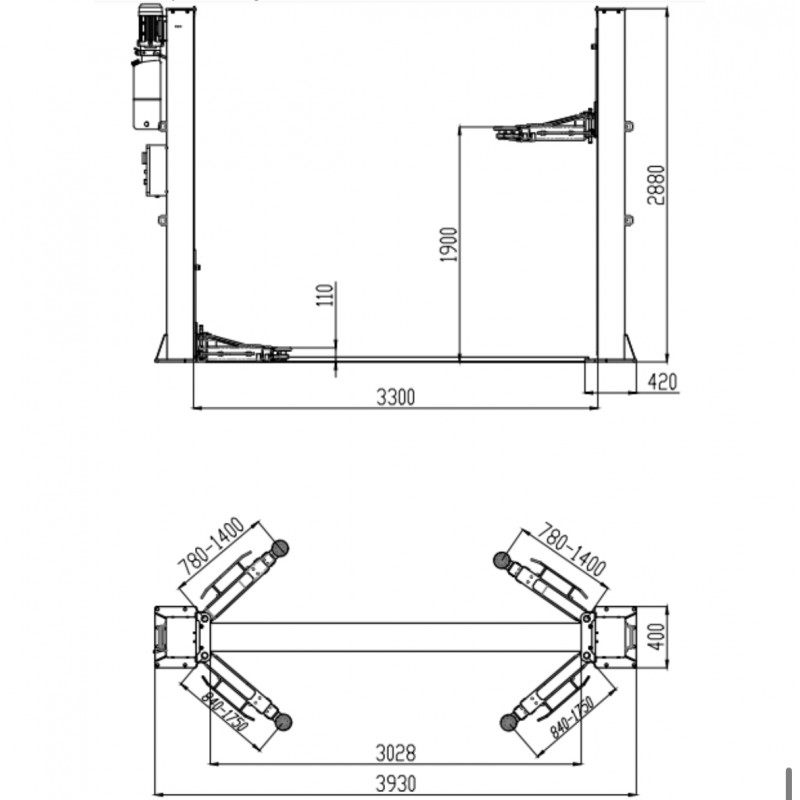

Lifting height：1900mm

Min. height：110mm

Overall height：2880mm

Width between posts：3300mm

Overall width：3930mm

Power supply: 400V, 3Ph

Power: 2.2kW

Noise: ≤70dB

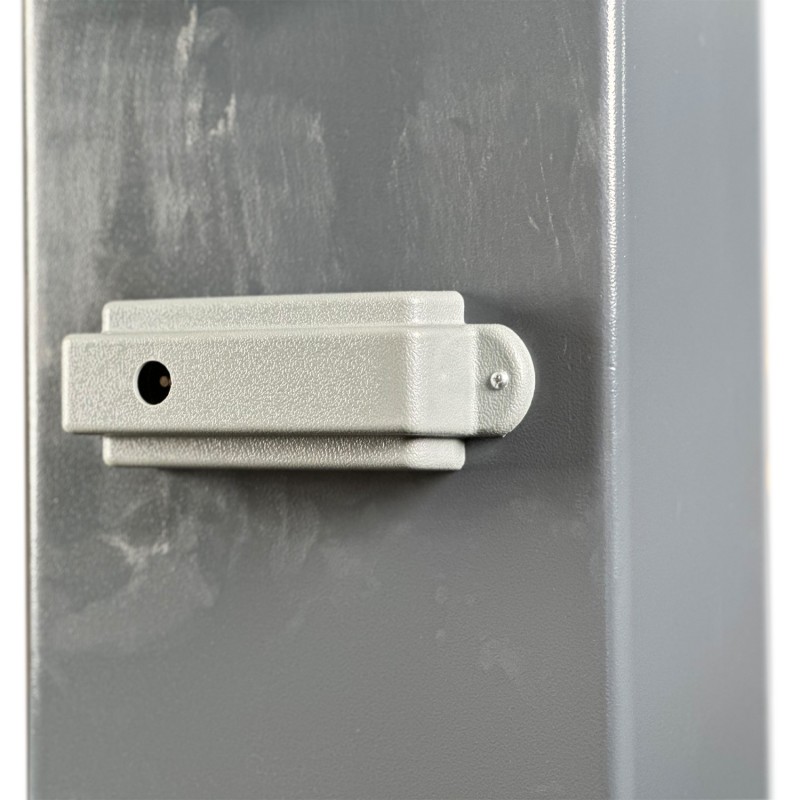

Safety catch type: Magnetic Solenoid

Packing dimensions: 2900x520x1000mm

Gross/Net. Weight : 845/830kg

Hydraulic Oil Volume: 10 liters
