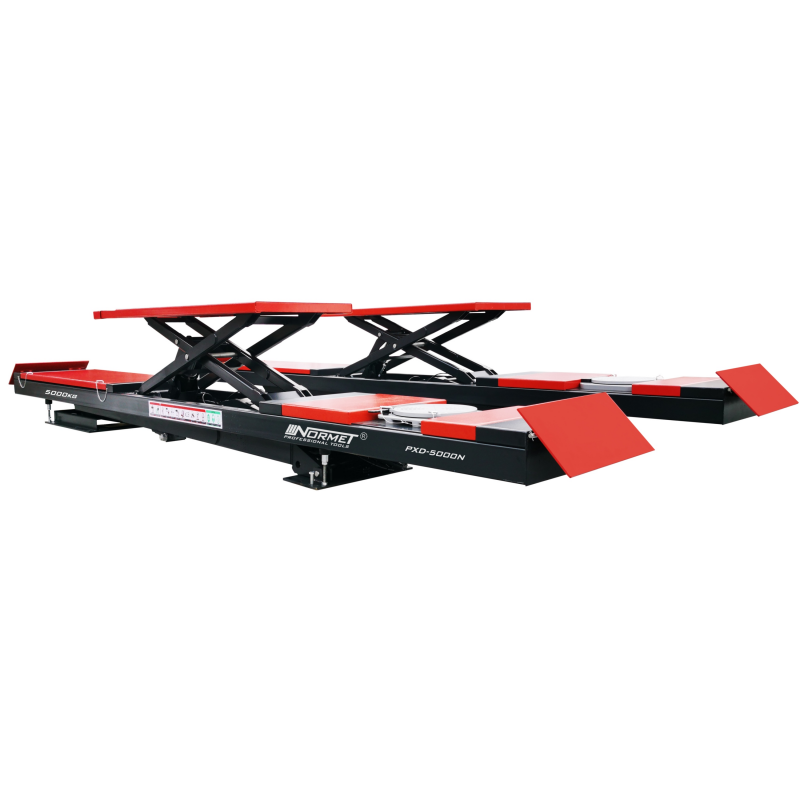

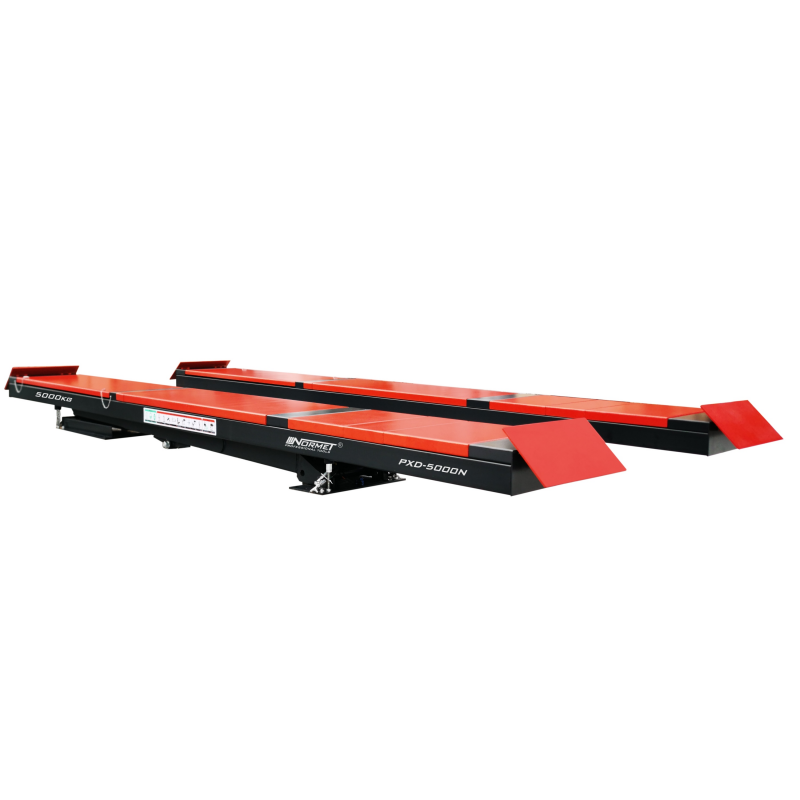

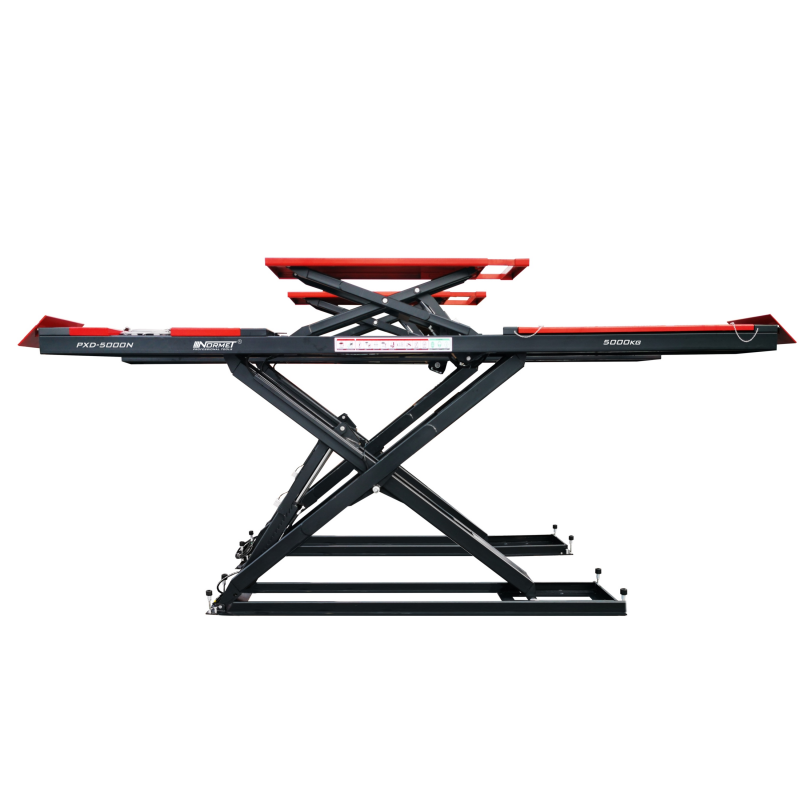

Diagnostic scissor lift 5,0T PXD-5000N

PXD-5000N

Diagnostic scissor lift PXD-5000N with a 5,000 kg lifting capacity, hydraulic drive, and pneumatic safety lock. Max lifting height 2160 mm, powered by 400 V, 2.2 kW motor, ideal for heavy vehicle maintenance.

More details

7 865,00 € tax incl.

Ask about product
Diagnostic scissor lift 5,0T PXD-5000N

Diagnostic scissor lift 5,0T PXD-5000N

Diagnostic scissor lift PXD-5000N with a 5,000 kg lifting capacity, hydraulic drive, and pneumatic safety lock. Max lifting height 2160 mm, powered by 400 V, 2.2 kW motor, ideal for heavy vehicle maintenance.



More info

Lifting Capacity [kg] 5000 kg
Lifting height max. [mm] 2160/1850 mm
Lifting height min. [mm] 360 mm
Risinig time [s] 70 s
Power supply [V] 400 V
Engine power [kW] 2,2 kW
Type of drive Hydraulic
Synchronization Stała
Safety lock Pneumatic on cylinder
Air supply [bar] 6-8 bar
Noise level [dB] 70 dB
Height [mm] x
Width [mm] x
Lenght [mm] x
Weight [kg] 2690 kg
