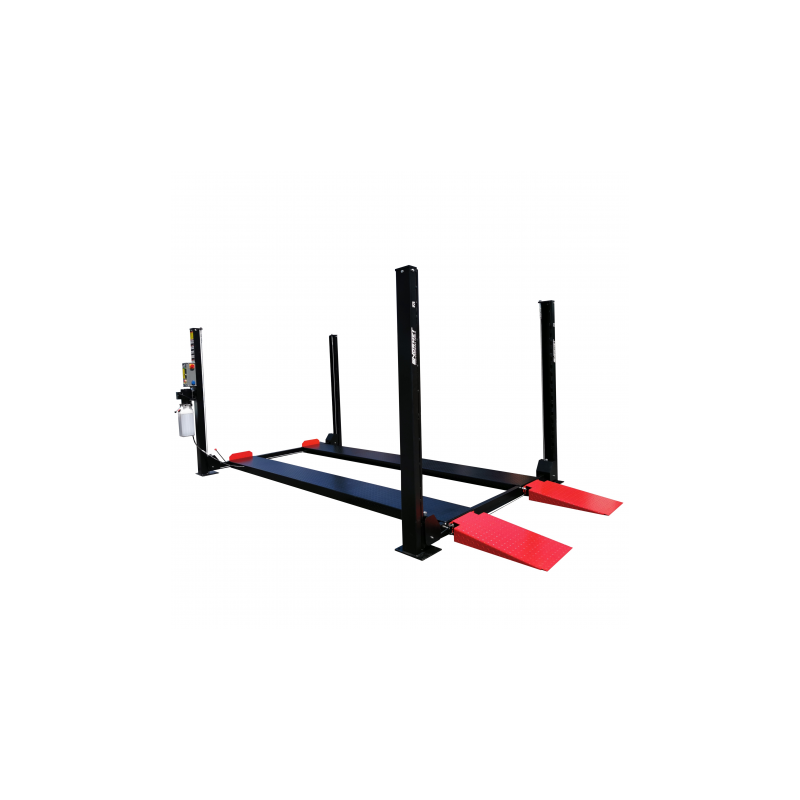

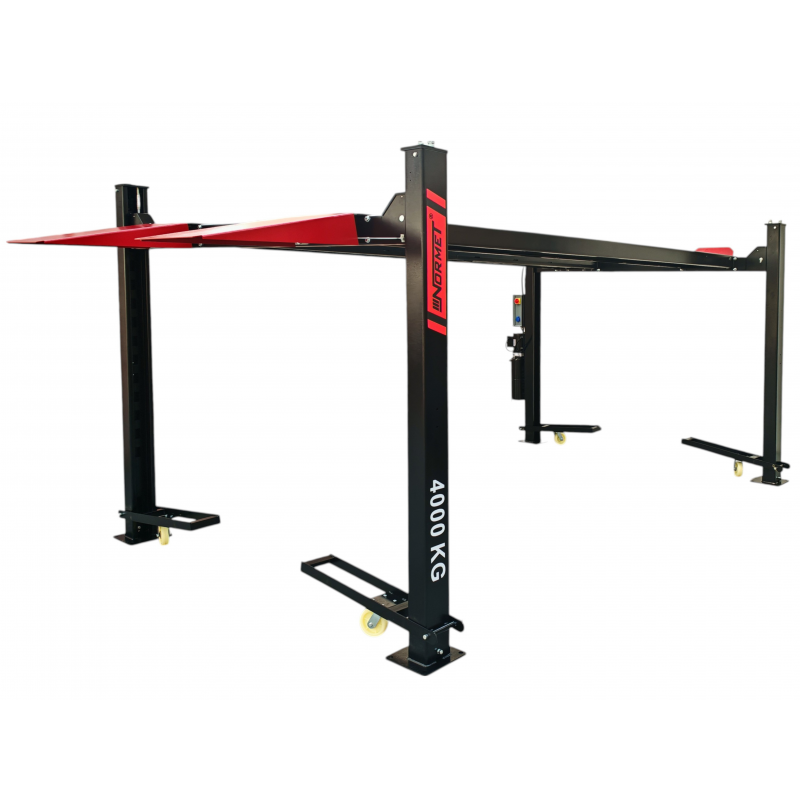

4 post lift NORMET PK4-CARPARK PK4-CARPARK

PK4-CARPARK

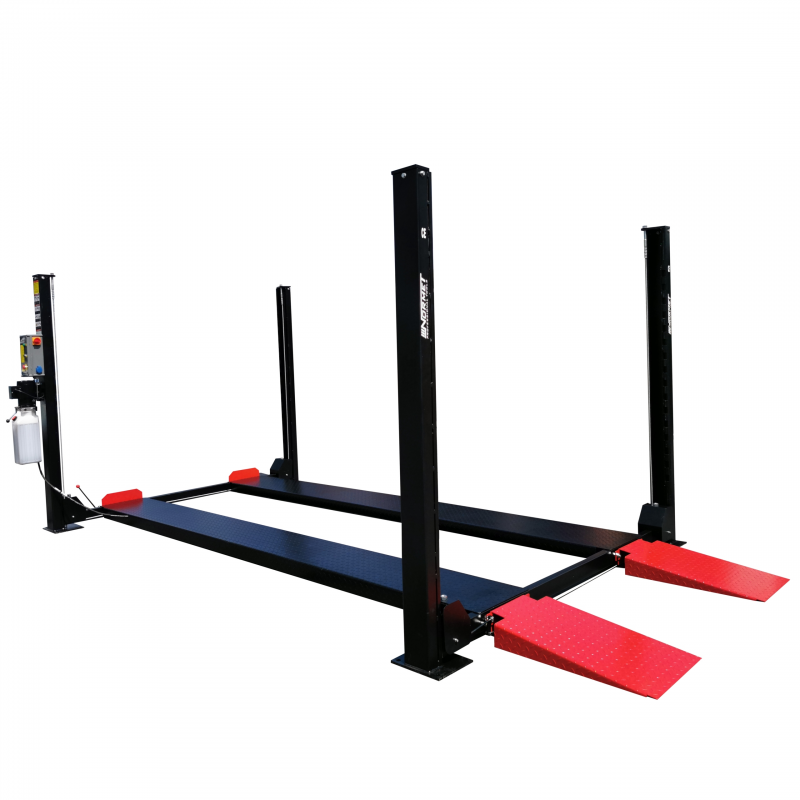

The NORMET PK4-CARPARK is a hydraulic 4-post lift with synchronized steel rope platforms and manual safety lock release. It’s ideal for servicing cars, SUVs, and light commercial vehicles with easy control and low ramps for low-clearance vehicles.

More details

3 617,90 € tax incl.

Ask about product
4 post lift NORMET PK4-CARPARK PK4-CARPARK

4 post lift NORMET PK4-CARPARK PK4-CARPARK

The NORMET PK4-CARPARK is a hydraulic 4-post lift with synchronized steel rope platforms and manual safety lock release. It’s ideal for servicing cars, SUVs, and light commercial vehicles with easy control and low ramps for low-clearance vehicles.



More info

Four-post lift PK4-3500.

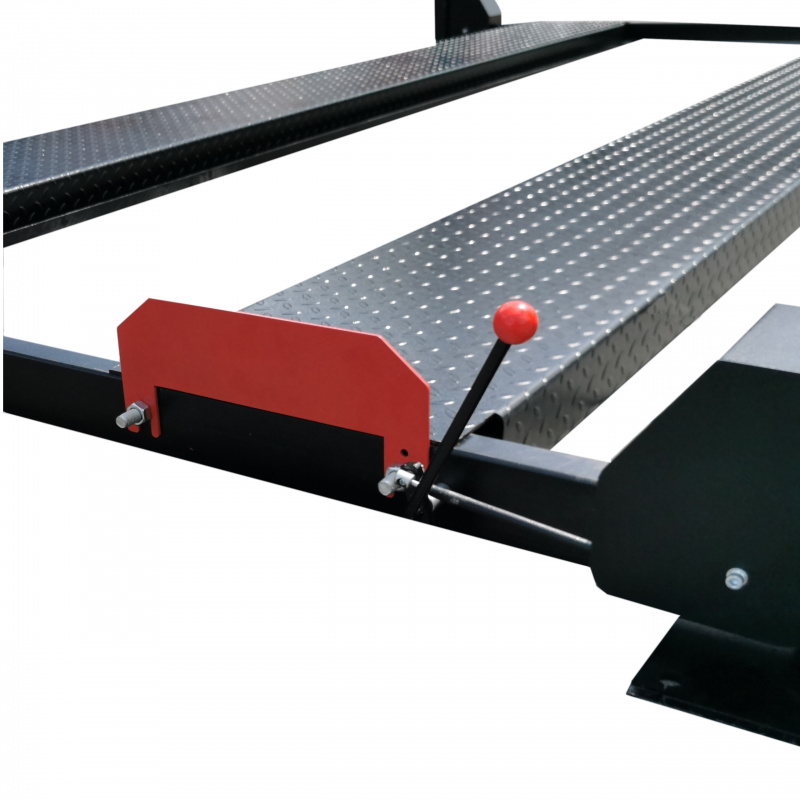

  • It is a hydraulic powered lift with manual release of the safety locks in the columns.
  • The platforms are synchronized by means of steel ropes.

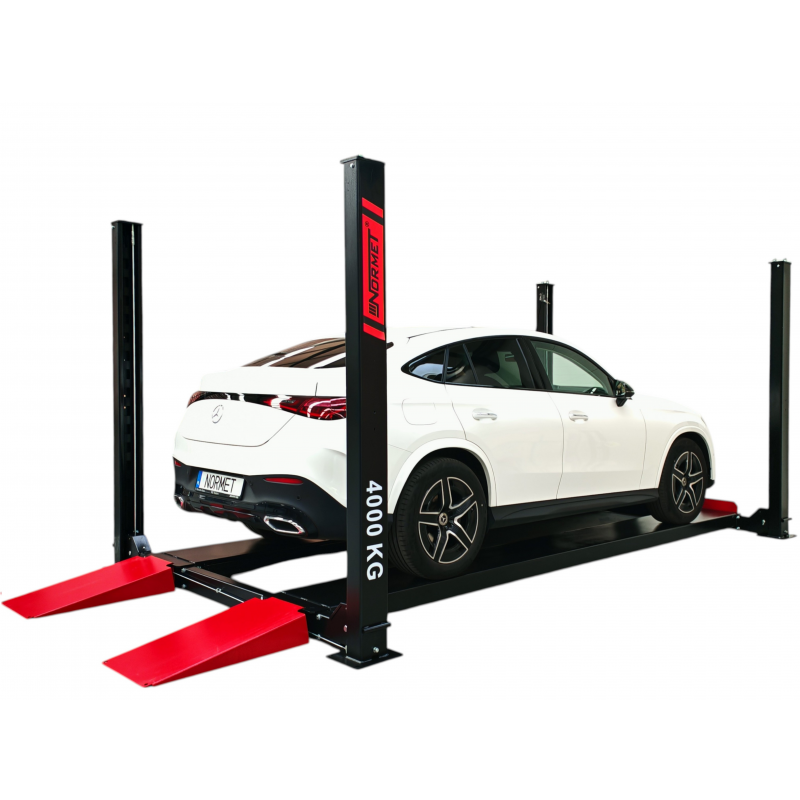

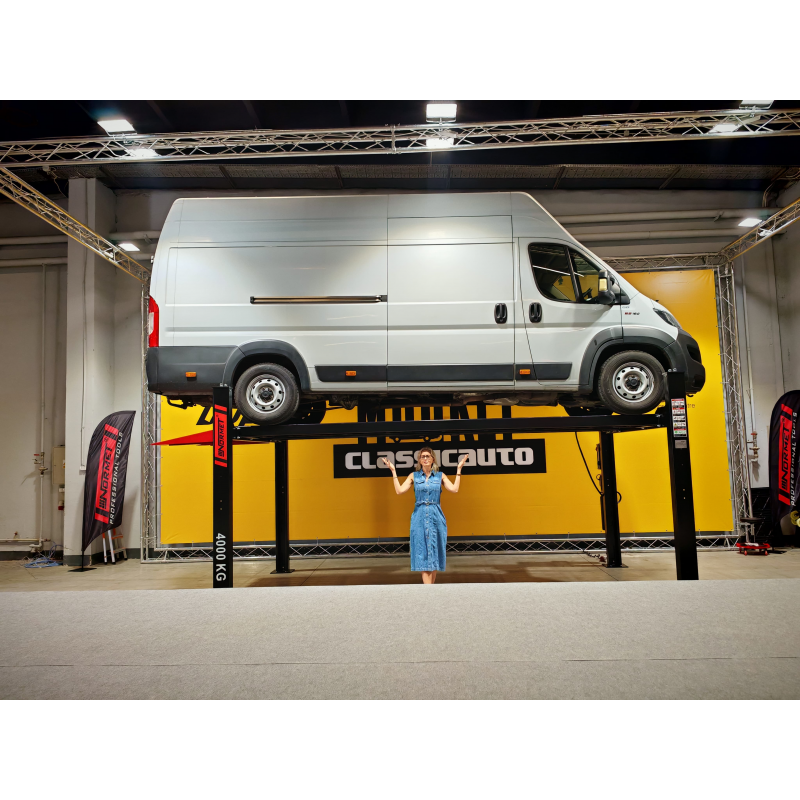

  • The lift will be used in every car workshop for servicing passenger cars, off-road vehicles,
  • SUV and light commercial vehicles. It is perfect for repair or diagnostic work.

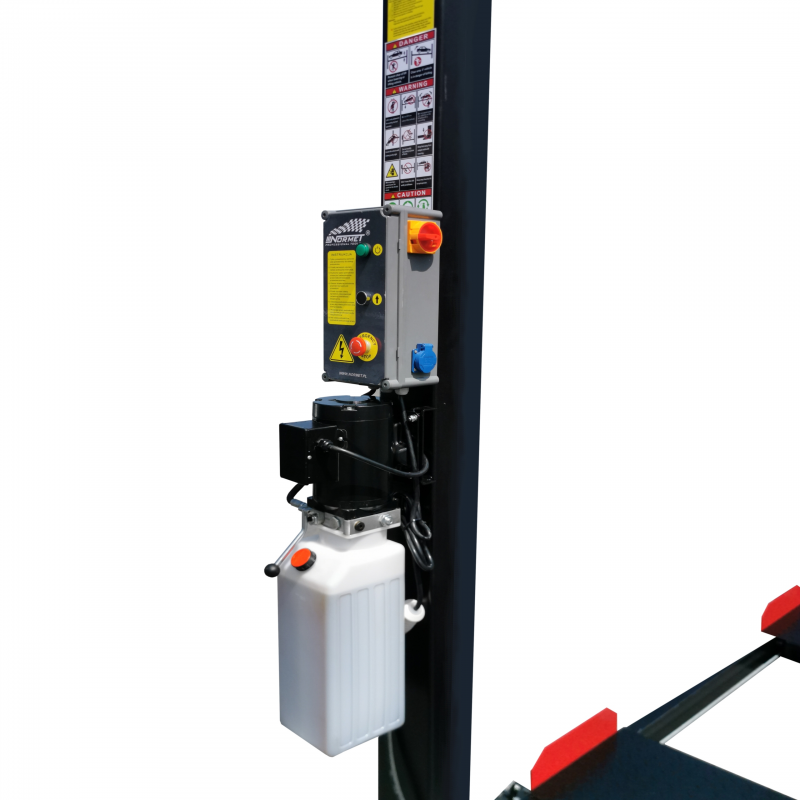

  • The lift is controlled by a control box equipped with a emergency switch and additional 230V power socket

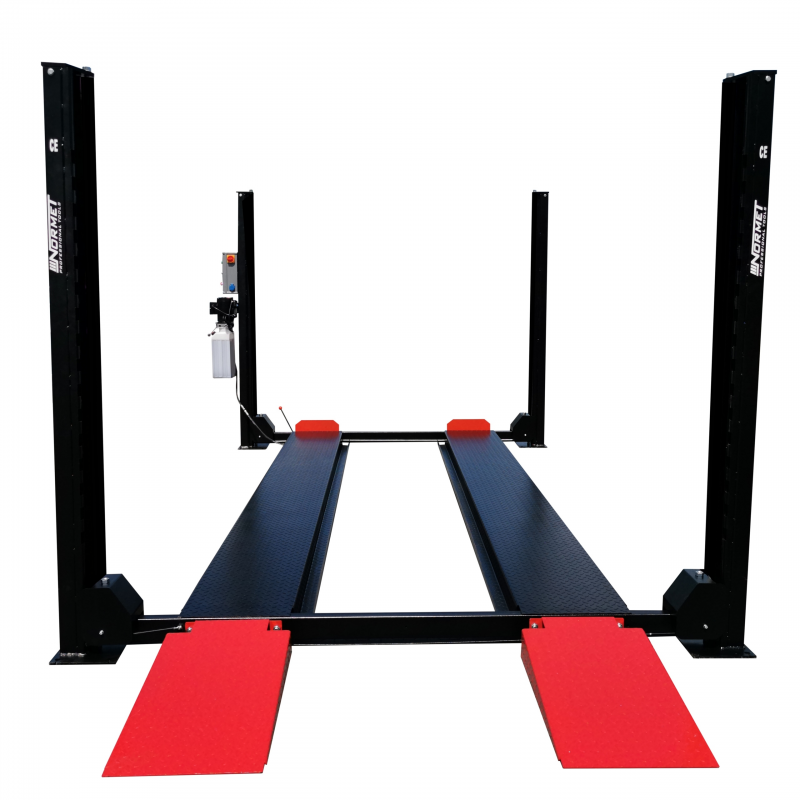

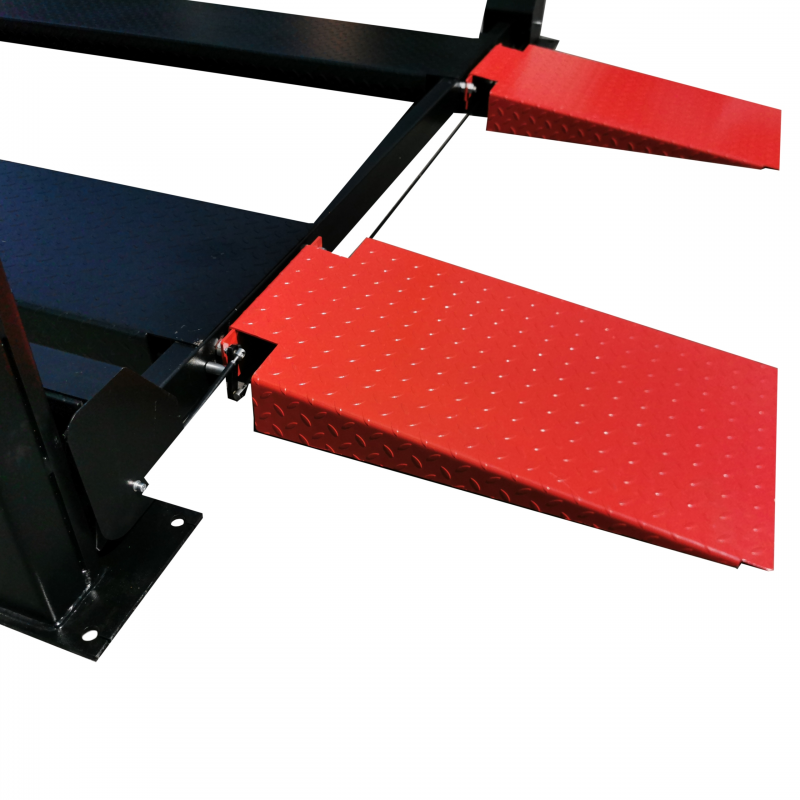

  • Thanks to low ramps , servicing low cars is not a problem.

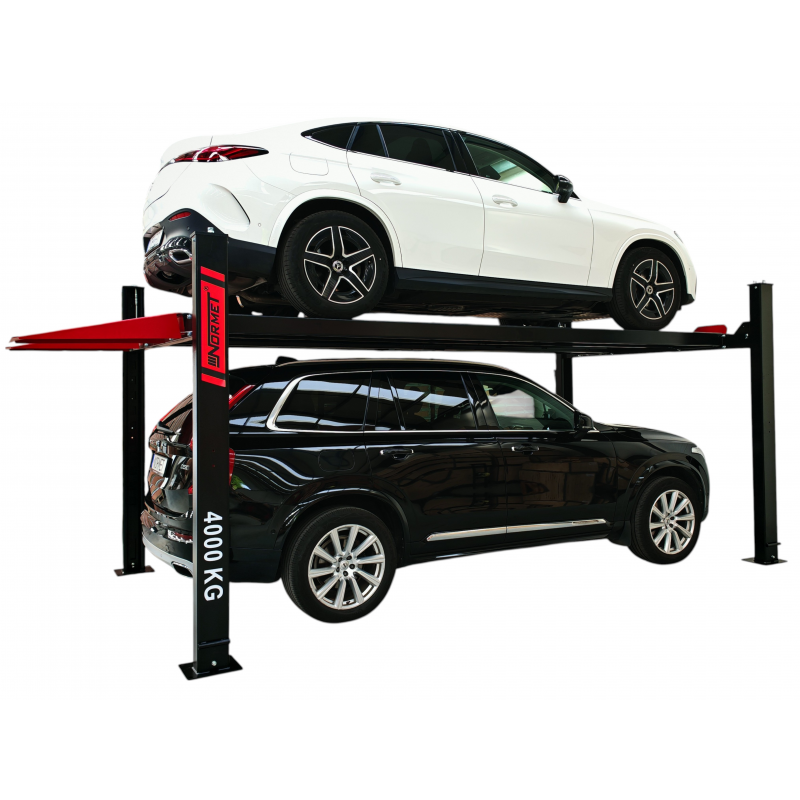

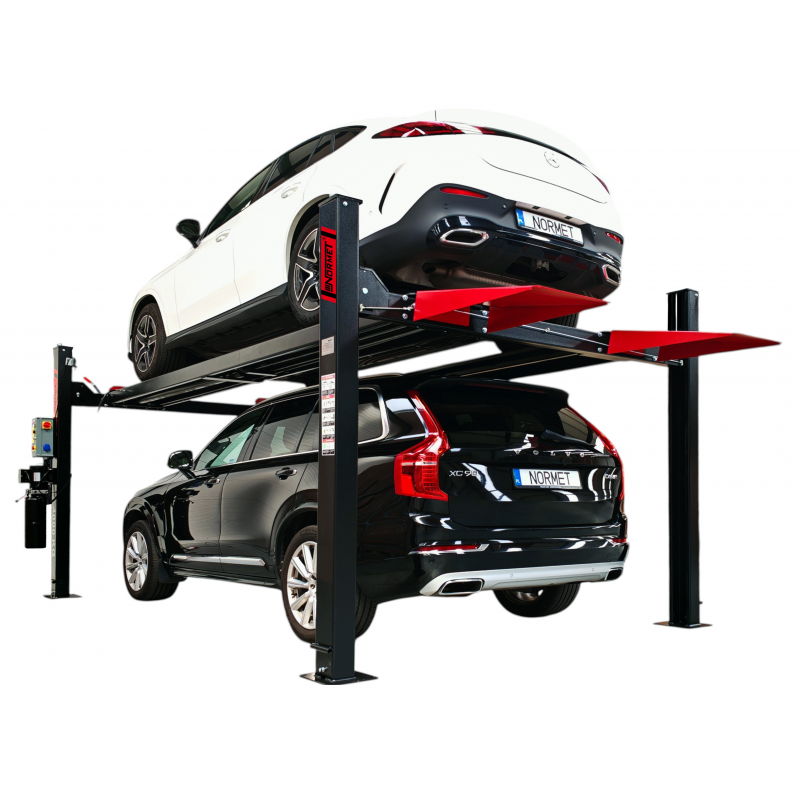

  • This lift is also useful as a parking lif for storing two vehicles on one parking space.
  • Thanks to the additional special drip plate between the platforms, no oil, no fuel whether any other contamination
  • falls on the vehicle parked below.
  • Thanks to the small external dimensions and the long platform, it can be used in most workshops to service most
  • vehicles.

Specification

Lifting Capacity [kg] 4000kg

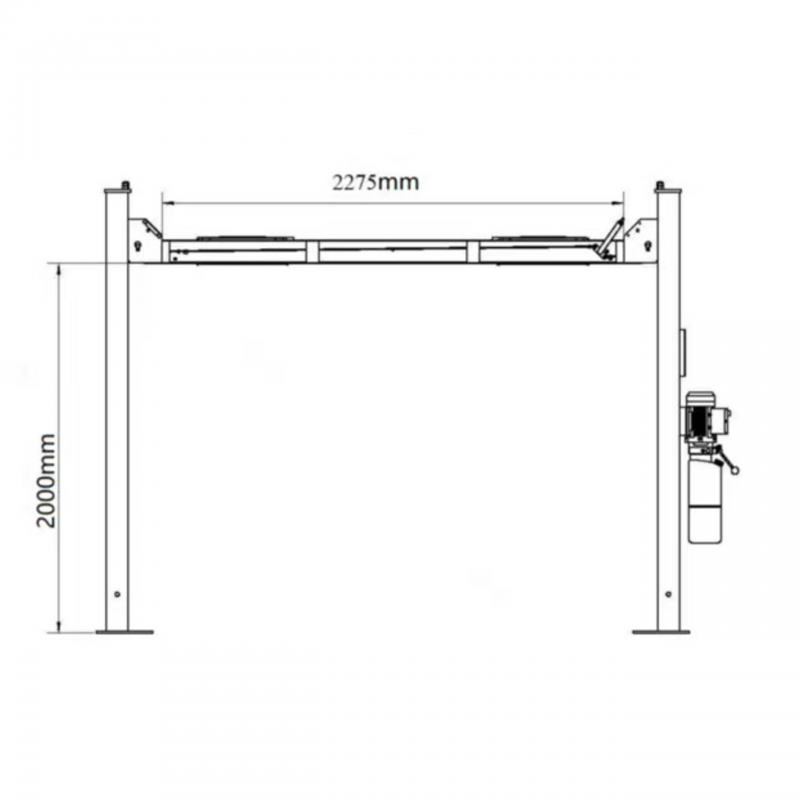

Lifting height max. [mm] 2000 mm
Risinig time [s] 44 s
Power supply [V] 400 V
Engine power [kW] 2,2 kW
Type of drive Hydraulic
Synchronization Steel rope

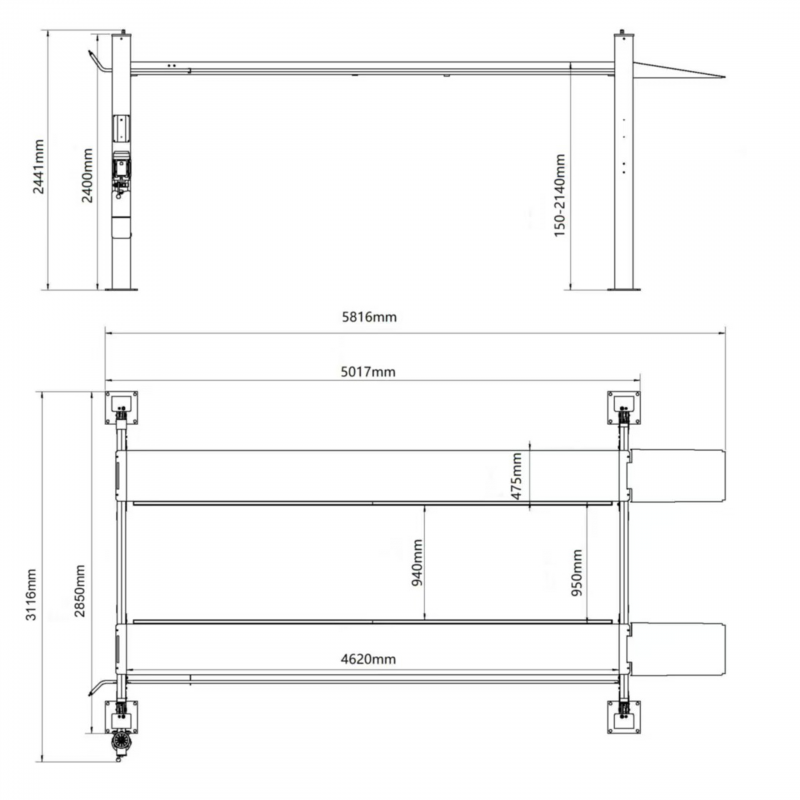

Height [mm] 2335 mm
Width [mm] 2850 mm
Lenght [mm] 4850 mm
Weight [kg] 820 kg
