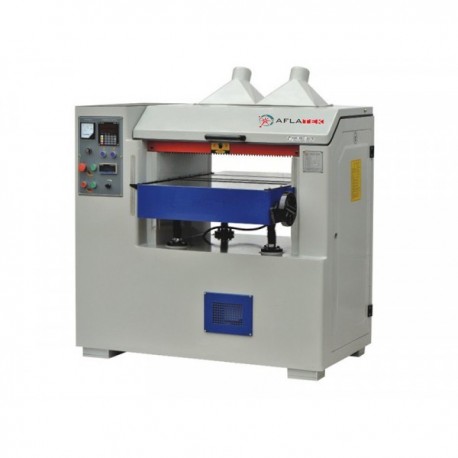

Thicknesser T-MAX 630 View larger

Thicknesser T-MAX 630

T-MAX 630

Thicknesser Aflatek T-MAX 630


Max. Working width - 630 mm
Max. Working thickness - 255 mm
Min. Working thickness - 5 mm
Min. Working length - 220 mm
Feeding speed - 3-18 m / min

More details

Thicknesser, Industrial wood planer, Planing machine, T-MAX 630, Wood surface planer, Wood thicknessing machine, Woodworking planer

8 463,95 € tax incl.

Ask about product

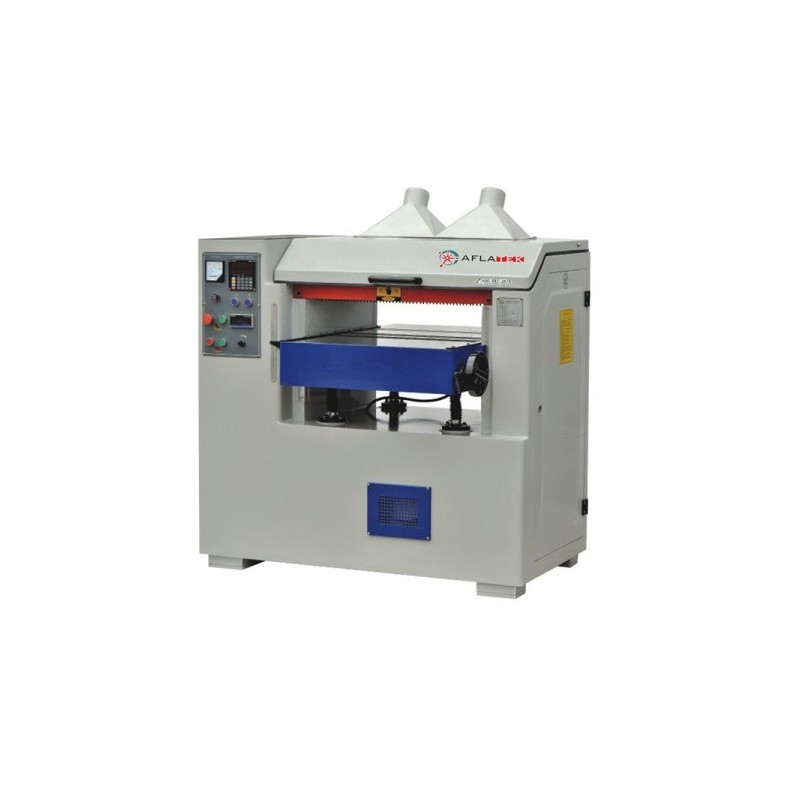

Thicknesser T-MAX 630

Thicknesser T-MAX 630

Thicknesser Aflatek T-MAX 630


Max. Working width - 630 mm
Max. Working thickness - 255 mm
Min. Working thickness - 5 mm
Min. Working length - 220 mm
Feeding speed - 3-18 m / min



More info

The universal design provides long-lasting stability, preventing deformation.
- The three workbench support rollers are equipped with devices for simultaneous micro-adjustment.
- The double feed roller makes the feed more reliable and stable
- Stable lifting and lowering workbench can be achieved with four supports that provide accurate planing.
- New feed and feed roller are easily adjustable.
- Feed rate can be controlled by frequency converter depending on wood thickness and hardness.
- The lifting and lowering scales of the machine can be set according to the thickness of wood seen on the machine, ensuring precise casting and planing.

Technical specifications:
Max. Working width 630 mm
Max. Working thickness 255 mm
Min. Working thickness 5 mm
Min. Working length 220 mm
Max. Cutting depth 8 mm
Spindle speed 5000 rpm
Feeding speed 3-18 m / min
Engine power 11 kW
Weight 1000 kg
