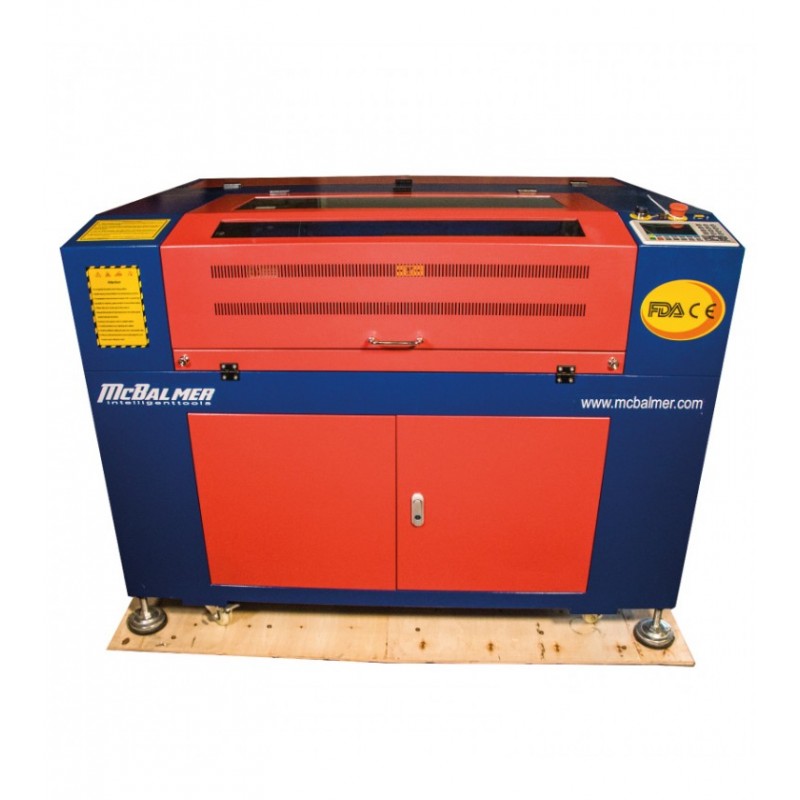

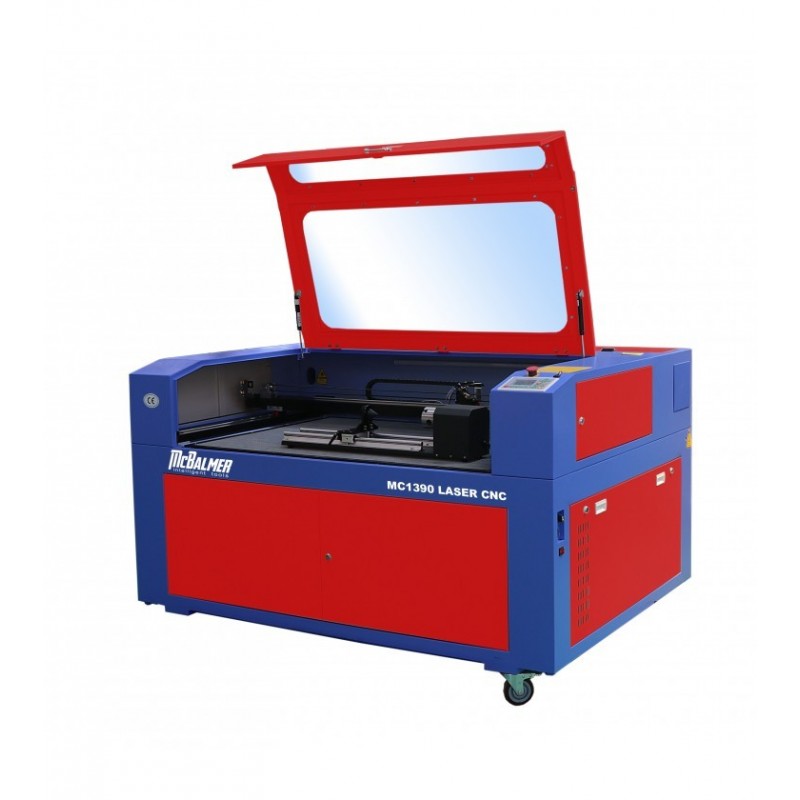

1300X900, 100-130W, LASER ENGRAVING MACHINE CO2 MCBALMER View larger

1300X900, 100-130W, LASER ENGRAVING MACHINE CO2 MCBALMER

McBalmer 1300X900, 100-130W

  • RECI W4 glass CO2 tube 100W
  • work surface 130x90 cm
  • blade + cell table included
  • CW-3000 water cooler included
  • electronically adjustable table
  • rotary axis for machining round parts
  • The laser engraving machine is designed for engraving and cutting on various materials
  • Automatically adjustable table (up / down)
  • Motor power: 1000W

More details

9 100,00 € tax incl.

Ask about product
1300X900, 100-130W, LASER ENGRAVING MACHINE CO2 MCBALMER

1300X900, 100-130W, LASER ENGRAVING MACHINE CO2 MCBALMER

  • RECI W4 glass CO2 tube 100W
  • work surface 130x90 cm
  • blade + cell table included
  • CW-3000 water cooler included
  • electronically adjustable table
  • rotary axis for machining round parts
  • The laser engraving machine is designed for engraving and cutting on various materials
  • Automatically adjustable table (up / down)
  • Motor power: 1000W



More info

  • The laser engraving machine is designed for engraving and cutting on various materials
  • Cooling system: water cooling + safety system
  • Automatically adjustable table (up / down)
  • Rotating shaft for round parts
  • CO2 laser glass tube

Materials you can work with:

  • Glass (engraving only)
  • Leather
  • Rubber
  • A tree
  • Plastic
  • Marble (engraving only)
  • Plywood
  • Cardboard
  • Ceramics (engraving only)
  • Paper materials
  • Coated metal (eg metal pens, etc.)

Software:

  • Works with programs: CorelDraw, AutoCAD, Photoshop
  • Supported file formats: DST, PLT, BMP, DXF, AI, DWG, HPGL
  • Operating system WIN 2000 / Vista / XP / WIN 7

Technical specifications:

Working surface 1300 x 900 mm
Laser power 100 - 130 W
Accuracy ± 0.01mm
Engraving speed 1 - 800 mm / s
Cutting speed 1 - 600 mm / s
Resolution 0.0125 mm
Interface USB
Minimum character size 0.5 mm
Engine power 1000 W
Padeve 0.8A 24V DC, stepper motors
Voltage 230V ± 10%, 50 / 60Hz
Working temperature 0-45 degrees
Humidity 5 - 95%
Weight approx. 410 kg

Applications:
