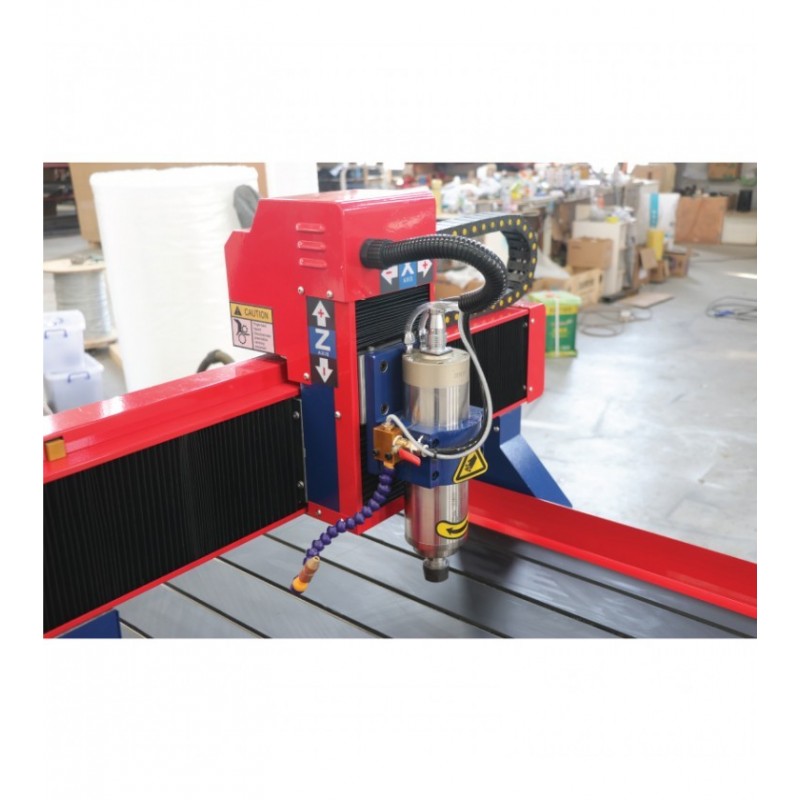

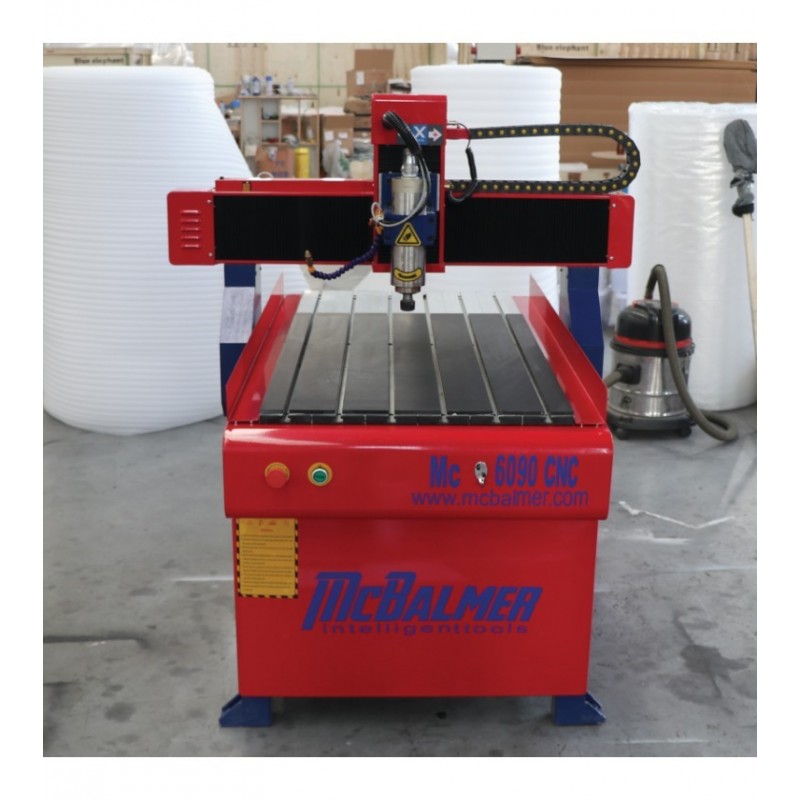

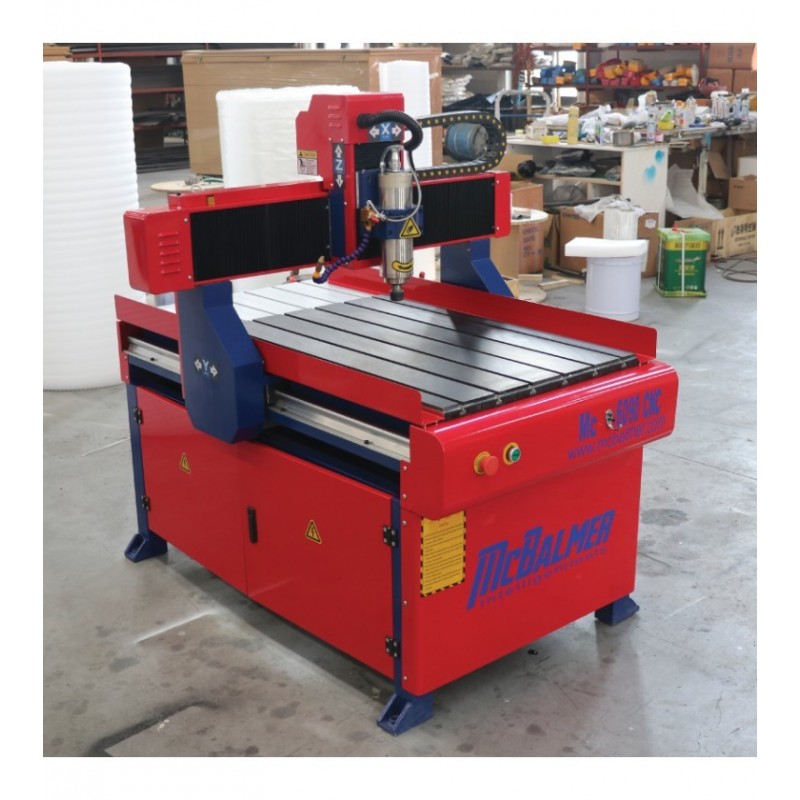

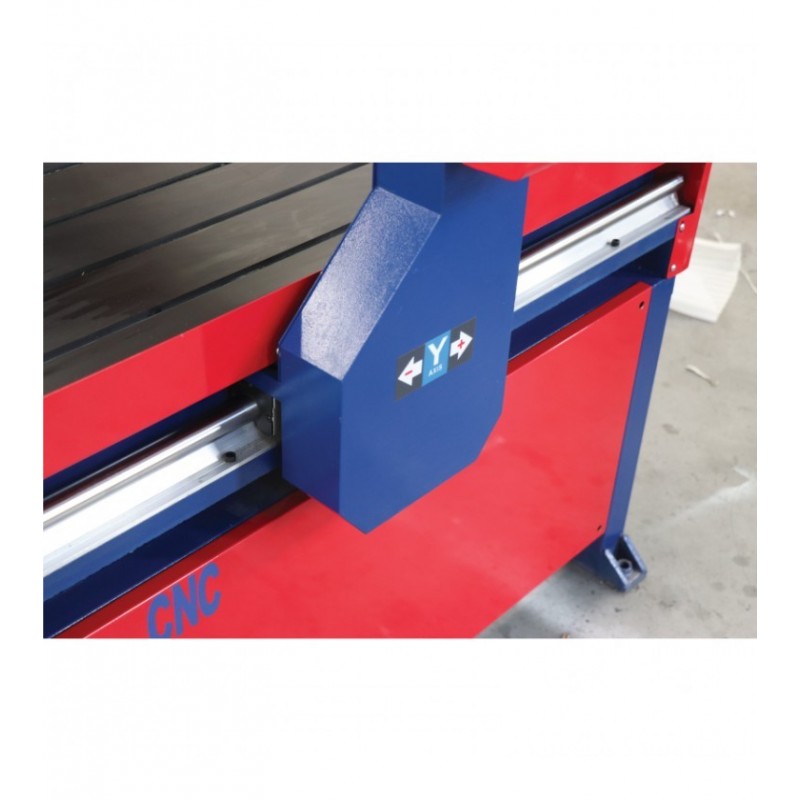

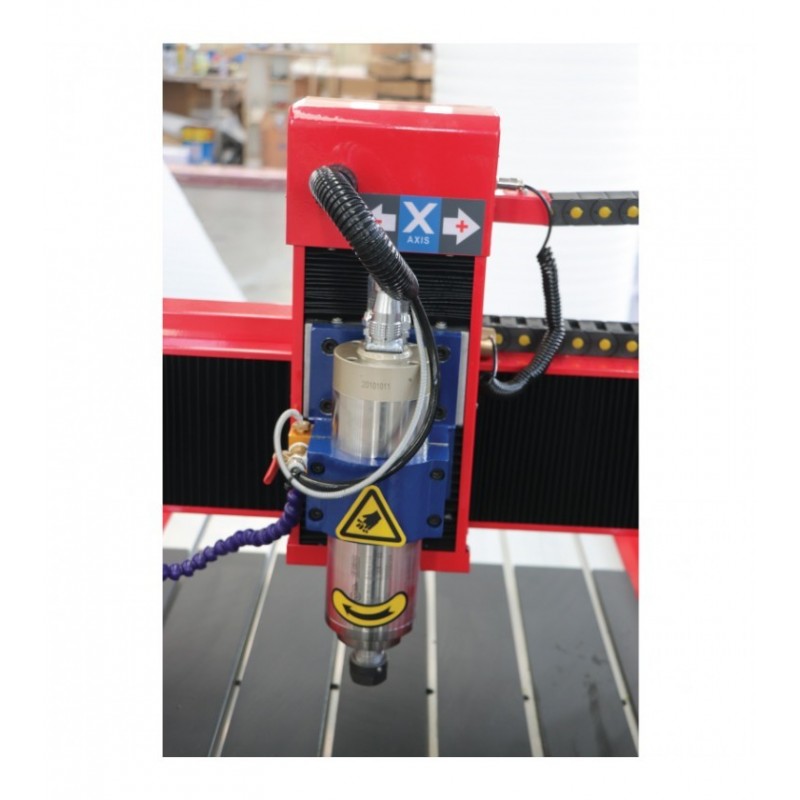

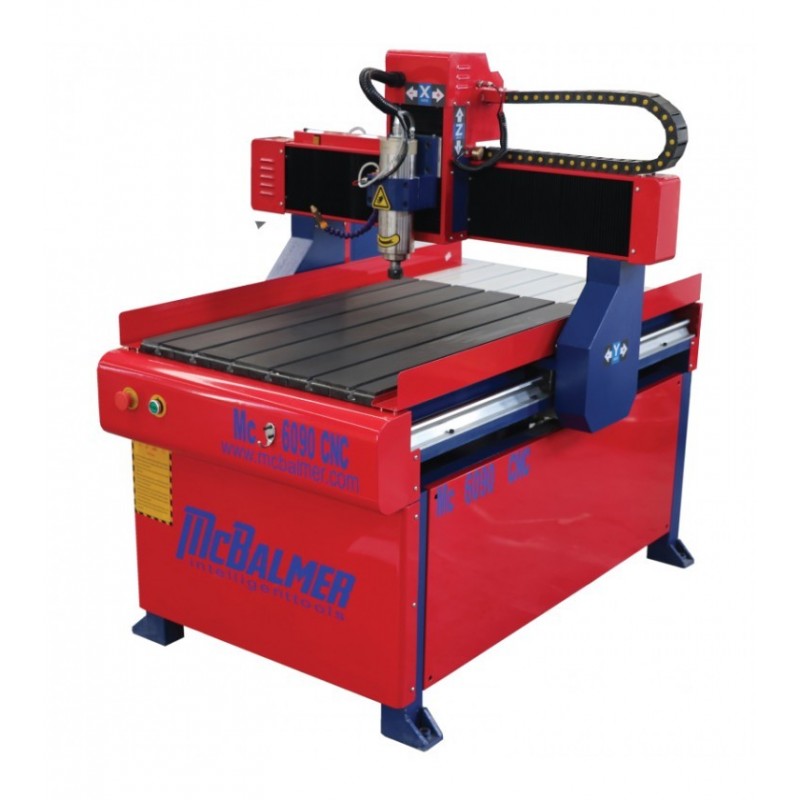

CNC machining center McBalmer 6090-200 (HQD shaft)

McBalmer 6090-200

New product

  • CNC machining center for milling, cutting, drilling and engraving of various wood and aluminum
  • The unit is equipped with a vacuum pump and a vacuum table
  • HQD shaft

More details

6 655,00 € tax incl.

Ask about product
CNC machining center McBalmer 6090-200 (HQD shaft)

CNC machining center McBalmer 6090-200 (HQD shaft)

  • CNC machining center for milling, cutting, drilling and engraving of various wood and aluminum
  • The unit is equipped with a vacuum pump and a vacuum table
  • HQD shaft



More info

Description:

  • CNC machine functions: milling, cutting, drilling and engraving of various timber (Solid wood, MDF, PVC) and aluminum
  • The unit is equipped with a vacuum pump and a vacuum table
  • The supplier offers the possibility to provide installation and operator training (when working with the equipment)



  • HQD shaft
  • Required power for suction of chips and dust - from 2800 m³ / h
  • Air consumption - 60 L / min





Software:

  • AUTODESK ARTCAM 2016 open program is included
  • 2 safety switches on the Y axis are guaranteed to stop the machine in case of emergency





The set includes:

  • vacuum table
  • vacuum pump
  • remote control
  • instrument height sensor
  • tools
  • etc.



We deliver the equipment, provide installation, commissioning and operator training in your factory.

To receive a full commercial offer, please contact us by e-mail, telephone, or visit our office.







Technical specifications:

X-axis working area 600 mm
Y-axis working area 900 mm
Z-axis working area 200 mm
Shaft 3.7 kW ER32 with air cooling
Shaft rotation speed 24,000 rpm
Work accuracy (manual) 0.04 mm
Work accuracy (program) 0.01 mm
Voltage 230 V, 50Hz
Air pressure 6 bar
