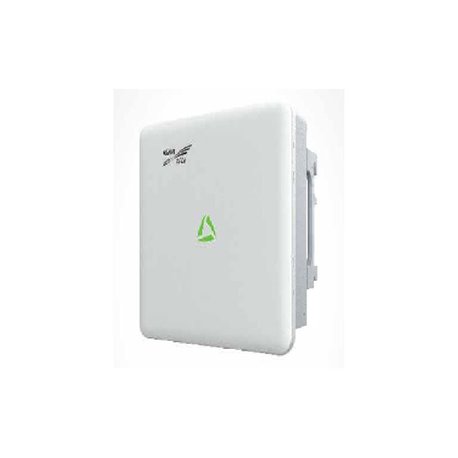

Falownik KEHUA SPI10K-B X2 - 10kW View larger

KEHUA SPI10K-B X2 inverter - 10kW

SPI10K-B X2

Product Features

Efficient and Flexible

  • Two independent MPPT controllers, maximum efficiency 98.6%

  • Compatible with photovoltaic panels with high current

Safety and Reliability

  • IP65 protection rating for outdoor applications

  • AFCI protection, proactively eliminates the risk of electric arc

  • Built-in AC/DC surge protection

Intelligent Management

  • Intelligent I–V diagnostics

  • Intelligent cloud monitoring platform, using a single app for real-time monitoring

  • Supports RS485, 4G, Wi-Fi, Bluetooth, and other communication methods

  • Remote updates, convenient and efficient

Grid-Ready

  • Grid harmonic distortion <3%, automatic grid adaptation

  • Very wide grid voltage range

More details

1 499,00 € tax incl.

Ask about product

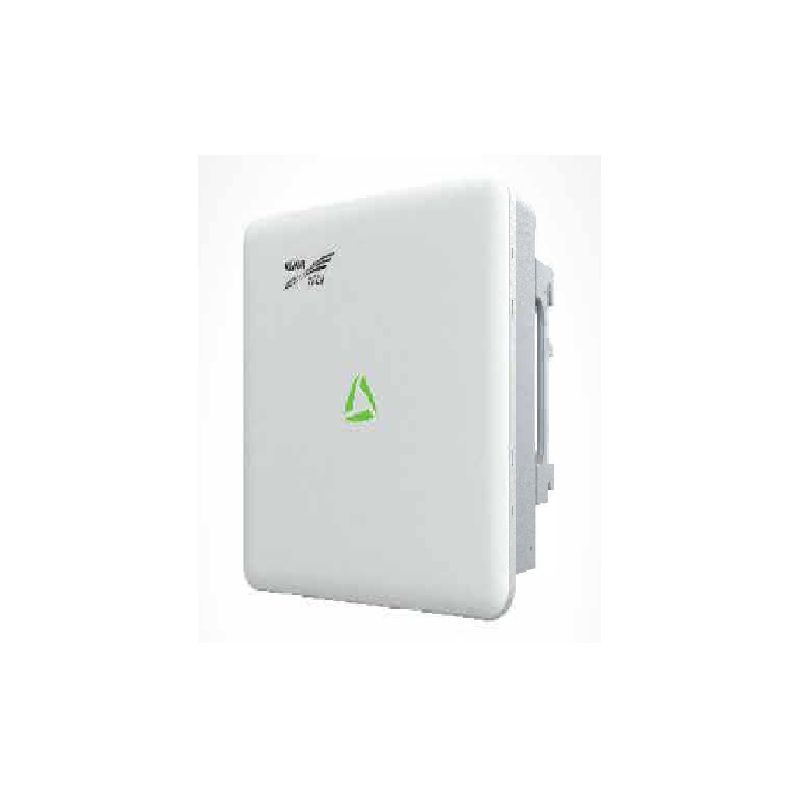

KEHUA SPI10K-B X2 inverter - 10kW

KEHUA SPI10K-B X2 inverter - 10kW

Product Features

Efficient and Flexible

  • Two independent MPPT controllers, maximum efficiency 98.6%

  • Compatible with photovoltaic panels with high current

Safety and Reliability

  • IP65 protection rating for outdoor applications

  • AFCI protection, proactively eliminates the risk of electric arc

  • Built-in AC/DC surge protection

Intelligent Management

  • Intelligent I–V diagnostics

  • Intelligent cloud monitoring platform, using a single app for real-time monitoring

  • Supports RS485, 4G, Wi-Fi, Bluetooth, and other communication methods

  • Remote updates, convenient and efficient

Grid-Ready

  • Grid harmonic distortion <3%, automatic grid adaptation

  • Very wide grid voltage range



More info

Technical Data SPiEK-B X2 SPHOK-B X2 SPH2K-B X2
DC Input (Photovoltaics)
Max. photovoltaic input voltage 1100 V DC
Nominal photovoltaic voltage 600 V DC
Max. photovoltaic input current 15 A/15 A
Number of MPPT controllers 2
Number of module strings per MPPT controller 1/1
MPPT controller voltage range 180-1100 V DC
Start-up voltage 150 V DC
DC switch Yes
AC Output (Grid)
Nominal AC output power 8.0 kW 10.0 kW 12.0 kW
Max. output power 8.8 kVA 11.0 kVA 13.2 kVA
Nominal AC output voltage 380/400/415 V AC
Nominal output current 11.6 A 14.5 A 17.4 A
Max. output current 12.8 A 15.9 A 19.1 A
Nominal grid frequency 50Hz/60Hz
Grid frequency range 45-55Hz/55-65Hz
Power factor >0.99 (full load)
Adjustable power factor from 0.8 (leading) to 0.8 (lagging)
Total harmonic distortion max. <3% (nominal power)
Efficiency
Max. efficiency 98.60%
European efficiency 98.10%
MPPT efficiency 99.90%
Function and Protection
Anti-islanding protection Yes
DC reverse polarity protection Yes
AC short-circuit protection Yes
Overtemperature protection Yes
Surge protection DC Type II & AC Type II
AFCI function Optional
Integrated PID function Optional
IV curve scanning and diagnostics Optional
Zero export function Optional
General Data
Dimensions (W x H x D) 480x420x182 mm
Weight 17 kg
Protection degree IP66
Night power consumption <1W
Cooling type Natural cooling
Altitude above sea level 4000 m (derating >3000 m)
Operating temperature from -35°C to 60°C
Operating humidity 0-100%
Display LED+APP
DC connector (photovoltaics) MC4 connector
AC connector (grid) OT connector
Installation method Wall mounting
Communication RS485, DRM (optional), WiFi (optional)/4G (optional), Bluetooth (optional)
Certificates IEC/EN62109-1, IEC/EN62109-2, IEC62116, IEC61727, EN50549-1
• Technical data may be changed without prior notice.
