Hydraulic log feed ramp LOGT3 LANTZMANN

LOGT3

Lifting capacity - 3000 KG

Capacity - 6m³

Max. log length - ∞ mm

More details

3 630,00 € tax incl.

Ask about product

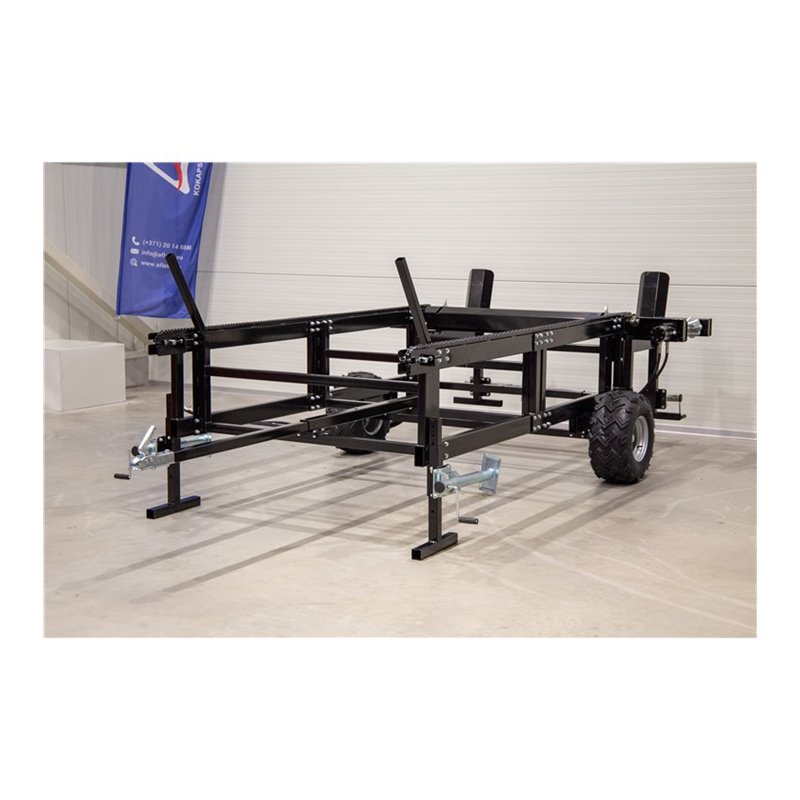

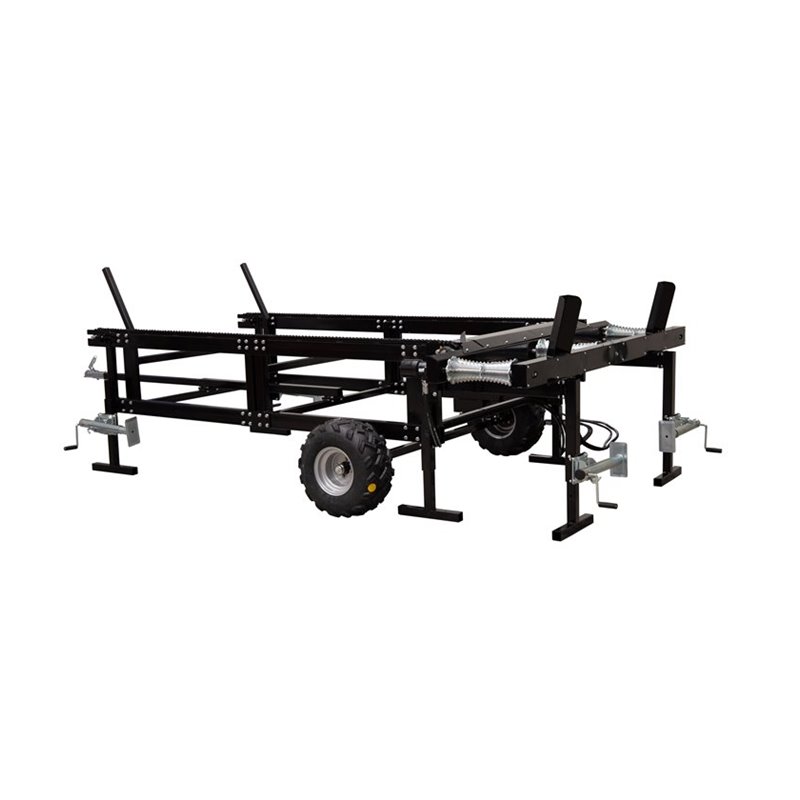

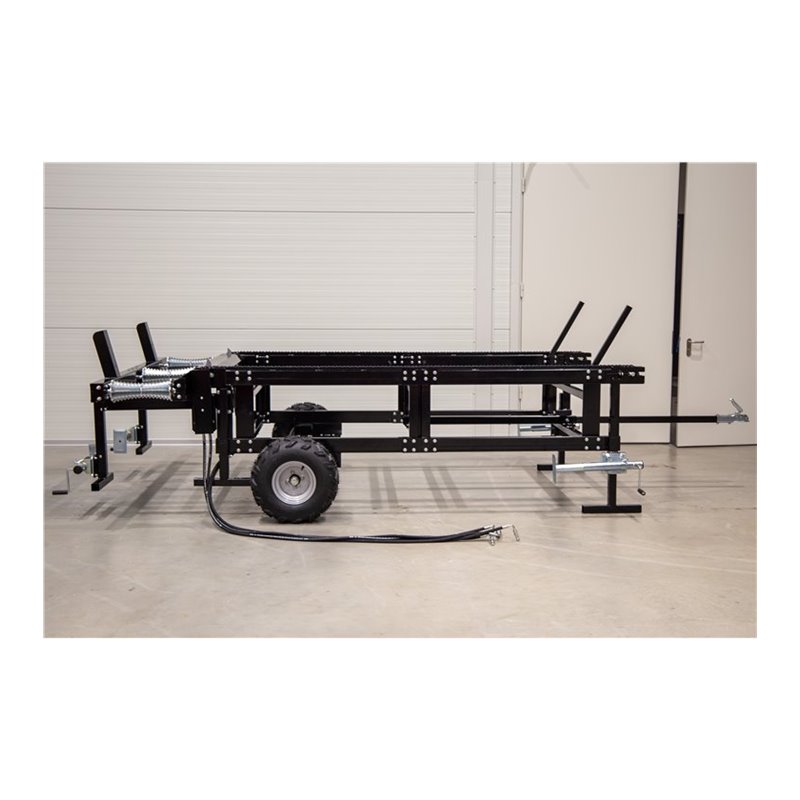

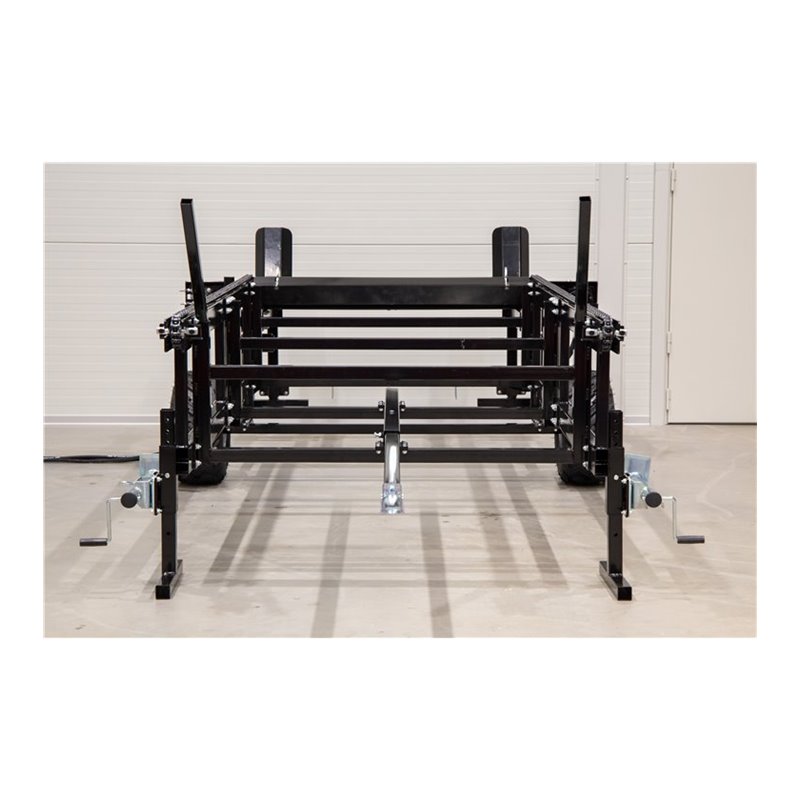

Hydraulic log feed ramp LOGT3 LANTZMANN

Hydraulic log feed ramp LOGT3 LANTZMANN

Lifting capacity - 3000 KG

Capacity - 6m³

Max. log length - ∞ mm



More info

Hydraulic log feed ramp LOGT3:

  • Log feeding ramp LANTZMANN LOGT3 with 2 chain conveyors for transverse log feeding and 3 roller conveyors for longitudinal log feeding to the firewood preparation equipment.
  • The device can be connected to the hydraulic system of the firewood preparation device, it can be connected to all firewood splitters of the LANTZMANN PROC series.
  • Feed ramp chains and rollers work in both directions.

  • The machine is equipped with a trailer coupling mechanism and large tires for more convenient transportation!
  • The device is made of durable steel construction with a load capacity of 3000kg of loaded logs or 6m3 log capacity.
  • The feed table works with the help of two hydraulic pumps. Each of the supply nodes has its own pump.

  • The most efficient way to use the feed table is to assemble it together with our PROC30G+ Professional wood splitter and get to work!
  • The kit comes with all the hydraulic hoses for connecting to the wood splitter.
  • Despite the fact that the weight of the machine is 600 kg, it has excellent maneuverability and can be pushed by one person!







Technical indicators for the feeding table:

Lifting capacity  KG 3000
Capacity 6m³
Max. log length
Min. log length 1550 mm
Standard machine height 1000 mm
Adjustable height of the device 800 - 1200 mm
Trailer coupling Ball coupling 50mm
Rolls 3 gab
Sizes  4950x2200x1600mm
Weight 600kg





A log stopper that prevents it from rolling back



Additional blades for log feed on the ramp

Supply chain



Supply chain

Toothed feed rollers.



The feed rollers are equipped with anti-slip teeth

Stabilization leg



Stabilization leg

Trailer ball joint



Trailer coupling mechanism

Wide tires with increased maneuverability



Wide tires with increased maneuverability






Hydraulic pump



Hydraulic pump
