LOG FEED RAMP LOGT2 LANTZMANN View larger
Previous Next

LOG FEED RAMP LOGT2 LANTZMANN

LOGT2 LANTZMANN

Dimensions: 2665 x (2097-2697) x (1320-1520) mm

Lifting capacity: 2000 kg

More details

1 899,00 € tax incl.

The minimum purchase order quantity for the product is 4

Ask about product
LOG FEED RAMP LOGT2 LANTZMANN

LOG FEED RAMP LOGT2 LANTZMANN

Dimensions: 2665 x (2097-2697) x (1320-1520) mm

Lifting capacity: 2000 kg



More info

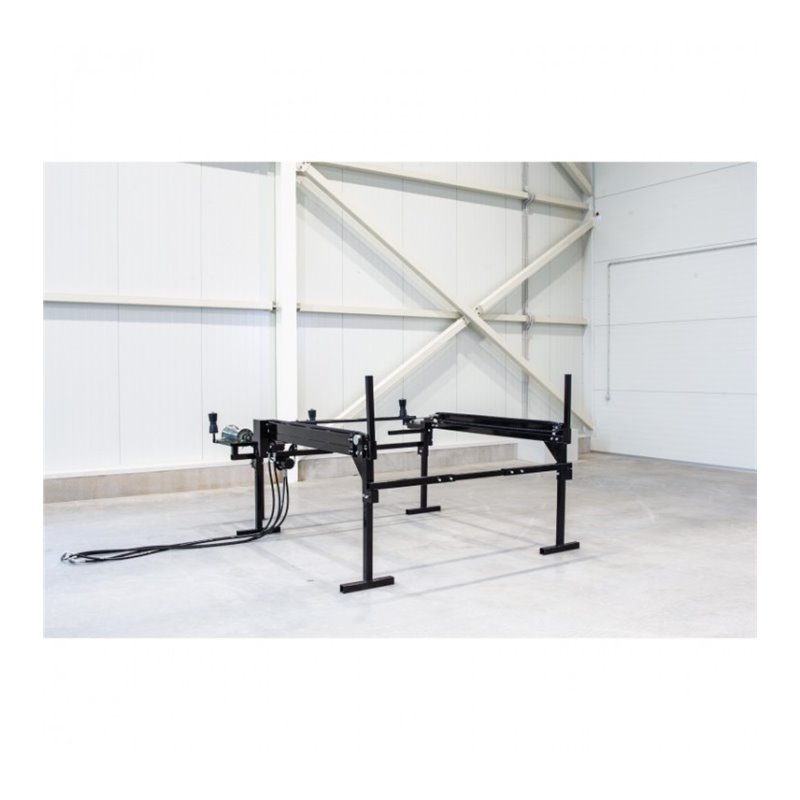

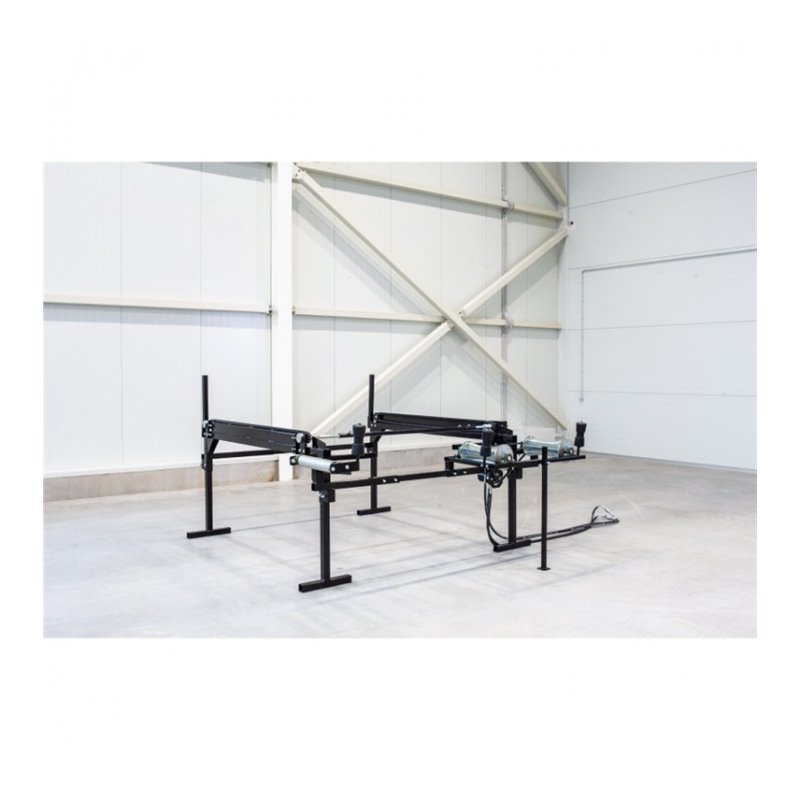

Hydraulic log feed ramp LOGT2:

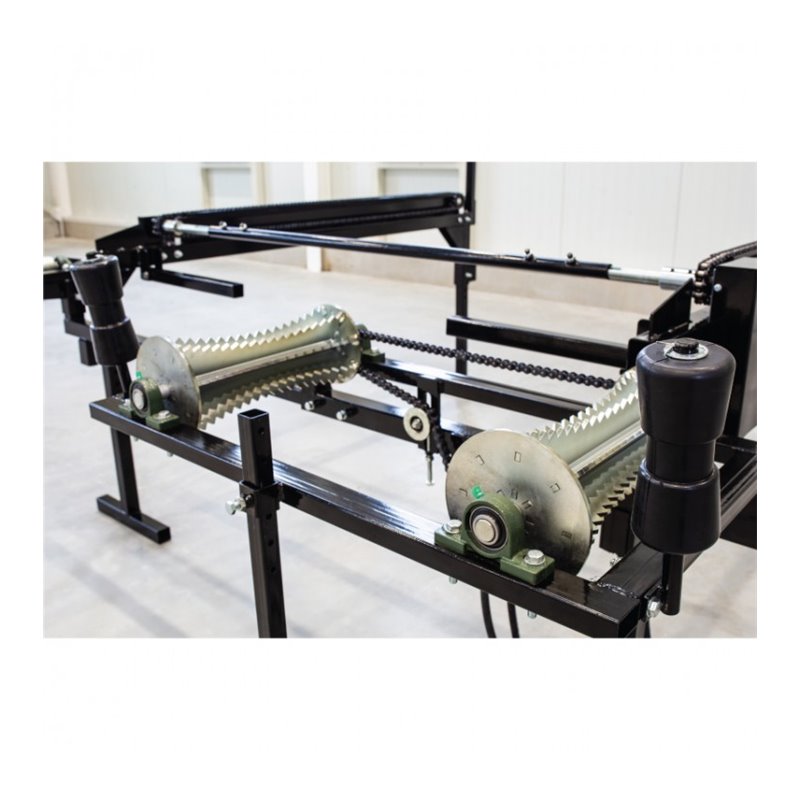

  • Log feeding ramp LANTZMANN LOGT2 with 2 chain conveyors for transverse log feeding and 2 roller conveyors for longitudinal log feeding to the firewood preparation equipment.
  • The device can be connected to the hydraulic system of the firewood preparation device, it can be connected to all firewood splitters of the LANTZMANN PROC series.
  • Feed ramp chains and rollers work in both directions.

  • The machine is equipped with a trailer coupling mechanism and large tires for more convenient transportation!
  • The device is made of durable steel construction with a load capacity of 2000kg of loaded logs or 4m3 log capacity.
  • The feed table works with the help of two hydraulic pumps. Each of the supply nodes has its own pump.

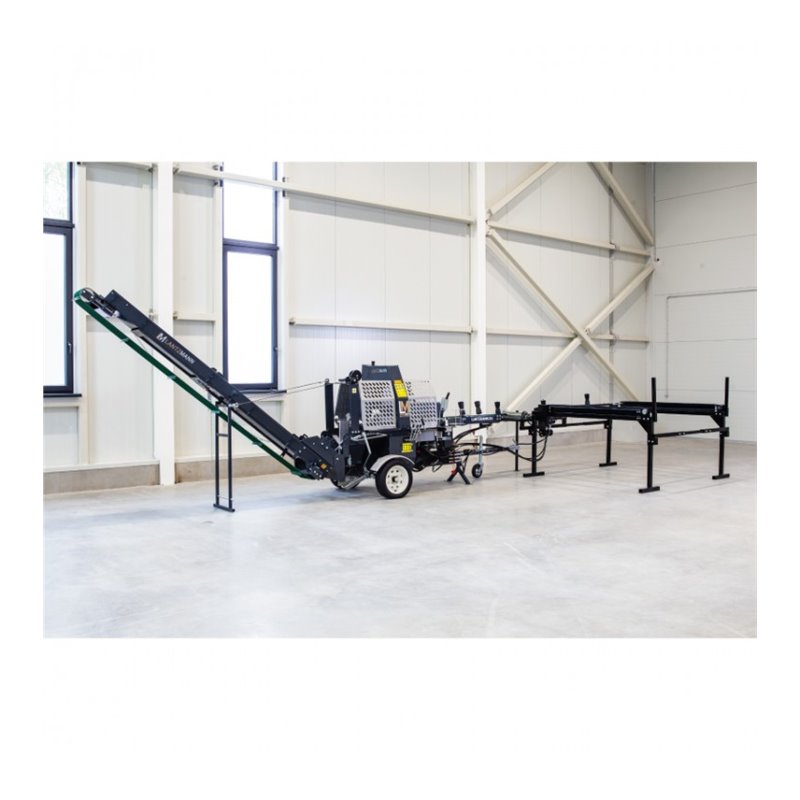

  • The most efficient way to use the feed table is to assemble it together with our PROC20G wood splitter and get to work!
  • The kit comes with all the hydraulic hoses for connecting to the wood splitter.
  • Despite the fact that the weight of the machine is 210 kg, it has excellent maneuverability and can be pushed by one person!

Technical indicators for the feeding table:

Lifting capacity  KG 2000
Capacity 4 m³
Max. log length ∞
Min. log length 1600 mm
Standard machine height 1000 mm
Adjustable height of the device 950 - 1150 mm
Trailer coupling Ball coupling 50mm
Rolls 2 gab
Sizes  2665x2097x1320
Weight 210kg
