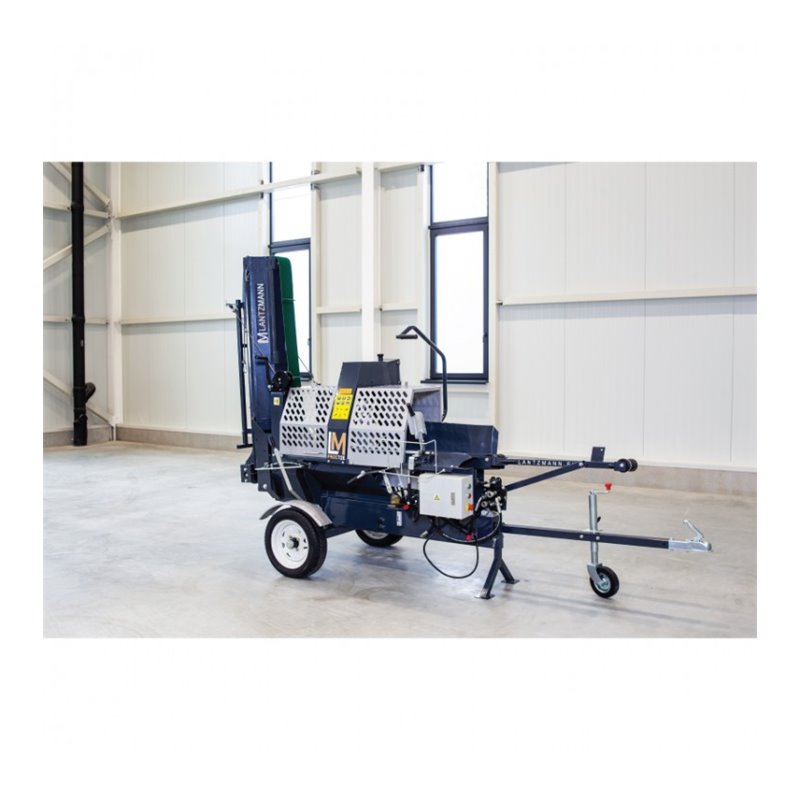

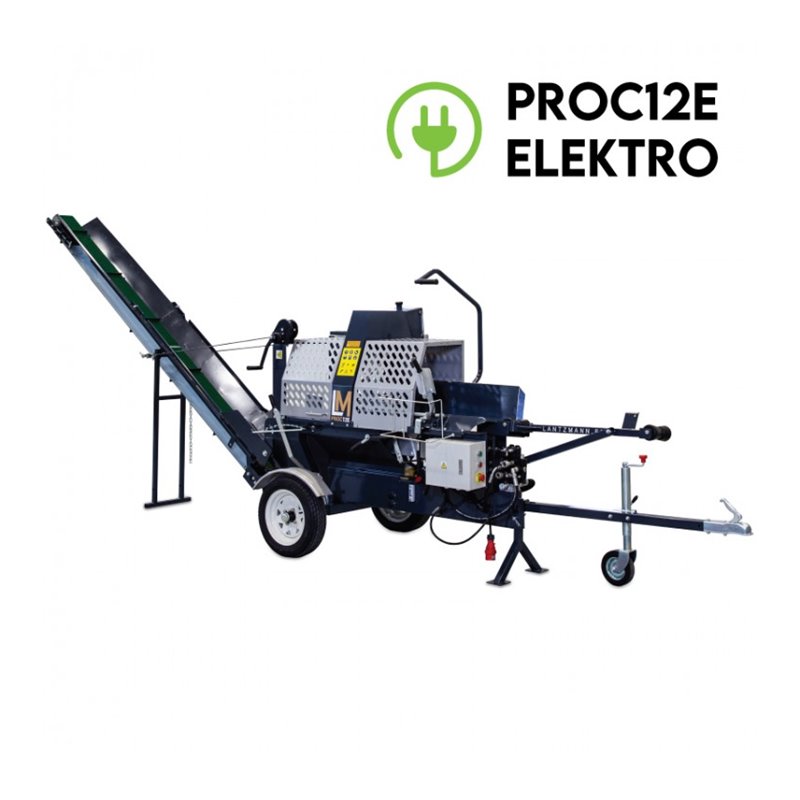

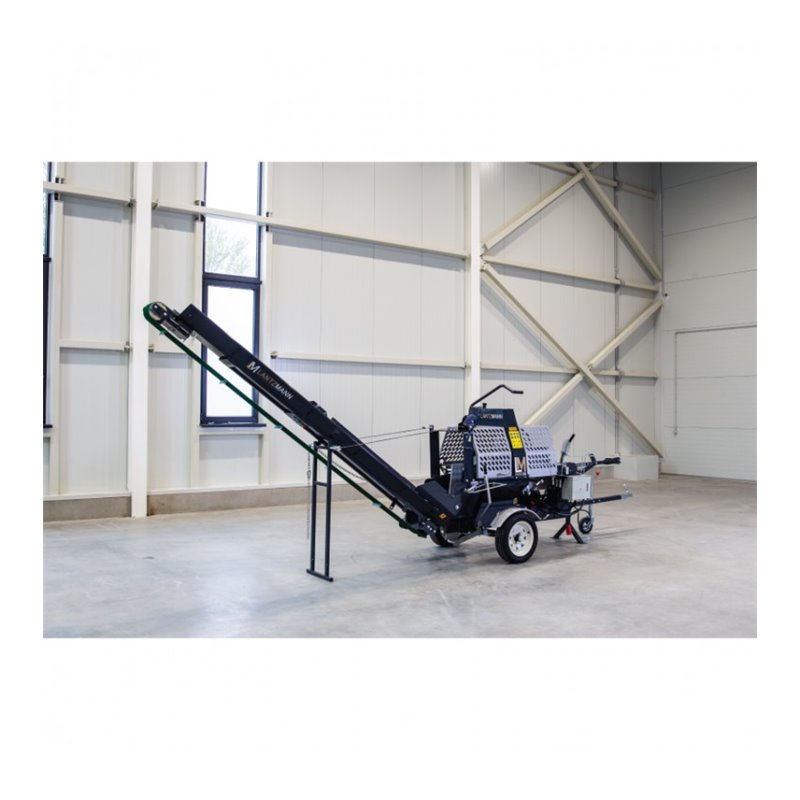

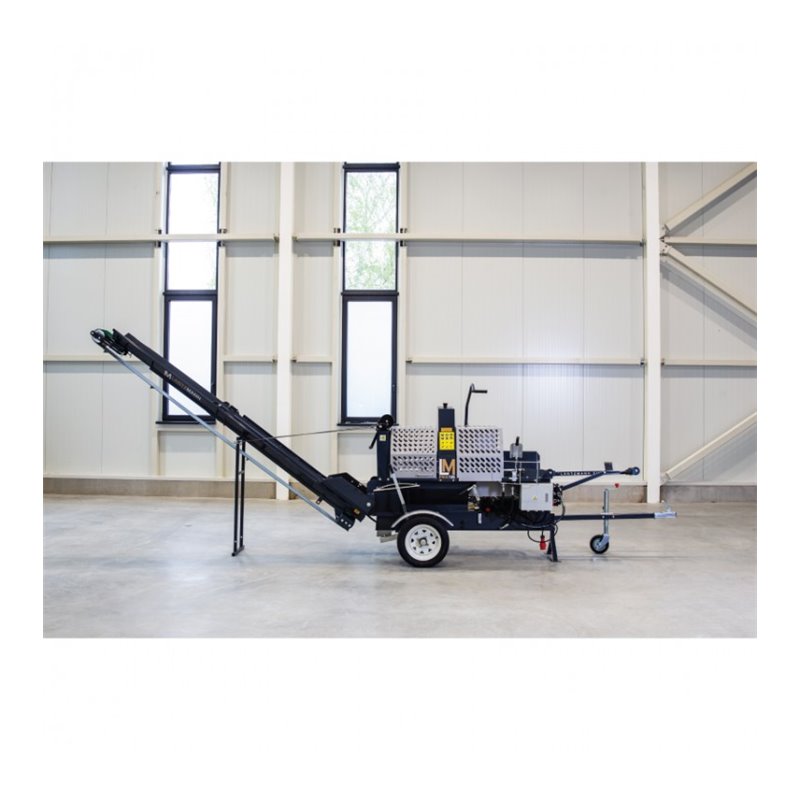

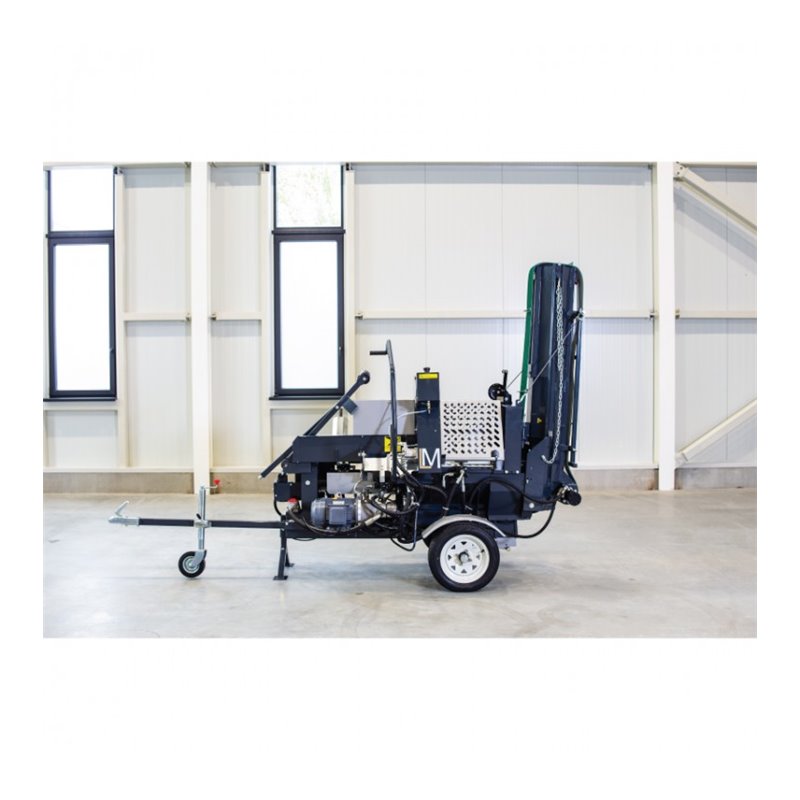

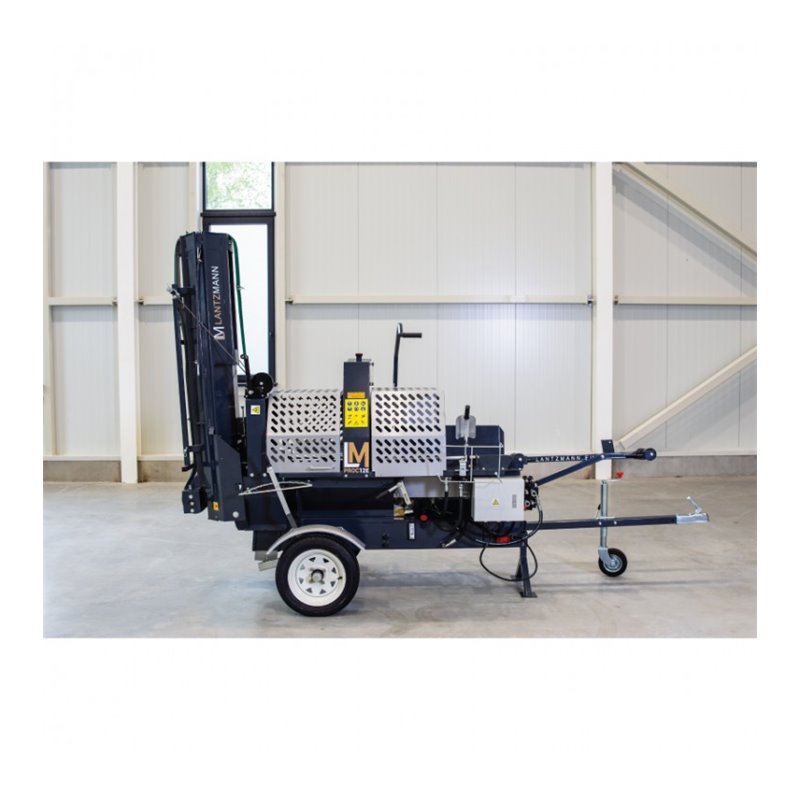

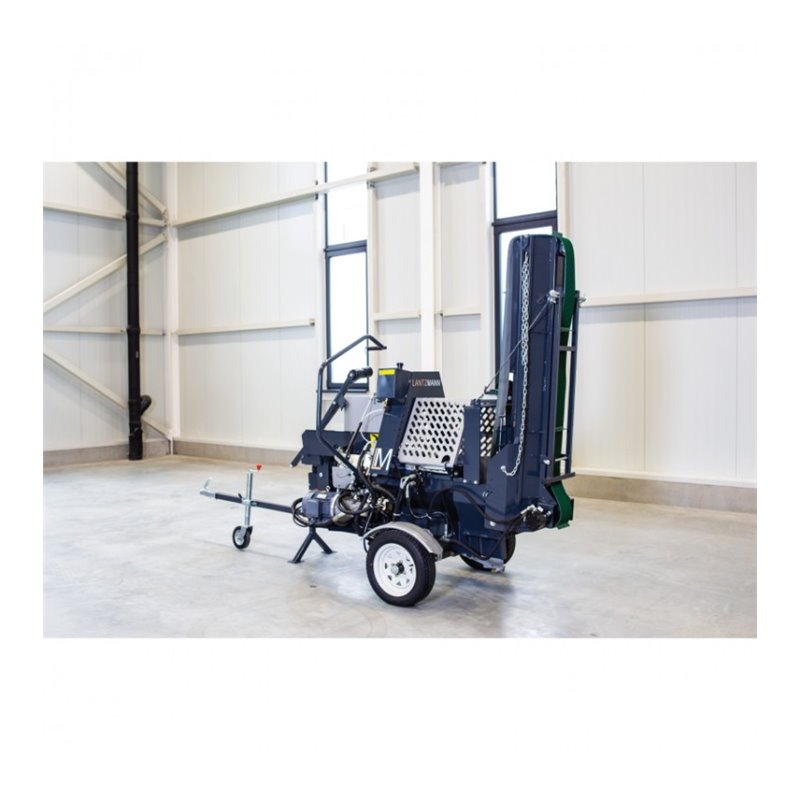

FIREWOOD SAW / SPLITTER LANTZMANN PROC12E (12T, ELECTRIC)

Lantzman-proc12E

  • Splitting force - 12 tons
  • Electric motor power - 7.5 kW

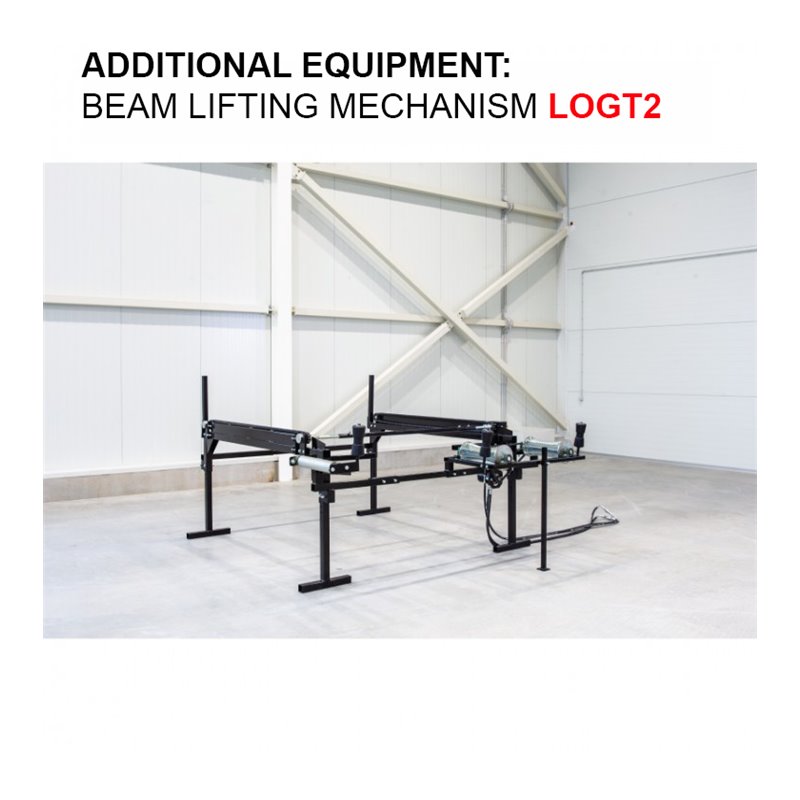

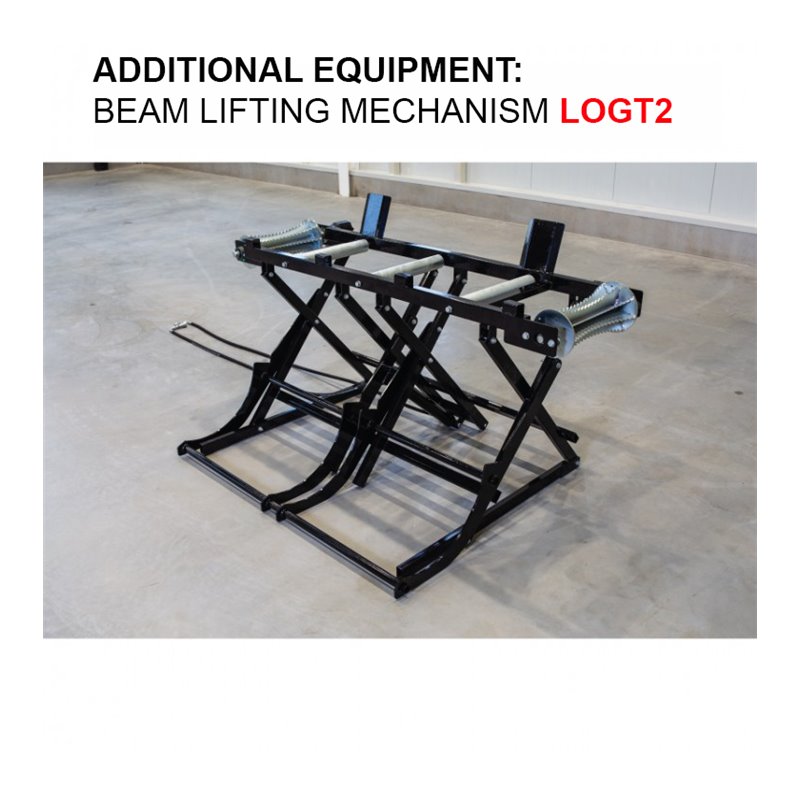

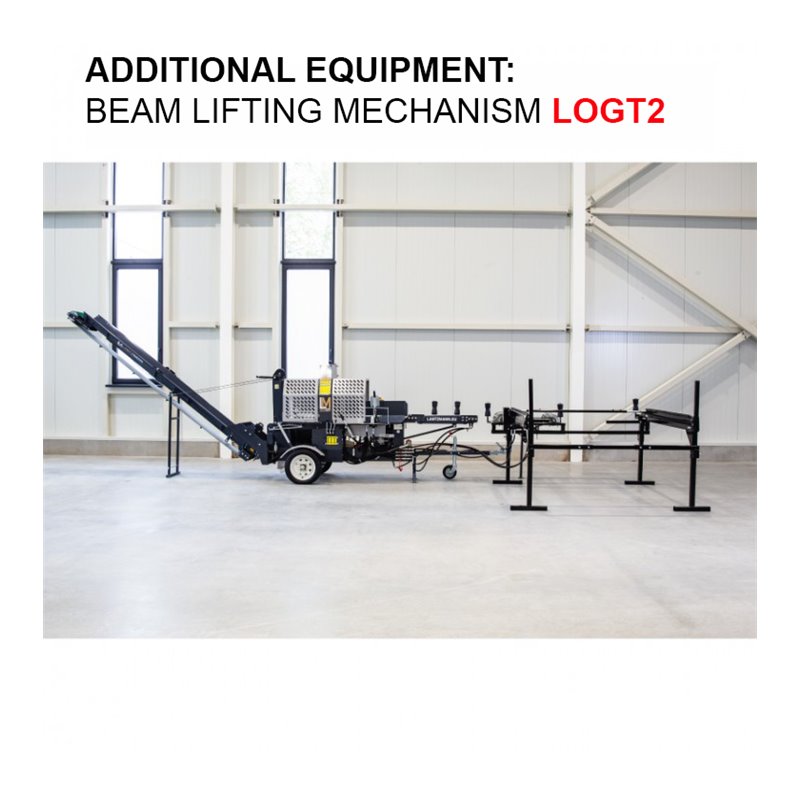

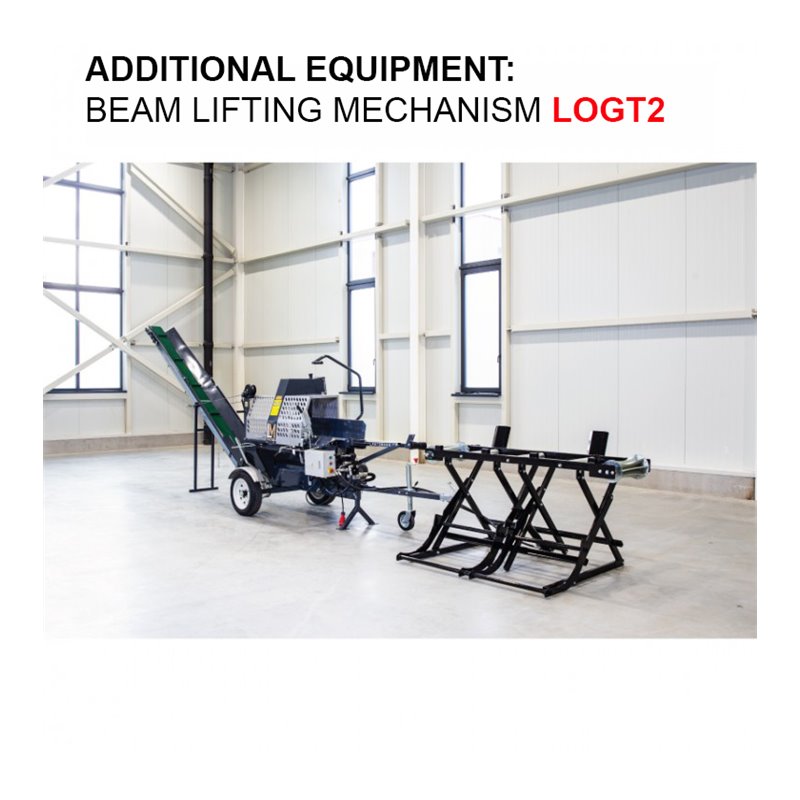

  • Can be equipped with a hydraulic feeding table and a log loading mechanism
  • The price includes a 3.2 meter conveyor with winch, belt width 150 mm

Description:
Powerful, fully hydraulic wood saw with electric motor
Conveyor belt 320 cm long and 15 cm wide

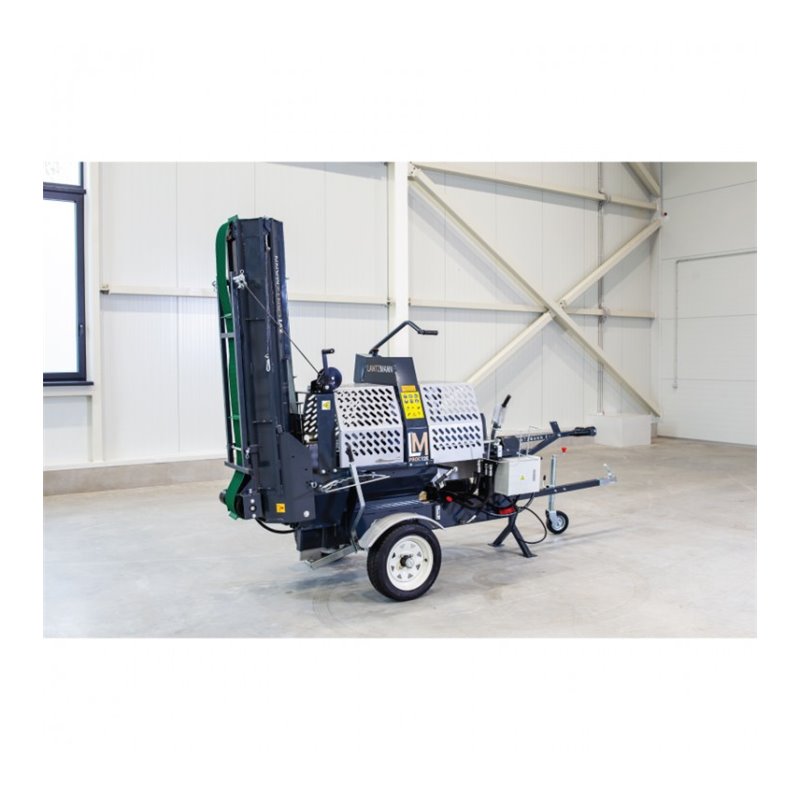

The conveyor belt is raised and lowered by a winch
The length of the firewood can be set as desired. The maximum length is 57 cm, diameter 37 cm
The price includes a 3.2 meter conveyor with winch, belt width 150 mm

Feeding - manual feeding of logs

More details

6 750,00 € tax incl.

The minimum purchase order quantity for the product is 4

Ask about product
FIREWOOD SAW / SPLITTER LANTZMANN PROC12E (12T, ELECTRIC)

FIREWOOD SAW / SPLITTER LANTZMANN PROC12E (12T, ELECTRIC)

  • Splitting force - 12 tons
  • Electric motor power - 7.5 kW
  • Can be equipped with a hydraulic feeding table and a log loading mechanism
  • The price includes a 3.2 meter conveyor with winch, belt width 150 mm

Description:
Powerful, fully hydraulic wood saw with electric motor
Conveyor belt 320 cm long and 15 cm wide

The conveyor belt is raised and lowered by a winch
The length of the firewood can be set as desired. The maximum length is 57 cm, diameter 37 cm
The price includes a 3.2 meter conveyor with winch, belt width 150 mm

Feeding - manual feeding of logs



More info

Technical indicators with electric motor:

Model
PROC12E
PROC20E+

Motor

7.5kW, 50Hz, 380V, 3-phase
7.5kW, 50Hz, 380V, 3-phase

Weight

520 kg
520 kg

Max. log diameter

38 cm
38 cm

Max. log length

55 cm
55 cm

Engine RPM

4800 rpm
4800 rpm

Saw chain

18 inches (STIHL)
18 inches (STIHL)

Cylinder bore

3.2 inches
4 inches

The duration of the duty cycle

7 seconds
8 seconds

Tires

12 inches
12 inches

Split wedge

4-arm (optionally 6-arm)
4-arm (optionally 6-arm)



Technical indicators with a gasoline engine:

Model PROC12G (TOP model) PROC20G+

Motor

188F LIFAN gasoline engine
188F LIFAN gasoline engine

Weight

520 kg
520 kg

Max. log diameter

38 cm
38 cm

Max. log length

55 cm
55 cm

Engine RPM

3800 rpm
3800 rpm

Saw chain

18 inches (STIHL)
18 inches (STIHL)

Cylinder bore

3.2 inches
4 inches

The duration of the duty cycle

7 seconds
8 seconds

Tires

12 inches
12 inches

Split wedge

4-arm (optionally 6-arm)
4-arm (optionally 6-arm)

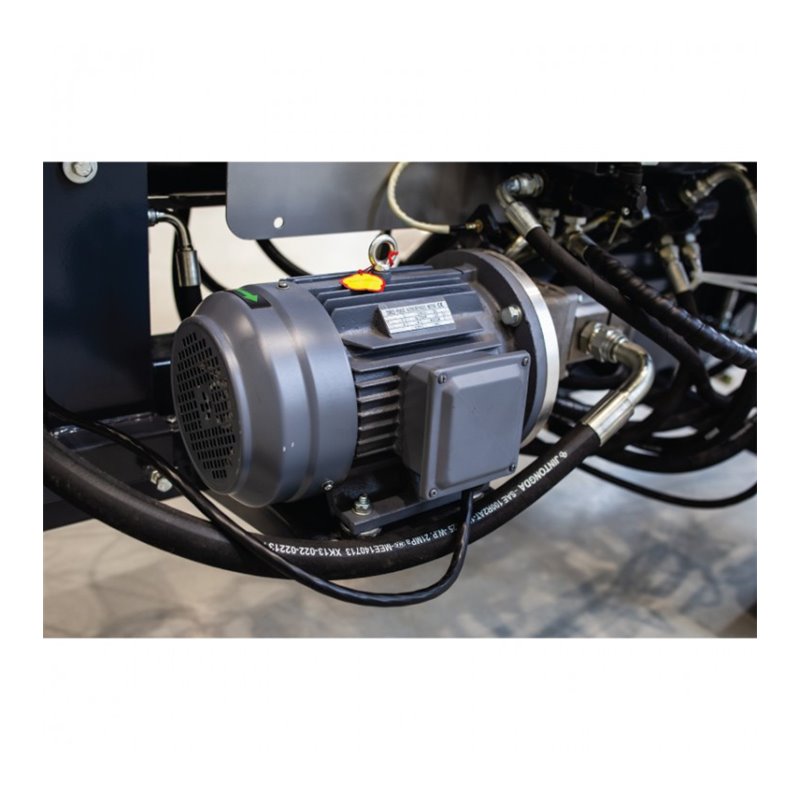

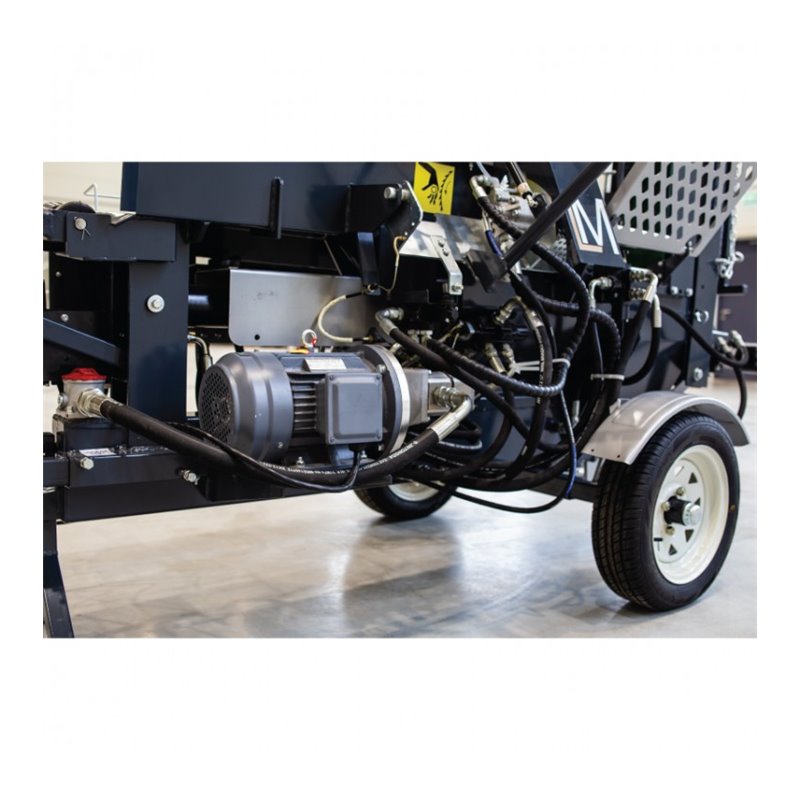

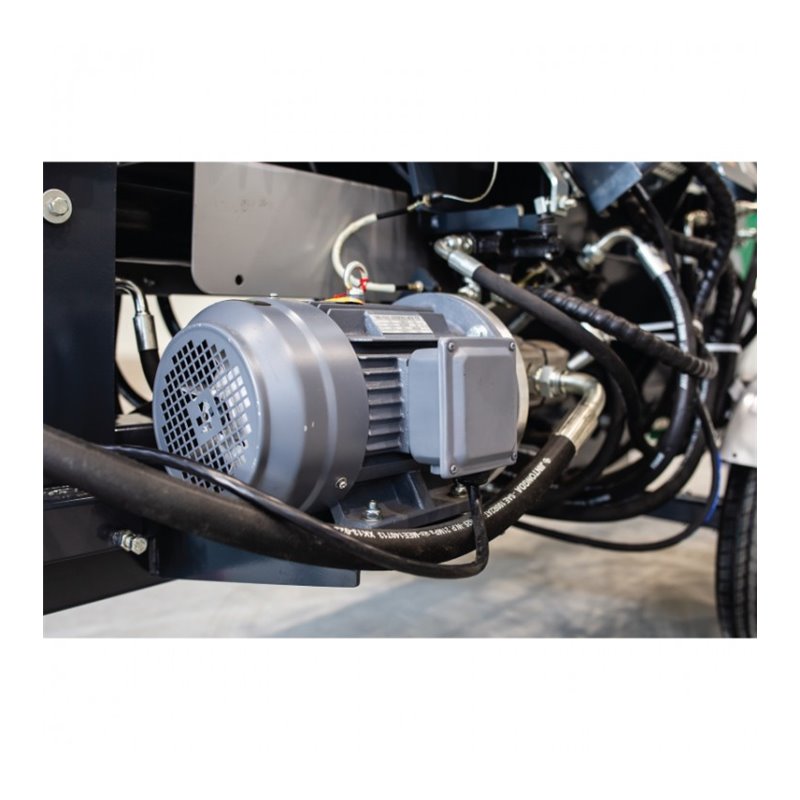

7.5 kW electric engine



7.5 kW electric engine

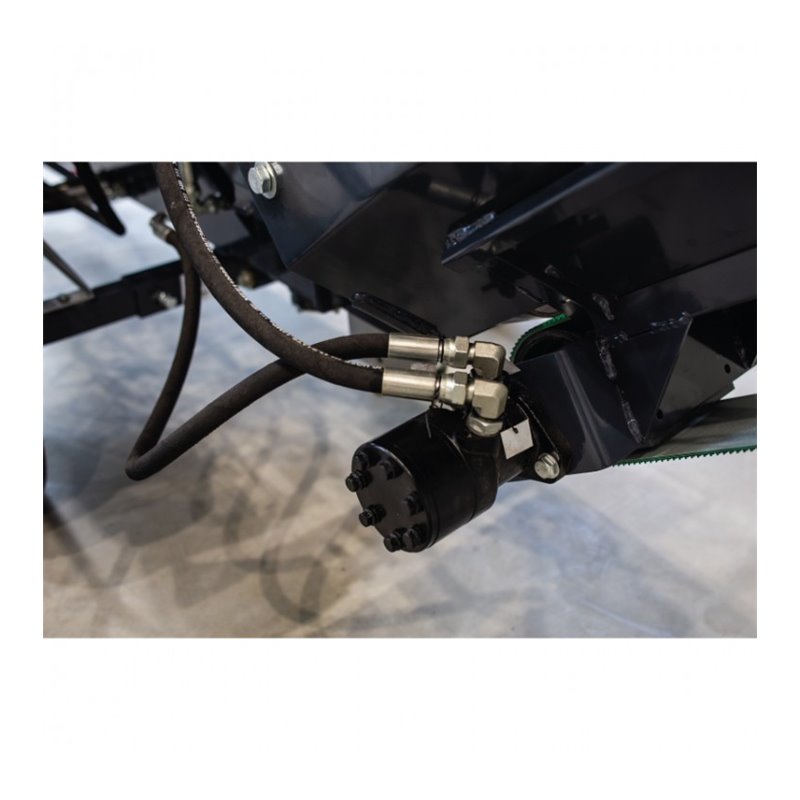

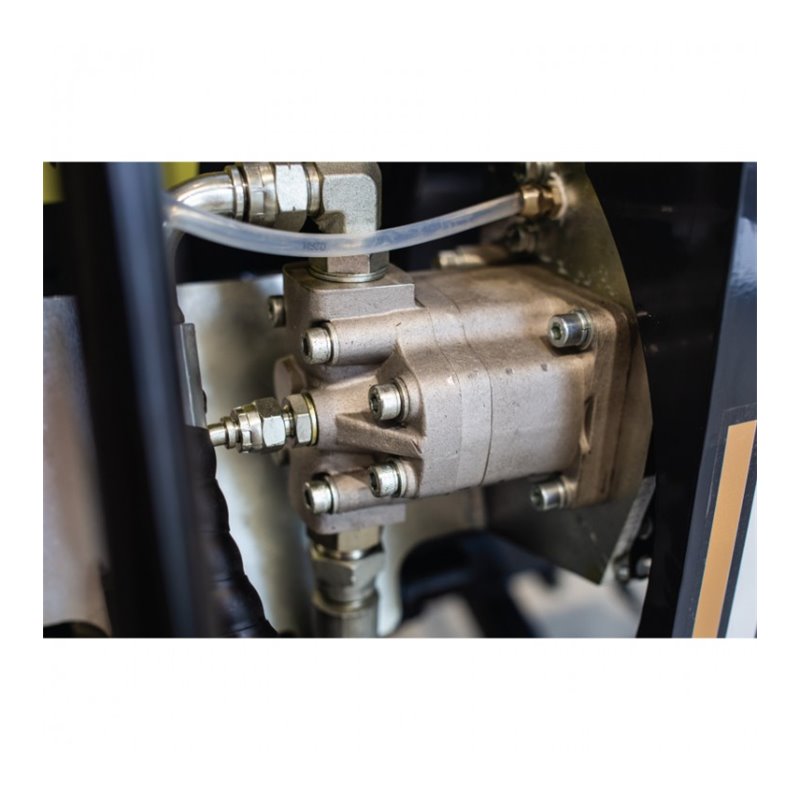

Hydraulic pump



Hydraulic pump



Log feed roller

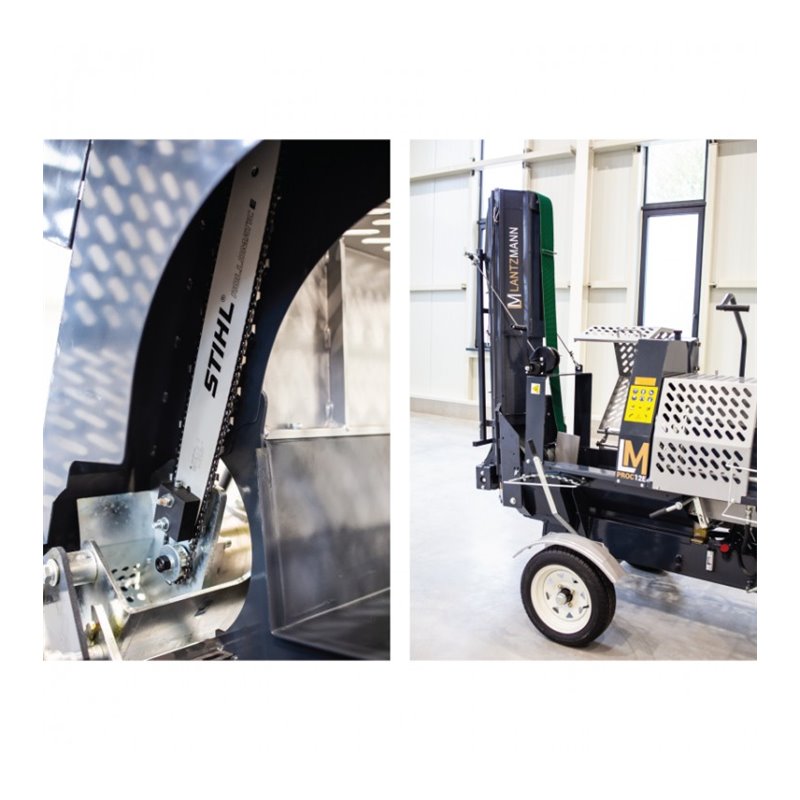

Stihl saw rail

Saw chain lubrication system



Saw chain lubrication system

Log length adjustment plug



Log length adjustment plug

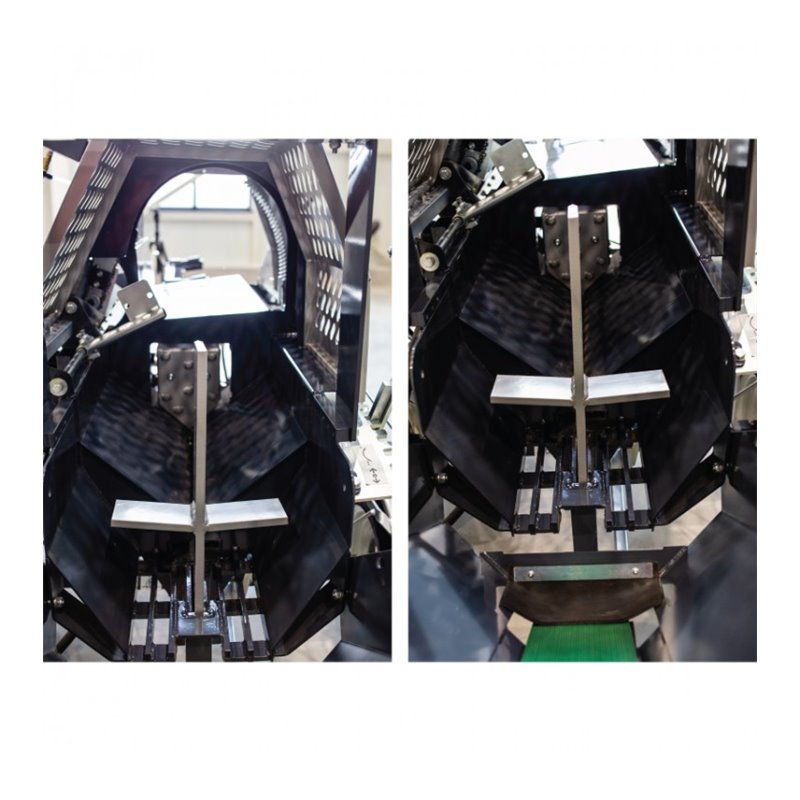

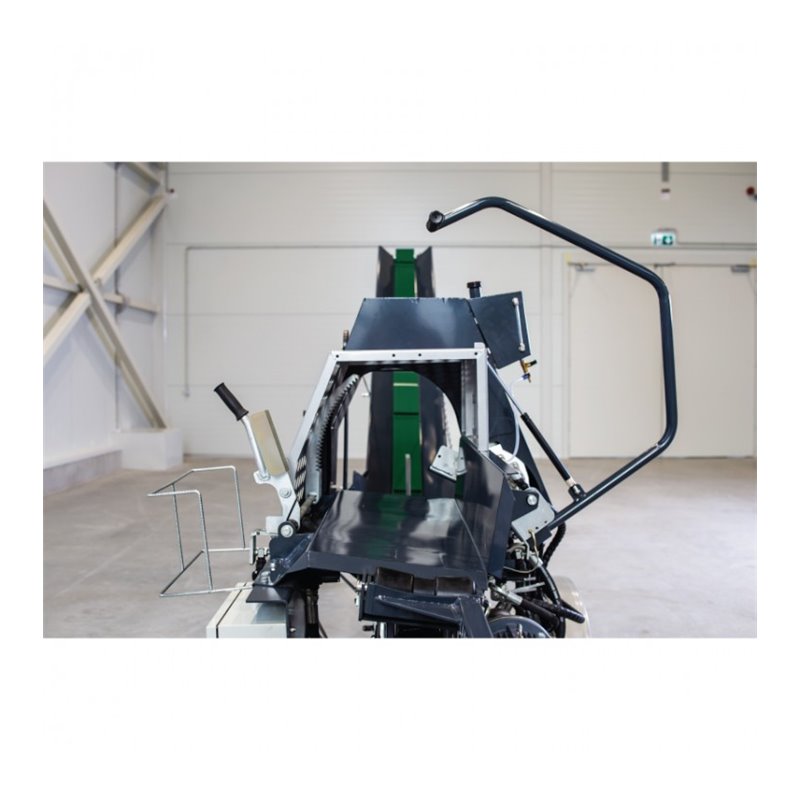

4-part splitting wedge



4-part splitting wedge

Wedge height adjustment



Wedge height adjustment

Splitting piston



Splitting piston

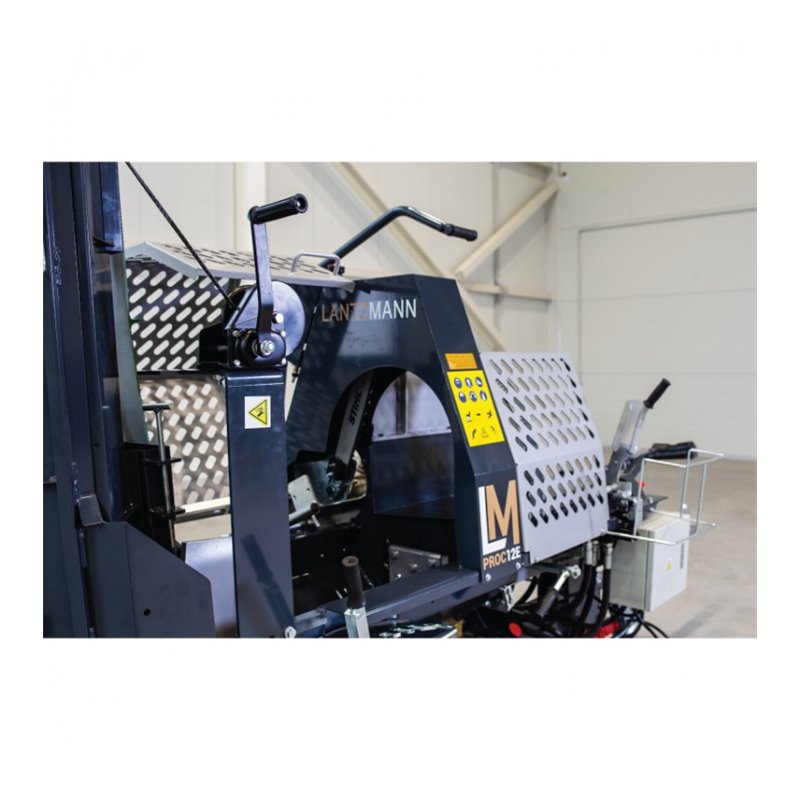

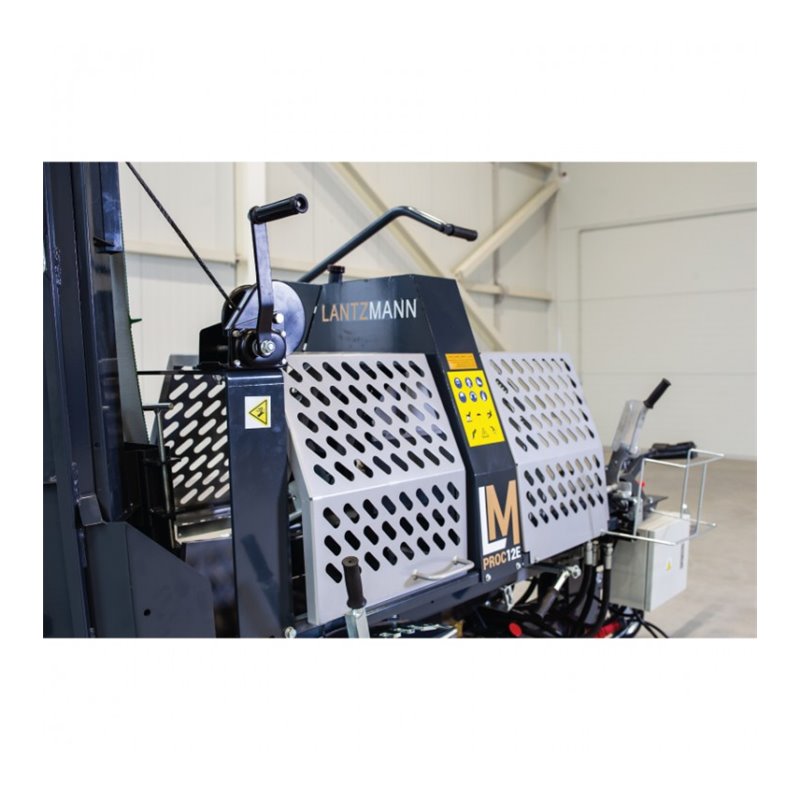

Manual lifting and lowering of the conveyor



Manual lifting and lowering of the conveyor

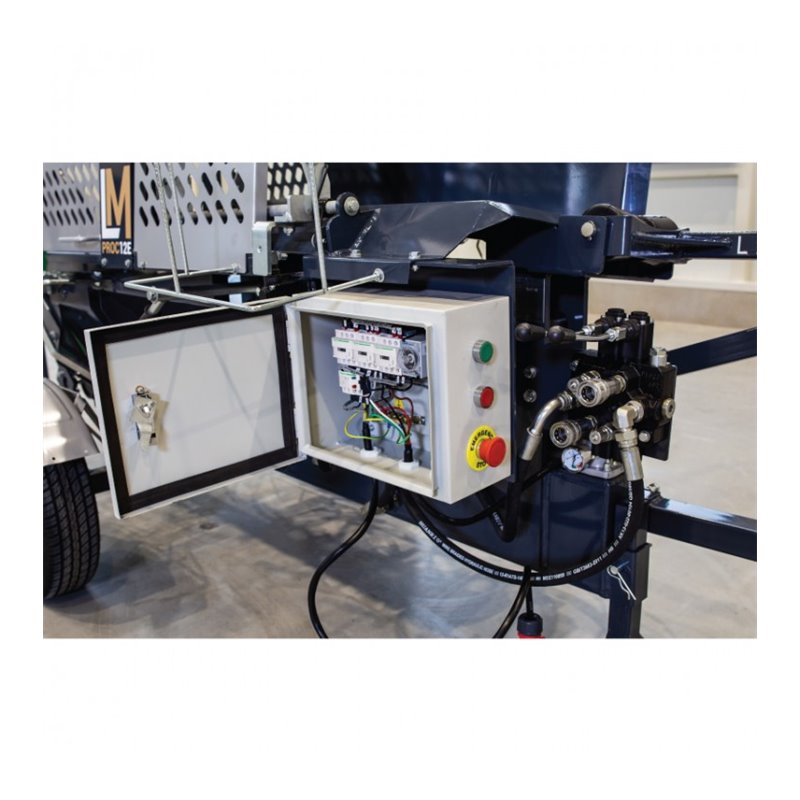

Electrical distribution cabinet



Electrical distribution cabinet

Emergency "STOP" button



Emergency "STOP" button

Feed table port



Feed table port

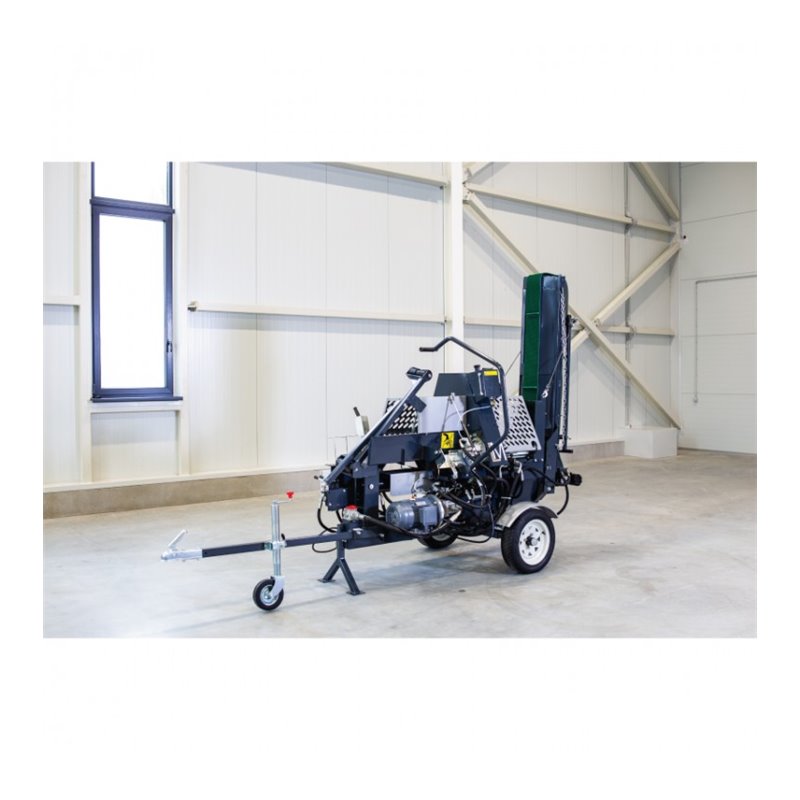

Trailer coupling mechanism



Trailer coupling mechanism

Additional roll for more convenient moving of the device



Additional roll for more convenient moving of the device


Introducing the Lantzmnn PROC12E Firewood Saw/Splitter - the perfect solution for efficient and hassle-free wood processing. This powerful machine is designed to make your firewood preparation process quick and effortless, ensuring you have a ready supply of firewood for your heating needs.

With a splitting force of 12 tons, the Lantzmnn PROC12E can effortlessly split logs of various sizes. It is equipped with a robust electric motor with a power of 7.5 kW, providing reliable and consistent performance. The fully hydraulic wood saw operates smoothly and efficiently, making quick work of cutting through logs.

For added convenience, the Lantzmnn PROC12E can be equipped with a hydraulic feeding table and a log loading mechanism, streamlining the process of loading logs onto the machine. Additionally, the price includes a 3.2 meter conveyor with a winch and a belt width of 150 mm, ensuring seamless movement of processed firewood.

The conveyor belt, measuring 320 cm in length and 15 cm in width, enhances the efficiency of the wood processing process. It can be easily raised and lowered using the integrated winch, allowing for precise adjustment according to your needs.

The Lantzmnn PROC12E offers flexibility in firewood length, allowing you to set the desired length of firewood. With a maximum length of 57 cm and a diameter of 37 cm, you can customize the firewood size to suit your requirements.

While the feeding process requires manual input, the Lantzmnn PROC12E Firewood Saw/Splitter is designed for user-friendly operation. The sturdy construction ensures durability and longevity, even when used in demanding conditions.

In summary, the Lantzmnn PROC12E Firewood Saw/Splitter is a powerful and efficient machine that simplifies the process of cutting and splitting firewood. With its fully hydraulic wood saw, adjustable conveyor belt, and optional hydraulic feeding table, this machine offers convenience and reliability. Make your firewood preparation a breeze with the Lantzmnn PROC12E.
