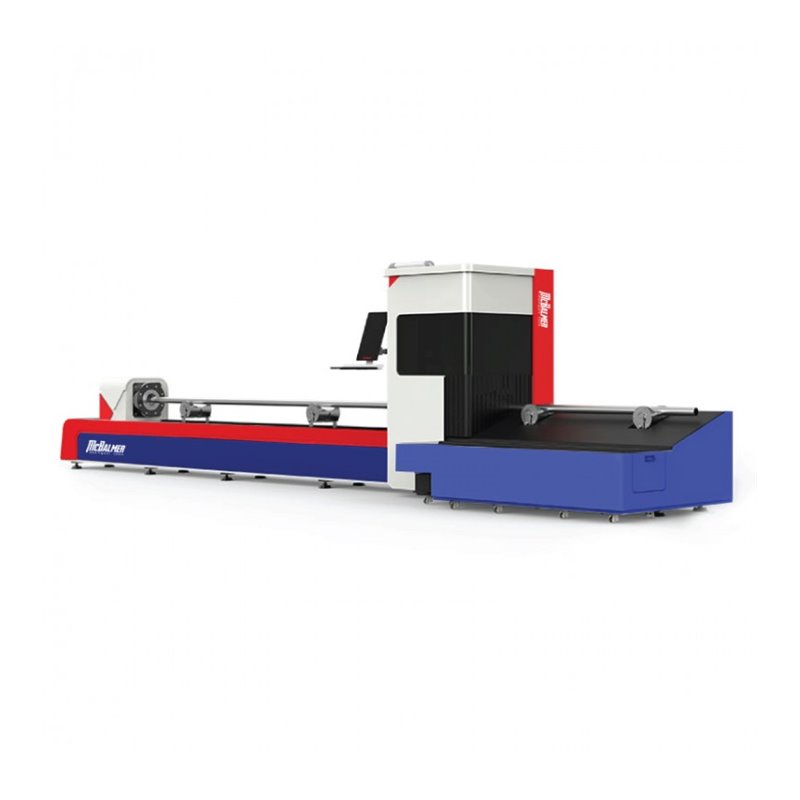

FIBER METAL PIPE LASER CUTTING MACHINE MCBALMER

PIPE LASER

  • FIBER laser cutting machine for metal pipes

  • FIBER laser cutter is widely used in the production of sports equipment, various types of pipes, water pipes, pipelines and other industries

More details

0,00 € tax incl.

Ask about product
FIBER METAL PIPE LASER CUTTING MACHINE MCBALMER

FIBER METAL PIPE LASER CUTTING MACHINE MCBALMER

  • FIBER laser cutting machine for metal pipes

  • FIBER laser cutter is widely used in the production of sports equipment, various types of pipes, water pipes, pipelines and other industries



More info

Description:

  • FIBER laser cutting machine for metal pipes

  • FIBER laser cutter is widely used in the production of sports equipment, various types of pipes, water pipes, pipelines and other industries







Advantages:

  1. Professionally developed design just for pipes

  2. The output power of the laser can be adjusted from 500W to 4000W

  3. An easy-to-use machine that can improve cutting quantity and efficiency



Modelis T6160/T9160 T6220/T9220
Maks. caurules garums 6,5 m 6,5 m
Caurules forma Apaļa / kvadrātveida / taisnstūrveida
Maks. caurules svars 100kg 16kg/m 200kg 30kg/m
Pozicionēšanas precizitāte ±0,03mm
Pārvietošanās precizitāte ±0,02mm
Patrona Divas pneimatiskas patronas
Maks. patronas griešanas ātrums 130 r/min
Lāzera jauda 1 - 4 kW
Lāzers Vairāki varianti
Servo motors un draiveri YASKAWA/FUJI

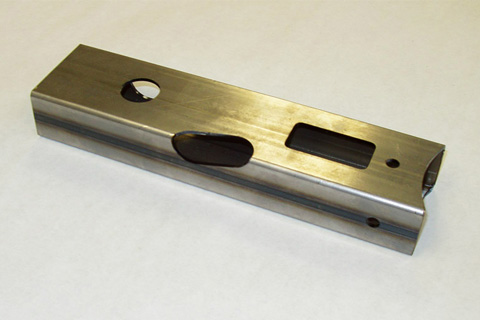

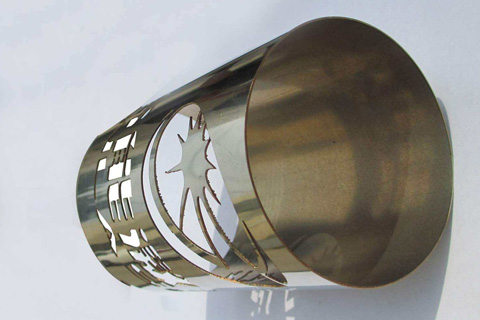

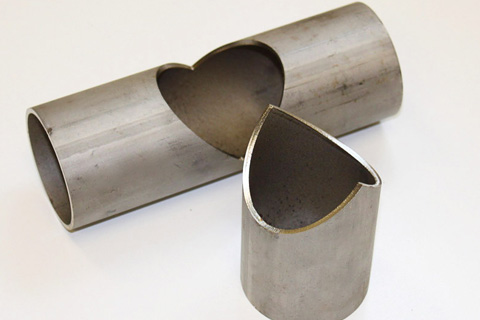

Examples:

Components:

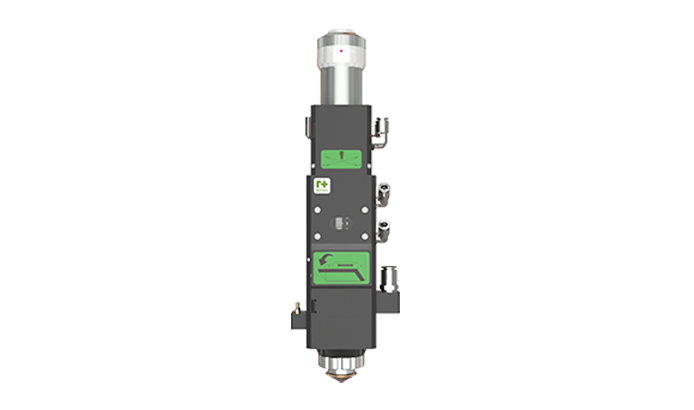

Laser head



  1. Fully upgraded dustproof design, double layer protection. The risk of lens contamination is close to zero

  2. Different FIBER interfaces to accommodate different FIBER lasers

  3. The collimating mirror, focusing mirror and tip have a cooling function

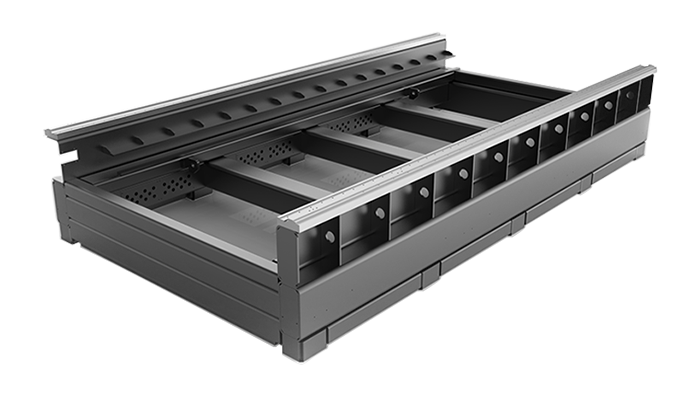

Thick wall carbon steel pipe welding bed



  1. High strength, good stability, not easy to deform. Such properties ensure that the bed will not be deformed for 20 years.

  2. The wall thickness of the rectangular tube is 10 mm, the whole body weighs 4500 kg

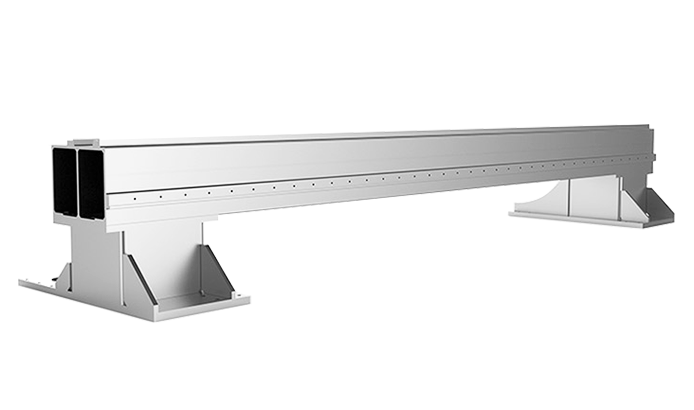

Cast aluminum beam



  1. High hardness. Aircraft grade aluminum is manufactured to aerospace standards and is extruded in a 4,300 ton press. After processing, the hardness can reach T6

  2. Aviation aluminum has the characteristics of good strength, light weight, corrosion resistance, oxidation resistance and low density, which greatly improves the processing speed
