Oil pump pneumatic for liquid grease with wheels 71031940 View larger

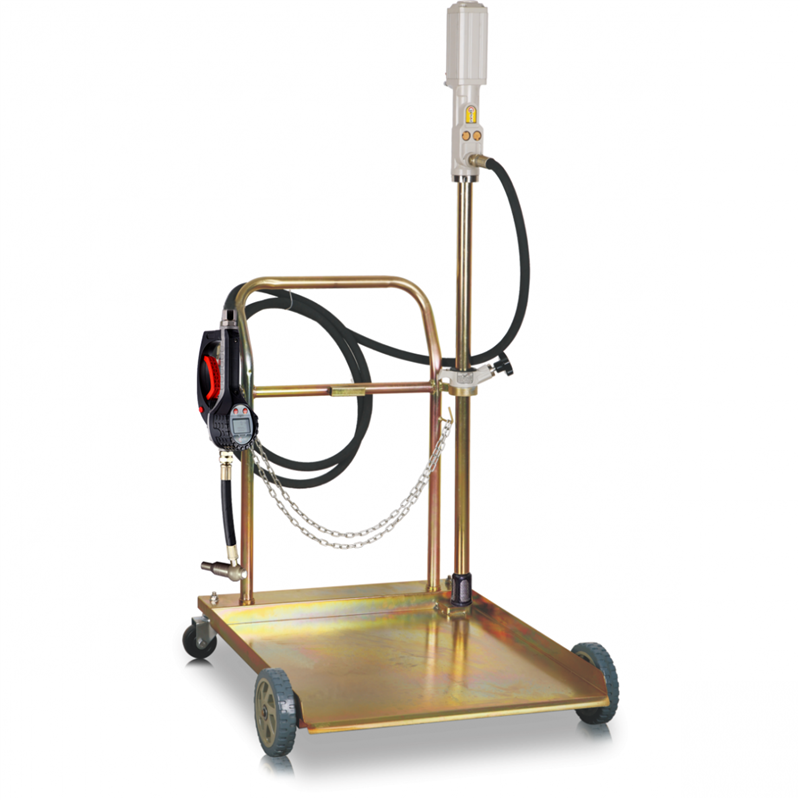

Oil pump pneumatic for liquid grease with wheels 71031940

71031940

Pneumatic oil pump with wheels designed for barrels from 180 to 200 liters. Features a 3:1 oil pump ratio with 30 l/min intake capacity and working pressure range of 3–8 bar. Includes a 940 mm intake pipe, electronic counter with flexible hose and nozzle, and delivers a max continuous flow of 14–18 l/min with a max oil pressure of 24 bar.

More details

499,00 € tax incl.

Ask about product
Oil pump pneumatic for liquid grease with wheels 71031940

Oil pump pneumatic for liquid grease with wheels 71031940

Pneumatic oil pump with wheels designed for barrels from 180 to 200 liters. Features a 3:1 oil pump ratio with 30 l/min intake capacity and working pressure range of 3–8 bar. Includes a 940 mm intake pipe, electronic counter with flexible hose and nozzle, and delivers a max continuous flow of 14–18 l/min with a max oil pressure of 24 bar.



More info

For barrels from 180 to 200 l

3:1 oil pump (30 l/min)
The length of the intake pipe is 940 mm

Working pressure 3 - 8 bar

Max continuous performance 14–18 l/min (with 4 m hose and gun)

Max oil pressure 24 bar

Intake pipe Ø 34 mm


Electronic counter with flexible hose and nozzle

Accuracy ± 0.2%

Working pressure 3 – 70 bar

Entrance/exit 1/2"

Internal Ø10 mm

Power supply DC 3V


1/2" x 4 m hose connector
Package dimensions 1320 x 110 x 120 mm & 800 x 660 x 140 mm & 330 x 145 x 115 mm
