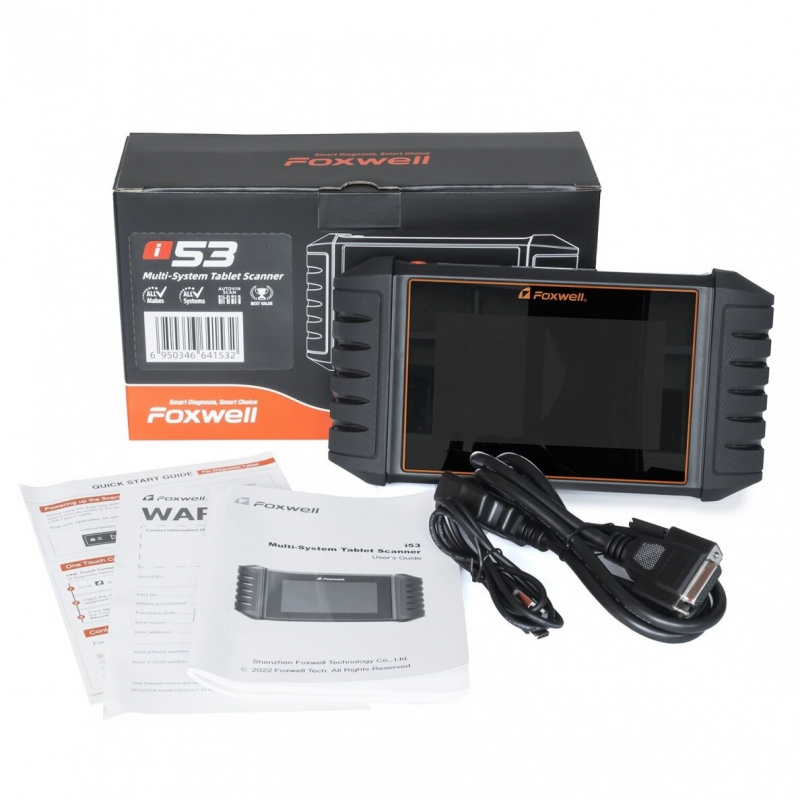

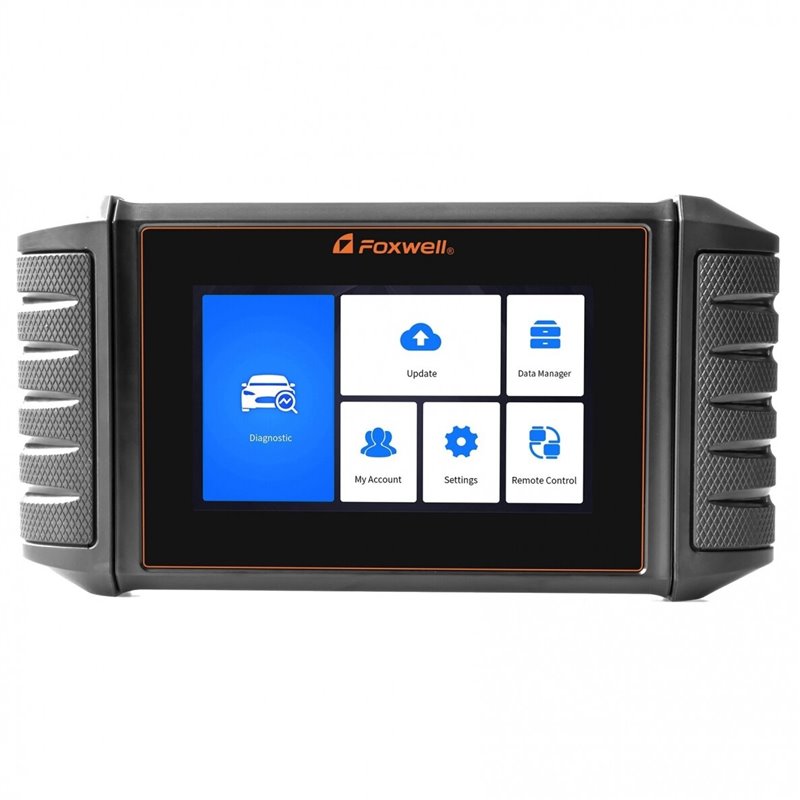

Professional diagnostic equipment for the car, (LCD) I53

Main features: ABS drain, AFR adaptation, BRT, TPS, clutch adaptation, CVT reboot, DPF, EPB electronic parking brake reset, EVAP / SMOG test, gearbox learning, headlights, side windows, doors, nozzles, speech change, odometer mileage restoration, oil reset, main fuel pump, airbag ECU module replacement, SAS, seat matching, turbine replacement, TCMOIL, transmission adaptation, TPMS, tire resizing, suspension, immobilizer, EGR reset, fuel pressure test, G sensor adaptation, O2 lambda oxygen sensor test, LIMIT, power balance, ODS initiation, OPDS initiation, bidirectional control, control module coding/programming
Gets access to powertrain, chassis and body systems
Scans and clears diagnostic trouble codes and resets MILs for all systems
Displays live vehicle sensor data in text and graph formats
Combines interactive live sensor graphs for easy and intuitive diagnosis
Records and restores data logs to record periodic failures
Displays fixed frame data
Scans ECU information
Performs component/system two-way tests
Supports advanced features such as adaptation and control module encoding
Supports commonly required service functions such as steering angle sensor
(SAS) calibration, DPF regeneration, ABS lowering, BCM/SIR setting, etc.
Multi-language menus and codes for the international market: English, Russian, Polish, German, Italian, French, Spanish, Swedish, Slovak, Czech, Romanian, Turkish, Slovenian, Croatian, Hungarian, Dutch, Portuguese, Chinese, Japanese, Korean
Extremely easy to use thanks to a clearly positioned keyboard, menu-driven control and keyboard shortcuts
Ergonomic design and solidly constructed
Quick launch and multitasking based on the „Android“ operating system
One-click update via WIFI allows the scanner to keep the system up-to-date continuously
„One Touch Complaint“ allows you to solve diagnostic problems and errors faster and more accurately
Suitable for the following vehicles: BMW, Mini, Rolls-Royce; Chrysler, Jeep, Dodge; Ford; GM; Honda, Acura; Mazda; Nissan, Infiniti; Toyota, Lexus, Scion; VW, VW_CV, Audi, Bentley, Buggati, Lamborghini, Seat, Skoda; Volvo; Aston Martin; Mercedes Benz, MB_CV, Maybach, Smart; Daewoo; Daihatsu; Proton, Perodua; Ssangyong; „Ferrari“; Fiat, Abarth, Alfa Romeo, Lancia; Hyundai, Kia; Land Rover, Jaguar; Maserati; Opel, Vauxhall; Renault, Dacia; Peugeot, Citroen; Isuzu; Iveco Daily; Subaru; Suzuki; Tata; Fuso; Saab; Tesla
Screen 5.5 inch diagonal, color LCD screen; 1280*720 pixels
Operating system Android 9.0
CPU quad-core 1.3 GHz
Memory 1 GB
SSD Hard Drive 32 GB
Communication interface Integrated WIFI 802.11 b/g/n Wireless LAN; USB2.0 OTG/standard USB 2.0; HOST Bluetooth specification v2.1+EDR;
„Bluetooth 4.0 Low Energy“ (LE) (10–20 m)
Built-in 4000 mAh battery, lithium polymer battery, rechargeable via 5 V USB power supply
Protocols ISO9141-2, ISO14230-2, ISO15765-4, K/L line, dual K line SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, high speed, medium speed, low speed and single wire CAN KW81, KW82, GM UART, UART Echo Byte protocol, Honda Diag-H protocol, TP2.0, TP1.6, SAE J1939, SAE J1708, fault resistant CAN
Operating temperature / humidity -10–70°C / 5%-95%
Dimensions 236 x 124 x 38 mm
Weight 0.87 kg (main unit)
The device comes with one free vehicle software of your choice and supports the addition of additional software, just need to purchase related software. Any additional vehicle software will be updated for life!
Warranty 12 months.
