Induction heater 1.5kW DIH15KW View larger
Previous Next

Induction heater 1.5kW DIH15KW

DIH15KW

Applicable in automotive, rail and shipbuilding industries, metalworking and maintenance
Adaptable in arbs requiring speed and flexibility and risking damage to open flames around heated parts (upholstery, rubber couplings, electrical installation, etc)

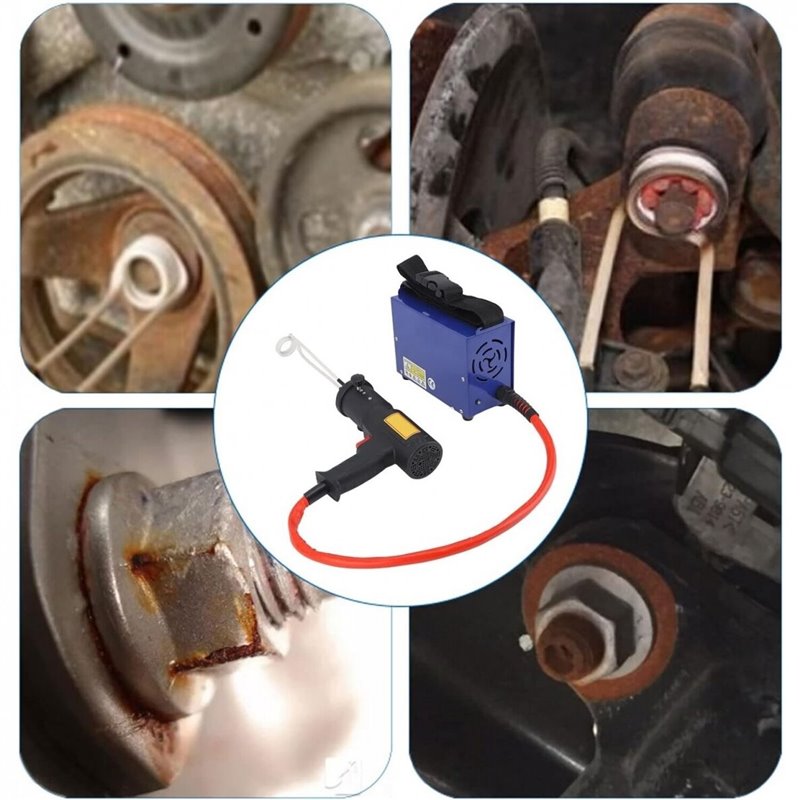

Facilitates the removal of rusted screws and old parts, heating of exhaust pipes, screws, nuts, bearings, tools before hardening, gluing, soldering and is perfect for defrosting
Voltage 220V, 50 Hz
Power cord 1.5 m
Spiral heater cable 0.8 m
Power 1.5 kW / 3.2 kVA
Consumption 8 A
Do not exceed duty cycle DIH-1.5kW – 2 minute heating (on) and 2 minute cooling (off)
Security code IP20
Operating frequency 25 - 65 kHz, automatic adjustment
Protection class I
Fan cooling
PF (power factor) 0.99 (PFC)
Overheating and overloading protection and coil short circuit
Heating without flames and sparks
Dimensions 210 x 140 x 90 mm
Weight 4.6 kg

More details

399,00 € tax incl.

Ask about product
Induction heater 1.5kW DIH15KW

Induction heater 1.5kW DIH15KW

Applicable in automotive, rail and shipbuilding industries, metalworking and maintenance
Adaptable in arbs requiring speed and flexibility and risking damage to open flames around heated parts (upholstery, rubber couplings, electrical installation, etc)
Facilitates the removal of rusted screws and old parts, heating of exhaust pipes, screws, nuts, bearings, tools before hardening, gluing, soldering and is perfect for defrosting
Voltage 220V, 50 Hz
Power cord 1.5 m
Spiral heater cable 0.8 m
Power 1.5 kW / 3.2 kVA
Consumption 8 A
Do not exceed duty cycle DIH-1.5kW – 2 minute heating (on) and 2 minute cooling (off)
Security code IP20
Operating frequency 25 - 65 kHz, automatic adjustment
Protection class I
Fan cooling
PF (power factor) 0.99 (PFC)
Overheating and overloading protection and coil short circuit
Heating without flames and sparks
Dimensions 210 x 140 x 90 mm
Weight 4.6 kg



More info

Extenders – you can only use the following extension cords if needed:
up to 5 m with a diameter of 2.5 mm2
up to 15 m with a diameter of 4 mm2
When using a device with an alternative power source – e.g. using a mobile power generator, it is necessary to use a quality device
Use a generator with a power of at least 3-4 kW or a DC/AC converter with a power of 2-3 kW and with sine wave only – do not use a converter with a square or quasi-sine wave
Failure to comply with the above requirements may result in damage to the device and disability of the warranty

12 month warranty
