TOOL CABINET 479 PIECES KD1063

KD1063

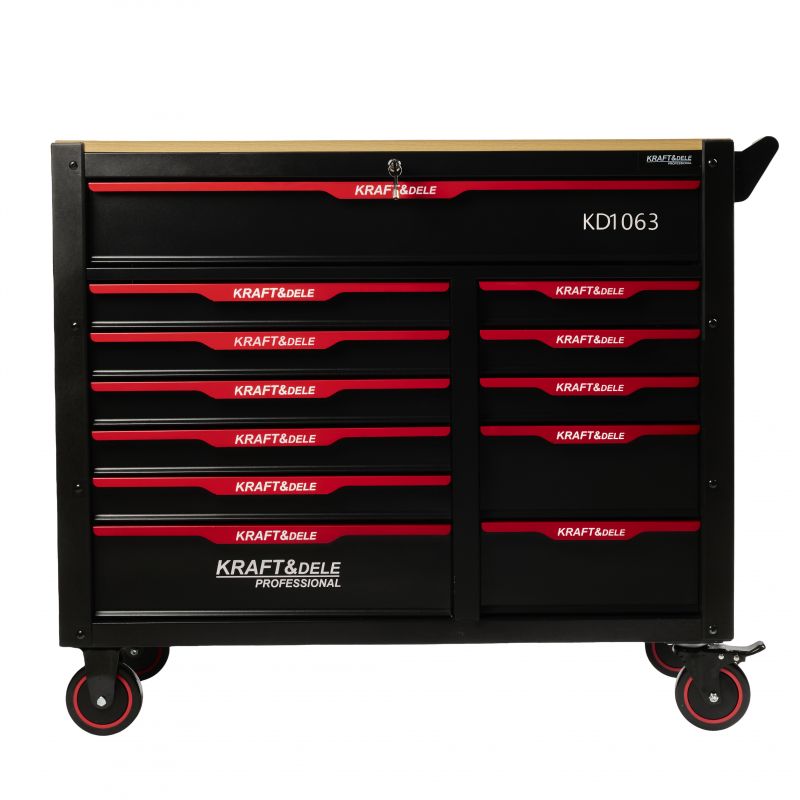

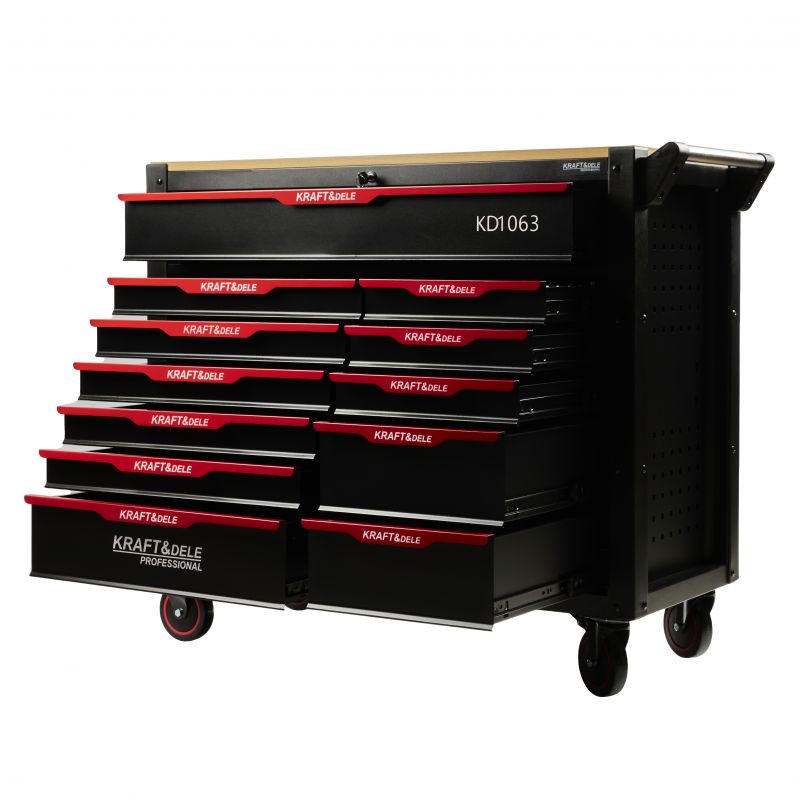

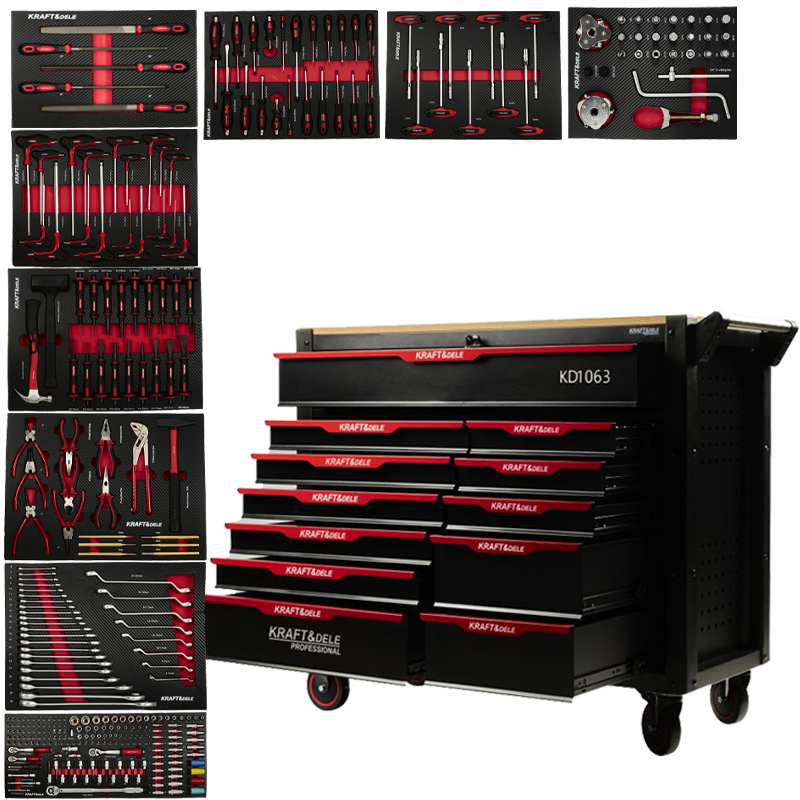

The Kraft&Dele KD1063 tool cabinet is an indispensable addition to any automotive workshop or garage.
The cabinet comes equipped with a complete tool kit consisting of 479 pieces.

The cabinet is equipped with rubber bumpers to prevent damage to the car body in the event of accidental impact.

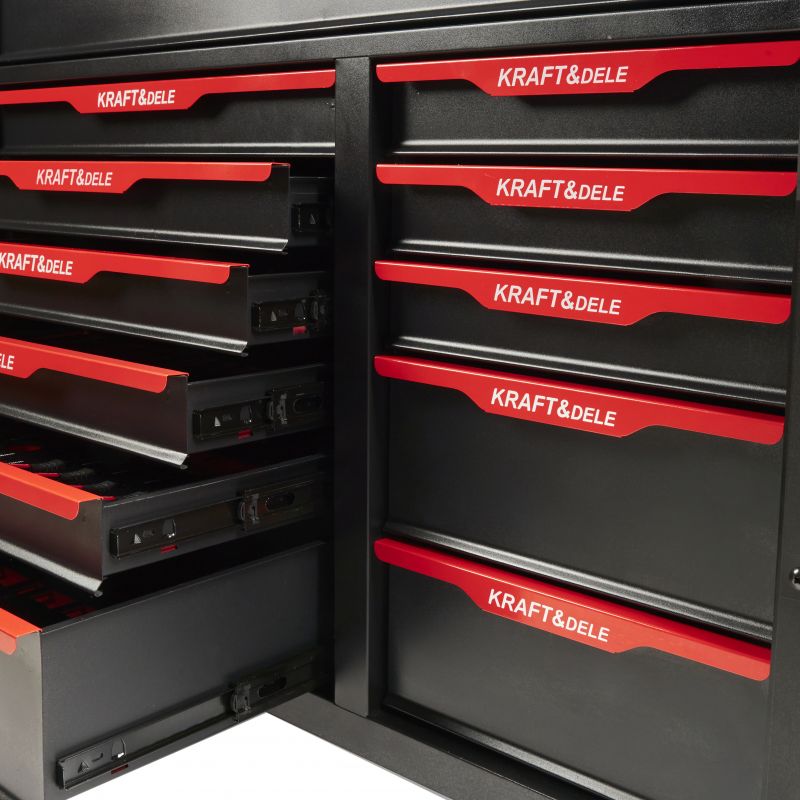

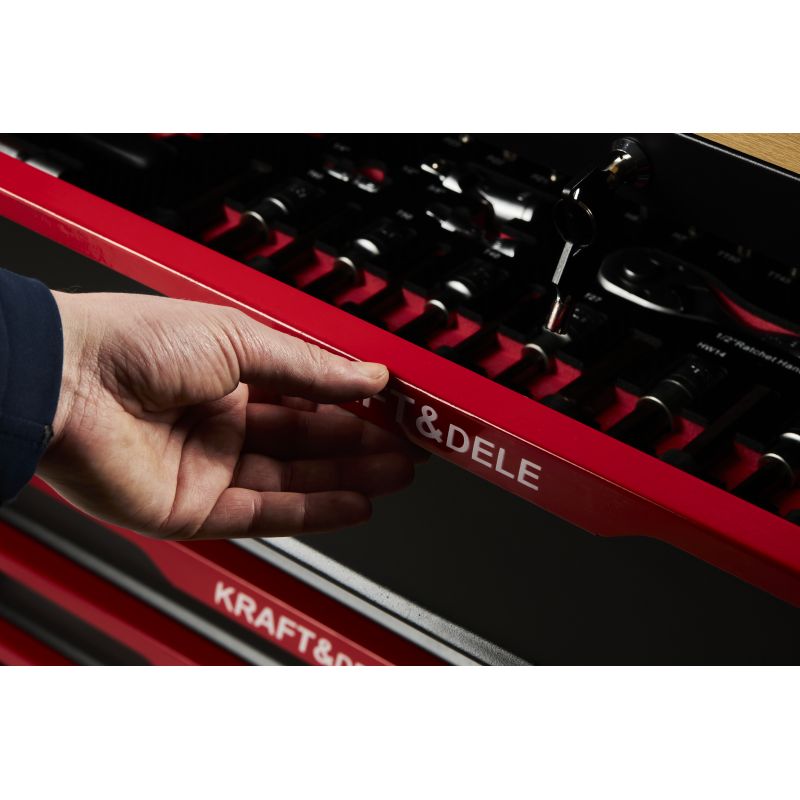

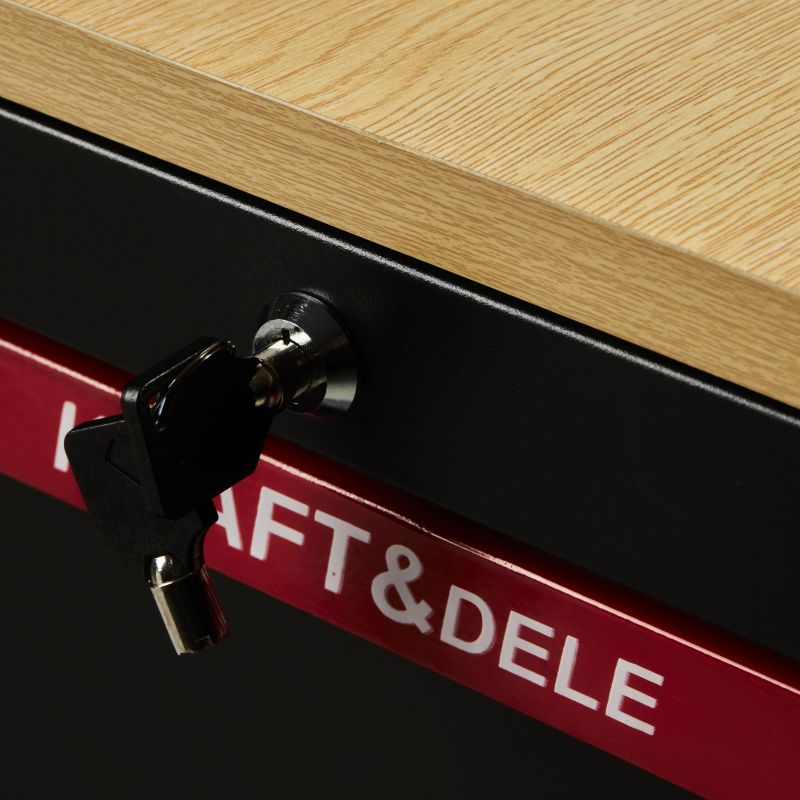

The drawer locking system allows only one drawer to be opened.

Each drawer is mounted on bearing guides, making their opening smooth, quiet and durable.

All keys are made of CrV (chrome vanadium) steel.

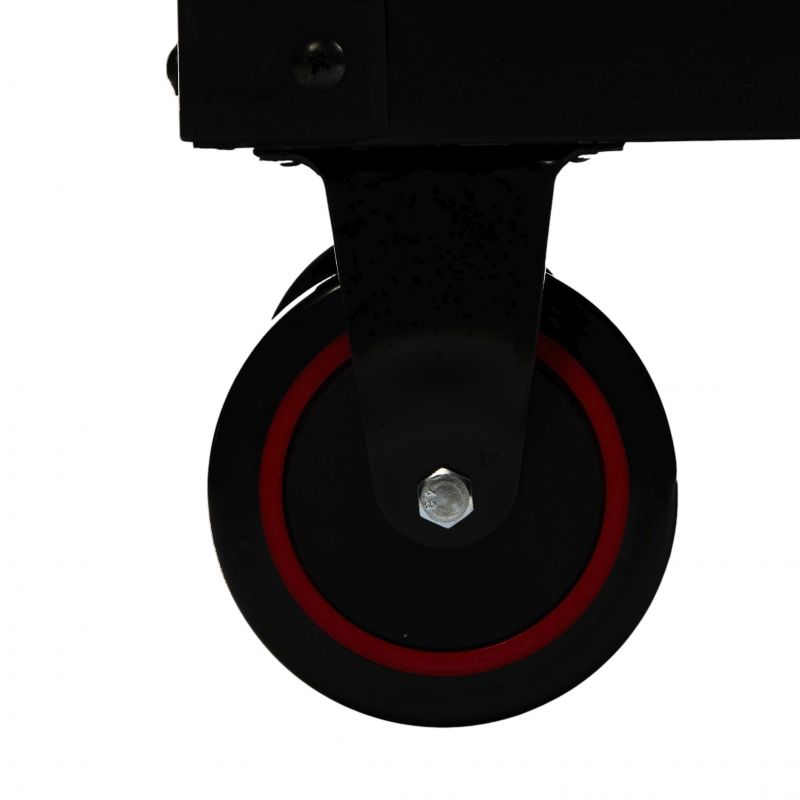

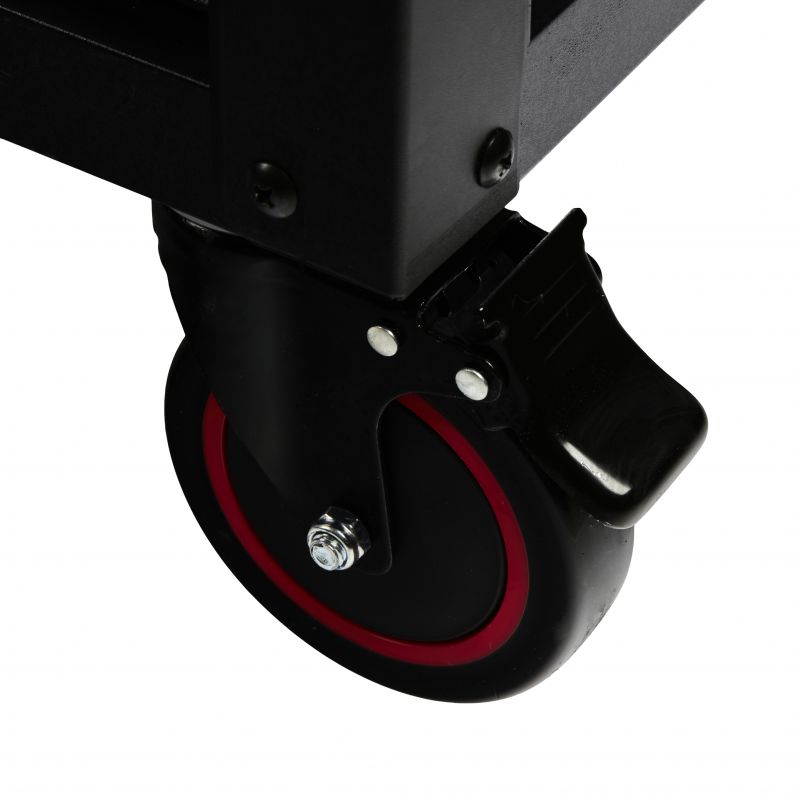

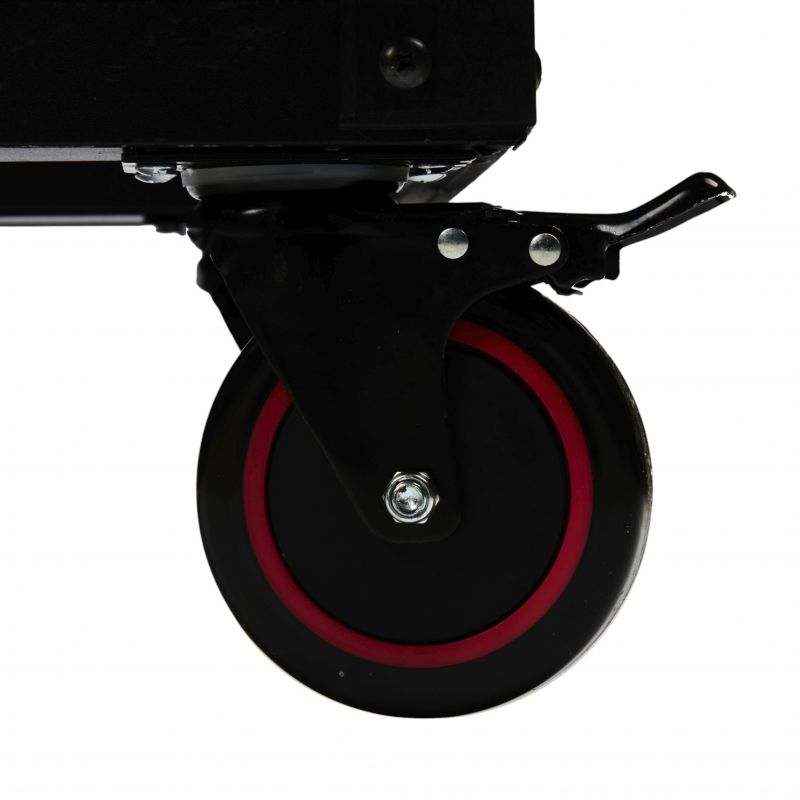

Large wheels equipped with an automatic lock and a brake ensure safety when moving the cabinet even on small slopes.

More details

749,00 € tax incl.

Ask about product
TOOL CABINET 479 PIECES KD1063

TOOL CABINET 479 PIECES KD1063

The Kraft&Dele KD1063 tool cabinet is an indispensable addition to any automotive workshop or garage.
The cabinet comes equipped with a complete tool kit consisting of 479 pieces.

The cabinet is equipped with rubber bumpers to prevent damage to the car body in the event of accidental impact.

The drawer locking system allows only one drawer to be opened.

Each drawer is mounted on bearing guides, making their opening smooth, quiet and durable.

All keys are made of CrV (chrome vanadium) steel.

Large wheels equipped with an automatic lock and a brake ensure safety when moving the cabinet even on small slopes.



More info

PRODUCT TECHNICAL PARAMETERS

Mark: KRAFT&DELE
Model: KD1063
Number of drawers: 12
Dimensions: 1120 x 480 x 994 mm
Libra: approx. 112 kg


DIMENSIONS:

Height: 112 cm

Height: 95 cm

Width: 48 cm

Weight: approx. 112 kg

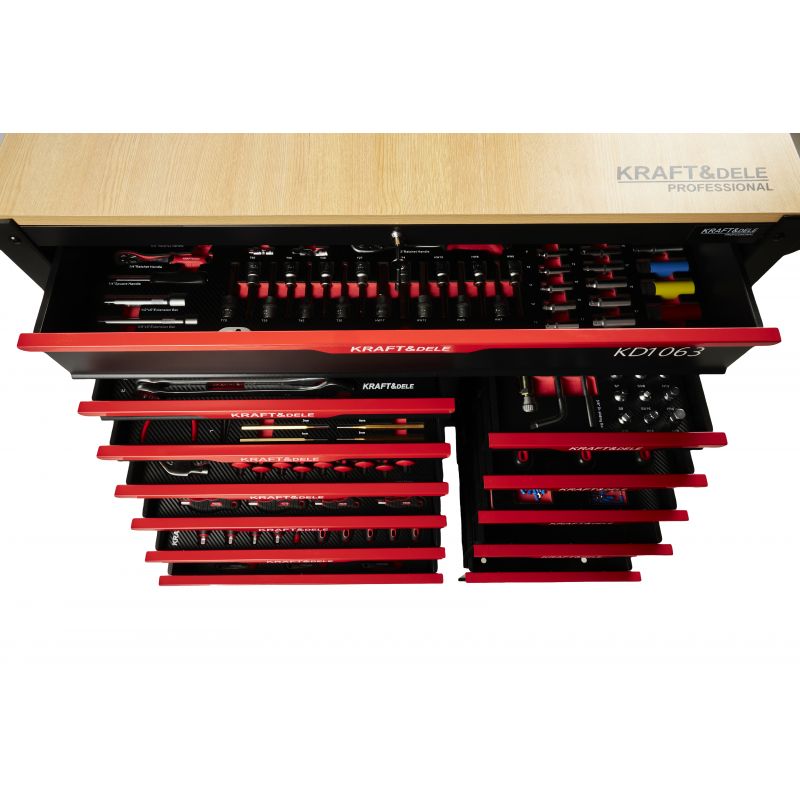

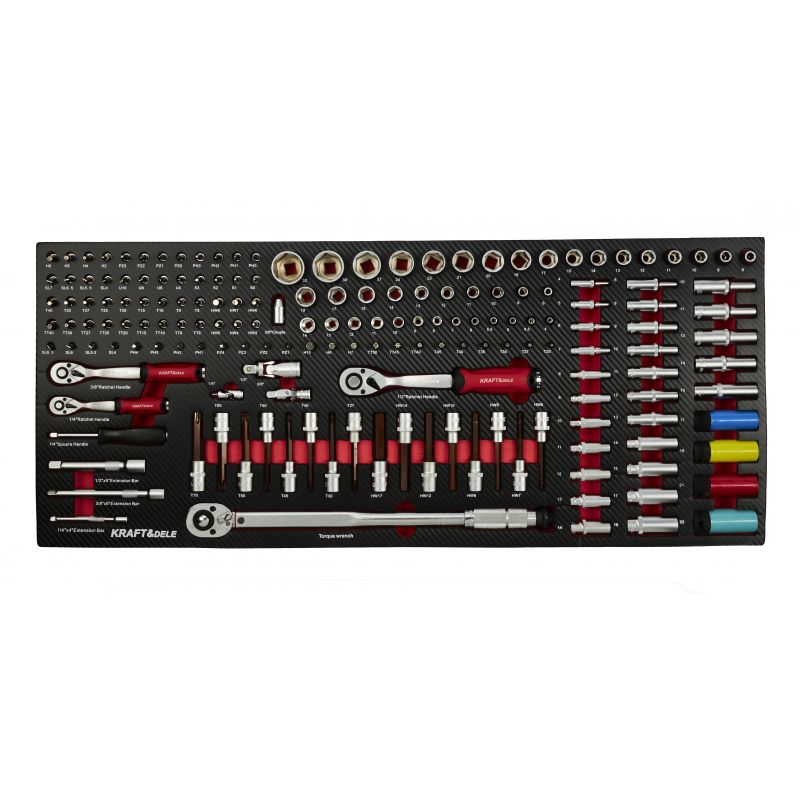

CONTENTS OF CENTRAL DRAWER: 172 pcs

  • 3 ratchet handles (72 teeth) - 1/4", 3/8", 1/2"

  • 1/2" torque wrench 20-210 Nm (72 teeth)

  • 1/4" hand screwdriver for sockets and bits

  • 48 bits with 1/4" socket – H6-H5-H4-H2-PZ3-PZ2-PZ1-PZ0-PH3-PH2-PH1-PH0-SL7-SL6.5-SL5.5-SL4-10-8-6-4-S3-S2-S1-S0-HW8-HW7-H W6-HW5-HW4-HW3-T40-T30-T27-T25-T20-T15-T10-T9-T8-TT40-TT30-TT27-TT25-TT20-TT15-TT10-TT9-TT8-SL6

  • 24 bits 8mm - SL6.5-SL6-SL5,5-SL4-PH4-PH3-PH2-PH1-PZ4-PZ3-PZ2-PZ1-H10-H8-H7-TT50-TT45-TT40-T45-T40-T35-T30-T27-T20

  • Socket with 3/8” bit holder

  • 13 short sockets 1/4" - 4-4.5-5-5.5-6-7-8-9-10-11-12-13-14mm

  • 11 long sockets 1/4" – 4-5-6-7-8-9-10-11-12-13-14 mm

  • 11 long sockets 3/8" – 6-8-9-10-11-12-13-14-15-17-19 mm

  • 10 short sockets 3/8" – 6-8-10-11-12-13-14-15-17-19 mm

  • 16 bits with 1/2" socket - T70-T60-T55-T50-T45-T40-T30-T27-HW17-HW14-HW12-HW10-HW9-HW8-HW7-HW6

  • 9 long sockets 1/2" – 10-11-13-14-15-17-19-21-22 mm

  • 17 short sockets 1/2” – 8-9-10-11-12-13-14-15-17-19-20-21-22-24-27-30-32

  • 4 long impact sockets for aluminum rims - 17mm, 19mm, 21mm, 22mm

  • 3 cardan joints - 1/4", 3/8", 1/2"

  • 3 extensions - 1/4" x 100mm – 3/8” 150mm – 1/2" x 120mm

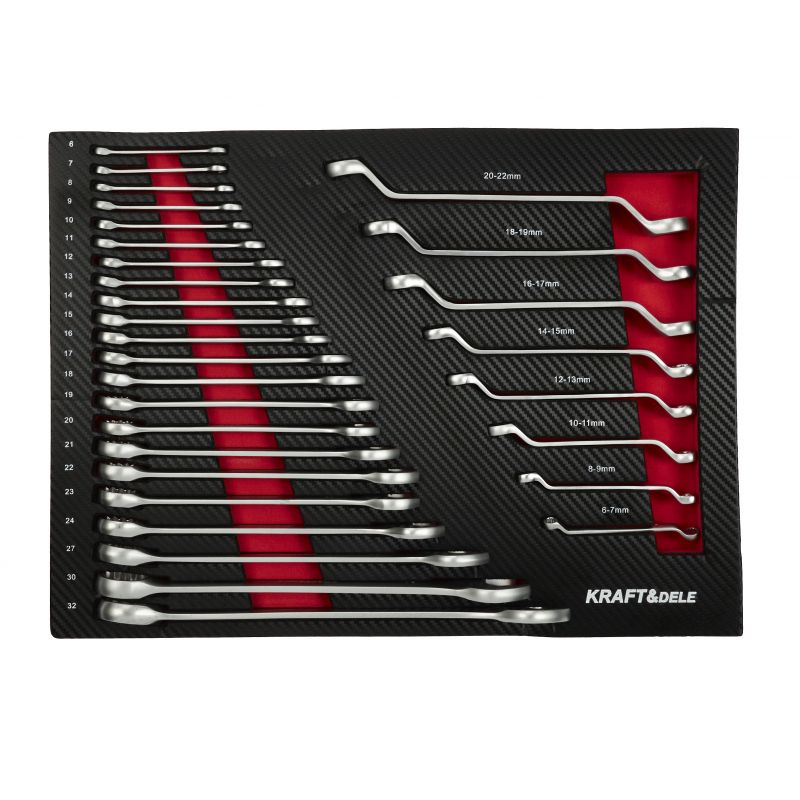

CONTENTS OF 1 LEFT DRAWER: 16 pcs.

  • 8 bent ring wrenches – 6x7-8x9-10x11-12x13-14x15-16x17-18x19-20x22

  • 22 open-end wrenches –  6-7-8-9-10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-27-30-32

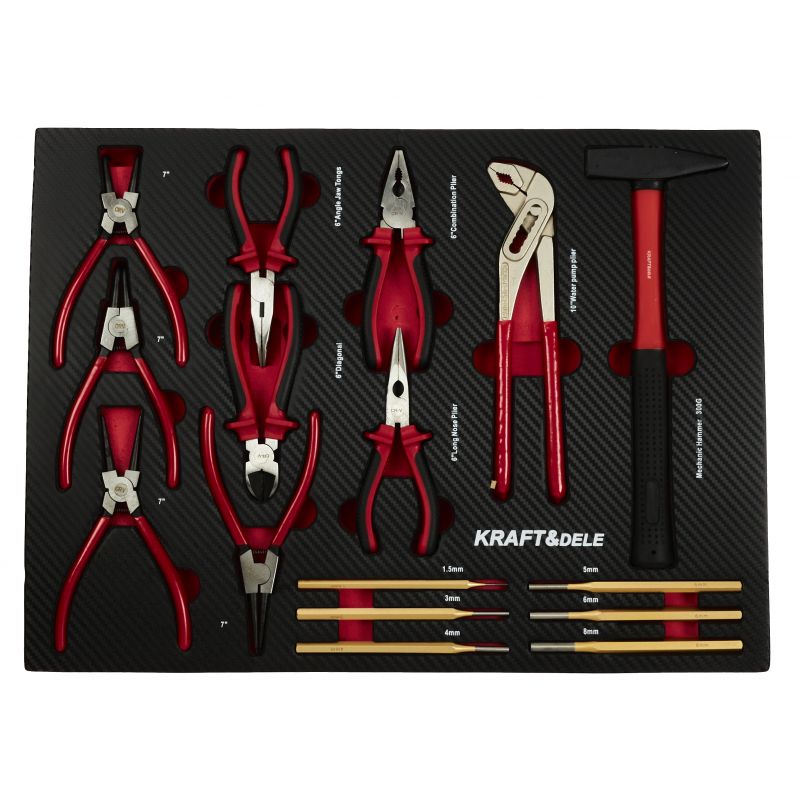

CONTENTS OF THE 2ND LEFT DRAWER: 16 pcs.

  • straight internal 170 mm

  • internal bent 170 mm

  • straight external 170 mm

  • bent external 170 mm

  • 160mm pliers

  • long nose pliers 160mm

  • universal pliers 160mm

  • long bent pliers 160mm

  • 250mm adjustable universal pliers

  • workshop hammer with a 300 g fiberglass handle

  • cylindrical punches 6 pcs – 5x8x150-6x10x150-8x10x150-1.5x6x150-3x8x150-4x8x150 mm

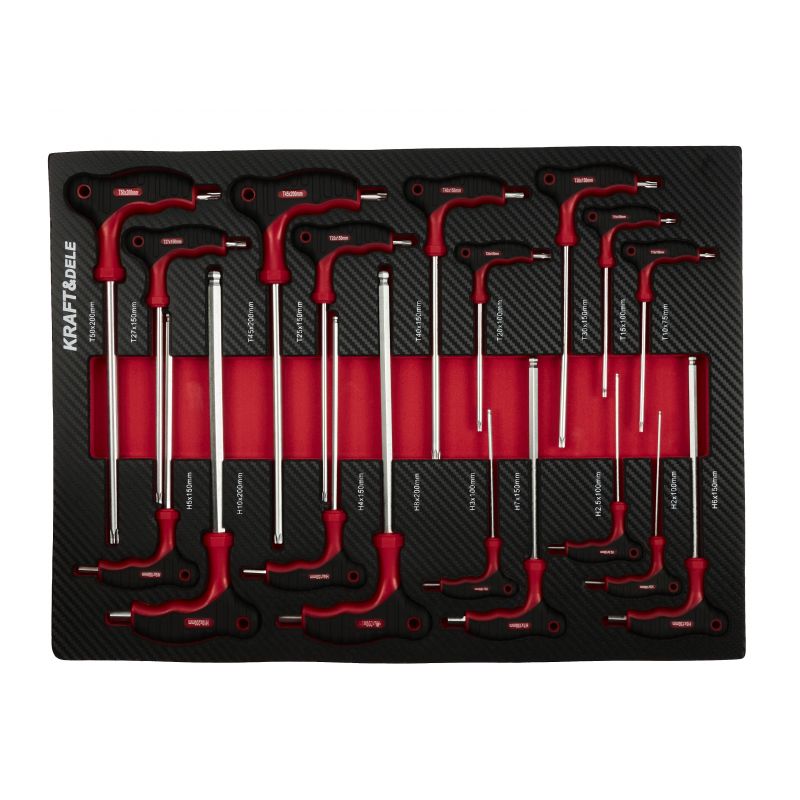

CONTENTS OF THE 3RD LEFT DRAWER: 18 pcs.

  • Long straight torx keys – T25x150-T20x100-T15x100-T27x150-T10x100-T50x200-T30x150-T45x200-T40x150mm

  • Long straight Allen keys with ball –  H8x200-H7x150-H10x200-H6x150-H5x150-H4x150-H3x100-H2.5x100-H2x100mm

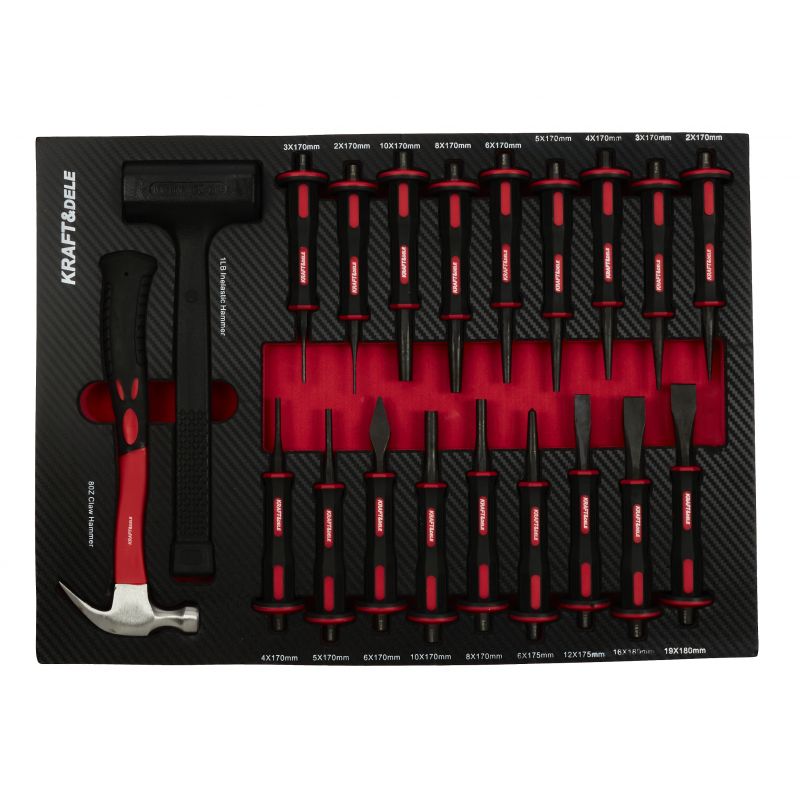

CONTENTS OF THE 4TH LEFT DRAWER: 20 pcs.

  • 300g locksmith's hammer

  • ABS sheet metal hammer 300 mm

set of chisels and punches with rubber cover (18 pieces)

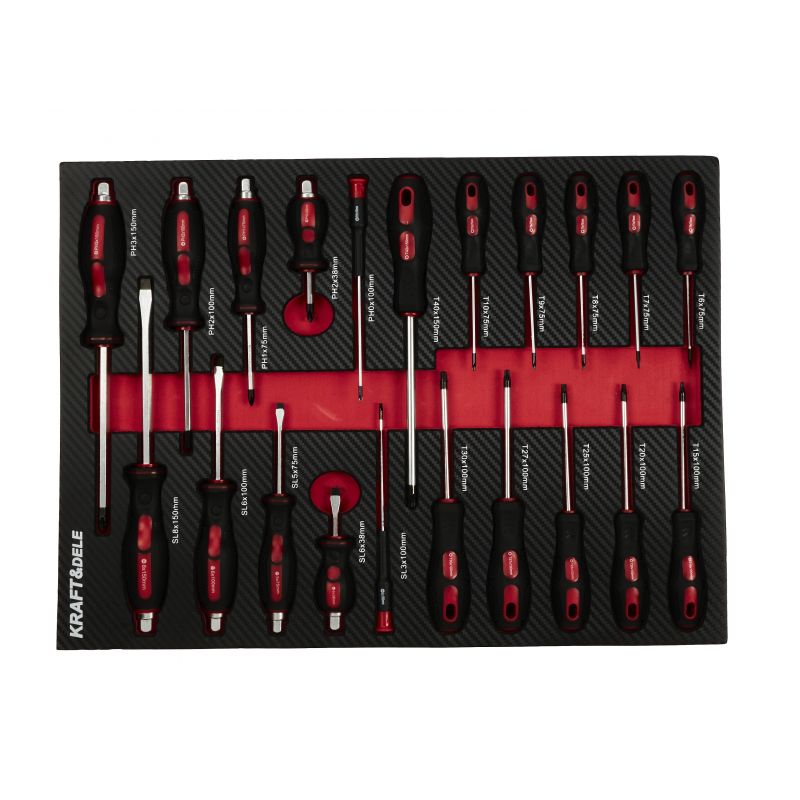

CONTENTS OF THE 5TH LEFT CODE: 21 pcs.


  • 4 Phillips screwdrivers with hexagonal drive – PH3x150-PH2x100-PH1x75-PH2x38
  • 4 flat-head screwdrivers with hexagonal drive – SL8x150-SL6x100-SL5x75-SL6x75
  • 2 precision screwdrivers – PH0x100-SL3x100
  • 11 Torx screwdrivers –  T40x150-T10x75-T9x75-T8x75-T7x75-T6x75-T15x100-T20x100-T25x100-T27x100-T30x100

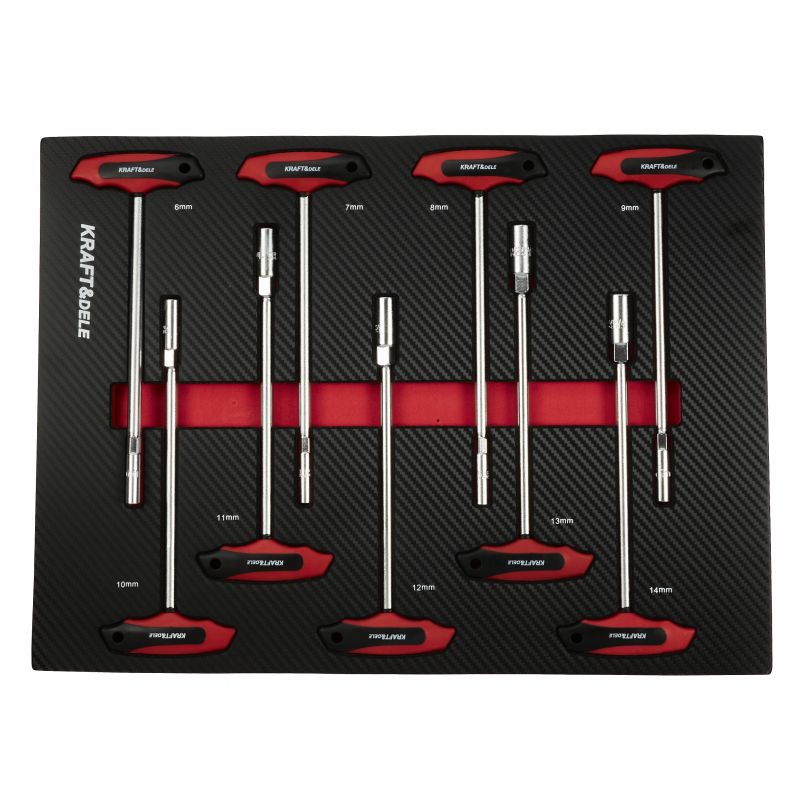

CONTENTS OF THE 6TH LEFT DRAWER: 28 pcs
Socket wrenches – 6-7-8-9-10-11-12-13-14 mm

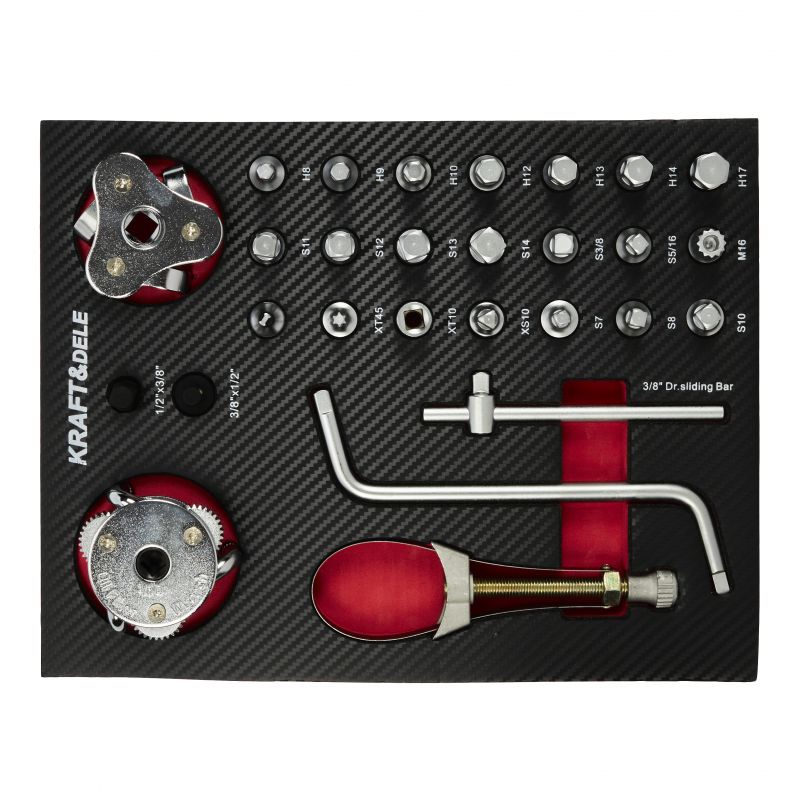

CONTENTS OF 1 RIGHT DRAWER: 28 pcs.

  • Oil drain wrenches 3/8” – XT45-XT10-XS10-S7-S8-S10-S11-S12-S13-S14-S3/8-S5/16-M16-H8-H9-H10-H12-H13-H14-H17

  • 3/8” sliding square knob

  • Oil filter claw wrench 58-110mm 3/8”

  • Oil filter claw wrench 50-95mm, three-arm 1/2"

  • Strap-on oil filter wrench 55-110mm

  • Reduction 1/2” > 3/8”

  • Reduction 3/8” > 1/2"

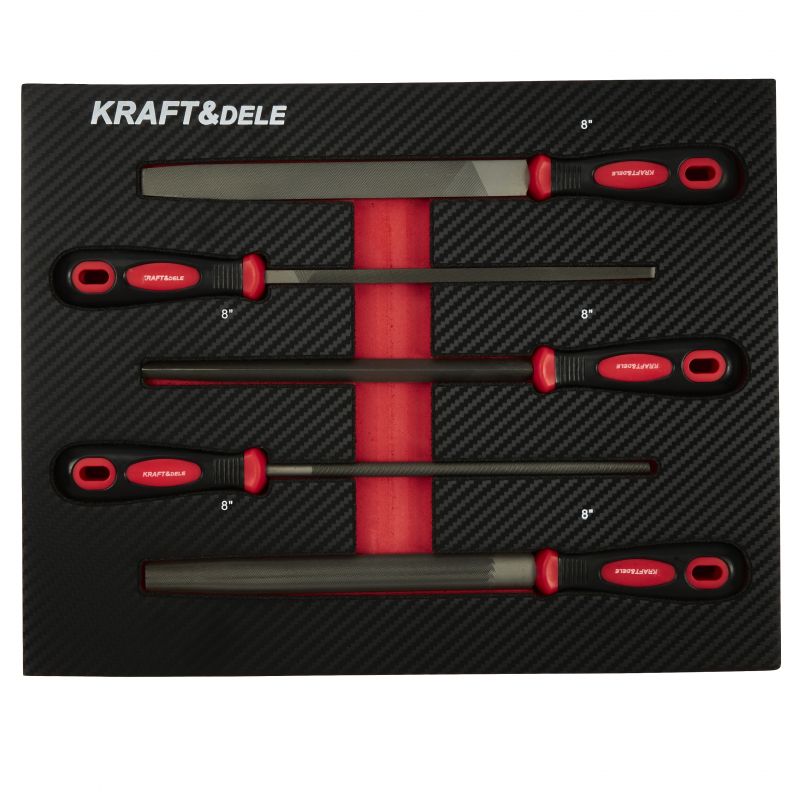

CONTENTS OF THE 2ND RIGHT DRAWER: 5 pcs.


Flat tapered file

  • Triangular tapered file

  • Half-round tapered file

  • Round tapered file

  • Tapered square file


CONTENTS OF THE 3RD RIGHT DRAWER: 161 pcs.

  • Set of connectors (160 pcs.)
  • Cable wire stripper/crimper
 4 RIGHT DRAWERS EMPTY!


 5 RIGHT DRAWER EMPTY!

SET COMPOSITION:

Tool cabinet 479 pieces KD1063
Original packaging
Receipt/Invoice
Warranty
