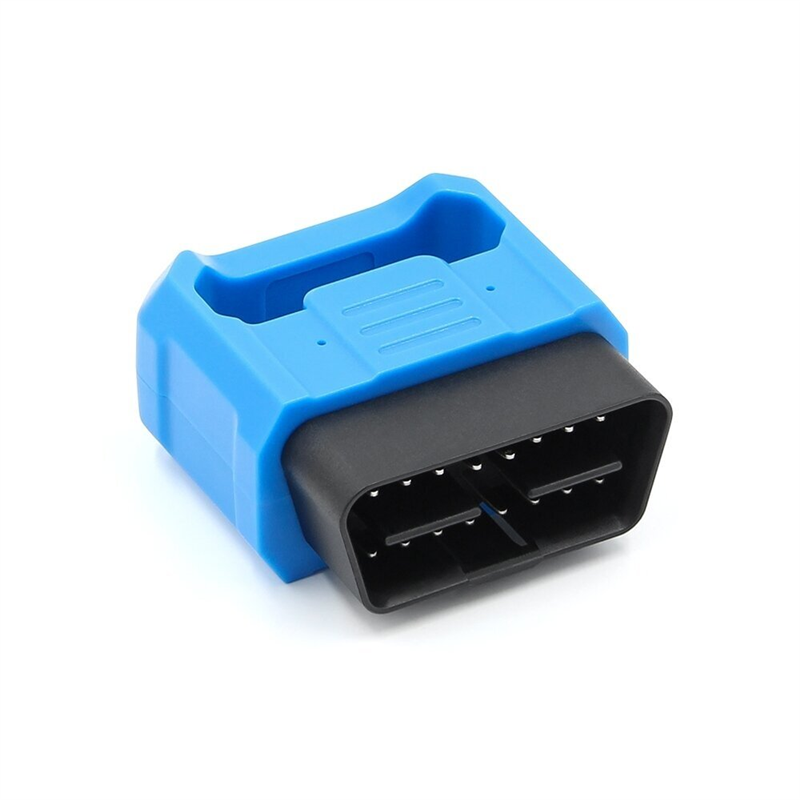

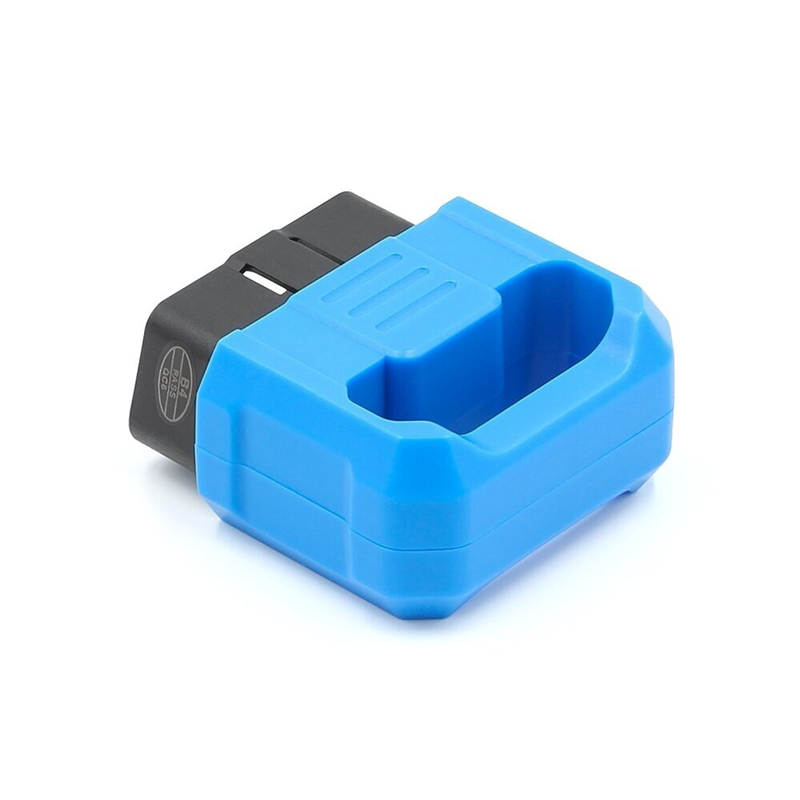

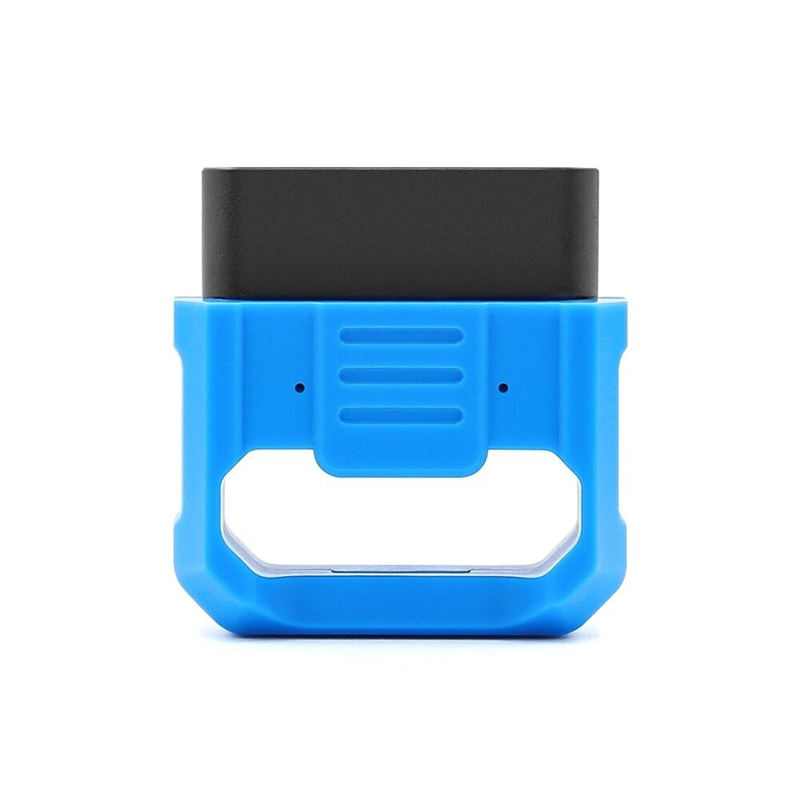

Bluetooth car scanner OBD2 OBD2V018

Communication method: Bluetooth 4.0
Main control chip: MM32L073
Software platform: Support Android /Windows/IOS
Working voltage: 12V working current 32mA
Working temperature: 40℃~80℃
Working humidity: less than 60%
Features:
1. Small size, highest chip integration, own independent appearance patent, utility model patent and software copyright
2. The software can perform the following operations:
Read error diagnosis codes-general and manufacturer-specific, and display their meaning (the database has more than 3000 common code definitions)
Clear the error code and turn off the MIL ("Check Engine" indicator)
Display current sensor data, including: engine speed per minute (RPM), calculated load value, coolant temperature, fuel system status, vehicle speed short-term fuel condition, long-term fuel condition, intake manifold pressure, fuel injection lead time, inlet Air temperature, air flow rate, absolute throttle position, oxygen detection voltage associated with short-term fuel status, fuel system status, fuel pressure, fuel consumption monitoring, and many other data
Protocols Supported By OBDII:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Software Platform:
1. Compatible software
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.;
Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.;
Symbian version: OBDScope
iOS: Torque
2. Compatible platforms
Software support platform: Windows XP, Windows 7/8/10, Android, Symbian and other systems
Product size: 57x46.2x24.2mm
Packing size: 100x63x25.5mm
Weight: 38g
