AFLATEK AirTank600/11AR Pressure Vessel View larger
Previous Next

AFLATEK AirTank600/11AR Pressure Vessel

AirTank600/11AR

Volume -600Lt

PS-Max Allowable Pressure 11 Bar

Prest Test Pressure 16,5 Bar

Alowable Temp. -10/+50

AntiRust inside/outside painting

More details

pressure vessel, AFLATEK AirTank600, air compressor tank, durable air tank, high-pressure air tank, industrial air storage, pneumatic equipment

968,00 € tax incl.

Ask about product
AFLATEK AirTank600/11AR Pressure Vessel

AFLATEK AirTank600/11AR Pressure Vessel

Volume -600Lt

PS-Max Allowable Pressure 11 Bar

Prest Test Pressure 16,5 Bar

Alowable Temp. -10/+50

AntiRust inside/outside painting



More info

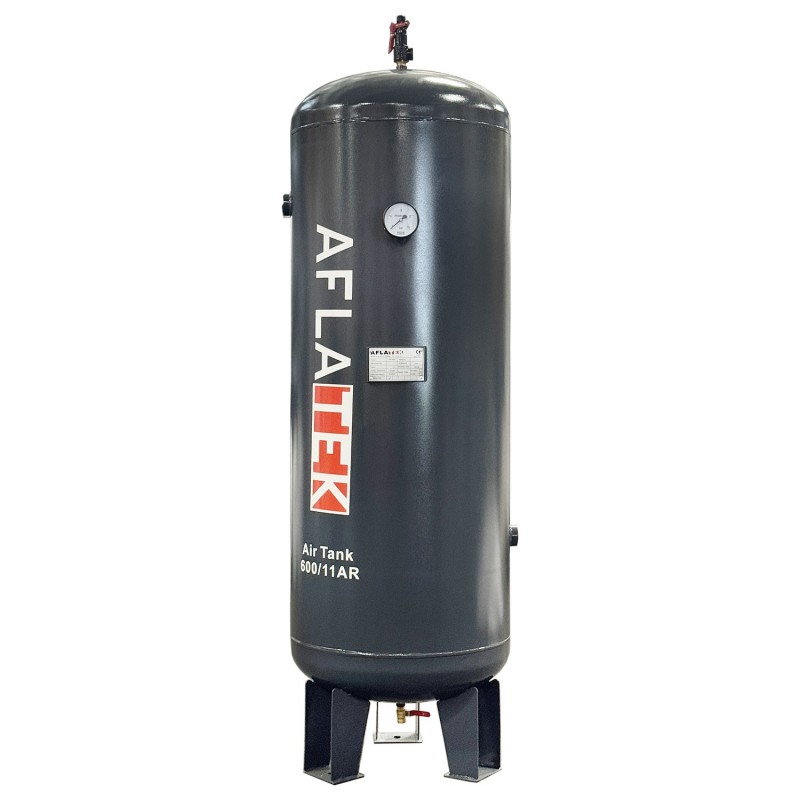

AFLATEK Pressure Vessel Tank with AntiRust inside and outside painting

Model: AirTank600/11AR

Air Tank size: 600 liters

Type: Vertical

Pressure: 11bar (tested 16.5bar)

Allowable temperature: -10/+50

Substance: Air

Height: 2100mm

Diameter: 650mm

Weight: 108kg

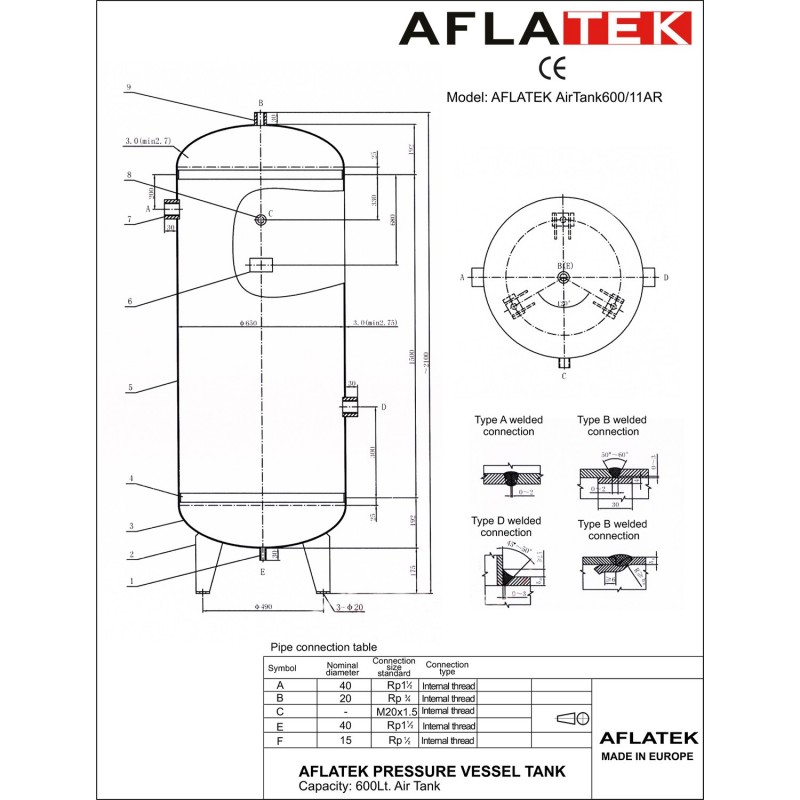

A hole: 40mm nominal diameter / Rp 1 1/2

B hole: 20mm nominal diameter / Rp 3/4

C hole: -/-mm nominal diameter / M20x1.5

D hole: 40mm nominal diameter / Rp 1 1/2

E hole: 15mm nominal diameter / Rp 1/2
