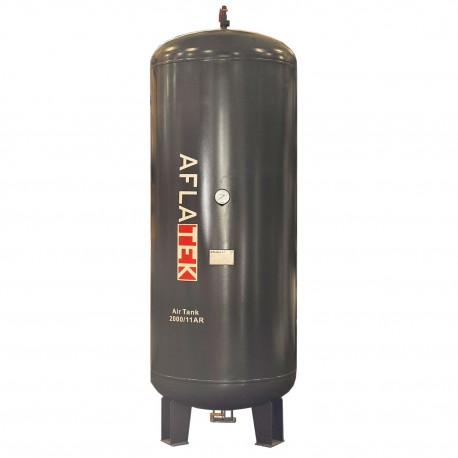

AFLATEK AirTank2000/11AR Pressure Vessel

AirTank2000/11AR

Volume -2000Lt

PS-Max Allowable Pressure 11 Bar

Prest Test Pressure 16,5 Bar

Alowable Temp. -10/+50

AntiRust inside/outside painting

More details

3 509,00 € tax incl.

Ask about product
AFLATEK AirTank2000/11AR Pressure Vessel

AFLATEK AirTank2000/11AR Pressure Vessel

Volume -2000Lt

PS-Max Allowable Pressure 11 Bar

Prest Test Pressure 16,5 Bar

Alowable Temp. -10/+50

AntiRust inside/outside painting



More info

AFLATEK Pressure Vessel Tank with AntiRust inside and outside painting

Model: AirTank2000/11AR

Air Tank size: 2000 liters

Type: Vertical

Pressure: 11bar (tested 16.5bar)

Allowable temperature: -10/+50

Substance: Air

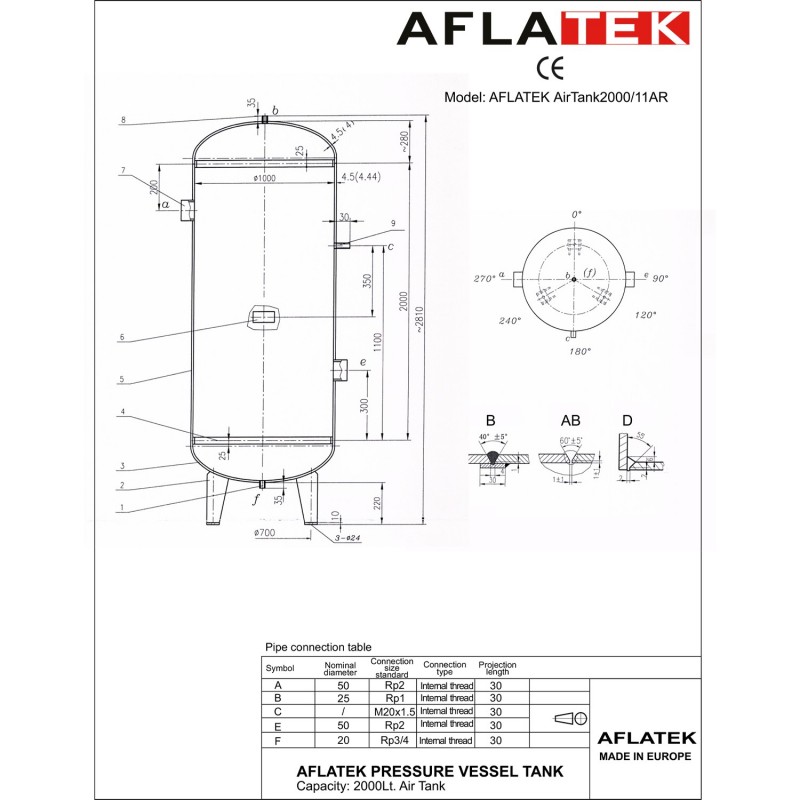

Height: 2180mm

Diameter: 1000mm

Weight: 330kg

A hole: 50mm nominal diameter / Rp 2

B hole: 25mm nominal diameter / Rp 1

C hole: -/-mm nominal diameter / M20x1.5

D hole: 50mm nominal diameter / Rp 2

E hole: 20mm nominal diameter / Rp 3/4
