AFLATEK 4P5000J Four Post Alignment Lift 5000kg

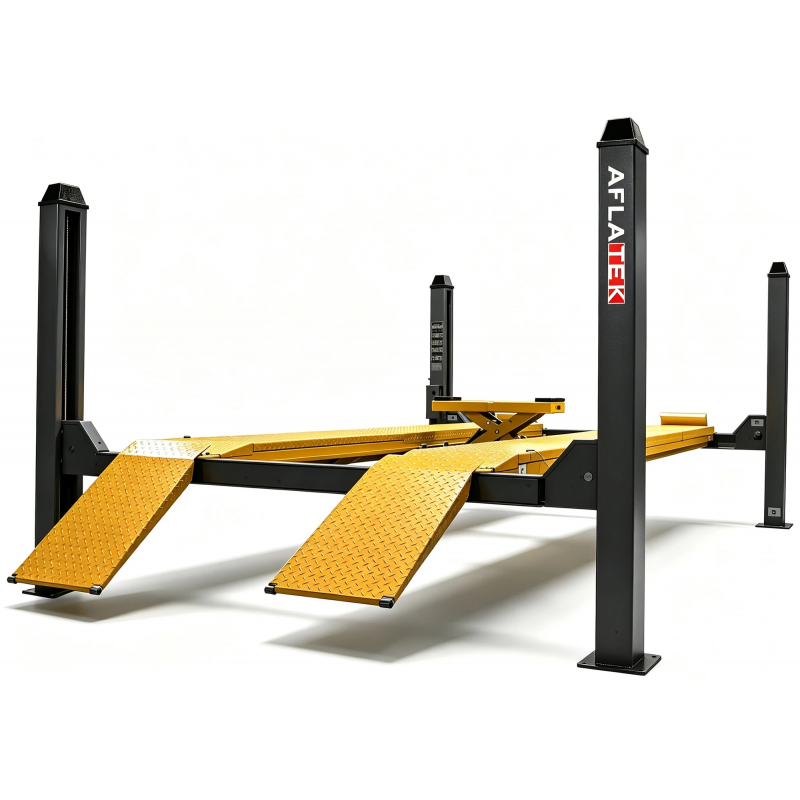

AFLATEK 4P5000J Four Post Alignment Lift

The AFLATEK 4P5000J is a premium-grade four-post alignment lift engineered to meet the rigorous demands of professional workshops, MOT test centres, and commercial garages. Offering a formidable 5000kg lifting capacity, this heavy-duty lift provides exceptional stability and precision for wheel alignment and comprehensive vehicle maintenance tasks.

Designed with safety and efficiency at its core, the lift features a maximum lifting height of 1800mm and a swift 60-second raising time. It provides a spacious working environment with a generous runway length of 5100mm and an adjustable free width between runways, ensuring seamless compatibility with a diverse range of vehicles.

Key Features

• Impressive 5000kg main lifting capacity suitable for heavy passenger cars and light commercial vehicles.
• Integrated wheel alignment capabilities for precise and professional servicing.
• Robust construction with a generous 2750mm width between the two columns for easy vehicle access.
• Operates smoothly with a rated pneumatic pressure of 6bar to 8bar.
• Engineered for optimal performance in varied working temperatures ranging from -10 °C to 40 °C.

Included in the Box

• 1x AFLATEK 4P5000J Four Post Alignment Lift
• 1x 2500kg Capacity Rolling Jack (Maximum raised height: 450mm)

Technical Specifications
