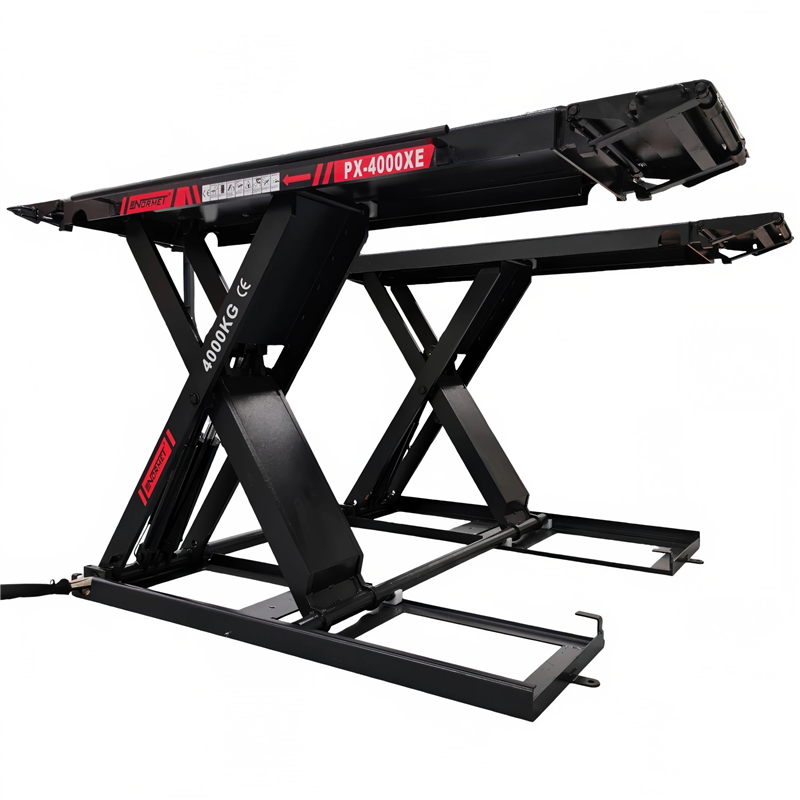

Low-profile electric scissor lift 4000kg PX-4000XE

Electro-hydraulic low-profile scissor lift with electric safety locks

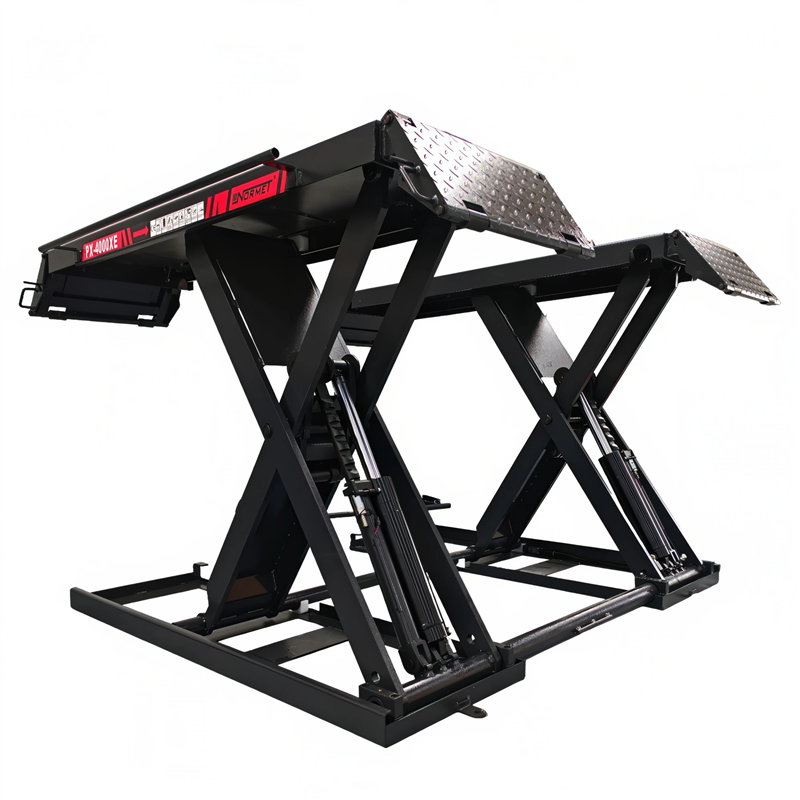

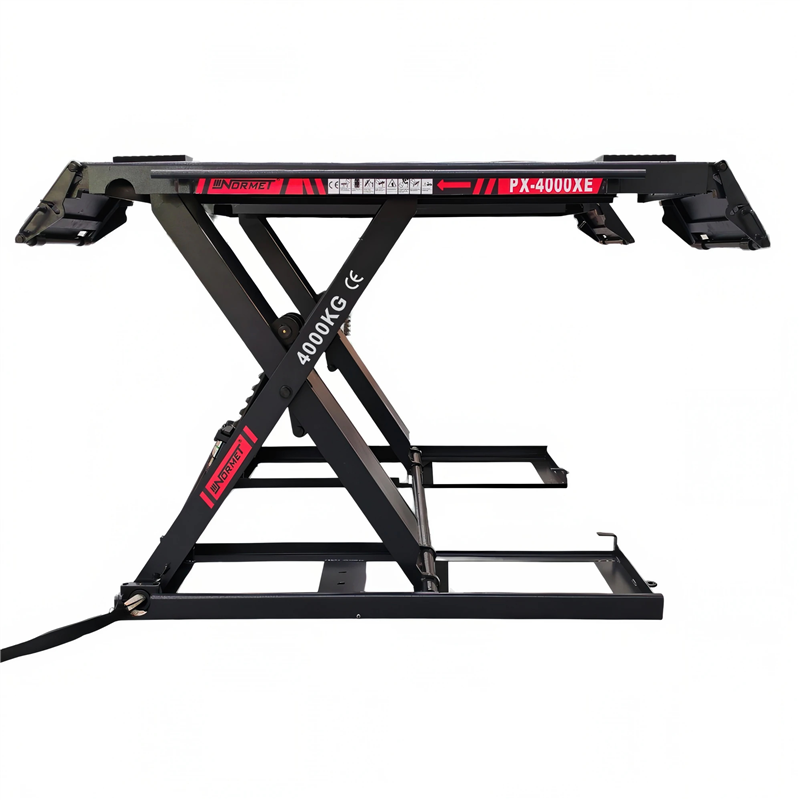

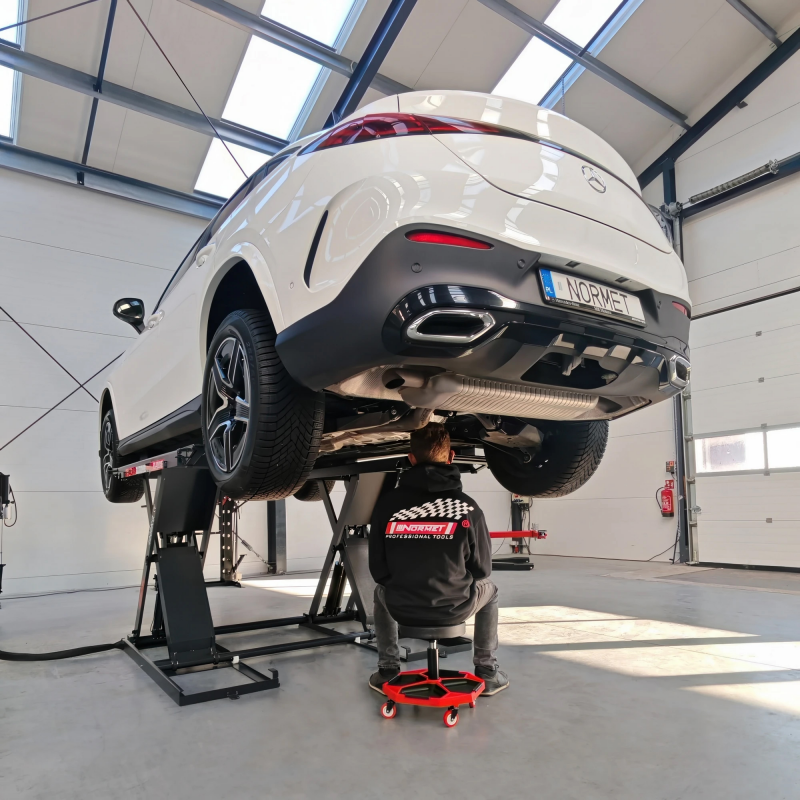

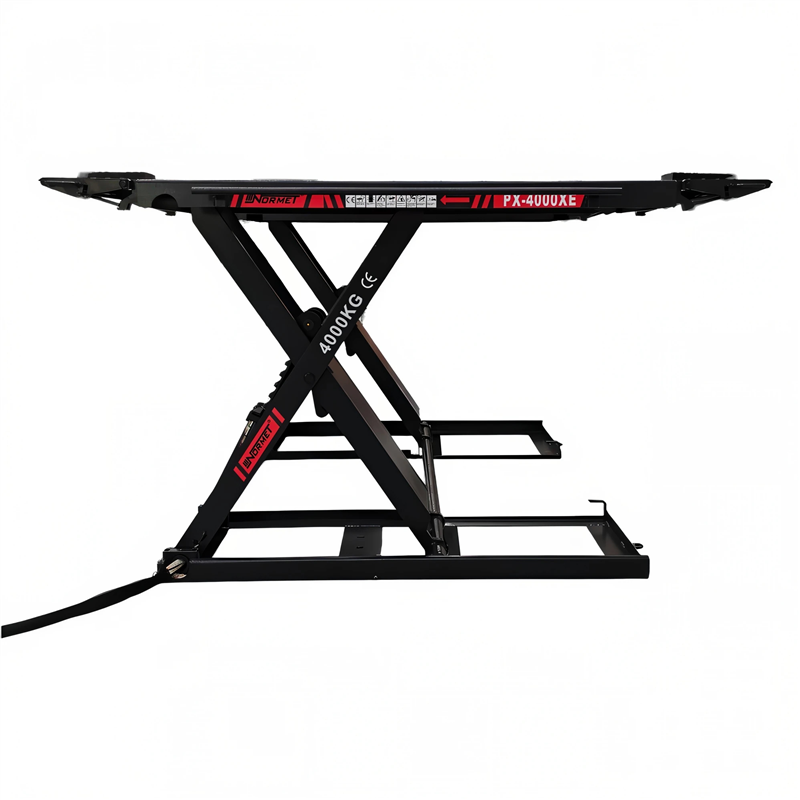

The PX-4000XE electro-hydraulic scissor lift provides a 4,000 kg load capacity and a maximum lifting height of 1,200 mm, designed for tyre servicing, body repair, and general workshop maintenance. Utilizing electromagnetic safety locks, it requires no compressed air supply and operates entirely from a standard 230 V electrical supply.

Key features and mechanical design

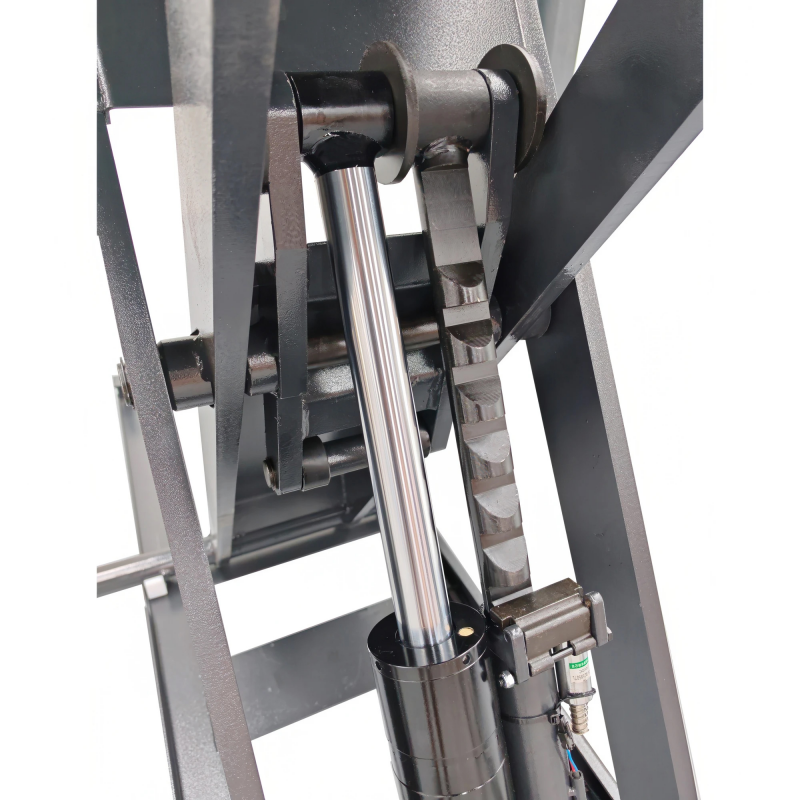

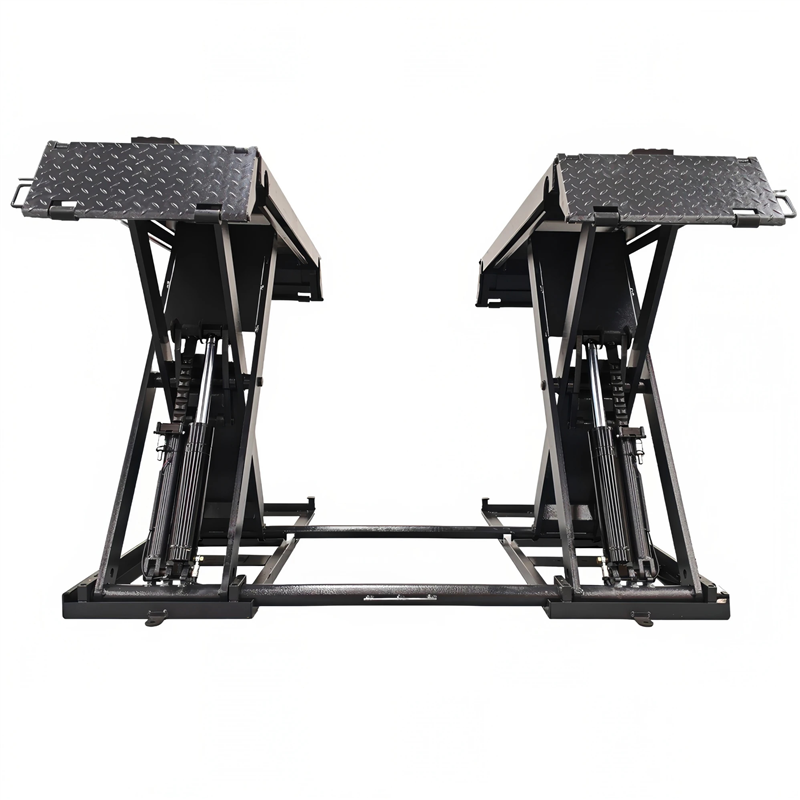

• Electric safety locks: Solenoid-operated mechanical locks positioned directly on the hydraulic cylinders provide positive engagement, even in situations with uneven load distribution across the platforms.

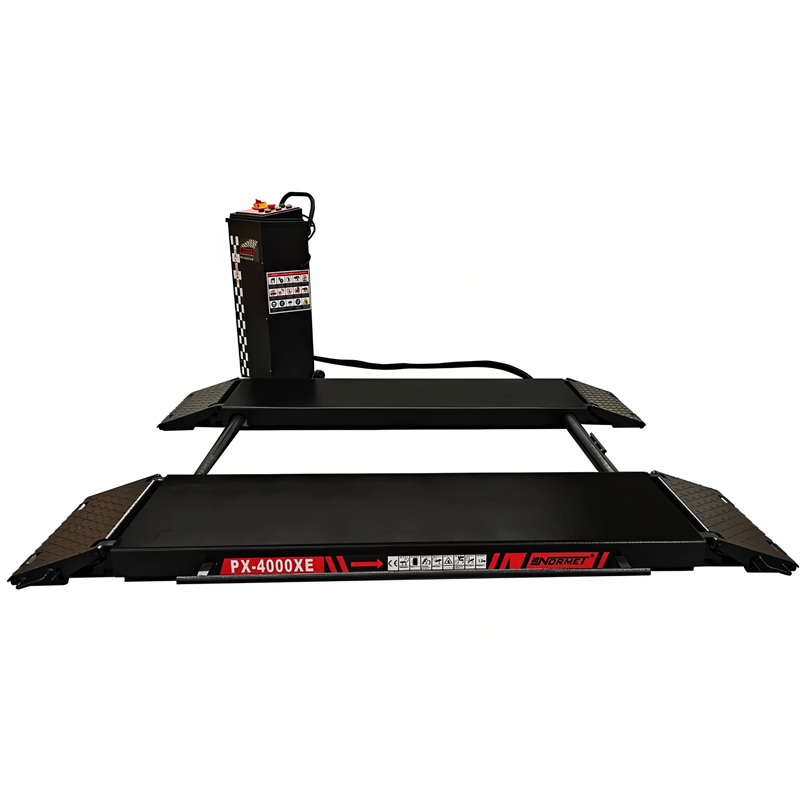

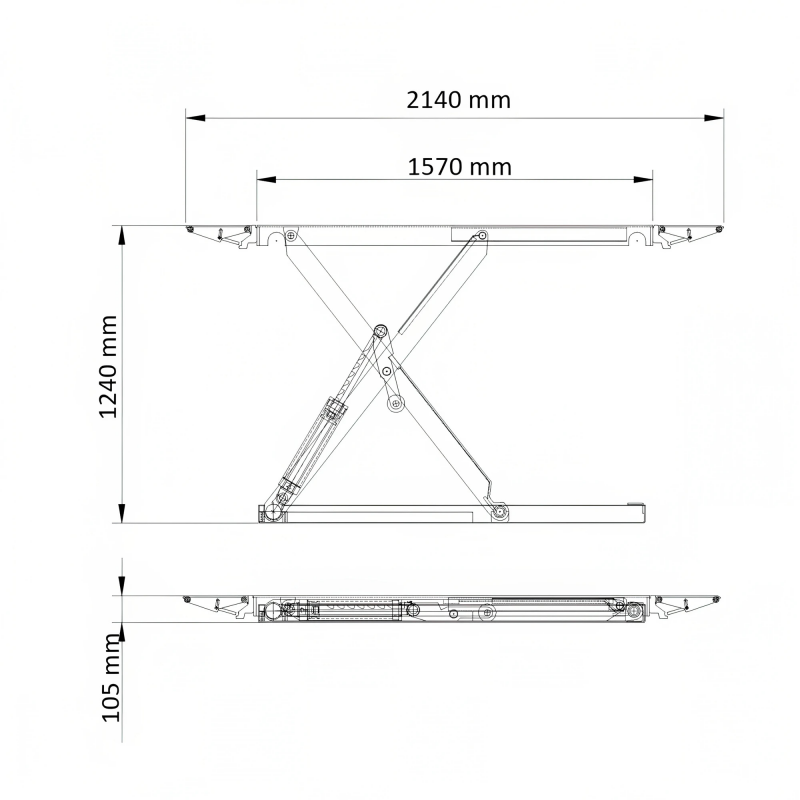

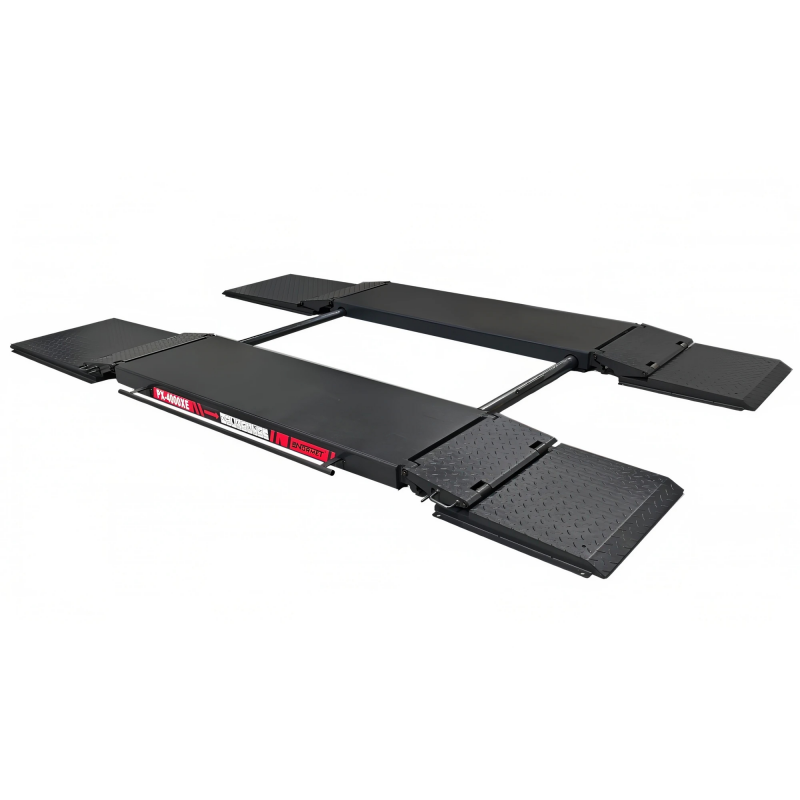

• Low profile clearance: A collapsed height of only 105 mm permits easy drive-over access for vehicles with lowered suspension without the need for floor recesses.

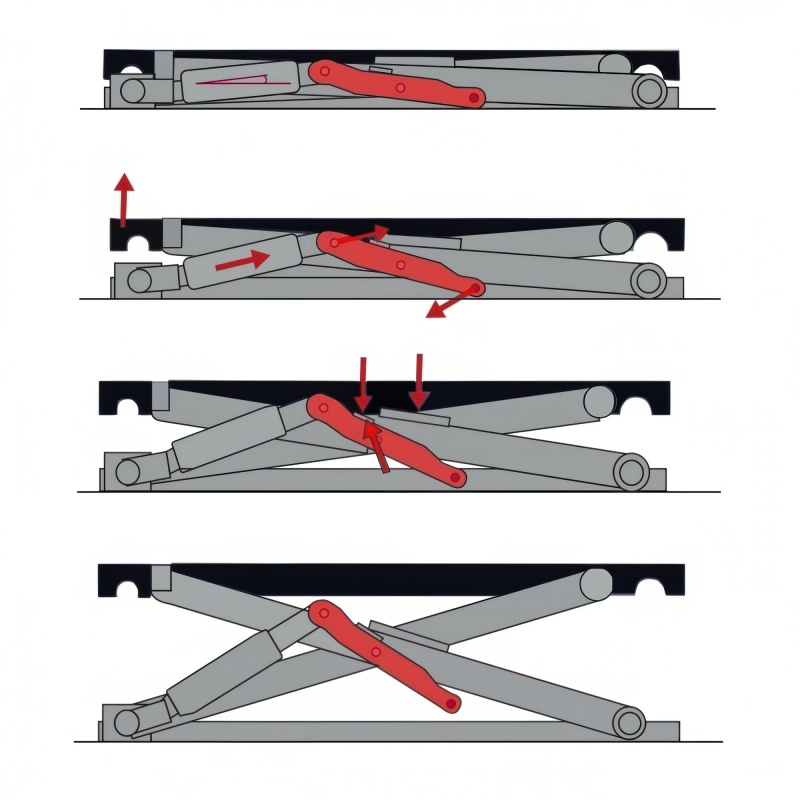

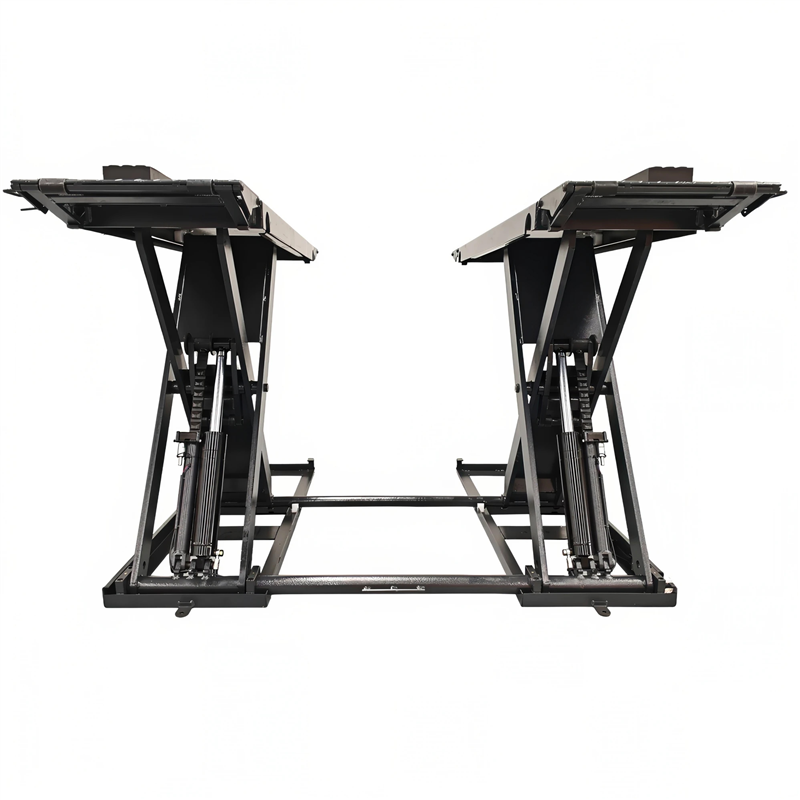

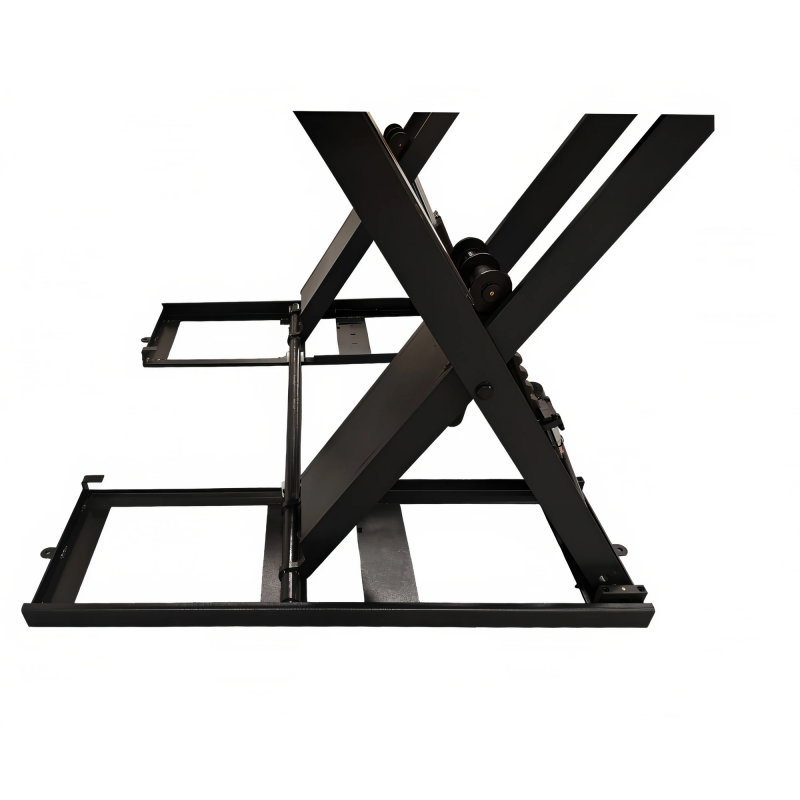

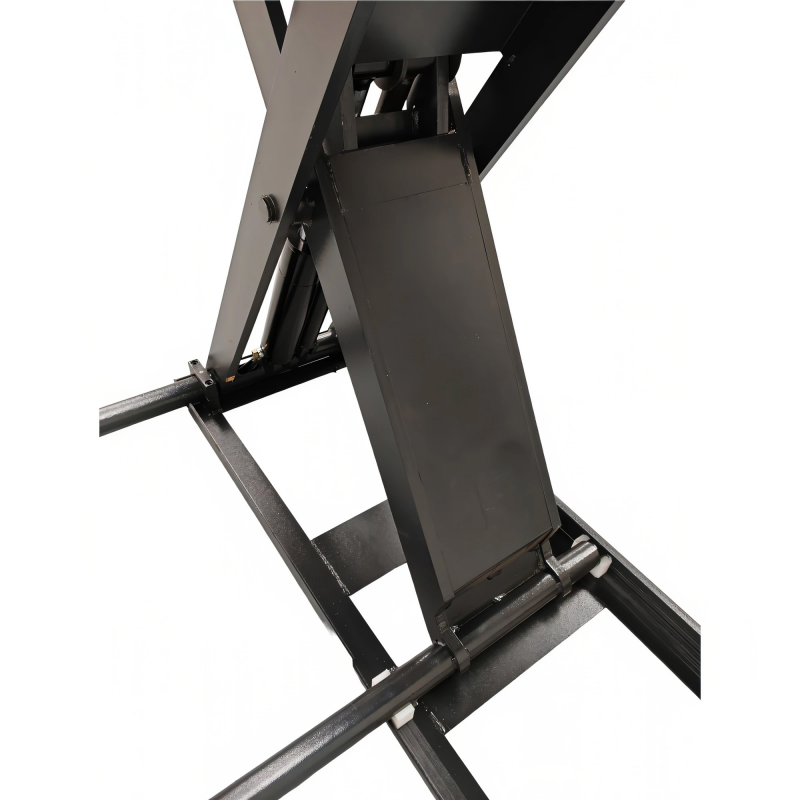

• Lift assistance mechanism: Auxiliary linkage arms mounted to each cylinder provide full initial lifting power directly from the lowest retracted position.

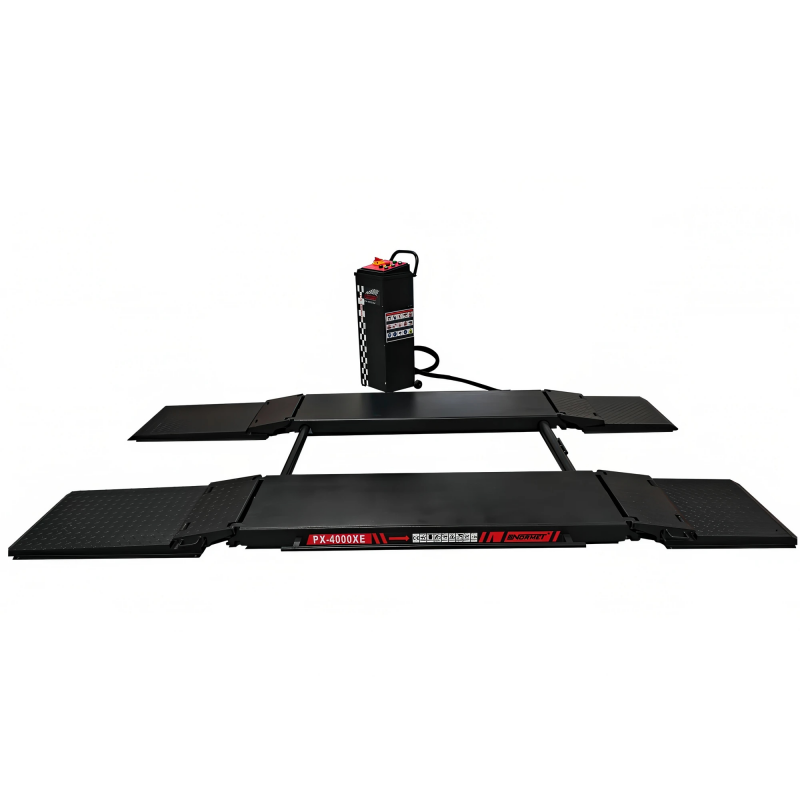

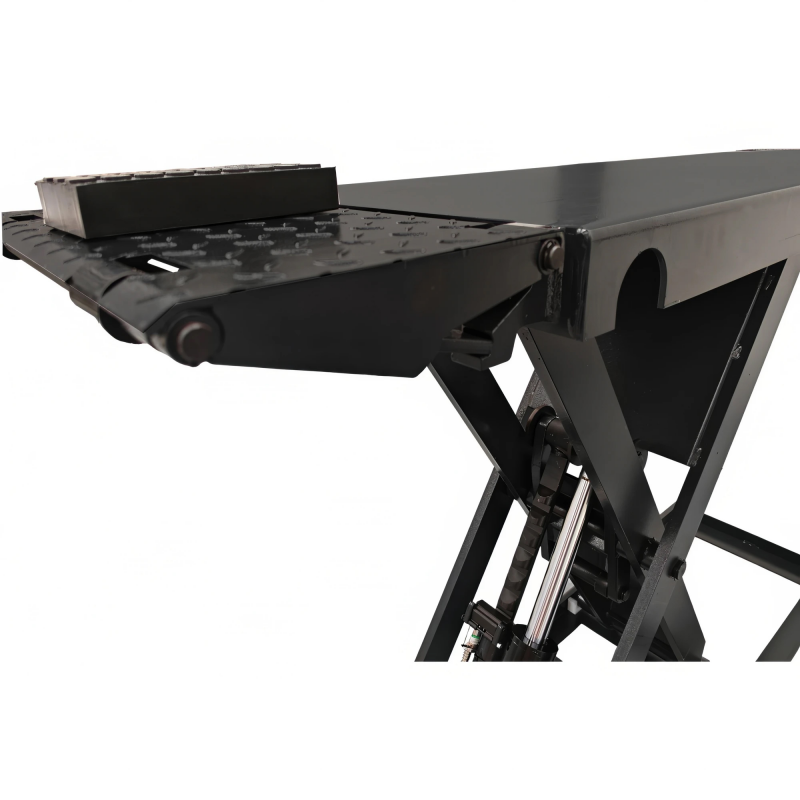

• Extendable platforms: Lockable drive-on ramps extend the total usable platform length from 1,570 mm to 2,140 mm to accommodate longer wheelbases.

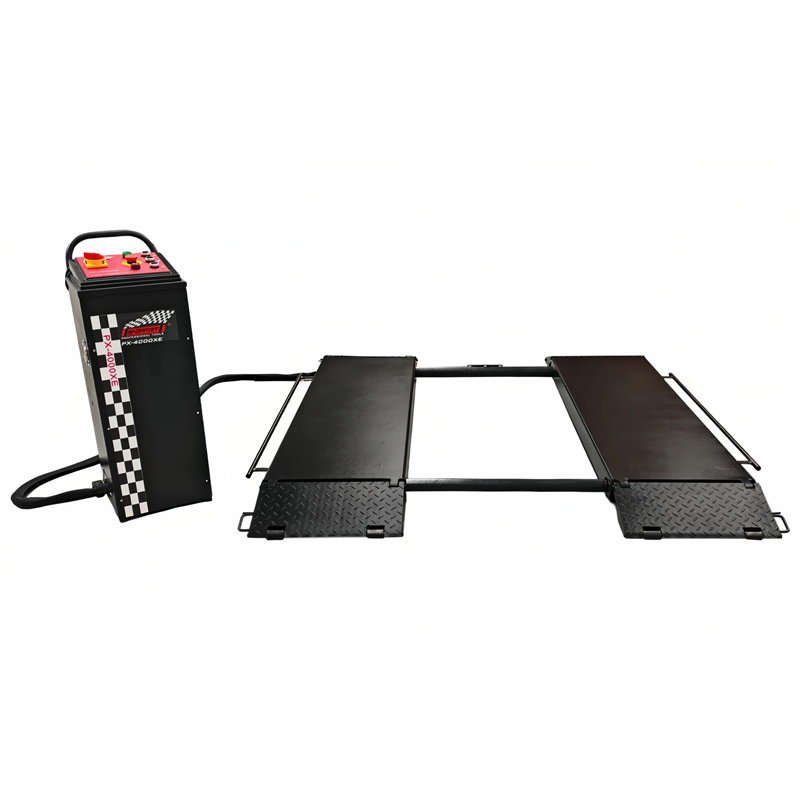

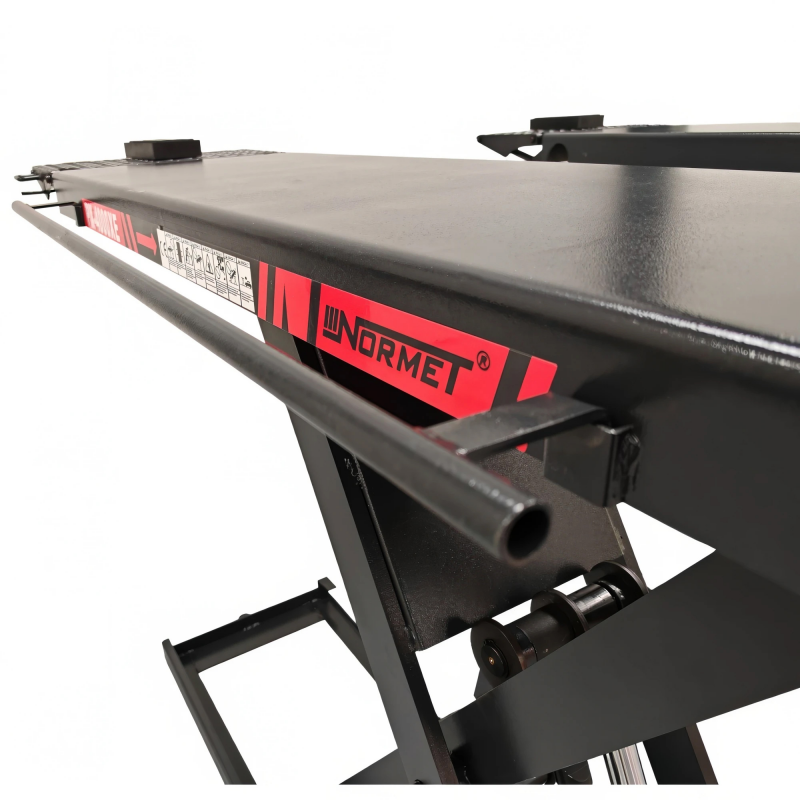

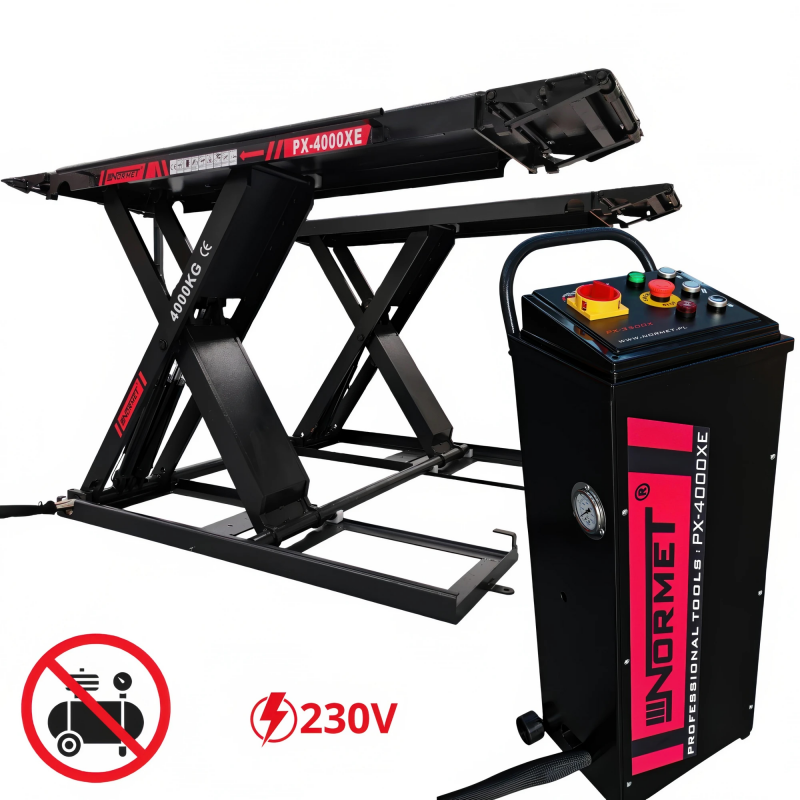

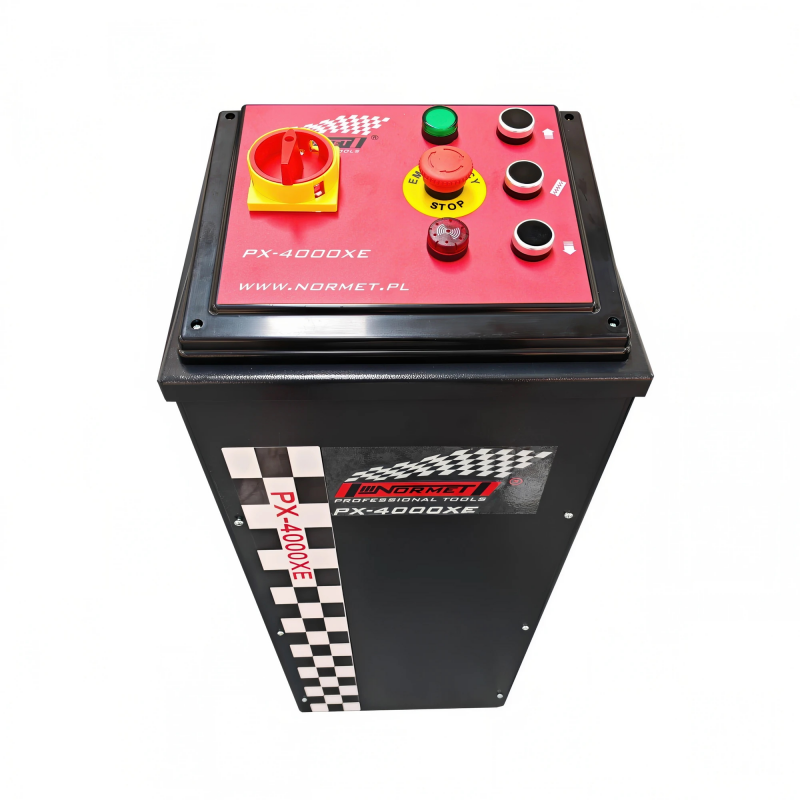

• Safe operator controls: Free-standing control console with low-voltage 24 V safety circuits and integrated mechanical foot-protection guards on both platforms.

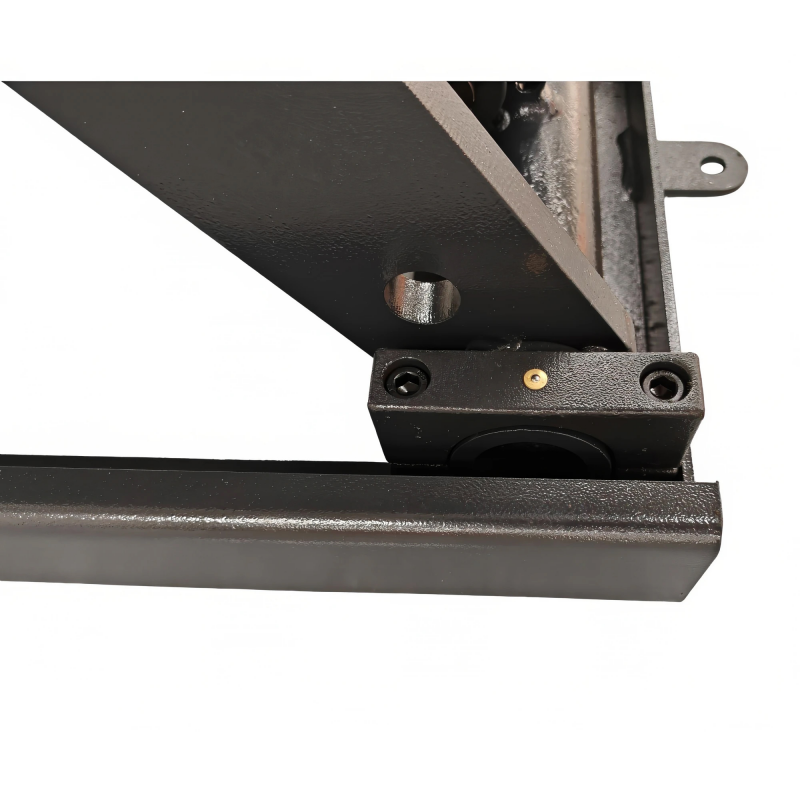

• Maintenance and mounting: Integrated grease points on friction assemblies prolong mechanical service life. Base plates feature pre-drilled holes for concrete floor anchoring.

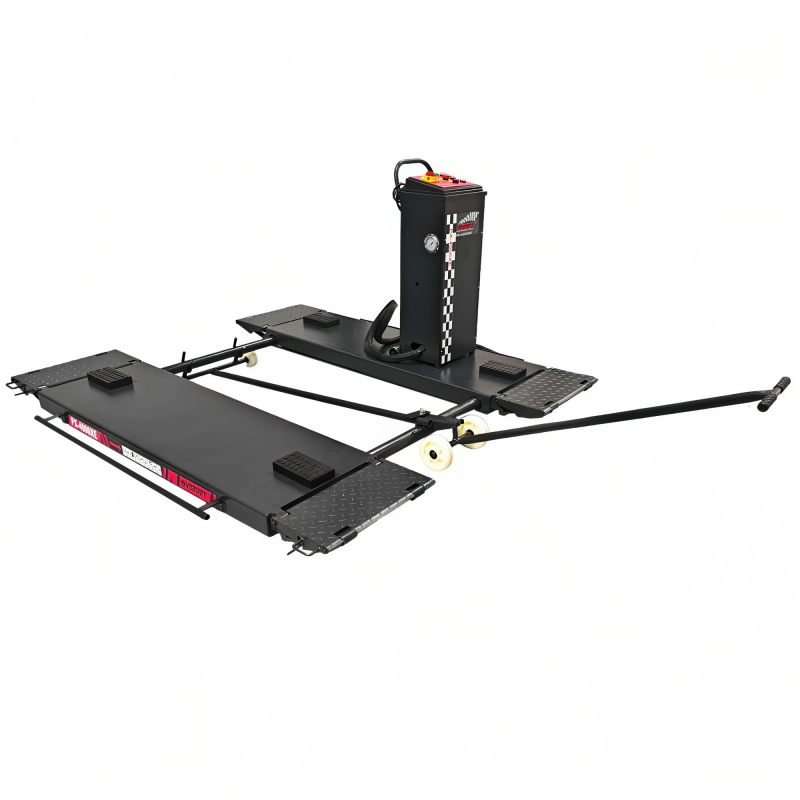

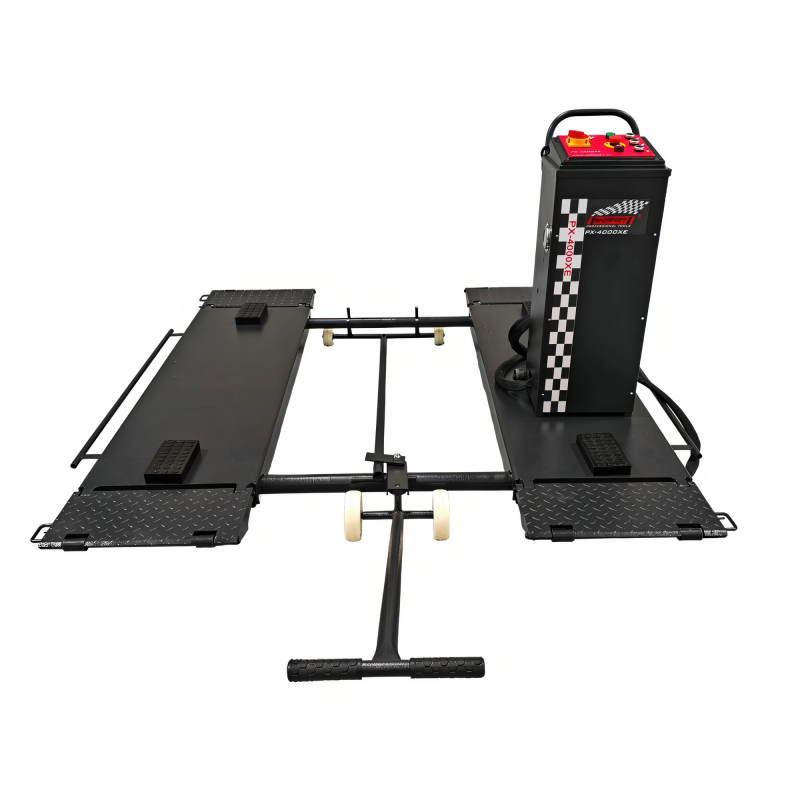

• Workshop mobility: The included mobile kit enables a single operator to reposition the unloaded lift across solid, level floor surfaces.

Technical specifications

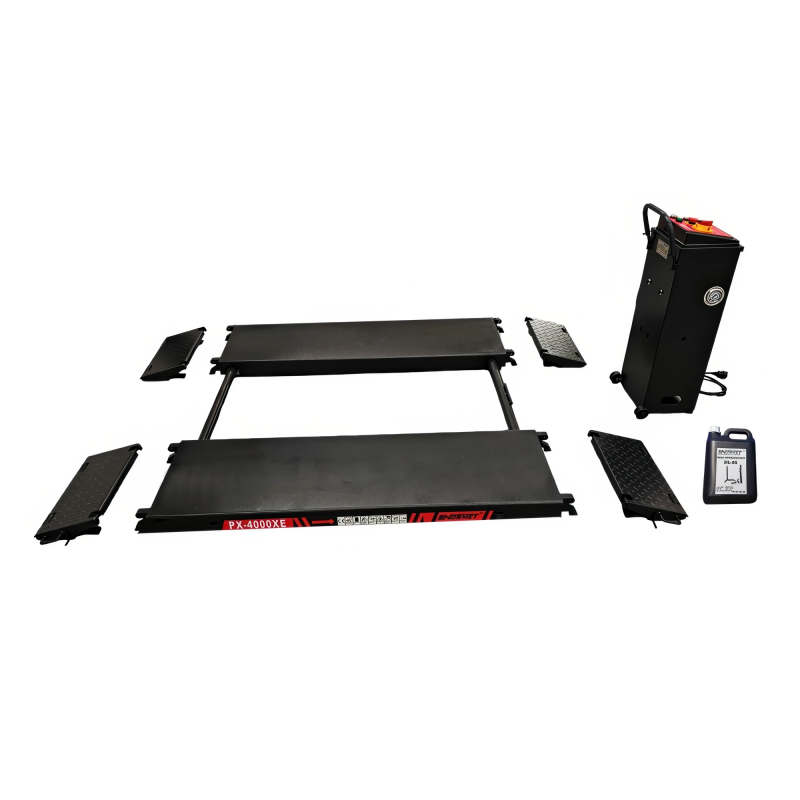

What is included

• Control unit: 1 pc.
• Interconnected lifting platforms: 2 platforms (single base unit)
• Drive-on ramps: 4 pcs.

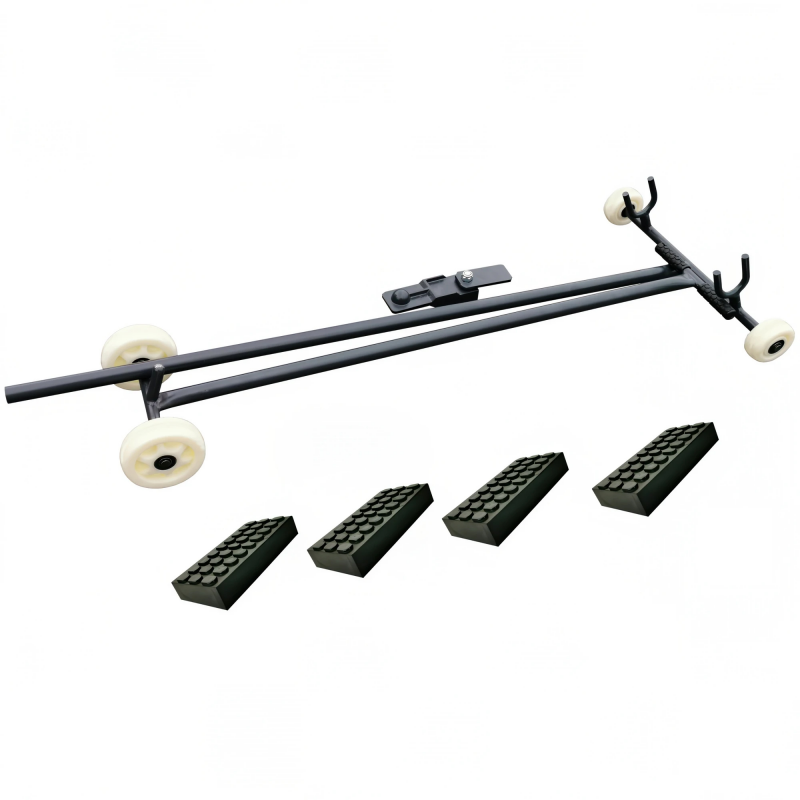

• Rubber positioning blocks: 4 pcs.
• Mobile manoeuvring kit: 1 pc.
• Hydraulic oil: 5 L

Optional accessories

• Drive-on ramp extensions starting under 30 mm above ground level for ultra-low sports vehicles
