Advantages:

1. We provide consultations in our store or in your workshop.

2. Before purchasing, it is possible to see the equipment in our sales hall (Kurbada 4, Riga), as well as talk to one of our customers who successfully works with a McBalmer CNC milling machine.

3. We perform equipment delivery, installation and calibration, operator training.

4. Spare parts, warranty, service.

Description:

• CNC machine functions: milling, cutting, drilling and engraving of various timber (Solid wood, MDF, PVC) and aluminum

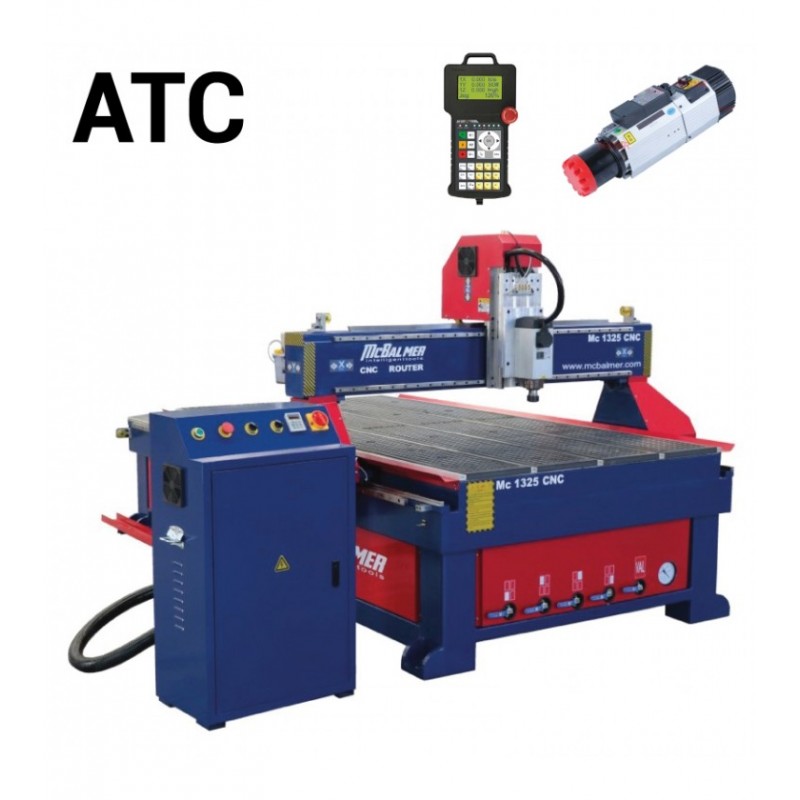

• McBalmer 1530 ATC 9 kW PREMIUM LINE with ATC - automatic tool changer, vacuum table, vacuum pump
• The equipment can be used in popular industries: window and door production, furniture production, advertising, as well as other non-standard solutions.

Equipment set:

• Lubrication system
• Vacuum table with 6 sections and T-slots
• Helical gears for X and Y axes ensure high accuracy
• Control system SYNTEC 6MIncluded
• Vacuum table
• Vacuum pump
• Control computer
• Tool height sensor
• Tools
• Tool holder

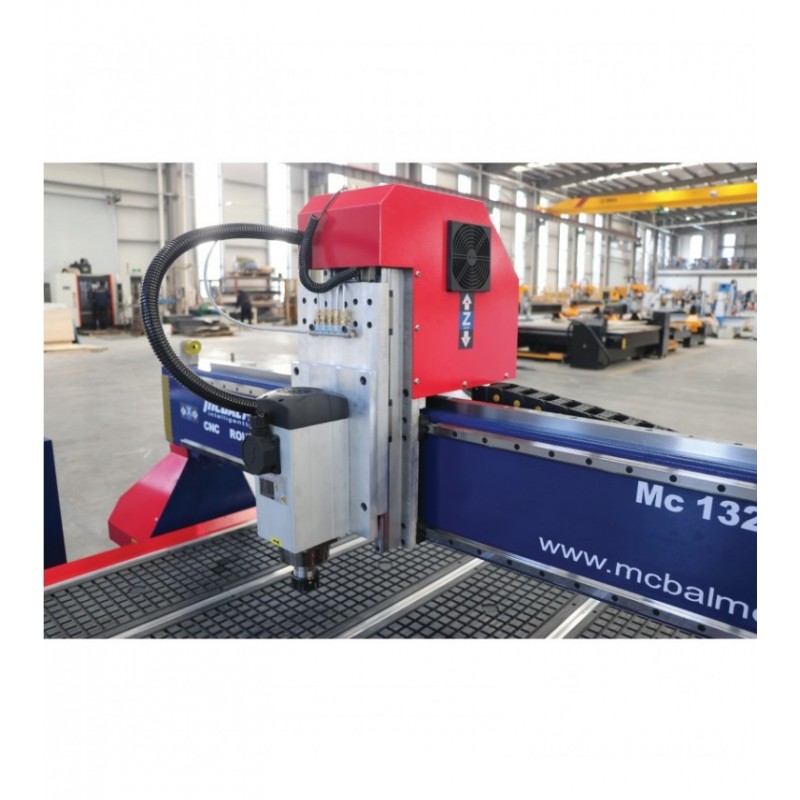

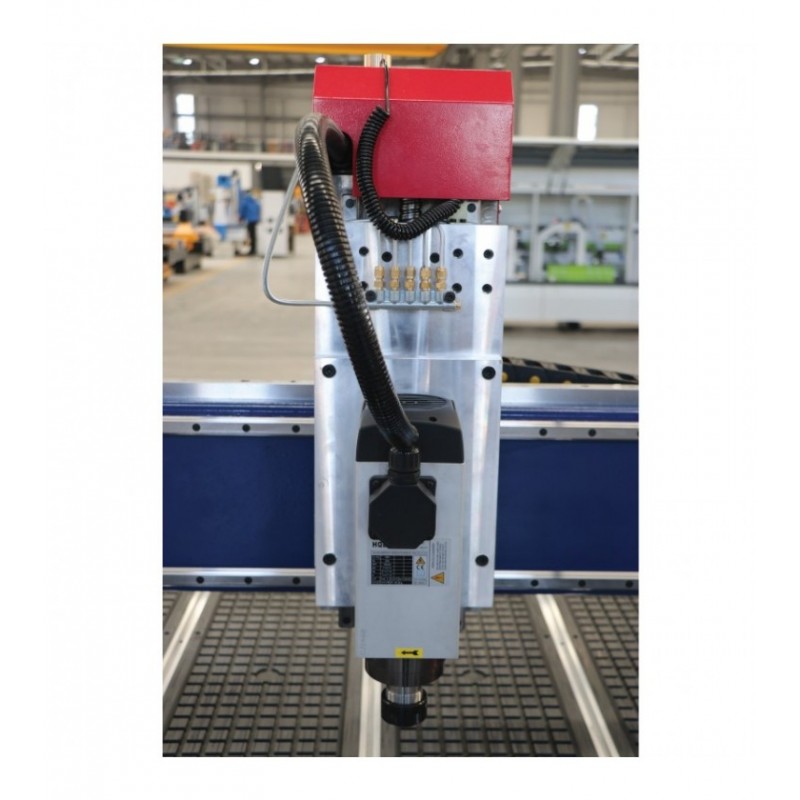

• HSD Italy 8 / 9.6kW shaft with ATC
• 4 cangas - 1 / 2mm, 1 / 8mm, 4mm, 6mm
• Cangu exchange key
• Test cutter set

Programs:

• Programs for the device: ARTCAM, UCANCAM, etc.
• Control: SYNTEC 6MB (made in Taiwan)

Convenient work:

• Connection of chip extractors and vacuum pump through the distribution cabinet of the device
• Composing a file on the machine control computer or sending with G-code
• Control: SYNTEC 6MB (made in Taiwan)
• Tool height sensor
• Additional safety switches
• Automatic guide lubrication system with timer

Requirements for work environment:

• Chip extractor with two bags, with a capacity of 5000 - 6500 m³ / h
• Air compressor, pressure 6 bar, 500 liters / min
• Electricity: machine C32A, wire 5 x 4mm2
• Equipment dimensions and weight: 3.65x2.20x2.25m, 1600 kg

Significant advantages:

• Linear type automatic tool changer for 8 tools
• SERVO drive ensures fast movement in the axles
• ATC - automatic tool changer, linear type (edge ​​change), 8 tools

• Control system - Taiwan Syntec 6MB 4 axis MPG
• Drive system - Japan Yaskawa 850W SERVO, 1000W drivers
• Air cooling system

• Vadulas - Taiwan PMI / ABBA linear guide, 25 #
• Transmission - X, Y helical rack pinion, Z axis with TBI ball screw
• Automatic tool height sensor

• Cutter mounting - ISO30 with ER32
• Lubrication system - Automatic lubrication of guides
• Switches - JAPAN OMRON

• Electronics - SCHNEIDER France
• Vadi - Germany IGUS
• Vacuum table with 4 sections and T-slots

Technical specifications:

 11 kW Taiwan Delta

Drive system -Japan Yaskawa 850W SERVO

Drive SERVO drivers

Vacuum table with subsections

E-stop in motor cover

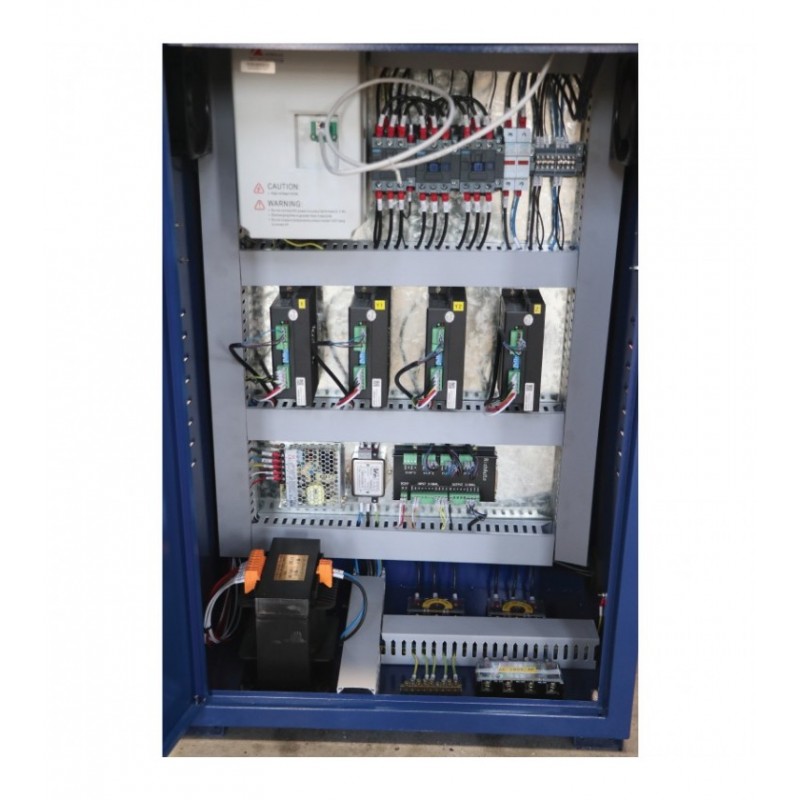

Control cabinet

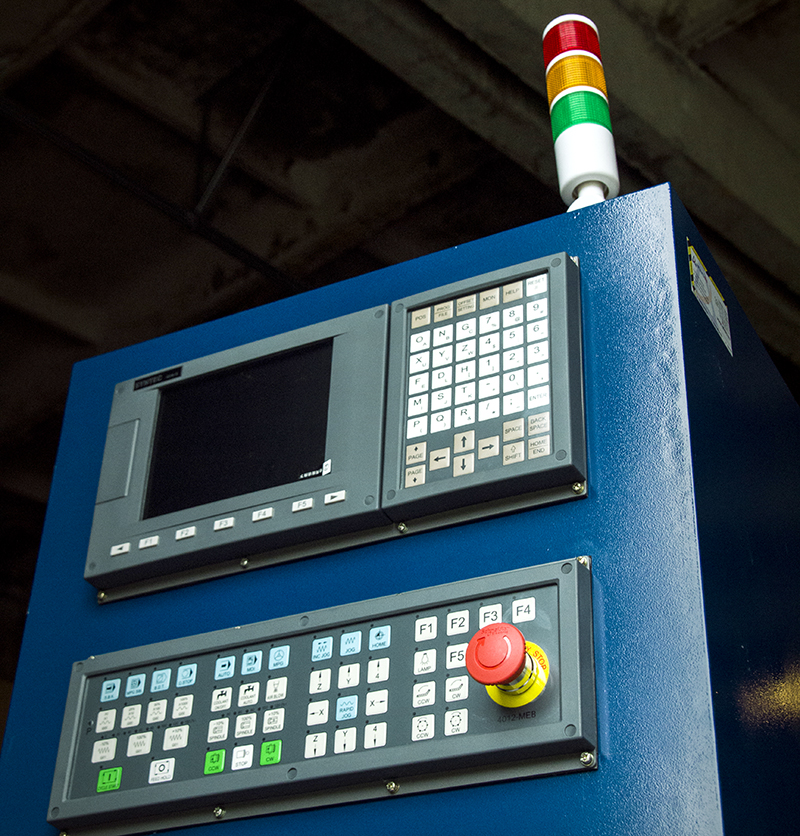

Syntec 6MB control system

Control cabinet electronics

Control panel MPG

25mm Taiwan PMI / HIWIN linear

SCHNEIDER safety controller

Cables
