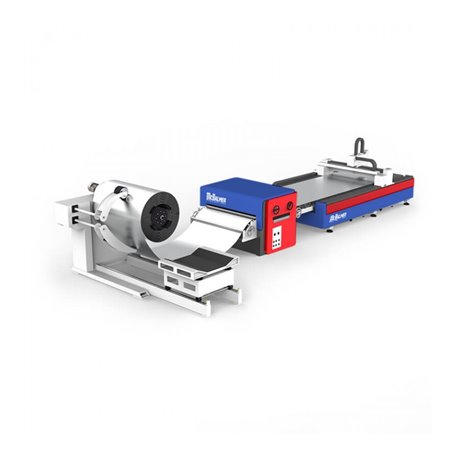

AUTOMATIC FIBER LASER CUTTING LINE MCBALMER View larger

AUTOMATIC FIBER LASER CUTTING LINE MCBALMER

AUTOMATIC FIBER LASER

  • Fiber laser can realize unwinding, feeding, cutting and unloading of various materials at the same time

  • It has fast cutting speed, high cutting precision and good cutting quality

  • Automatic production line that improves productivity

More details

0,00 € tax incl.

Ask about product
AUTOMATIC FIBER LASER CUTTING LINE MCBALMER

AUTOMATIC FIBER LASER CUTTING LINE MCBALMER

  • Fiber laser can realize unwinding, feeding, cutting and unloading of various materials at the same time

  • It has fast cutting speed, high cutting precision and good cutting quality

  • Automatic production line that improves productivity



More info

Description:

  • Fiber laser can realize unwinding, feeding, cutting and unloading of various materials at the same time

  • It has fast cutting speed, high cutting precision and good cutting quality

  • Automatic production line that improves productivity



Options:

  • Solid - durable frame, smooth feed and flexible operation

  • Fibez laser has high power, which is suitable for cutting various thick metal materials, such as stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, galvanized steel, copper, etc.

  • The machine is widely used in the production of agricultural machinery, textile machinery, food machinery, construction machinery and other large machinery



Advantages:

  1. The weight of the loading material can reach 20T , surpassing the loading limit of the usual 3T, which is 6 times the efficiency of the conventional equipment.

  2. Stronger stress reduction: After the coil is unwound, the sheet metal is straightened, and the stress of the sheet material during the straightening process is eliminated. This results in a flatter sheet material and better cutting quality

  3. High-precision transfer structure: using a high-precision system, the sheet metal transfer accuracy is about ±0.5mm, which ensures high precision

  4. Fully automatic assembly line: from feeding - unwinding - leveling - cutting - unloading. The whole process is automated, which can achieve zero coil material waste

  5. Flexibility: This production line surpasses the limit of conventional laser cutting length and is disruptive in some areas



Model

1530FC

1540FC

1545FC

Equipment weight

6.2 t

6.7 t

6.9 t

Work area

1515 x 3030 mm

5360 x 2250 mm

5900 x 2250 mm

Max. acceleration

1.5 G

Work table

Rolling blade

Positioning accuracy

±0.05mm

Accuracy of movement

±0.03 mm

Laser power

1-2 kW

Coil sheet thickness

0.8 - 2.5 mm

Laser

Several options

Focusing method

Automatic / manual

Z / Y axis Max. connection speed

140 m/min

Leveling speed

≤20 m/min

Coil weight

≤ 10t

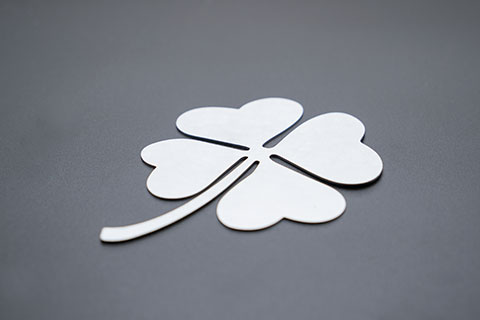

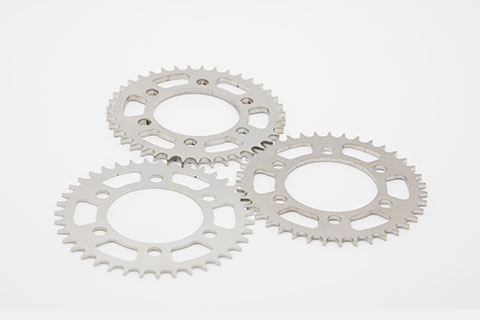

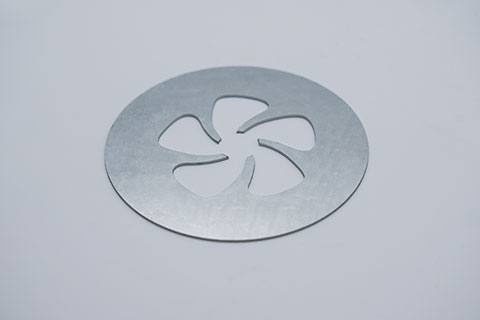

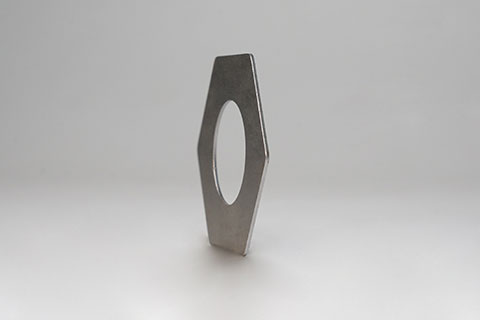

Examples:

Components:

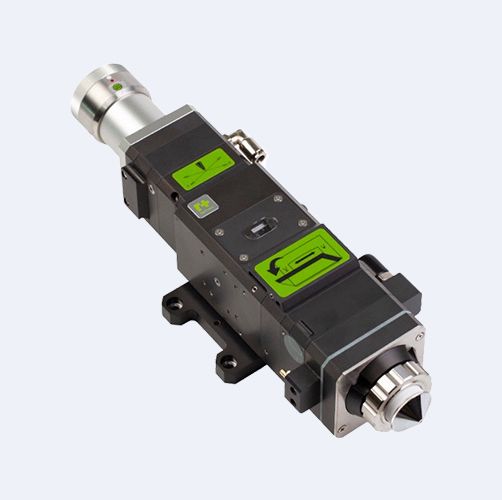

Smart focusing laser head



  1. Cooling: Both the collimating lens and the focusing lens group are cooling accessories. In addition, a cooling airflow nozzle is added, which effectively protects the nozzle and the ceramic and extends the working time

  2. Driving Aperture: Through the 35mm aperture, stray light interference is effectively reduced

  3. Autofocus: Without human intervention, the focusing speed can reach 10 m/min, and the repeatability is about 50 microns

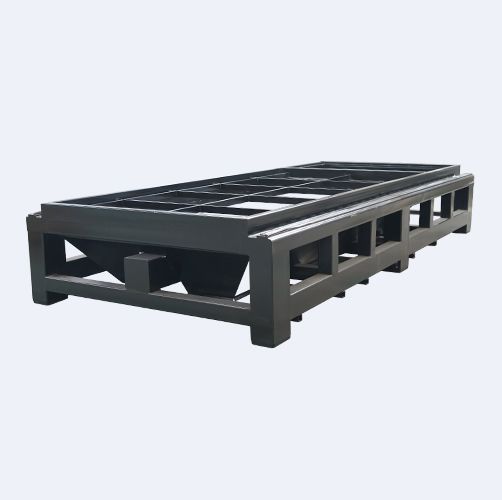

 Thick wall carbon steel pipe welding bed



  1. High quality carbon steel welding bed is used, it is more stable and durable. The workbench uses 600℃ for stress relief

  2. Strong structural rigidity, small deformation and low vibration ensure cutting precision

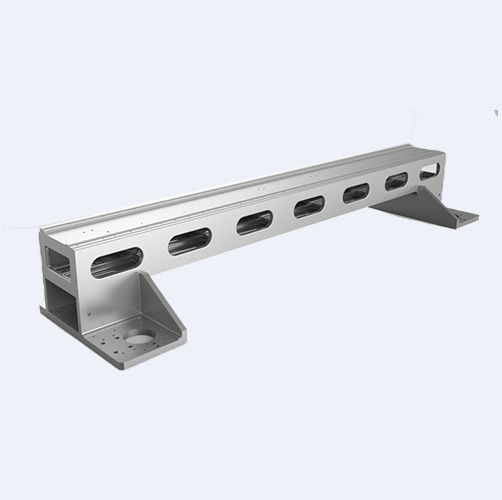

 Cast aluminum beam



  1. Corrosion resistance. Light weight and high rigidity for fast movement during laser processing

  2. Perfect dynamic performance - anti-distortion, anti-tip, anti-deformation, etc.

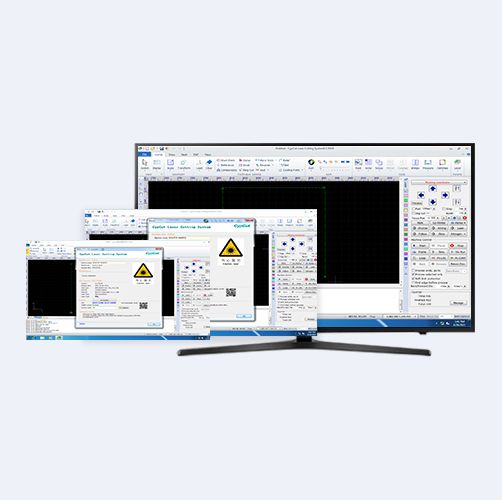

CypCut laser cutting control system

CypCut laser cutting control system



  1. The software supports AI, DXF, PLT and international standard G codes, co-generates Mater Cam, Type3, Wentai, etc.

  2. Apart from the usual editing and assembly functions, it has a unique processing sequence review and a powerful material database for directly loading specifications
