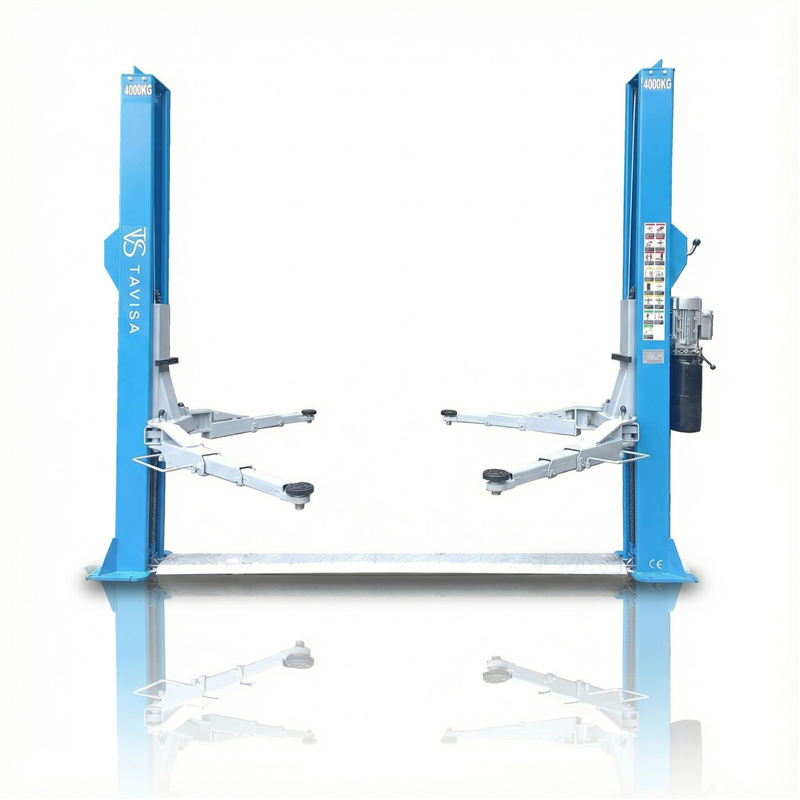

TAVISA SD40 4000kg lifting capacity electro-hydraulic two post lift

Maximize your workshop's efficiency with the TAVISA SD40, a robust electro-hydraulic two-post lift designed for professional daily use. Engineered with a 4000kg lifting capacity, this lift is a versatile workhorse capable of handling everything from compact city cars to long-wheelbase SUVs and light commercial vans.

The SD40 stands out with its 3-stage front and rear arms, providing exceptional reach flexibility to locate lifting points on a wide variety of vehicle chassis. Unlike standard lifts that require manually unlocking both columns, the SD40 features a single-side lock release system. This allows the operator to disengage safety locks from one control column, significantly speeding up the lowering process and improving workflow.

Key Features:

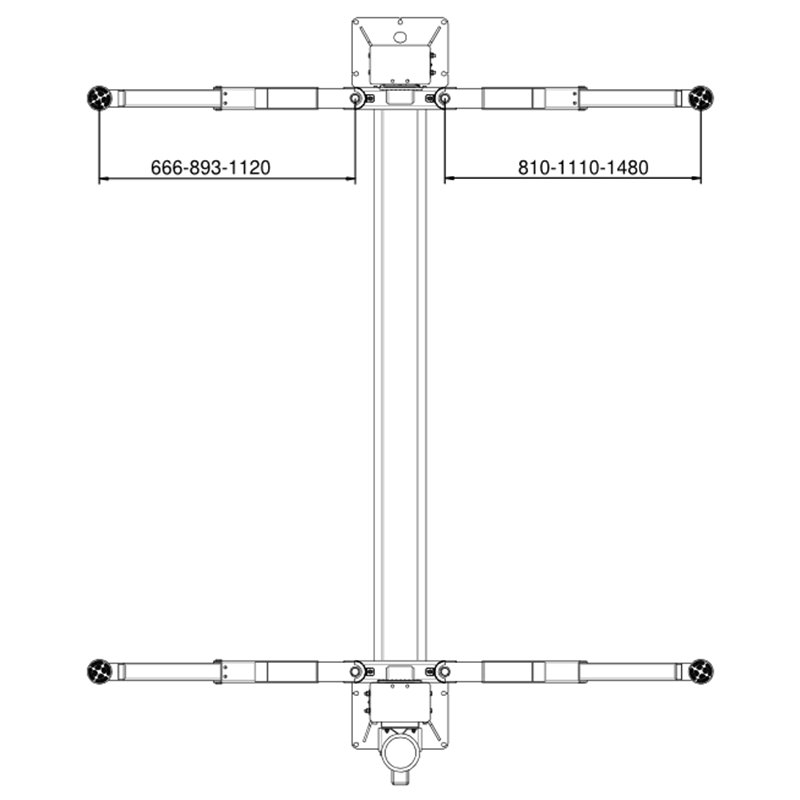

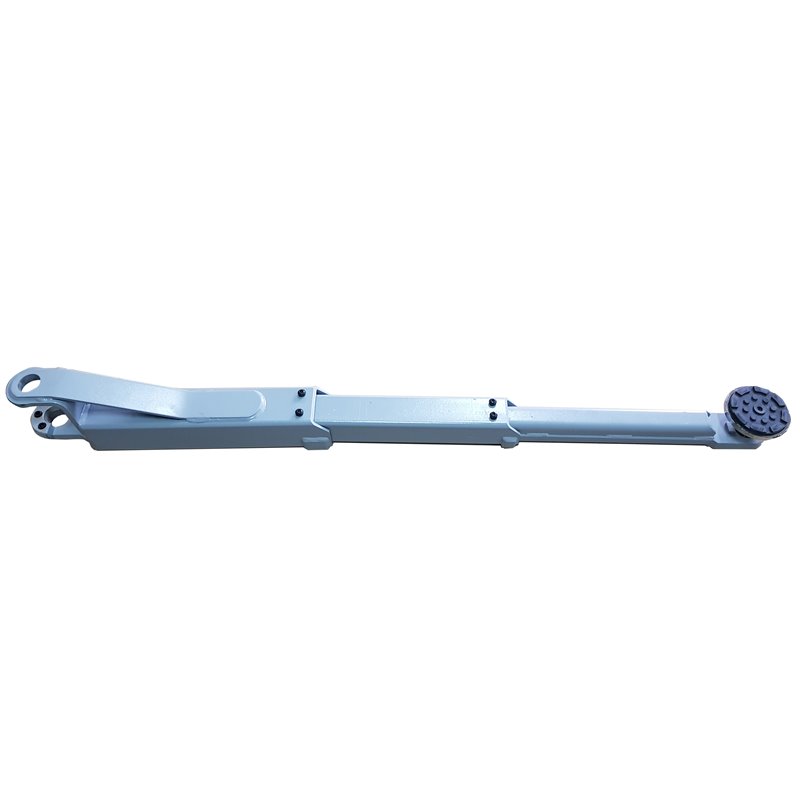

• High Versatility Arms: Equipped with 3-stage arms on both the front (666-1120mm) and rear (810-1480mm), ensuring you can service a broader range of vehicles without repositioning.

• Efficient Operation: The single-side manual lock release saves time by allowing you to unlock both columns from the main control side.

• Safe & Reliable: Fully CE certified with built-in door protection rubber blocks to prevent accidental damage to vehicle doors during entry and exit.

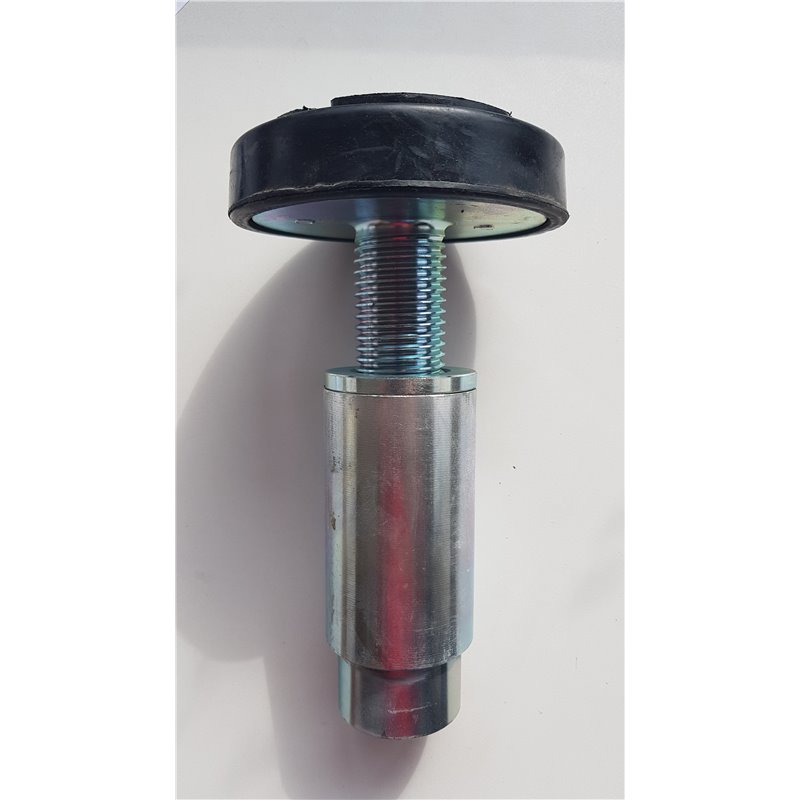

• Precise Lifting: Features 1st generation adjustable screw pads, allowing for fine-tuned height adjustments to securely contact vehicle pickup points.

• Durable Finish: Finished in industrial-grade Blue RAL5015 powder coating for long-lasting resistance against oil, dirt, and corrosion.

• Complete Kit: Includes 10 heavy-duty anchor bolts, ensuring you have the necessary hardware for a secure installation immediately.

Technical Specifications

Critical Installation Requirements

Before purchasing, please verify your facility meets these structural requirements to ensure safe operation and compliance:

• Ceiling Height: Your workshop must have a minimum clear ceiling height of 3300 mm to accommodate the lift posts and raised vehicles.

• Floor Quality: Installation requires a level, reinforced concrete floor with appropriate thickness (typically min. 200mm) to secure the included anchor bolts safely.

• Unloading: The delivery package weighs 600 kg with dimensions of 290 x 50 x 60 cm. Ensure you have a forklift or appropriate lifting gear available upon delivery.
