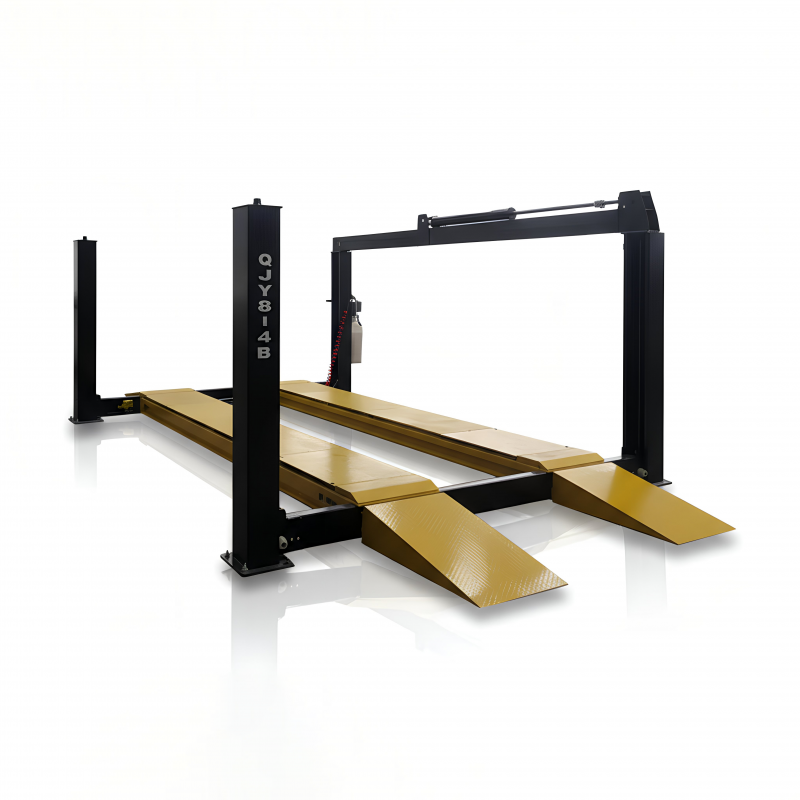

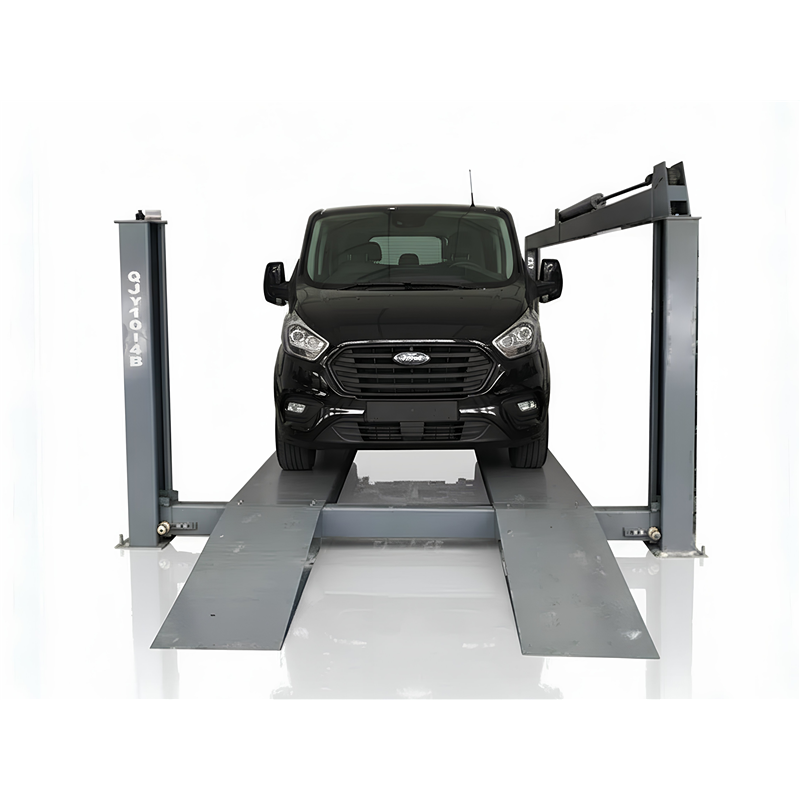

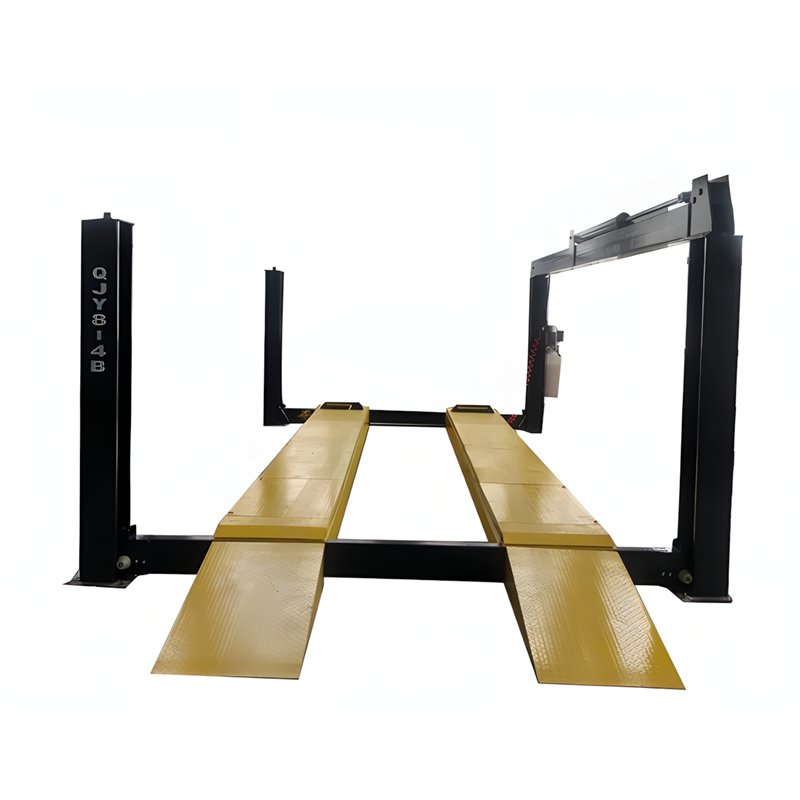

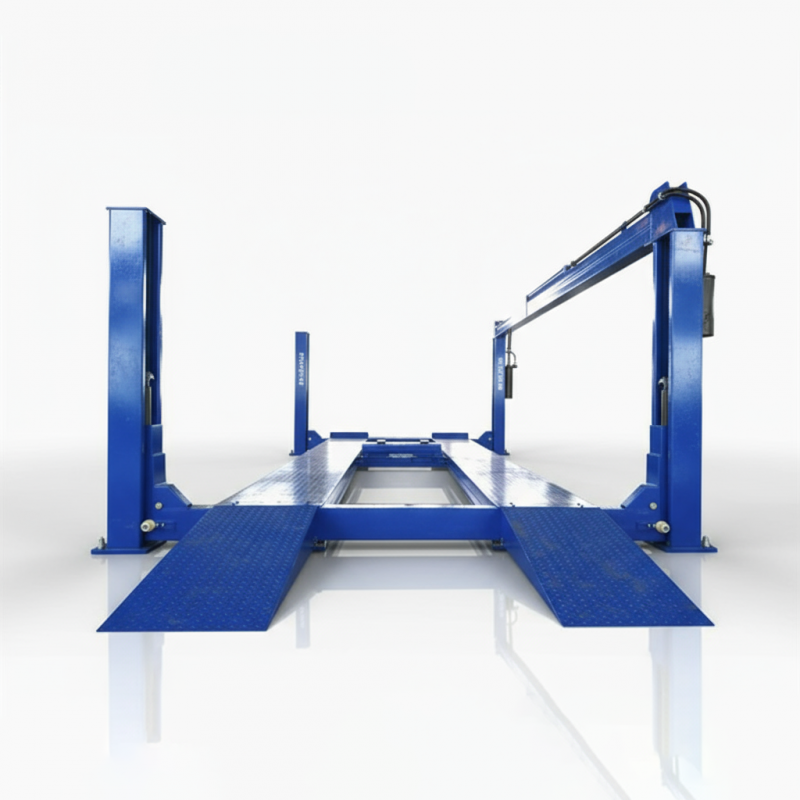

5T Pickup Lift AFF5-4B Hydraulic Four Post Vehicle Lift

AFF5-4B

Hydraulic four-post lift for pickups, light trucks, and SUVs up to 5 tons. Features intelligent electronic-hydraulic drive with built-in secondary lift on base plate. Automatic safety locks, independent hydraulic unit requiring no daily maintenance, and durable single-shaping posts. Special chain drive ensures smooth operation with customizable long base plate options.​

More details

garage equipment, hydraulic lift, truck lift, workshop lift, 5 ton lift, automatic safety locks, customizable lift, four post lift, hydraulic four post, light truck lift, pickup lift, secondary lift, SUV lift, vehicle maintenance lift, AFF5-4B

8 470,00 € tax incl.

Ask about product
5T Pickup Lift AFF5-4B Hydraulic Four Post Vehicle Lift

5T Pickup Lift AFF5-4B Hydraulic Four Post Vehicle Lift

Hydraulic four-post lift for pickups, light trucks, and SUVs up to 5 tons. Features intelligent electronic-hydraulic drive with built-in secondary lift on base plate. Automatic safety locks, independent hydraulic unit requiring no daily maintenance, and durable single-shaping posts. Special chain drive ensures smooth operation with customizable long base plate options.​



More info

The AFF5-4B 5T Pickup Lift is purpose-built for lifting and maintaining vehicles weighing up to 5 tons. Its hydraulic four-post structure offers stability, safety, and flexibility, ideal for workshops servicing pickups, light trucks, and SUVs.

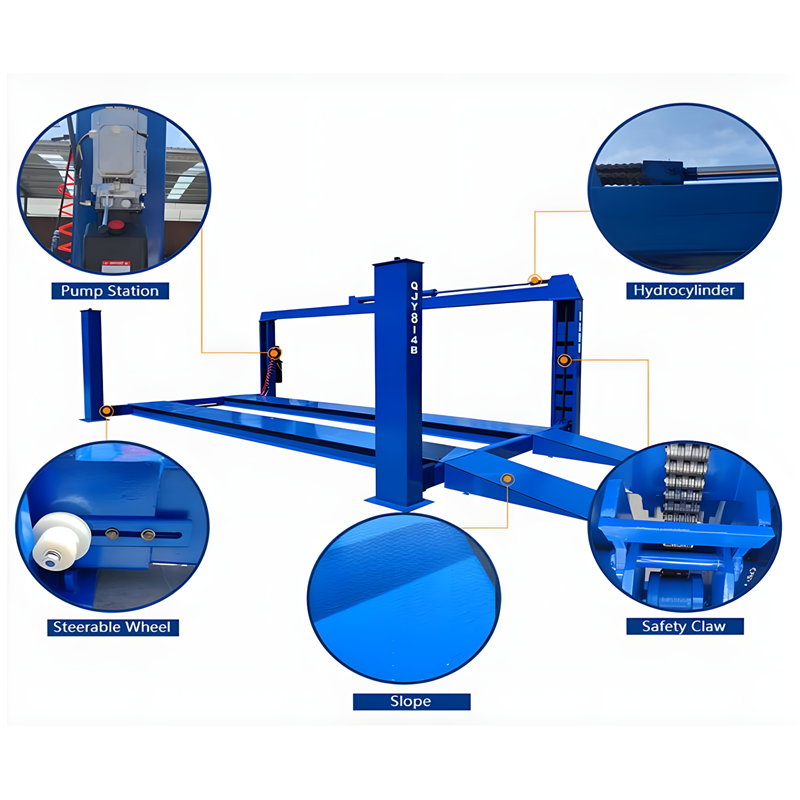

Main Features:

  • Intelligent Electronic-Hydraulic Drive: Delivers powerful, low-maintenance lifting action.
  • Second Lift on Base Plate: Built-in secondary lift function on the base plate enhances accessibility and optimizes operational flexibility.
  • Automatic Safety Locks: Enhances operational safety and reliability, securing vehicles throughout maintenance procedures.
  • Independent Hydraulic Unit: No daily maintenance is required; the unit is easy to move and simple to use.
  • Durable, Strong Construction: Posts made by a single shaping technique provide high strength and prolonged service life.
  • Stable Chain Drive: Special chain drive mode ensures smooth lifting and safety for operators.
  • Customizable Long Base Plate: Option for an extra-long base plate or custom dimensions for easier vehicle entry and setup.

Technical Specifications:

Specification Value
Model AFF5-4B
Maximum Lifting Capacity 5 Tons
Lift Height 1700 mm
Effective Span 2620 mm
Lift Time 60 s
Pumping Station Pressure 16 Mpa
Motor Power 3 kW
Voltage 220 / 380 V
Drive Mode Hydraulic
Accessories Secondary lift trolley
