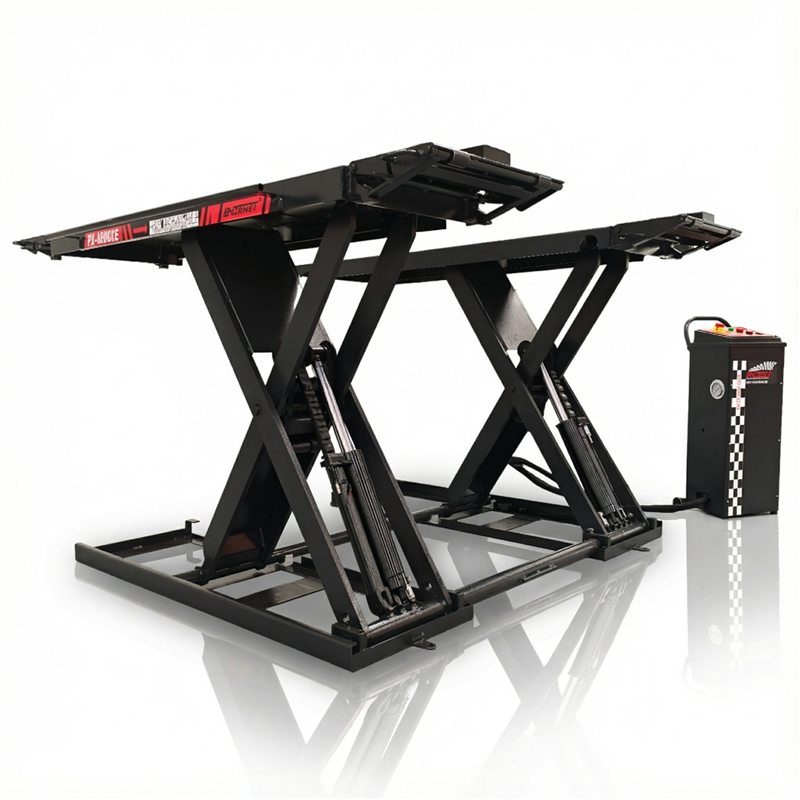

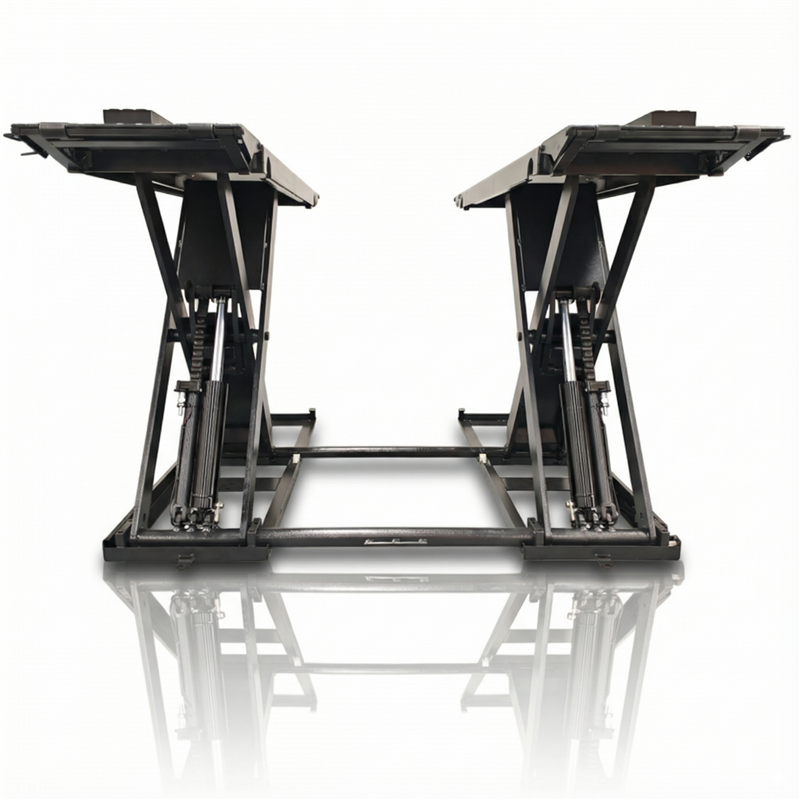

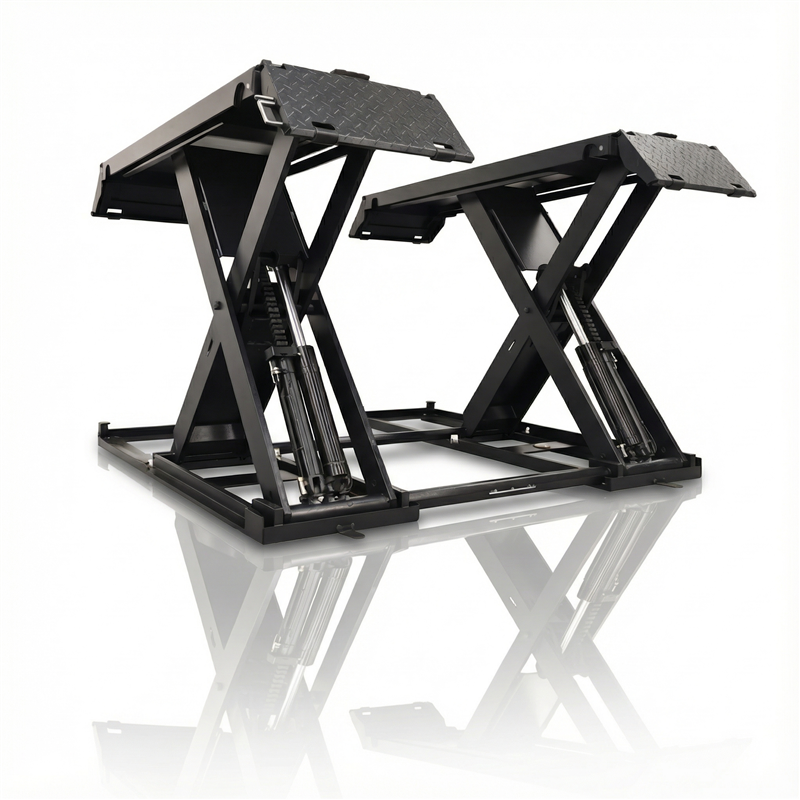

Scissor middle lift 4,0T PX-4000XE

NEW ALL-ELECTRIC PX-4000XE SCISSORS LIFT

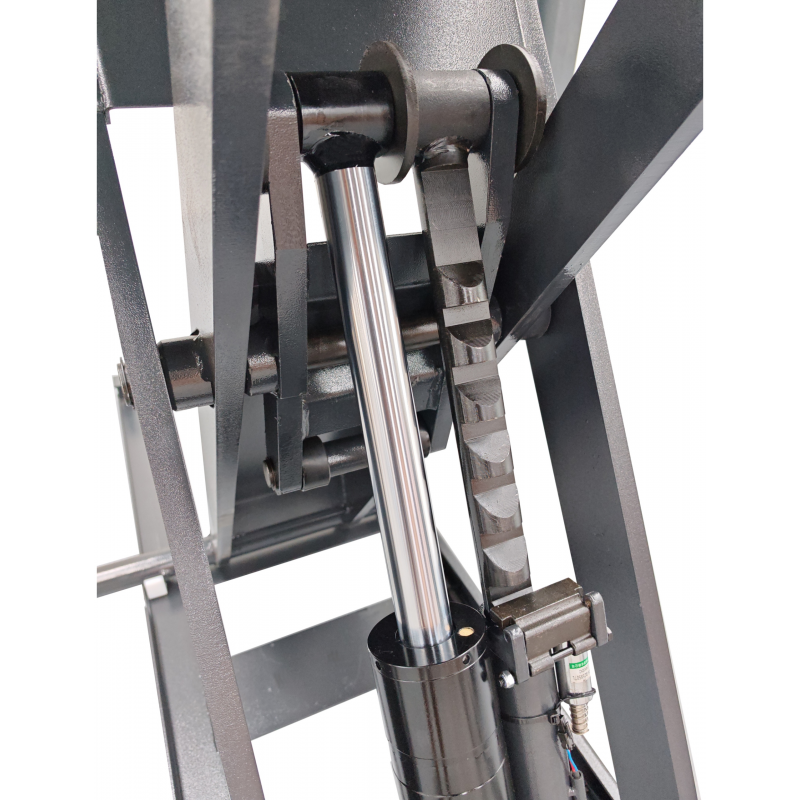

ELECTRIC PAWLS
Thanks to the use of electromagnets, the pawls are now fully electric, which means there is no longer a supply of compressed air that occurs when an electrical device is activated at the scene. Just connect to 230V power. For extensive safety and operational safety, pawls are placed on the cylinders, which are designed to secure themselves every time, even in the event of uneven operation, of the cylinders when the center of gravity is not exactly in the center of the lift. It adds a branch that is not much powered than the pawls that are placed on the lower device. So increase your job security.

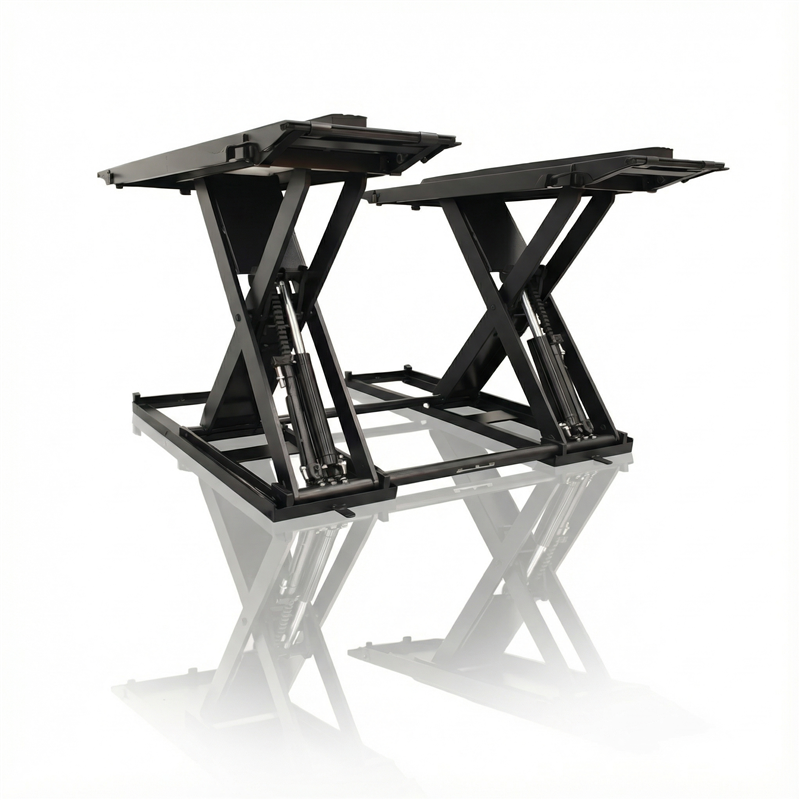

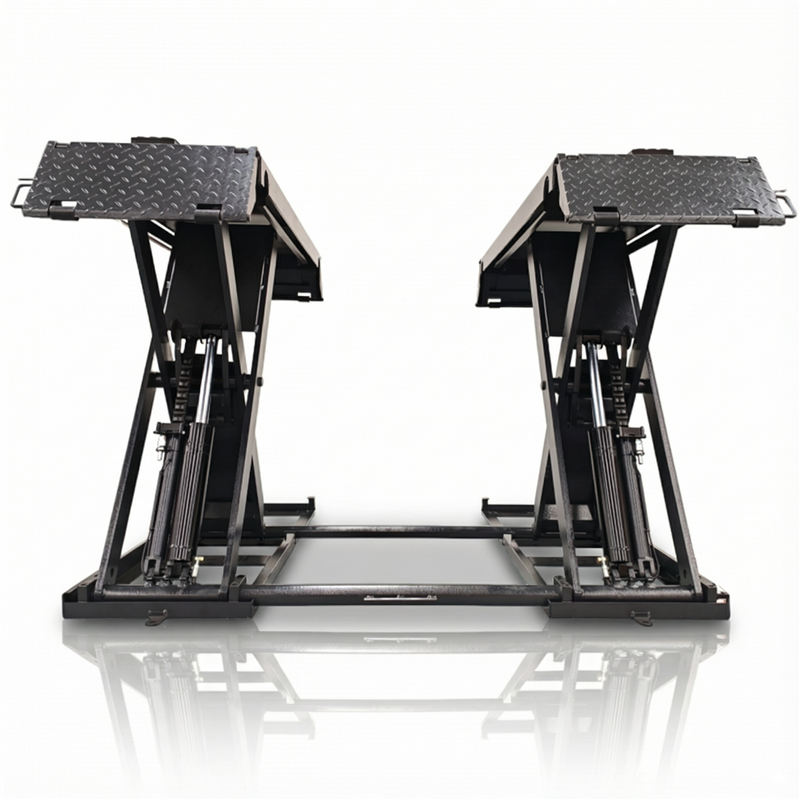

LIFTING HEIGHT UP TO 1.2 m
The lift can be lifted up to 1.2 m, which gives great comfort of work and allows you to move freely under the vehicle using, for example, a workshop stool.

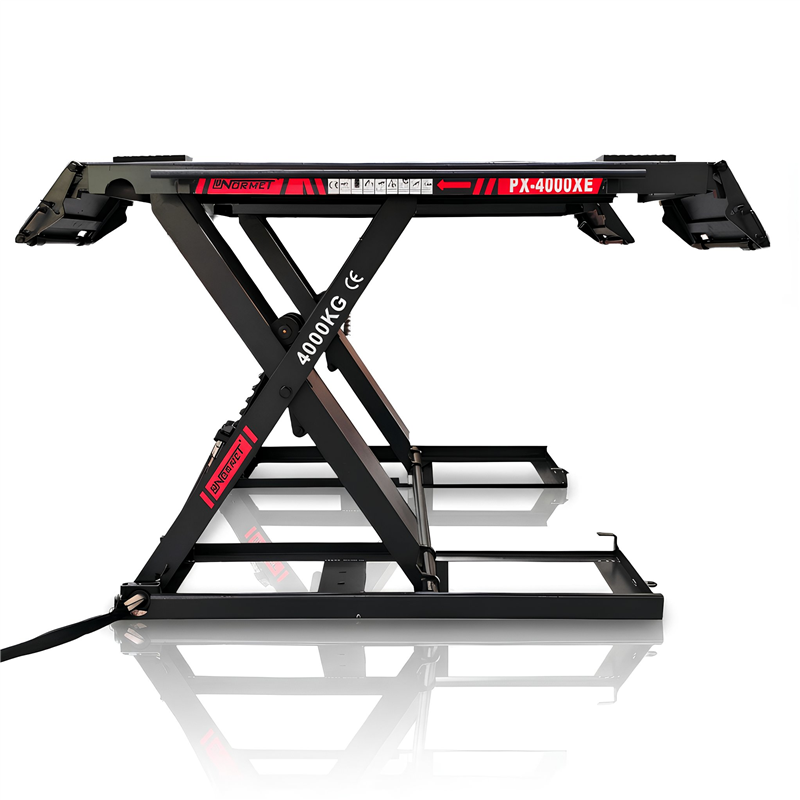

REINFORCED CONSTRUCTION 4T LOADING CAPACITY

The reinforced structure allows the operation of vehicles with a maximum permissible weight of up to 4T. Thanks to the scissors reinforced with a steel plate, the lift is very stiff and stable, which also significantly improves the safety of working with our lift.

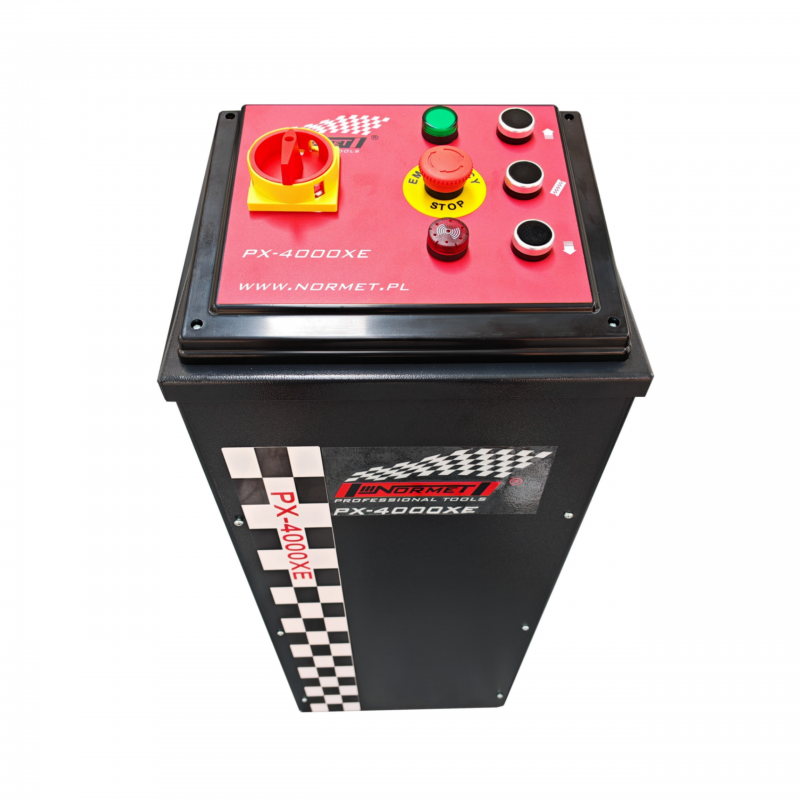

CONTROL BOX
Control box with low 24V safe control, powered by 230V without the need to connect compressed air.

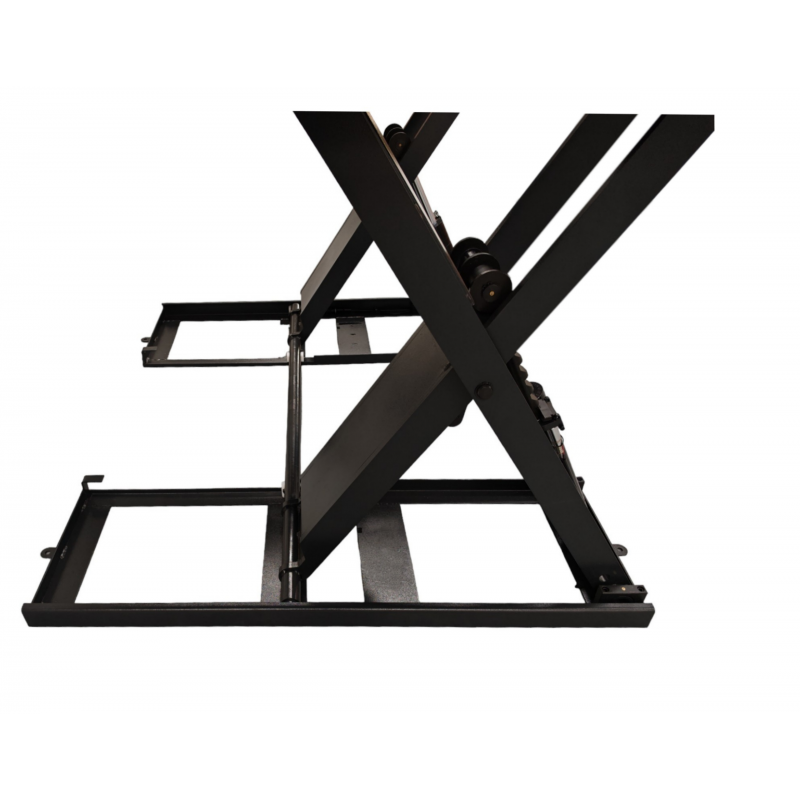

LIFTING SUPPORT

A lift with such a high lifting capacity requires additional support, which is why additional "short scissors" are used on each actuator, thanks to which the lift works with full power from the bottom without causing problems when lifting low sports cars, which is usually the problem with standard lifts.

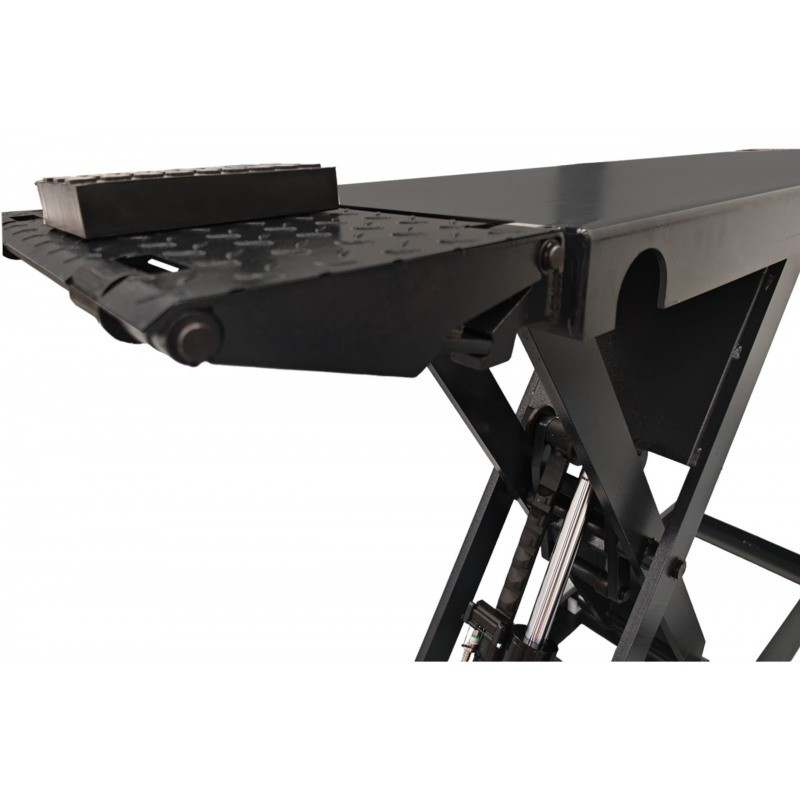

PLATFORMS WITH BLOCKED ROADS

Thanks to the use of blocked ramps and ramps, we can extend the rubber blocks under the vehicle and place them at a greater distance, which allows us to handle longer vehicles without any problems.

LEG PROTECTION

Both platforms have leg protection against crushing.

LUBRICATION POINTS

To ensure long and trouble-free operation of the lift, it is equipped with lubrication points to extend the life of the friction elements.

POSSIBILITY OF ANCHORING

Additional mountings allow the lift to be anchored to the floor

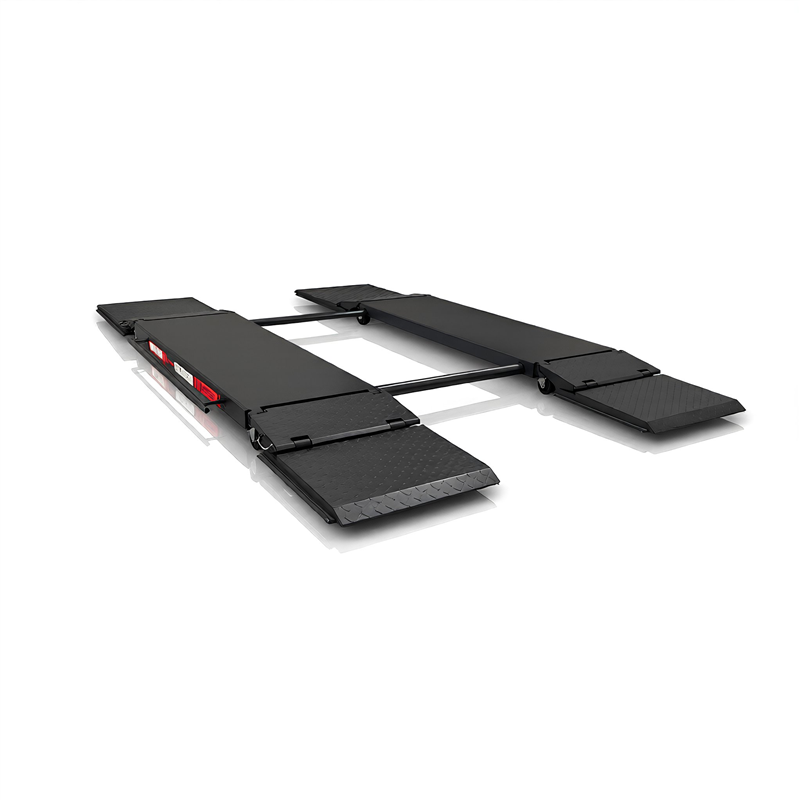

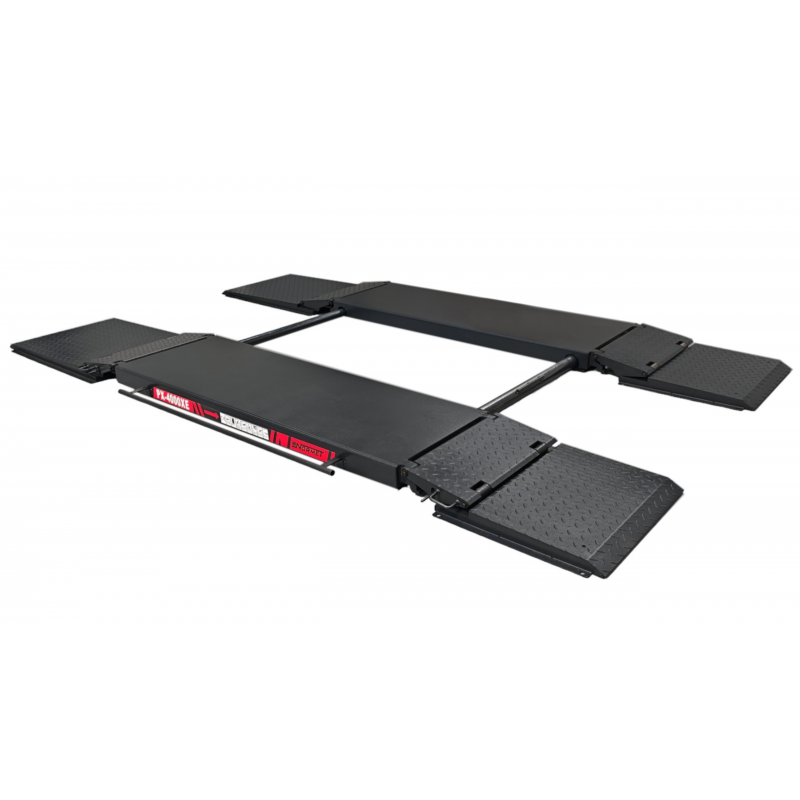

LOW PLATFORM

The platform is only 10.5 cm high, so it's not a problem for low-suspension cars.

OPTIONAL RAID EXTENSIONS

If the standard ramps are not sufficient, you can buy special extensions that start from less than 3 cm above the ground, so very low cars will be able to climb onto our lift.

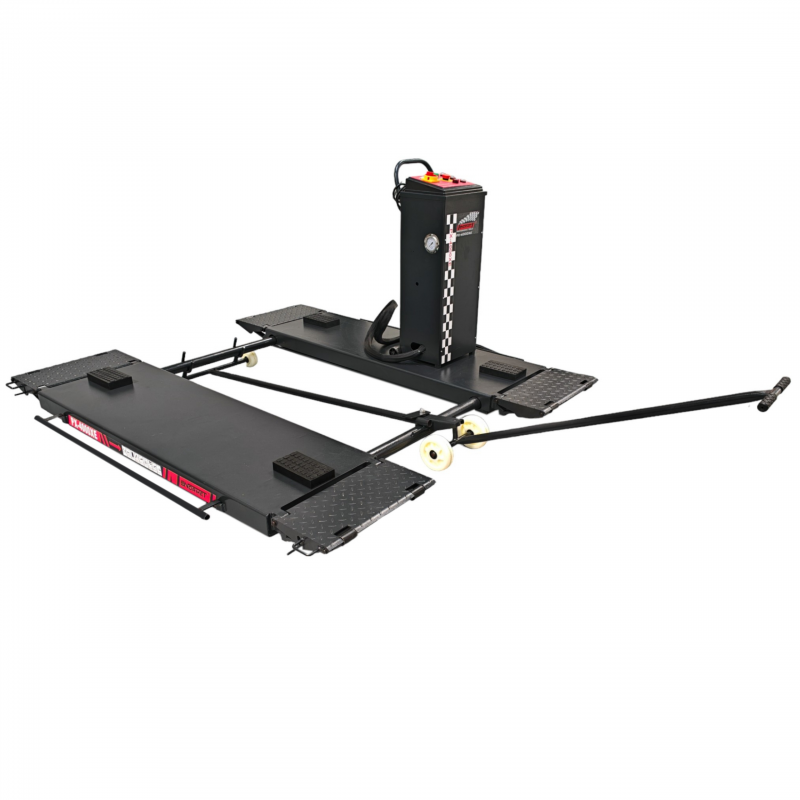

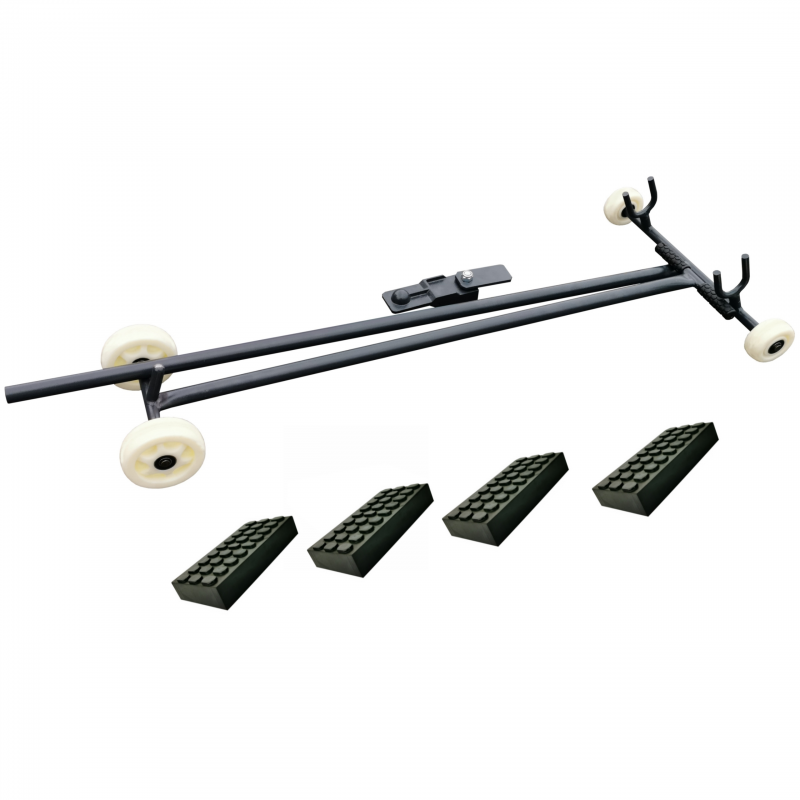

MOBILE KIT

It allows one person to quickly move the lift without load on a paved surface.

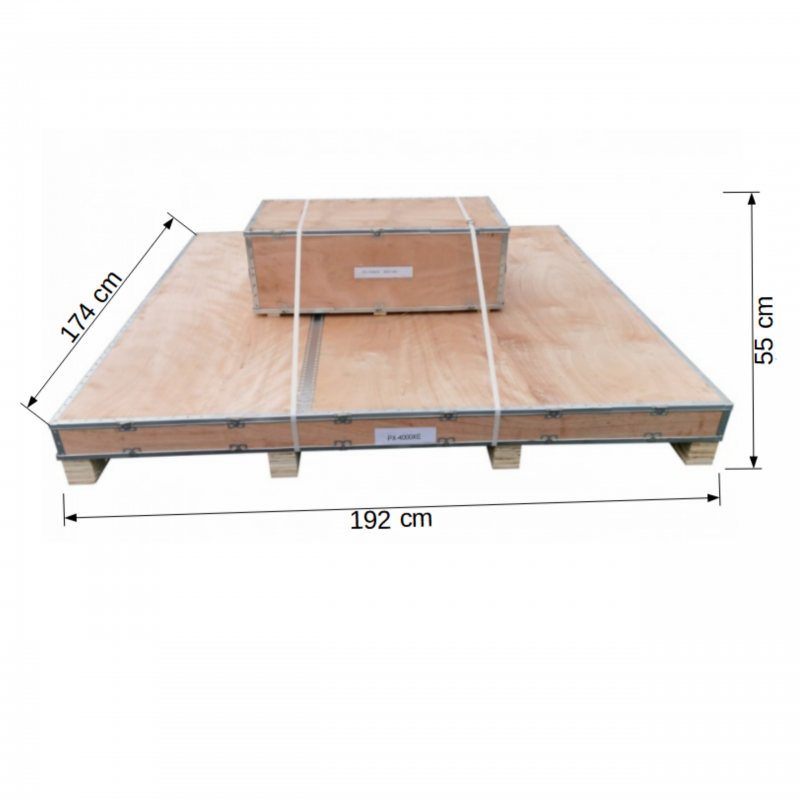

SECURE FOR SHIPPING

The lift and wheelhouse are located on a pallet in a plywood box, so any damage during transport is unlikely, but you should always check it with the courier.

SET CONTAINS:

Control box 1 pcs
Lifting platform 2 pcs ( permanently connected )
Ramp 4 pcs
Rubber pad 4 pcs
Mobile kit 1 pcs
Oil 5L
